Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

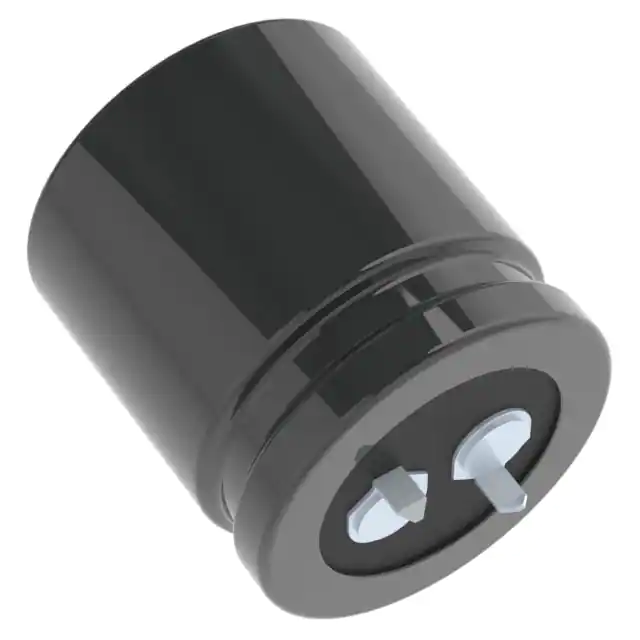

EKMZ451VSN331MR30S CAP ALUM 330UF 20% 450V SNAP United Chemi-Con	344	-	RFQ	Datasheet	Box	KMZ	Active	330 µF	±20%	450 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.43 A @ 120 Hz	2.045 A @ 50 kHz	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.280 (32.50mm)	-	Through Hole
SLPX153M016C3P3 CAP ALUM 15000UF 20% 16V SNAP Cornell Dubilier Electronics (CDE)	5,975	-	RFQ	Datasheet	Bulk	SLPX	Active	15000 µF	±20%	16 V	44mOhm @ 120Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.64 A @ 120 Hz	4.55 A @ 20 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.181 (30.00mm)	-	Through Hole

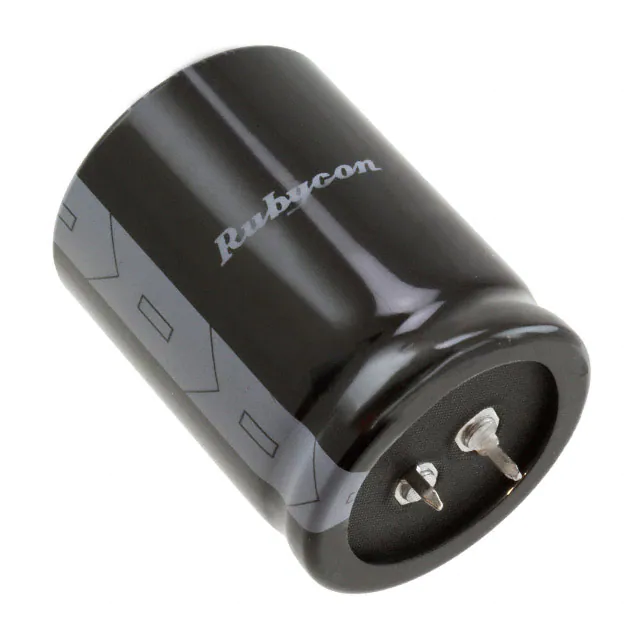

450HXG470MEFCSN35X45 CAP ALUM 470UF 20% 450V SNAP Rubycon	996	-	RFQ	Datasheet	Bulk	HXG	Active	470 µF	±20%	450 V	-	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	2.92 A @ 120 Hz	4.088 A @ 10 kHz	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	1.850 (47.00mm)	-	Through Hole
226TTA250M CAP ALUM 22UF 20% 250V AXIAL Cornell Dubilier / Illinois Capacitor	8,894	-	RFQ	Datasheet	Bulk	TTA	Active	22 µF	±20%	250 V	15.072Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	160 mA @ 120 Hz	244.8 mA @ 50 kHz	-	-	0.512 Dia x 1.024 L (13.00mm x 26.00mm)	-	-	Through Hole
381LX102M050H202 CAP ALUM 1000UF 20% 50V SNAP Cornell Dubilier Electronics (CDE)	2,061	-	RFQ	Datasheet	Bulk	381LX	Active	1000 µF	±20%	50 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	900 mA @ 120 Hz	1 A @ 20 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	0.866 (22.00mm)	-	Through Hole

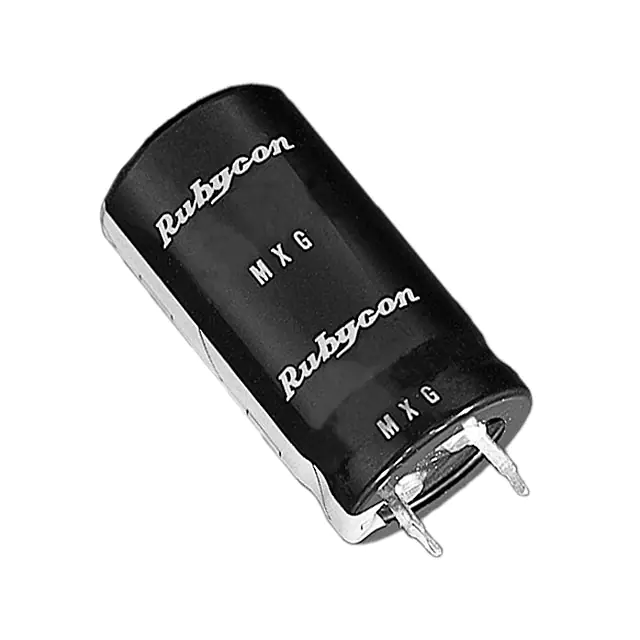

63MXG12000MEFCSN35X45 CAP ALUM 12000UF 20% 63V SNAP Rubycon	135	-	RFQ	Datasheet	Bulk	MXG	Active	12000 µF	±20%	63 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	4.75 A @ 120 Hz	5.4625 A @ 10 kHz	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	1.850 (47.00mm)	-	Through Hole

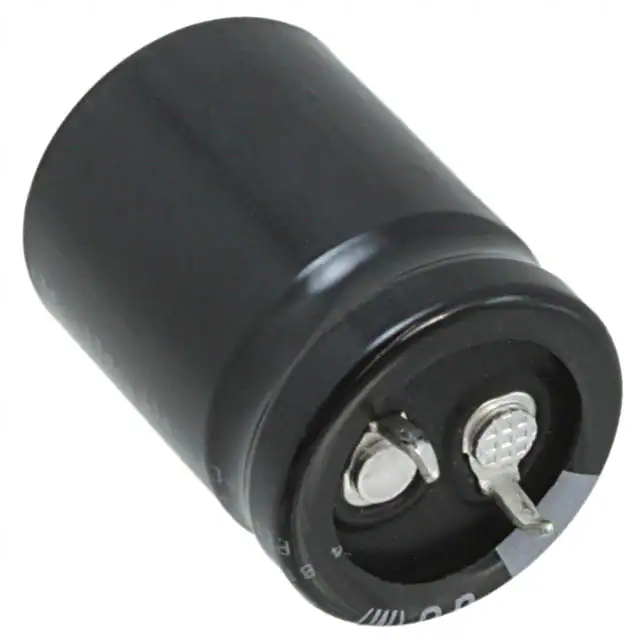

LGU1K122MELZ CAP ALUM 1200UF 20% 80V SNAP Nichicon	2,250	-	RFQ	Datasheet	Bulk	LGU	Active	1200 µF	±20%	80 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.44 A @ 120 Hz	1.656 A @ 50 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.260 (32.00mm)	-	Through Hole
MAL214651681E3 CAP ALUM 680UF 20% 50V RADIAL Vishay Beyschlag/Draloric/BC Components	2,033	-	RFQ	Datasheet	Bulk	146 RTI	Active	680 µF	±20%	50 V	-	5000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	-	1.7 A @ 100 kHz	50 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
MAL225090105E3 CAP ALUM 1000UF 20% 35V RADIAL Vishay Beyschlag/Draloric/BC Components	163	-	RFQ	Datasheet	Box	250 RMI-V	Active	1000 µF	±20%	35 V	-	7000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Audio, Automotive	1.398 A @ 100 Hz	1.84 A @ 100 kHz	28 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole

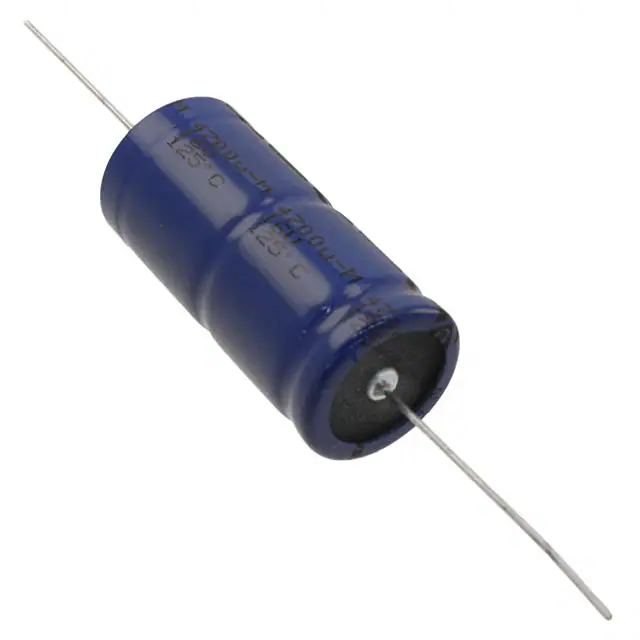

MAL211816472E3 CAP ALUM 4700UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	272	-	RFQ	Datasheet	Bulk	118 AHT	Active	4700 µF	±20%	25 V	95mOhm	8000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	2.052 A @ 10 kHz	100 mOhms	-	0.827 Dia x 1.496 L (21.00mm x 38.00mm)	-	-	Through Hole
EKZN101ELL561MM25S CAP ALUM 560UF 20% 100V RADIAL United Chemi-Con	1,515	-	RFQ	Datasheet	Bulk	KZN	Active	560 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.25 A @ 120 Hz	2.5 A @ 100 kHz	27 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.043 (26.50mm)	-	Through Hole

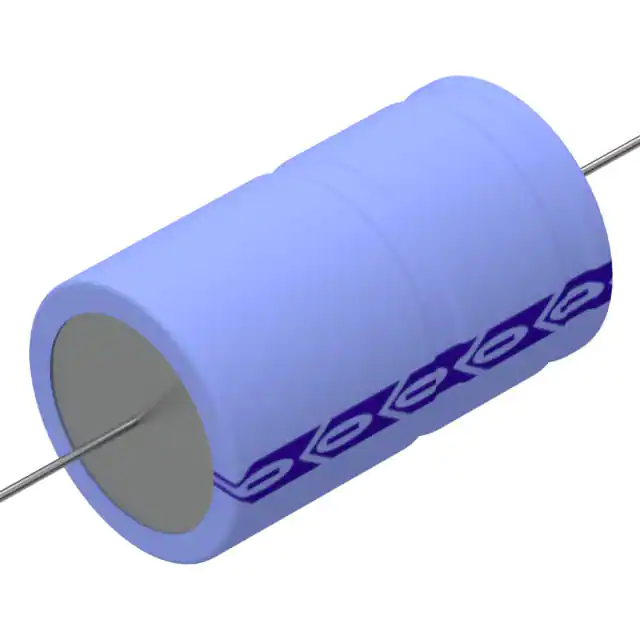

MAL204213479E3 CAP ALUM 47UF 250V AXIAL Vishay Beyschlag/Draloric/BC Components	811	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	042 ASH	Active	47 µF	-10%, +50%	250 V	3.2Ohm @ 100Hz	15000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	400 mA @ 100 Hz	-	2.3 Ohms	-	0.709 Dia x 1.181 L (18.00mm x 30.00mm)	-	-	Through Hole
381LX472M025H012 CAP ALUM 4700UF 20% 25V SNAP Cornell Dubilier Electronics (CDE)	7,367	-	RFQ	Datasheet	Bulk	381LX	Active	4700 µF	±20%	25 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2 A @ 120 Hz	2.3 A @ 20 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.063 (27.00mm)	-	Through Hole

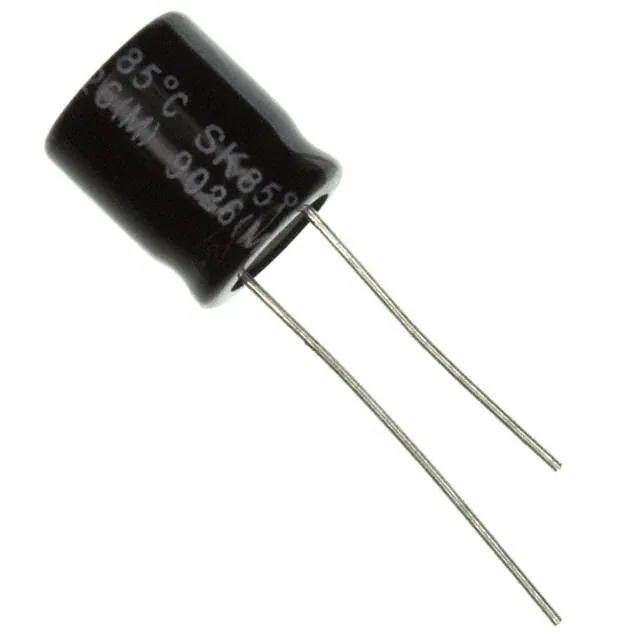

SK221M035ST CAP ALUM 220UF 20% 35V RADIAL Cornell Dubilier Electronics (CDE)	7,060	-	RFQ	Datasheet	Bulk	SK	Active	220 µF	±20%	35 V	720mOhm	2000 Hrs @ 85°C	-40°C ~ 85°C	-	-	General Purpose	-	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.591 (15.00mm)	-	Through Hole
MAL204211101E3 CAP ALUM 100UF 160V AXIAL Vishay Beyschlag/Draloric/BC Components	500	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	042 ASH	Active	100 µF	-10%, +50%	160 V	1.5Ohm @ 100Hz	15000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	580 mA @ 100 Hz	-	1 Ohms	-	0.709 Dia x 1.181 L (18.00mm x 30.00mm)	-	-	Through Hole
MAL211818102E3 CAP ALUM 1000UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	539	-	RFQ	Datasheet	Bulk	118 AHT	Active	1000 µF	±20%	63 V	160mOhm	8000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	1.82 A @ 10 kHz	200 mOhms	-	0.827 Dia x 1.496 L (21.00mm x 38.00mm)	-	-	Through Hole

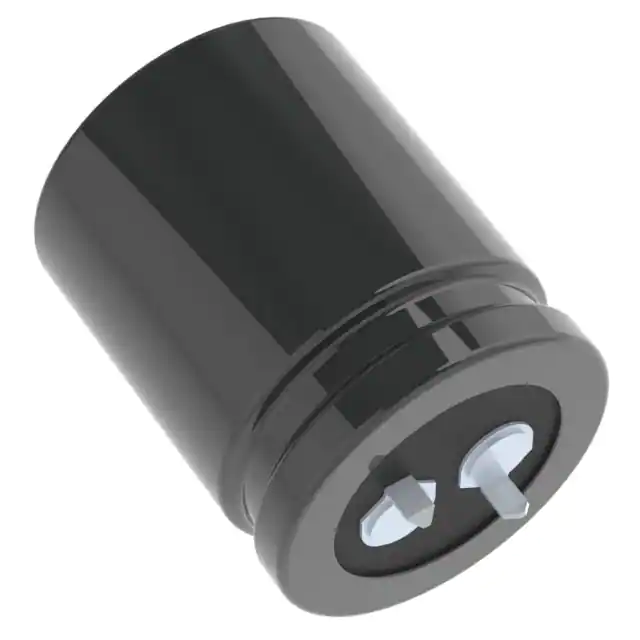

EKMZ451VSN391MR35S CAP ALUM 390UF 20% 450V SNAP United Chemi-Con	2,648	-	RFQ	Datasheet	Box	KMZ	Active	390 µF	±20%	450 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.59 A @ 120 Hz	2.274 A @ 50 kHz	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.476 (37.50mm)	-	Through Hole

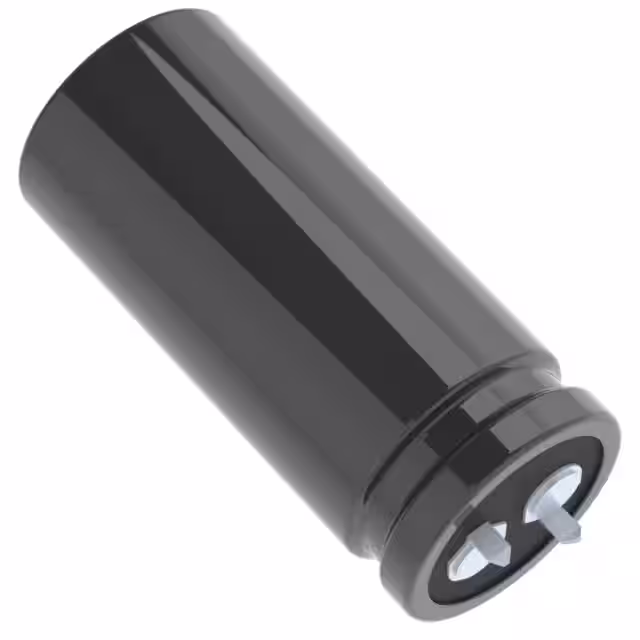

EKMZ451VSN471MQ55S CAP ALUM 470UF 20% 450V SNAP United Chemi-Con	213	-	RFQ	Datasheet	Box	KMZ	Active	470 µF	±20%	450 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.91 A @ 120 Hz	2.731 A @ 50 kHz	-	0.394 (10.00mm)	1.000 Dia (25.40mm)	2.264 (57.50mm)	-	Through Hole
SLPX682M035C3P3 CAP ALUM 6800UF 20% 35V SNAP Cornell Dubilier Electronics (CDE)	12,661	-	RFQ	Datasheet	Bulk	SLPX	Active	6800 µF	±20%	35 V	78mOhm @ 120Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.89 A @ 120 Hz	3.61 A @ 20 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.181 (30.00mm)	-	Through Hole

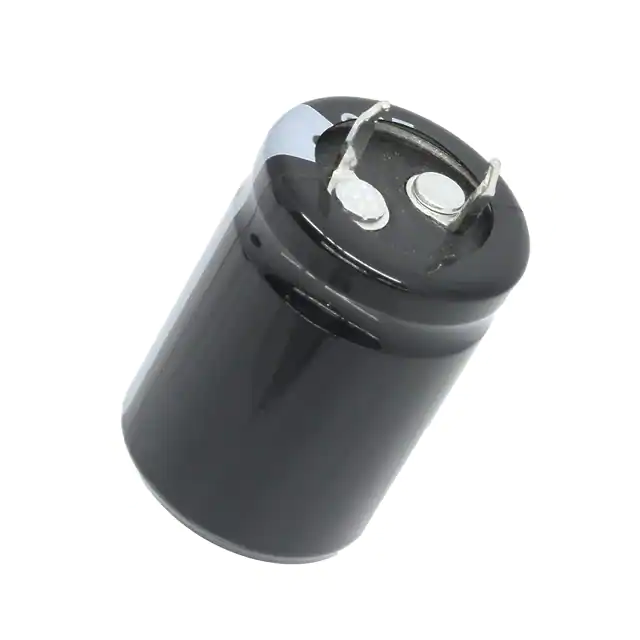

SLP221M250A3P3 CAP ALUM 220UF 20% 250V SNAP Cornell Dubilier Electronics (CDE)	1,524	-	RFQ	Datasheet	Bulk	SLP0712TE (750W)	Active	220 µF	±20%	250 V	905mOhm @ 120Hz	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1 A @ 120 Hz	-	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.181 (30.00mm)	-	Through Hole
