Aluminum Electrolytic Capacitors- Page 147

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

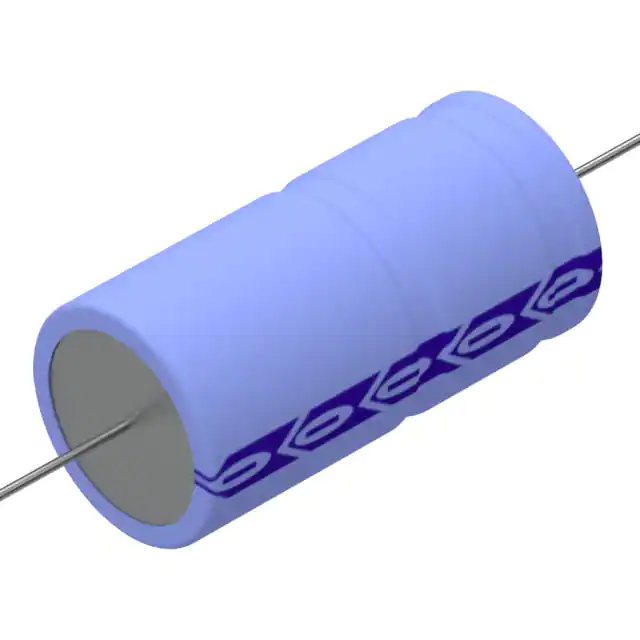

MAL204215229E3 CAP ALUM 22UF 350V AXIAL Vishay Beyschlag/Draloric/BC Components	395	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	042 ASH	Active	22 µF	-10%, +50%	350 V	6.8Ohm @ 100Hz	15000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	250 mA @ 100 Hz	-	4.5 Ohms	-	0.591 Dia x 1.181 L (15.00mm x 30.00mm)	-	-	Through Hole

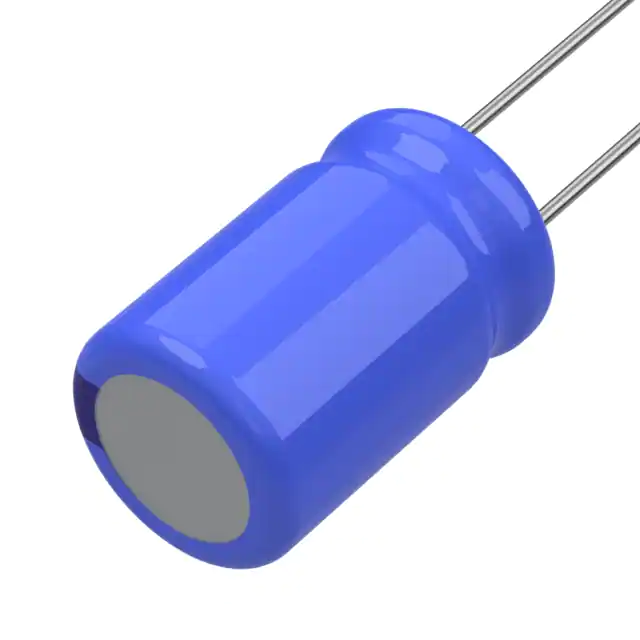

MAL213661471E3 CAP ALUM 470UF 20% 50V RADIAL Vishay Beyschlag/Draloric/BC Components	1,899	-	RFQ	Datasheet	Bulk	136 RVI	Active	470 µF	±20%	50 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	750 mA @ 100 Hz	-	44 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

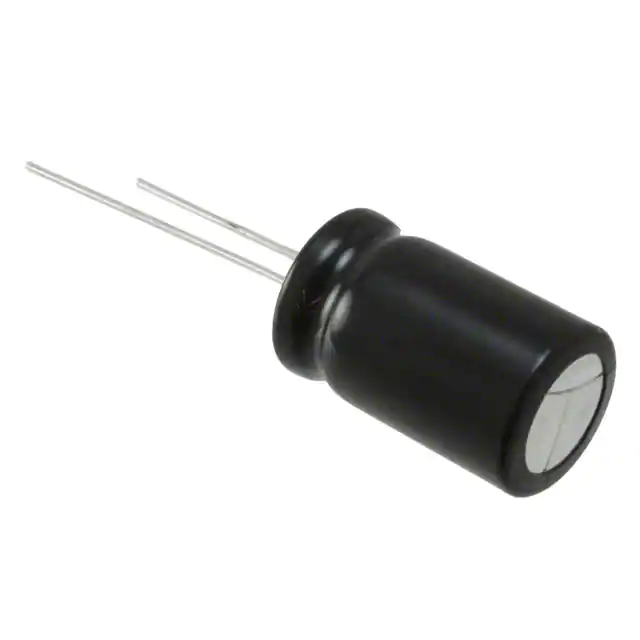

EEU-HD1E332 CAP ALUM 3300UF 20% 25V RADIAL Panasonic Electronic Components	3,775	-	RFQ	Datasheet	Bulk	HD	Active	3300 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.4 A @ 120 Hz	1.61 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

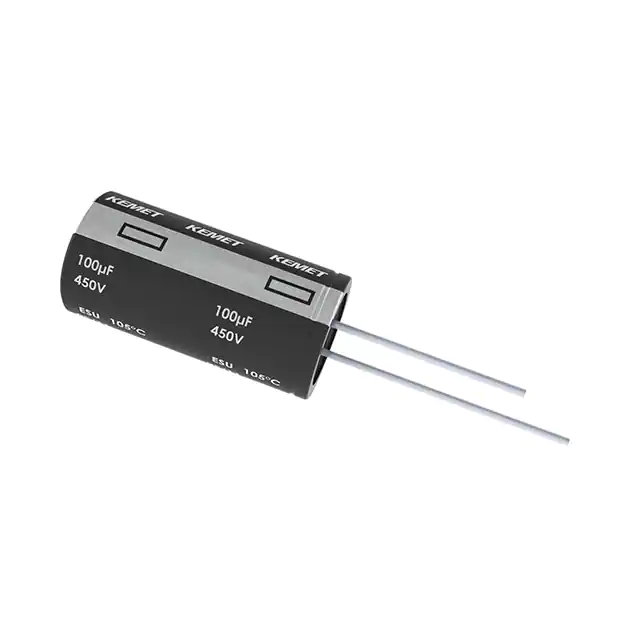

ESU476M450AM3AA CAP ALUM 47UF 20% 450V RADIAL KEMET	1,134	-	RFQ	Datasheet	Bulk	ESU	Active	47 µF	±20%	450 V	-	12000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	440 mA @ 120 Hz	880 mA @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.496 (38.00mm)	-	Through Hole

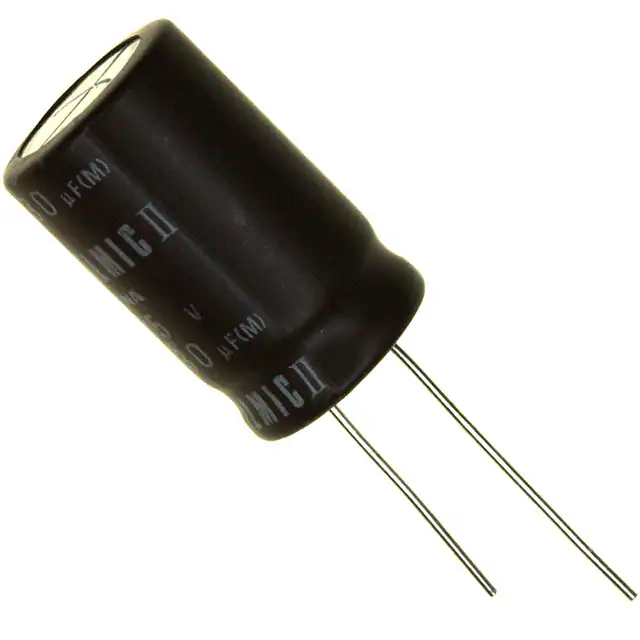

RFS-100V101MJ6#5 CAP ALUM 100UF 20% 100V RADIAL Elna America	1,991	-	RFQ	Datasheet	Bulk	RFS, SILMIC II	Last Time Buy	100 µF	±20%	100 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	485 mA @ 120 Hz	-	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.984 (25.00mm)	-	Through Hole

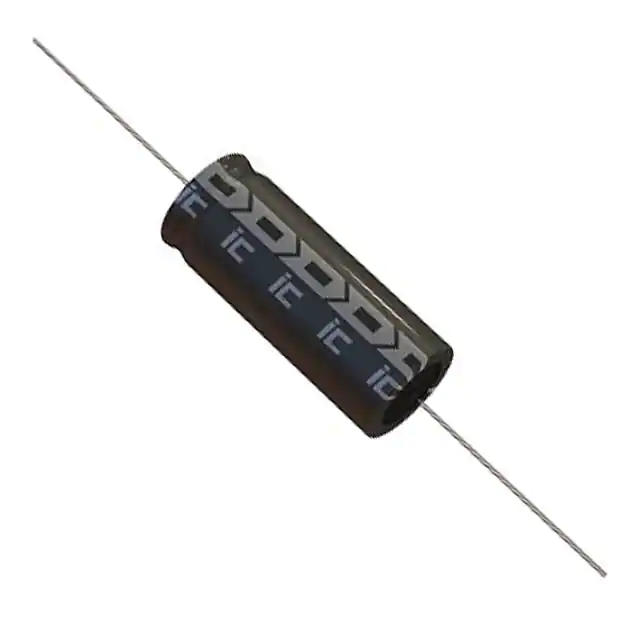

108TMA050M CAP ALUM 1000UF 20% 50V AXIAL Cornell Dubilier / Illinois Capacitor	1,663	-	RFQ	Datasheet	Bulk	TMA	Active	1000 µF	±20%	50 V	199mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	890 mA @ 120 Hz	1.0235 A @ 50 kHz	-	-	0.630 Dia x 1.220 L (16.00mm x 31.00mm)	-	-	Through Hole

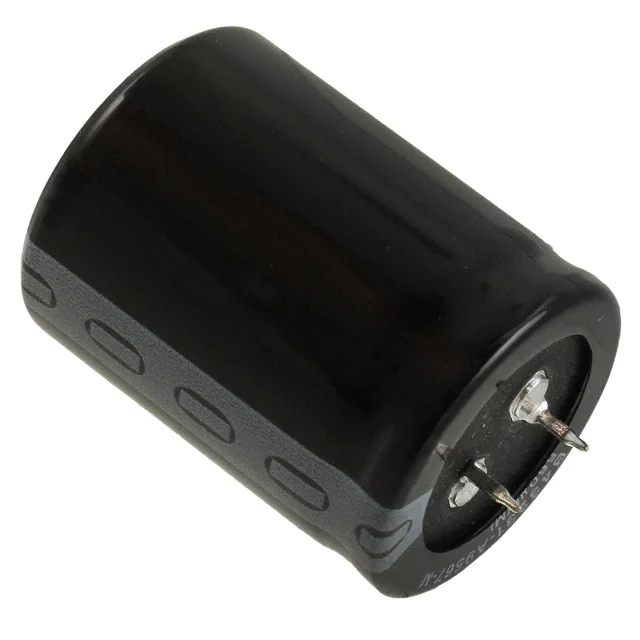

B41231A0828M000 CAP ALUM 8200UF 20% 80V SNAP EPCOS - TDK Electronics	120	-	RFQ	Datasheet	Bulk	B41231	Active	8200 µF	±20%	80 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	6.91 A @ 120 Hz	-	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	1.850 (47.00mm)	-	Through Hole

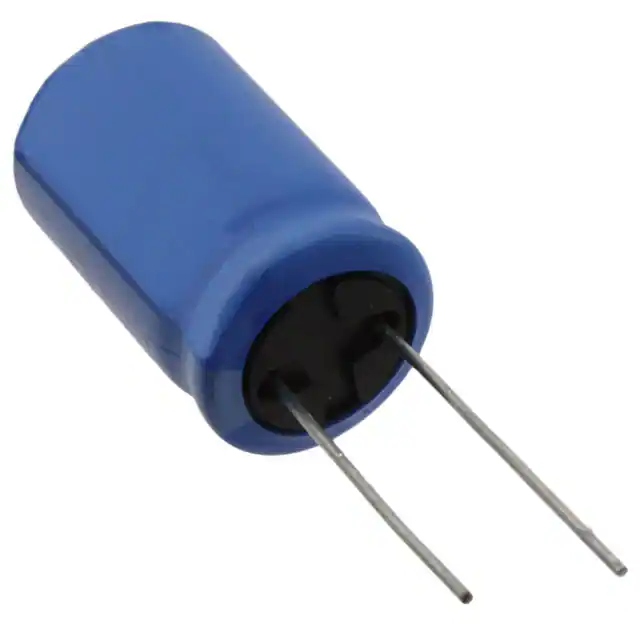

UBT1H102MHD CAP ALUM 1000UF 20% 50V RADIAL Nichicon	1,465	-	RFQ	Datasheet	Bulk	UBT	Active	1000 µF	±20%	50 V	-	10000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	1.628 A @ 120 Hz	2.43 A @ 100 kHz	31 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)	-	Through Hole

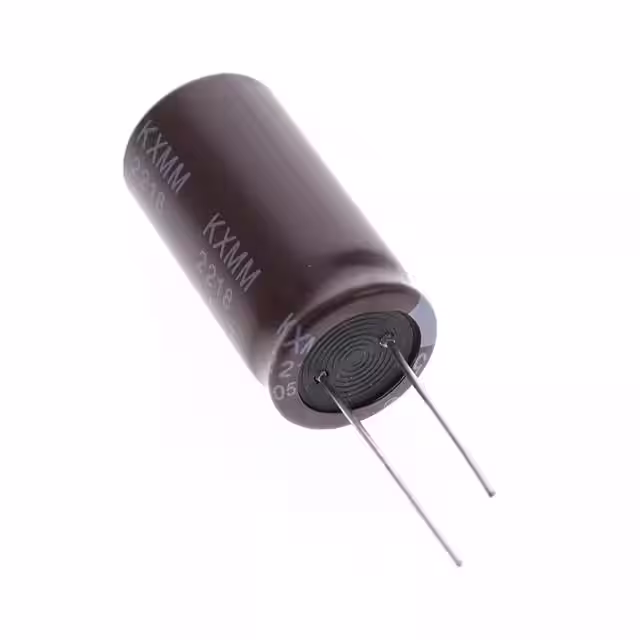

228KXM050M CAP ALUM 2200UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	2,019	-	RFQ	Datasheet	Bulk	KXM	Active	2200 µF	±20%	50 V	105.5mOhm @ 120Hz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.768 A @ 120 Hz	3.69 A @ 100 kHz	55 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.457 (37.00mm)	-	Through Hole

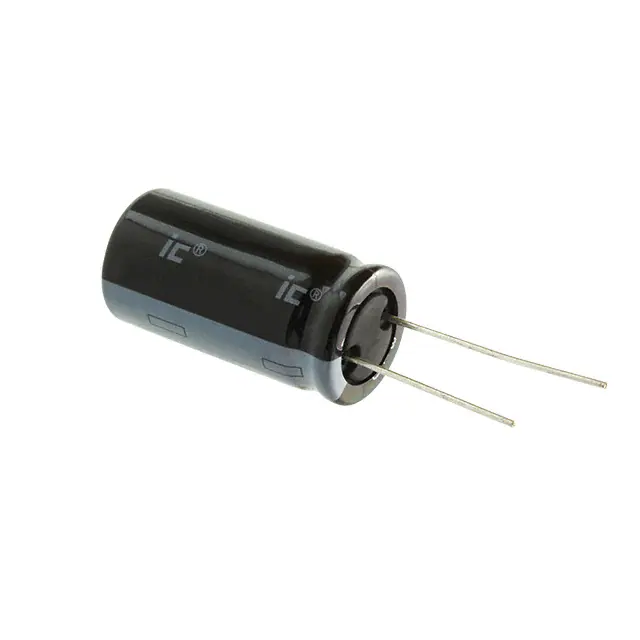

478CKS035MQY CAP ALUM 4700UF 20% 35V RADIAL Cornell Dubilier / Illinois Capacitor	1,641	-	RFQ	Datasheet	Bulk	CKS	Active	4700 µF	±20%	35 V	71mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.5 A @ 120 Hz	3.5 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.437 (36.50mm)	-	Through Hole

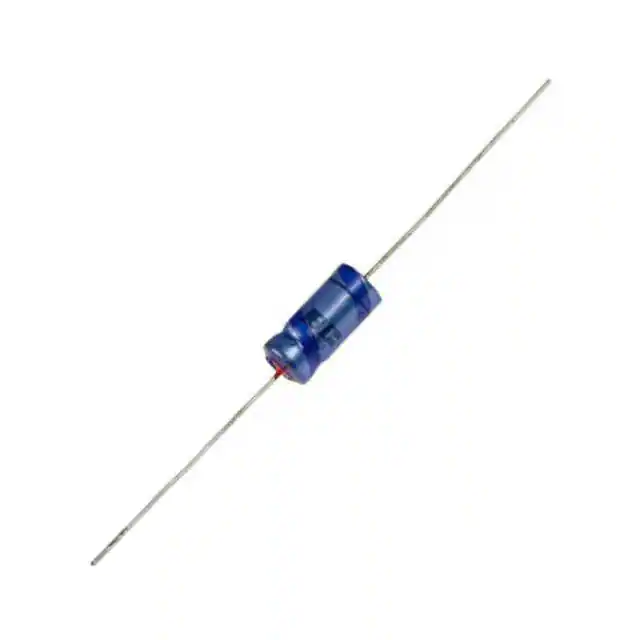

MAL211892101E3 CAP ALUM 100UF 20% 200V AXIAL Vishay Beyschlag/Draloric/BC Components	1,126	-	RFQ	Datasheet	Bulk	118 AHT	Active	100 µF	±20%	200 V	960mOhm	8000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	854 mA @ 10 kHz	390 mOhms	-	0.827 Dia x 1.496 L (21.00mm x 38.00mm)	-	-	Through Hole
MAL214699813E3 CAP ALUM 820UF 20% 63V SMD Vishay Beyschlag/Draloric/BC Components	739	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	820 µF	±20%	63 V	-	6000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	780 mA @ 100 Hz	1.3 A @ 100 kHz	75 mOhms	-	0.630 Dia (16.00mm)	0.866 (22.00mm)	0.630 L x 0.630 W (16.00mm x 16.00mm)	Surface Mount

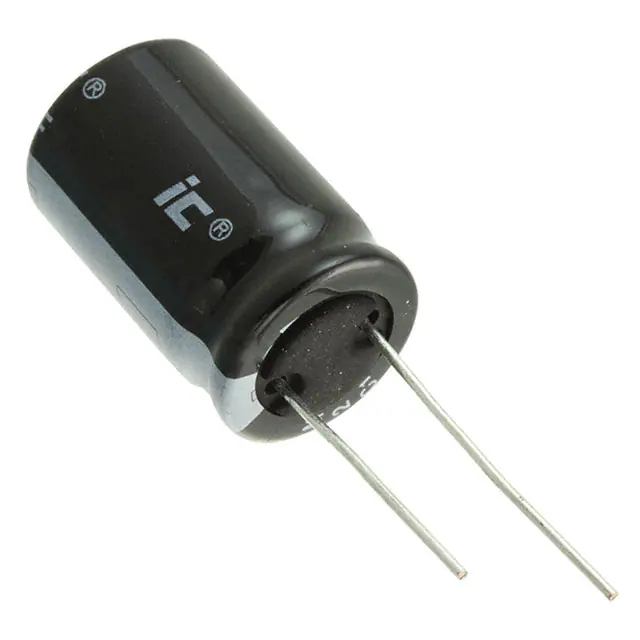

478CKS035M CAP ALUM 4700UF 20% 35V RADIAL Cornell Dubilier / Illinois Capacitor	31,428	-	RFQ	Datasheet	Bulk	CKS	Active	4700 µF	±20%	35 V	71mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.4 A @ 120 Hz	4.76 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.437 (36.50mm)	-	Through Hole
SLPX332M050C1P3 CAP ALUM 3300UF 20% 50V SNAP Cornell Dubilier Electronics (CDE)	2,162	-	RFQ	Datasheet	Bulk	SLPX	Active	3300 µF	±20%	50 V	141mOhm @ 120Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.38 A @ 120 Hz	2.98 A @ 20 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	0.984 (25.00mm)	-	Through Hole
477CKS100M CAP ALUM 470UF 20% 100V RADIAL Cornell Dubilier / Illinois Capacitor	1,722	-	RFQ	Datasheet	Bulk	CKS	Active	470 µF	±20%	100 V	282mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.395 A @ 120 Hz	2.30175 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
478CKS025M CAP ALUM 4700UF 20% 25V RADIAL Cornell Dubilier / Illinois Capacitor	5,527	-	RFQ	Datasheet	Bulk	CKS	Active	4700 µF	±20%	25 V	78mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.855 A @ 120 Hz	3.997 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.240 (31.50mm)	-	Through Hole

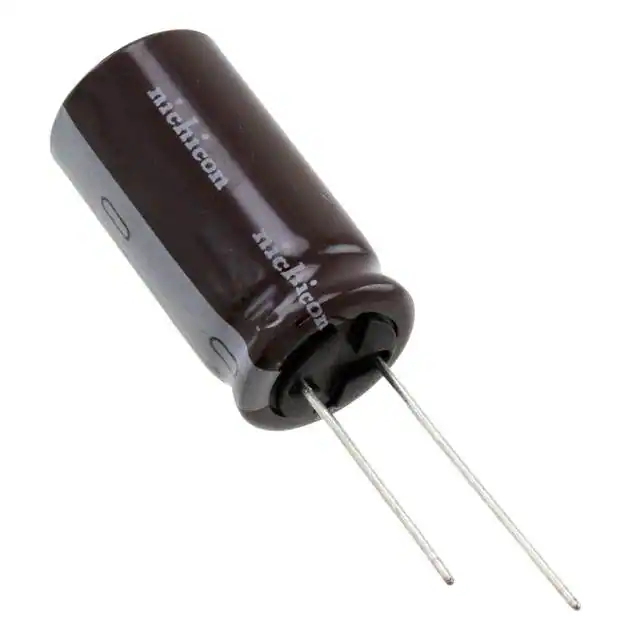

UCY2D221MHD CAP ALUM 220UF 20% 200V RADIAL Nichicon	5,272	-	RFQ	Datasheet	Bulk	UCY	Active	220 µF	±20%	200 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.23 A @ 120 Hz	2.46 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.299 (33.00mm)	-	Through Hole
EEE-TP1K681V CAP ALUM 680UF 20% 80V SMD Panasonic Electronic Components	1,652	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TP, Anti-Vibration	Active	680 µF	±20%	80 V	68mOhm @ 100kHz	4000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	1.95 A @ 120 Hz	2.6 A @ 100 kHz	-	-	0.709 Dia (18.00mm)	0.866 (22.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount

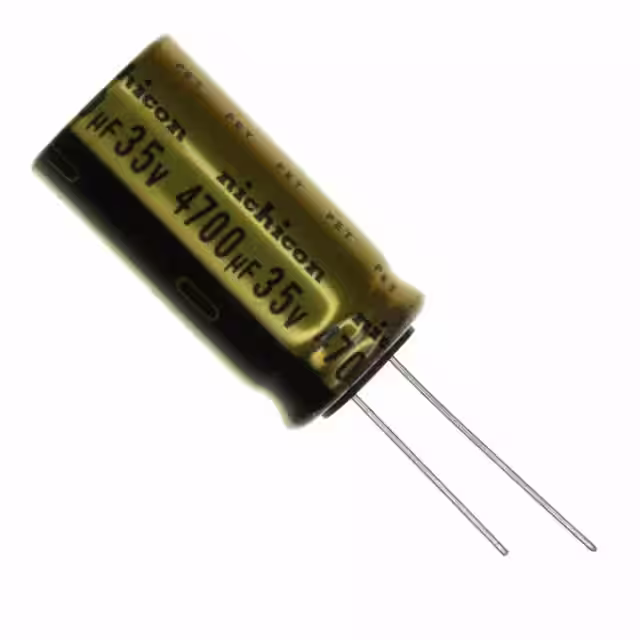

UFW1V472MHD CAP ALUM 4700UF 20% 35V RADIAL Nichicon	7,347	-	RFQ	Datasheet	Bulk	UFW	Not For New Designs	4700 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	2.49 A @ 120 Hz	2.8635 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.398 (35.50mm)	-	Through Hole
SLP682M025C1P3 CAP ALUM 6800UF 20% 25V SNAP Cornell Dubilier Electronics (CDE)	1,279	-	RFQ	Datasheet	Bulk	SLP0712TE (750W)	Active	6800 µF	±20%	25 V	88mOhm @ 120Hz	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.4 A @ 120 Hz	3 A @ 20 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	0.984 (25.00mm)	-	Through Hole
