Aluminum Electrolytic Capacitors- Page 146

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
MAL213817332E3 CAP ALUM 3300UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	1,344	-	RFQ	Datasheet	Bulk	138 AML	Active	3300 µF	±20%	40 V	79mOhm @ 100Hz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	1.81 A @ 100 Hz	2.534 A @ 10 kHz	61 mOhms	-	0.827 Dia x 1.496 L (21.00mm x 38.00mm)	-	-	Through Hole

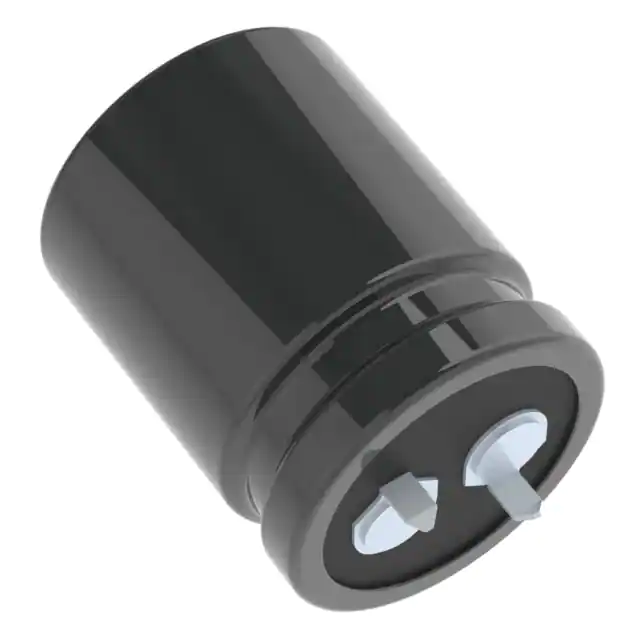

EKMZ451VSN221MQ30S CAP ALUM 220UF 20% 450V SNAP United Chemi-Con	1,932	-	RFQ	Datasheet	Box	KMZ	Active	220 µF	±20%	450 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.16 A @ 120 Hz	1.659 A @ 50 kHz	-	0.394 (10.00mm)	1.000 Dia (25.40mm)	1.280 (32.50mm)	-	Through Hole
228TTA016M CAP ALUM 2200UF 20% 16V AXIAL Cornell Dubilier / Illinois Capacitor	1,457	-	RFQ	Datasheet	Bulk	TTA	Active	2200 µF	±20%	16 V	180.9mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.19 A @ 120 Hz	1.5232 A @ 50 kHz	-	-	0.512 Dia x 1.220 L (13.00mm x 31.00mm)	-	-	Through Hole

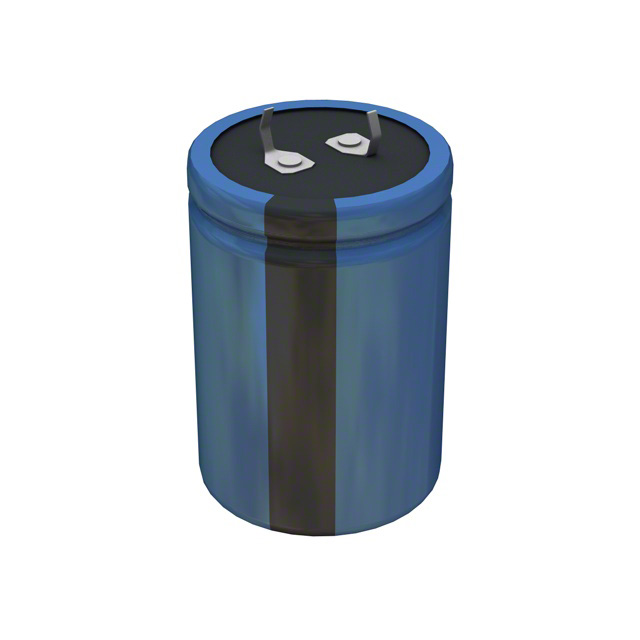

381LX103M063A052 CAP ALUM 10000UF 20% 63V SNAP Cornell Dubilier Electronics (CDE)	3,712	-	RFQ	Datasheet	Bulk	381LX	Active	10000 µF	±20%	63 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	4.4 A @ 120 Hz	5.1 A @ 20 kHz	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	2.047 (52.00mm)	-	Through Hole
SLPX153M010C1P3 CAP ALUM 15000UF 20% 10V SNAP Cornell Dubilier Electronics (CDE)	4,180	-	RFQ	Datasheet	Bulk	SLPX	Active	15000 µF	±20%	10 V	49mOhm @ 120Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.88 A @ 120 Hz	3.6 A @ 20 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	0.984 (25.00mm)	-	Through Hole
338CKS025M CAP ALUM 3300UF 20% 25V RADIAL Cornell Dubilier / Illinois Capacitor	1,627	-	RFQ	Datasheet	Bulk	CKS	Active	3300 µF	±20%	25 V	703mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.305 A @ 120 Hz	3.227 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole

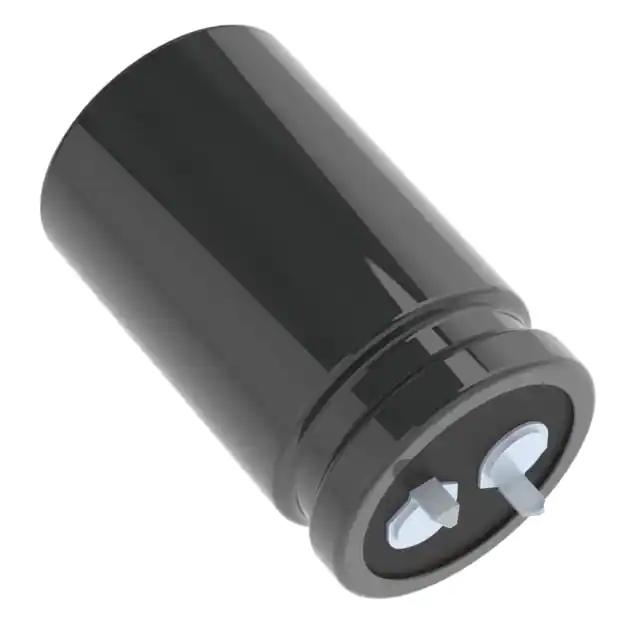

ELXS451VSN221MQ40S CAP ALUM 220UF 20% 450V SNAP United Chemi-Con	1,163	-	RFQ	Datasheet	Bulk	LXS	Active	220 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.2 A @ 120 Hz	1.716 A @ 50 kHz	-	0.394 (10.00mm)	1.000 Dia (25.40mm)	1.673 (42.50mm)	-	Through Hole

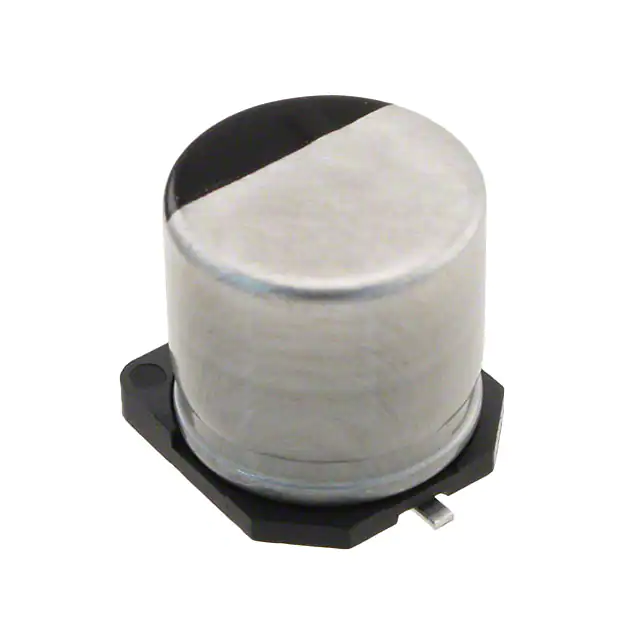

EEE-TP1K681M CAP ALUM 680UF 20% 80V SMD Panasonic Electronic Components	2,114	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TP	Active	680 µF	±20%	80 V	68mOhm @ 100kHz	4000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	1.95 A @ 120 Hz	2.6 A @ 100 kHz	-	-	0.709 Dia (18.00mm)	0.866 (22.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount
EEE-TP1J102M CAP ALUM 1000UF 20% 63V SMD Panasonic Electronic Components	549	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TP	Active	1000 µF	±20%	63 V	68mOhm @ 100kHz	4000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	1.95 A @ 120 Hz	2.6 A @ 100 kHz	-	-	0.709 Dia (18.00mm)	0.866 (22.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount
MAL214651471E3 CAP ALUM 470UF 20% 50V RADIAL Vishay Beyschlag/Draloric/BC Components	2,860	-	RFQ	Datasheet	Bulk	146 RTI	Active	470 µF	±20%	50 V	-	3000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	-	1.25 A @ 100 kHz	65 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
MAL214699008E3 CAP ALUM 1000UF 20% 35V SMD Vishay Beyschlag/Draloric/BC Components	1,389	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	1000 µF	±20%	35 V	-	5000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	910 mA @ 100 Hz	1.4 A @ 100 kHz	50 mOhms	-	0.630 Dia (16.00mm)	0.689 (17.50mm)	0.630 L x 0.630 W (16.00mm x 16.00mm)	Surface Mount

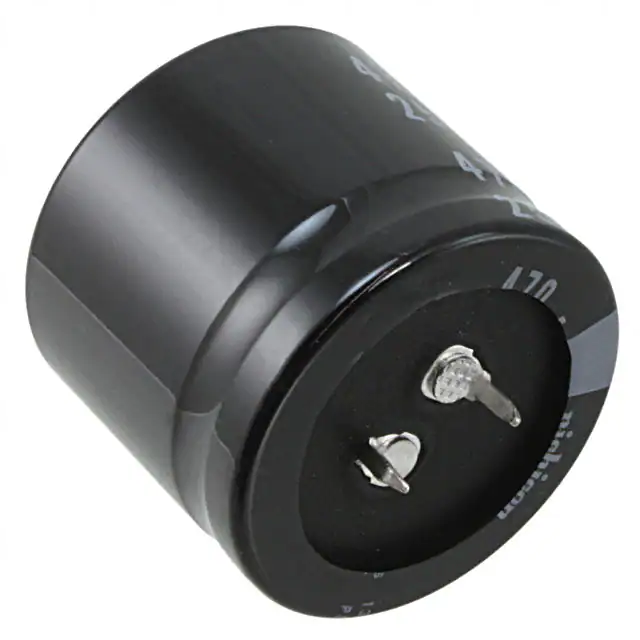

LGR2G221MELC30 CAP ALUM 220UF 20% 400V SNAP Nichicon	1,752	-	RFQ	Datasheet	Bulk	LGR	Active	220 µF	±20%	400 V	-	10000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1 A @ 120 Hz	1.43 A @ 50 kHz	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	1.260 (32.00mm)	-	Through Hole
100ZLJ470M16X31.5 CAP ALUM 470UF 20% 100V RADIAL Rubycon	5,698	-	RFQ	Datasheet	Bulk	ZLJ	Active	470 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.452 A @ 120 Hz	2.64 A @ 100 kHz	32 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)	-	Through Hole
SEK101M050ST CAP ALUM 100UF 20% 50V RADIAL Cornell Dubilier Electronics (CDE)	1,049	-	RFQ	Datasheet	Bulk	SEK	Active	100 µF	±20%	50 V	1.59Ohm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	-	General Purpose	-	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.433 (11.00mm)	-	Through Hole

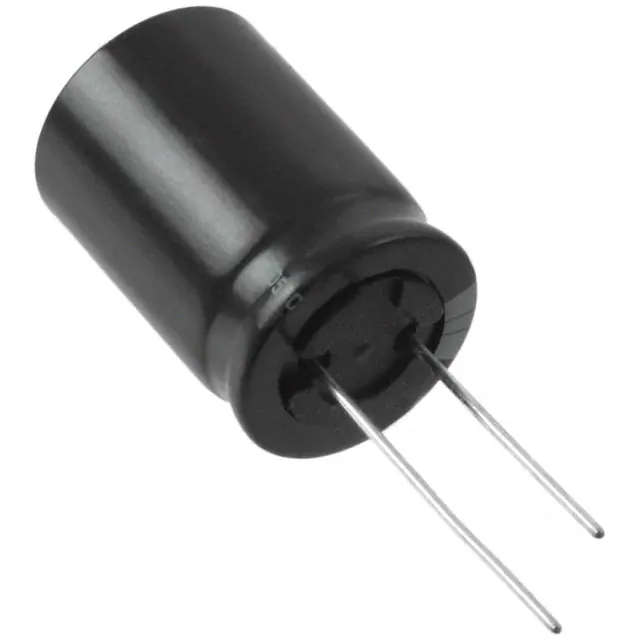

63TXW680MEFC10X50 CAP ALUM 680UF 20% 63V RADIAL Rubycon	1,011	-	RFQ	Datasheet	Bulk	TXW	Active	680 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.71 A @ 120 Hz	3.12 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	2.067 (52.50mm)	-	Through Hole
MAL204211479E3 CAP ALUM 47UF 160V AXIAL Vishay Beyschlag/Draloric/BC Components	537	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	042 ASH	Active	47 µF	-10%, +50%	160 V	3.2Ohm @ 100Hz	15000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	350 mA @ 100 Hz	-	2.1 Ohms	-	0.591 Dia x 1.181 L (15.00mm x 30.00mm)	-	-	Through Hole
MAL215099706E3 CAP ALUM 470UF 20% 80V SMD Vishay Beyschlag/Draloric/BC Components	264	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	150 CRZ	Active	470 µF	±20%	80 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	-	-	120 mOhms	-	0.630 Dia (16.00mm)	0.866 (22.00mm)	0.630 L x 0.630 W (16.00mm x 16.00mm)	Surface Mount
MAL213651471E3 CAP ALUM 470UF 20% 50V RADIAL Vishay Beyschlag/Draloric/BC Components	1,913	-	RFQ	Datasheet	Bulk	136 RVI	Active	470 µF	±20%	50 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	750 mA @ 100 Hz	-	44 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

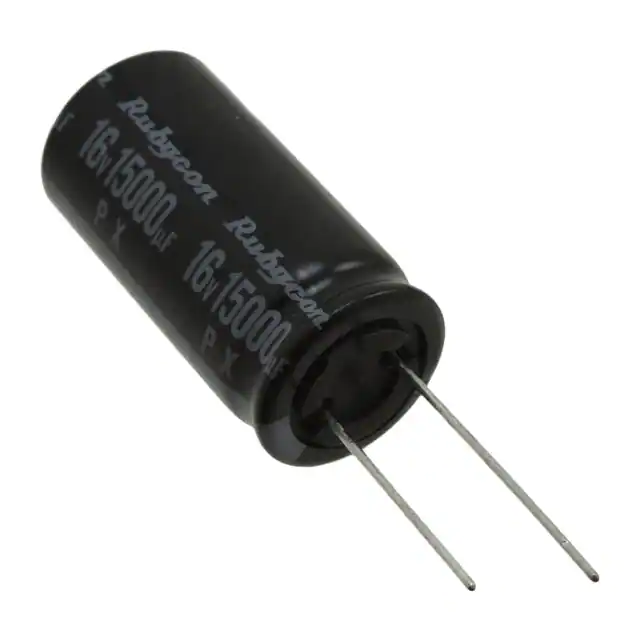

16PX15000MEFC18X35.5 CAP ALUM 15000UF 20% 16V RADIAL Rubycon	12,379	-	RFQ	Datasheet	Bulk	PX	Active	15000 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.07 A @ 120 Hz	2.3805 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.457 (37.00mm)	-	Through Hole

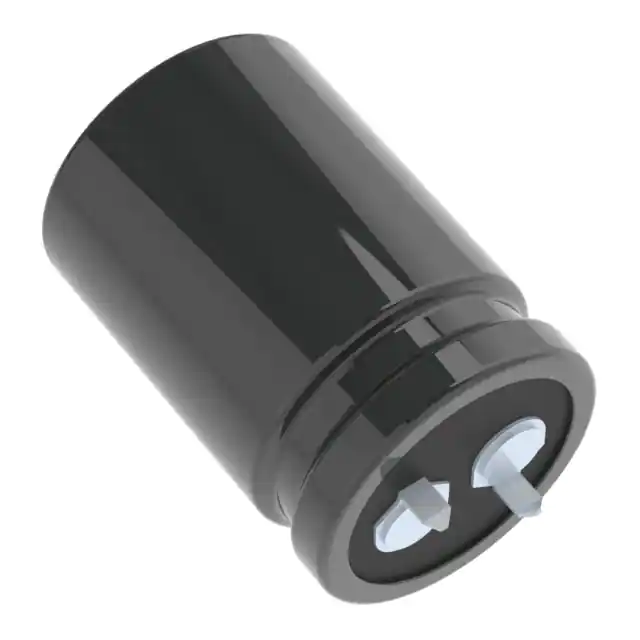

EKMZ451VSN271MQ35S CAP ALUM 270UF 20% 450V SNAP United Chemi-Con	191	-	RFQ	Datasheet	Box	KMZ	Active	270 µF	±20%	450 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.34 A @ 120 Hz	1.916 A @ 50 kHz	-	0.394 (10.00mm)	1.000 Dia (25.40mm)	1.476 (37.50mm)	-	Through Hole
