Aluminum Electrolytic Capacitors- Page 141

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
MAL214251102E3 CAP ALUM 1000UF 20% 50V RADIAL Vishay Beyschlag/Draloric/BC Components	2,000	-	RFQ	Datasheet	Bulk	142 RHS	Active	1000 µF	±20%	50 V	-	2500 Hrs @ 105°C	-40°C ~ 105°C	-	-	General Purpose	-	1.282 A @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
MAL204213229E3 CAP ALUM 22UF 250V AXIAL Vishay Beyschlag/Draloric/BC Components	1,405	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	042 ASH	Active	22 µF	-10%, +50%	250 V	6.8Ohm @ 100Hz	15000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	220 mA @ 100 Hz	-	5 Ohms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole
LGX2D821MELZ50 CAP ALUM 820UF 20% 200V SNAP Nichicon	118	-	RFQ	Datasheet	Bulk	LGX	Active	820 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	2.18 A @ 120 Hz	3.27 A @ 50 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	2.047 (52.00mm)	-	Through Hole
UVZ1J472MRD CAP ALUM 4700UF 20% 63V RADIAL Nichicon	104	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	4700 µF	±20%	63 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.45 A @ 120 Hz	2.8175 A @ 10 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	2.047 (52.00mm)	-	Through Hole
SK471M050ST CAP ALUM 470UF 20% 50V RADIAL Cornell Dubilier Electronics (CDE)	9,491	-	RFQ	Datasheet	Bulk	SK	Active	470 µF	±20%	50 V	280mOhm	2000 Hrs @ 85°C	-40°C ~ 85°C	-	-	General Purpose	-	-	-	0.197 (5.00mm)	0.512 Dia (13.00mm)	0.906 (23.00mm)	-	Through Hole

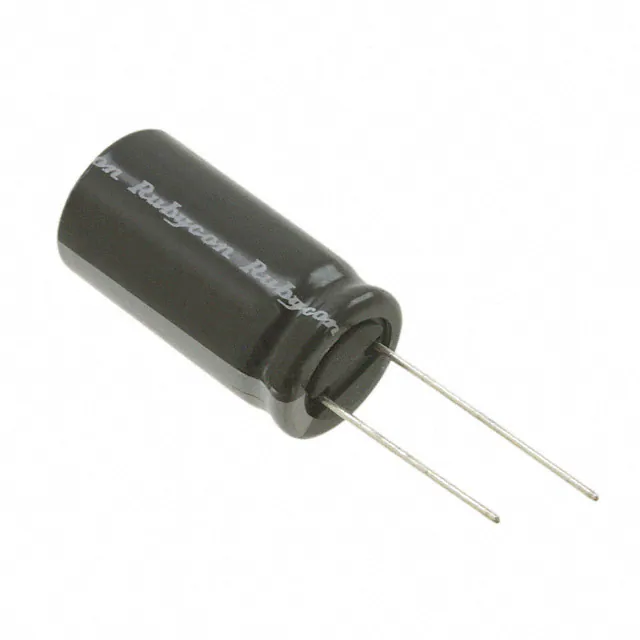

25PK6800MEFC16X31.5 CAP ALUM 6800UF 20% 25V RADIAL Rubycon	4,467	-	RFQ	Datasheet	Bulk	PK	Active	6800 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.44 A @ 120 Hz	2.806 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.299 (33.00mm)	-	Through Hole

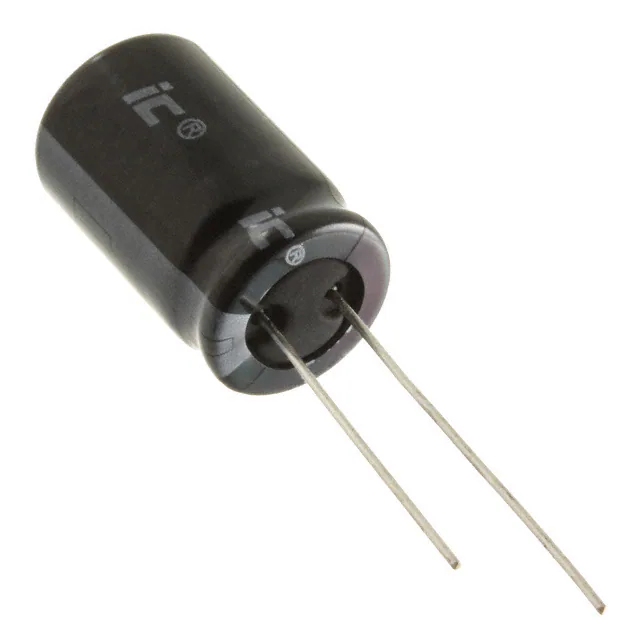

228CKH035M CAP ALUM 2200UF 20% 35V RADIAL Cornell Dubilier / Illinois Capacitor	1,927	-	RFQ	Datasheet	Bulk	CKH	Active	2200 µF	±20%	35 V	121mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.73 A @ 120 Hz	2.422 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.240 (31.50mm)	-	Through Hole
477KXM063MQV CAP ALUM 470UF 20% 63V RADIAL Cornell Dubilier / Illinois Capacitor	9,771	-	RFQ	Datasheet	Bulk	KXM	Active	470 µF	±20%	63 V	352.7mOhm @ 120Hz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	850 mA @ 120 Hz	1.7 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
EKMQ401VSN331MR35S CAP ALUM 330UF 20% 400V SNAP United Chemi-Con	949	-	RFQ	Datasheet	Bulk	KMQ	Active	330 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.44 A @ 120 Hz	2.0592 A @ 50 kHz	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.457 (37.00mm)	-	Through Hole
107TTA100M CAP ALUM 100UF 20% 100V AXIAL Cornell Dubilier / Illinois Capacitor	3,632	-	RFQ	Datasheet	Bulk	TTA	Active	100 µF	±20%	100 V	1.658Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	310 mA @ 120 Hz	474.3 mA @ 50 kHz	-	-	0.394 Dia x 1.063 L (10.00mm x 27.00mm)	-	-	Through Hole
ESE228M050AN2AA CAP ALUM 2200UF 20% 50V RADIAL KEMET	2,261	-	RFQ	Datasheet	Box	ESE	Active	2200 µF	±20%	50 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.36 A @ 120 Hz	1.564 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.496 (38.00mm)	-	Through Hole
158TTA025M CAP ALUM 1500UF 20% 25V AXIAL Cornell Dubilier / Illinois Capacitor	2,651	-	RFQ	Datasheet	Bulk	TTA	Active	1500 µF	±20%	25 V	198.9mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.15 A @ 120 Hz	1.472 A @ 50 kHz	-	-	0.512 Dia x 1.024 L (13.00mm x 26.00mm)	-	-	Through Hole
MAL202116472E3 CAP ALUM 4700UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	777	-	RFQ	Datasheet	Bulk	021 ASM	Active	4700 µF	±20%	25 V	79mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	2.496 A @ 10 kHz	40 mOhms	-	0.709 Dia x 1.496 L (18.00mm x 38.00mm)	-	-	Through Hole
50USC10000MEFCSN35X30 CAP ALUM 10000UF 20% 50V SNAP Rubycon	260	-	RFQ	Datasheet	Bulk	USC	Active	10000 µF	±20%	50 V	-	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	5.02 A @ 120 Hz	5.773 A @ 10 kHz	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	1.260 (32.00mm)	-	Through Hole
MAL213815472E3 CAP ALUM 4700UF 20% 16V AXIAL Vishay Beyschlag/Draloric/BC Components	482	-	RFQ	Datasheet	Bulk	138 AML	Active	4700 µF	±20%	16 V	100mOhm @ 100Hz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	1.48 A @ 100 Hz	1.924 A @ 10 kHz	90 mOhms	-	0.709 Dia x 1.181 L (18.00mm x 30.00mm)	-	-	Through Hole

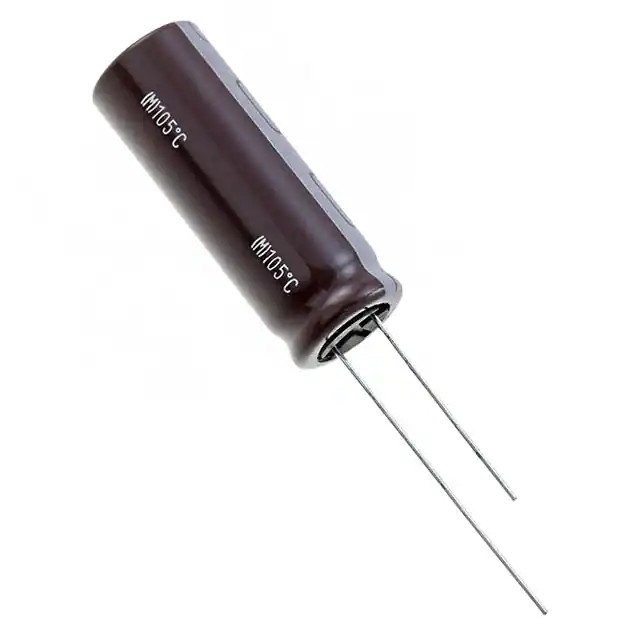

EKZN101ELL391MK35S CAP ALUM 390UF 20% 100V RADIAL United Chemi-Con	1,676	-	RFQ	Datasheet	Bulk	KZN	Active	390 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.3 A @ 120 Hz	2.6 A @ 100 kHz	26 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.437 (36.50mm)	-	Through Hole
450BXW22MEFR10X30 CAP ALUM 22UF 20% 450V RADIAL Rubycon	2,148	-	RFQ	Datasheet	Bulk	BXW	Active	22 µF	±20%	450 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	270 mA @ 120 Hz	675 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.260 (32.00mm)	-	Through Hole

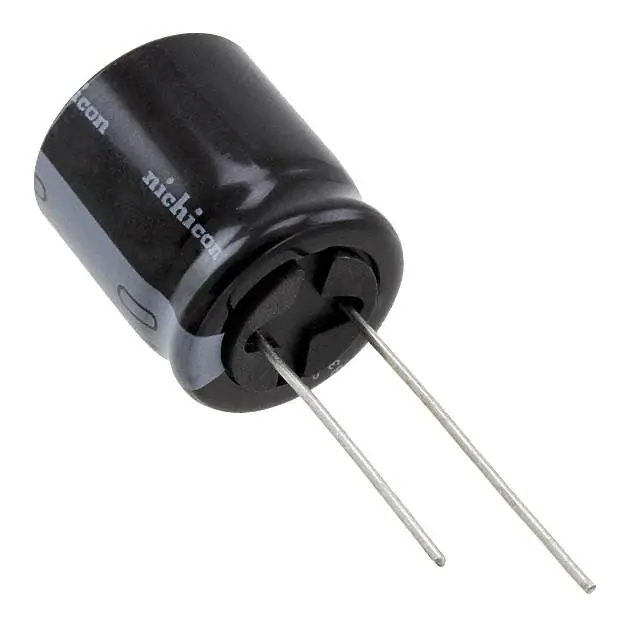

URS1E332MHD CAP ALUM 3300UF 20% 25V RADIAL Nichicon	1,035	-	RFQ	Datasheet	Bulk	URS	Active	3300 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.72 A @ 120 Hz	1.978 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.846 (21.50mm)	-	Through Hole
EGXF251ELL510MK25S CAP ALUM 51UF 20% 250V RADIAL TH United Chemi-Con	2,395	-	RFQ	Datasheet	Bulk	GXF	Active	51 µF	±20%	250 V	-	3000 Hrs @ 125°C	-40°C ~ 125°C	Polar	AEC-Q200	Automotive	528.5 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole

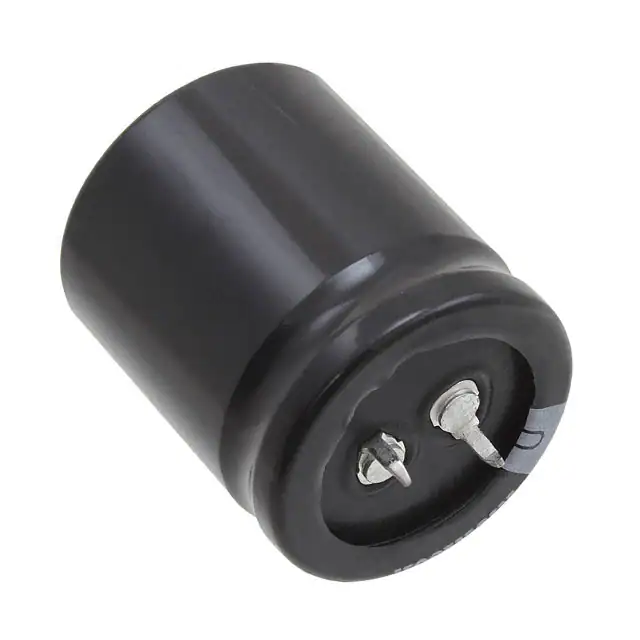

LGU2G271MELB CAP ALUM 270UF 20% 400V SNAP Nichicon	2,555	-	RFQ	Datasheet	Bulk	LGU	Active	270 µF	±20%	400 V	-	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.22 A @ 120 Hz	1.7446 A @ 50 kHz	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.378 (35.00mm)	-	Through Hole
