Aluminum Electrolytic Capacitors- Page 130

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UCS2W330MHD6TN CAP ALUM 33UF 20% 450V RADIAL Nichicon	4,443	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UCS	Active	33 µF	±20%	450 V	-	10000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	490 mA @ 120 Hz	980 mA @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.846 (21.50mm)	-	Through Hole
EKXL451ELL150MJ20S CAP ALUM 15UF 20% 450V RADIAL TH United Chemi-Con	3,737	-	RFQ	Datasheet	Bulk	KXL	Active	15 µF	±20%	450 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	190 mA @ 120 Hz	475 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
B41231A6478M000 CAP ALUM 4700UF 20% 50V SNAP EPCOS - TDK Electronics	2,416	-	RFQ	Datasheet	Bulk	B41231	Active	4700 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.83 A @ 120 Hz	-	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.654 (42.00mm)	-	Through Hole
35ZLS1000MEFC12.5X20 CAP ALUM 1000UF 20% 35V RADIAL Rubycon	3,309	-	RFQ	Datasheet	Bulk	ZLS	Active	1000 µF	±20%	35 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.488 A @ 120 Hz	2.48 A @ 100 kHz	17 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
MAL213630471E3 CAP ALUM 470UF 20% 35V RADIAL Vishay Beyschlag/Draloric/BC Components	4,495	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	136 RVI	Active	470 µF	±20%	35 V	-	7000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	650 mA @ 100 Hz	-	48 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
228CKE016M CAP ALUM 2200UF 20% 16V RADIAL Cornell Dubilier / Illinois Capacitor	40,645	-	RFQ	Datasheet	Bulk	CKE	Active	2200 µF	±20%	16 V	150.7mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.11 A @ 120 Hz	1.554 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
SEK470M050ST CAP ALUM 47UF 20% 50V RADIAL Cornell Dubilier Electronics (CDE)	14,858	-	RFQ	Datasheet	Bulk	SEK	Active	47 µF	±20%	50 V	3.39Ohm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	-	General Purpose	-	-	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.453 (11.50mm)	-	Through Hole
228CKS035M CAP ALUM 2200UF 20% 35V RADIAL Cornell Dubilier / Illinois Capacitor	1,992	-	RFQ	Datasheet	Bulk	CKS	Active	2200 µF	±20%	35 V	121mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.135 A @ 120 Hz	2.989 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
UKT1E102MPD CAP ALUM 1000UF 20% 25V RADIAL Nichicon	1,291	-	RFQ	Datasheet	Bulk	UKT	Not For New Designs	1000 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Audio	680 mA @ 120 Hz	782 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.787 (20.00mm)	-	Through Hole
50ZLJ470M12.5X20 CAP ALUM 470UF 20% 50V RADIAL Rubycon	6,524	-	RFQ	Datasheet	Bulk	ZLJ	Active	470 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.265 A @ 120 Hz	2.3 A @ 100 kHz	32 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole

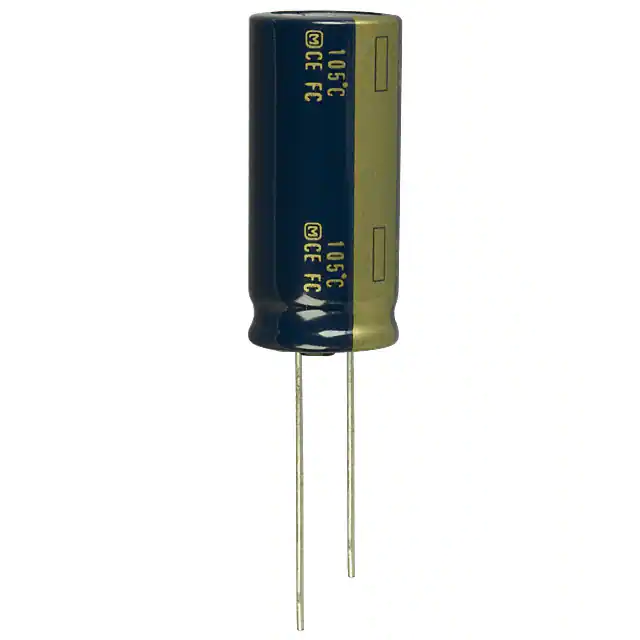

EEU-FC1J152 CAP ALUM 1500UF 20% 63V RADIAL Panasonic Electronic Components	1,325	-	RFQ	Datasheet	Bulk	FC	Active	1500 µF	±20%	63 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	2.476 A @ 120 Hz	3.095 A @ 100 kHz	30 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.398 (35.50mm)	-	Through Hole
MAL214097801E3 CAP ALUM 47UF 20% 63V SMD Vishay Beyschlag/Draloric/BC Components	3,063	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	140 CRH	Active	47 µF	±20%	63 V	-	1500 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	112.8 mA @ 100 Hz	-	500 mOhms	-	0.394 Dia (10.00mm)	0.413 (10.50mm)	0.413 L x 0.413 W (10.50mm x 10.50mm)	Surface Mount
UFG1C471MPM CAP ALUM 470UF 20% 16V RADIAL Nichicon	8,400	-	RFQ	Datasheet	Bulk	UFG	Not For New Designs	470 µF	±20%	16 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	406 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
MAL214699601E3 CAP ALUM 220UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components	2,312	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	220 µF	±20%	25 V	-	1500 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	525 mA @ 100 Hz	750 mA @ 100 kHz	150 mOhms	-	0.394 Dia (10.00mm)	0.413 (10.50mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount
MAL214699801E3 CAP ALUM 22UF 20% 63V SMD Vishay Beyschlag/Draloric/BC Components	1,821	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	22 µF	±20%	63 V	-	1500 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	240 mA @ 100 Hz	400 mA @ 100 kHz	430 mOhms	-	0.394 Dia (10.00mm)	0.413 (10.50mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount
MAL214699803E3 CAP ALUM 47UF 20% 63V SMD Vishay Beyschlag/Draloric/BC Components	1,768	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	47 µF	±20%	63 V	-	1500 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	282 mA @ 100 Hz	470 mA @ 100 kHz	380 mOhms	-	0.394 Dia (10.00mm)	0.413 (10.50mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount
URS1V102MHD CAP ALUM 1000UF 20% 35V RADIAL Nichicon	3,932	-	RFQ	Datasheet	Bulk	URS	Active	1000 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.01 A @ 120 Hz	1.1615 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.591 (15.00mm)	-	Through Hole
MAL202190541E3 CAP ALUM 47UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	1,795	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	021 ASM	Active	47 µF	±20%	63 V	2.7Ohm @ 100Hz	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	140 mA @ 100 Hz	-	1.2 Ohms	-	0.315 Dia x 0.433 L (8.00mm x 11.00mm)	-	-	Through Hole
108TTA010M CAP ALUM 1000UF 20% 10V AXIAL Cornell Dubilier / Illinois Capacitor	2,040	-	RFQ	Datasheet	Bulk	TTA	Active	1000 µF	±20%	10 V	397.9mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	570 mA @ 120 Hz	786.6 mA @ 50 kHz	-	-	0.394 Dia x 0.827 L (10.00mm x 21.00mm)	-	-	Through Hole
108CKH035M CAP ALUM 1000UF 20% 35V RADIAL Cornell Dubilier / Illinois Capacitor	7,449	-	RFQ	Datasheet	Bulk	CKH	Active	1000 µF	±20%	35 V	199mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.025 A @ 120 Hz	1.435 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
