Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

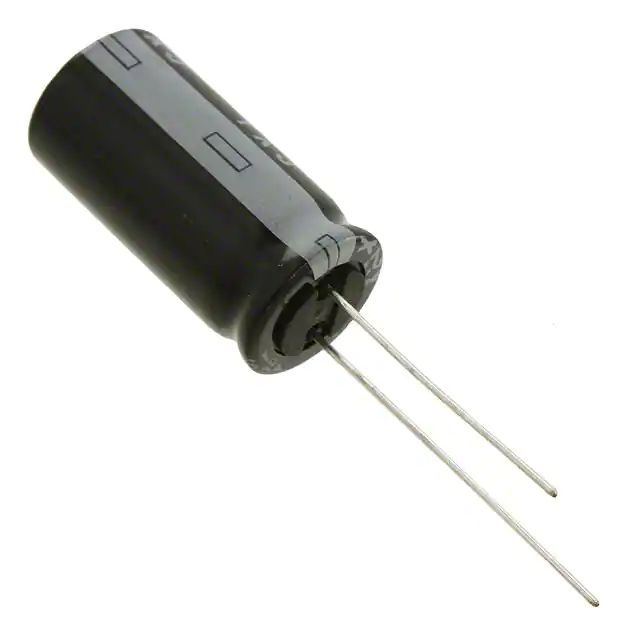

100YXJ220M12.5X25 CAP ALUM 220UF 20% 100V RADIAL Rubycon	1,547	-	RFQ	Datasheet	Bulk	YXJ	Active	220 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.134 A @ 120 Hz	1.62 A @ 100 kHz	60 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

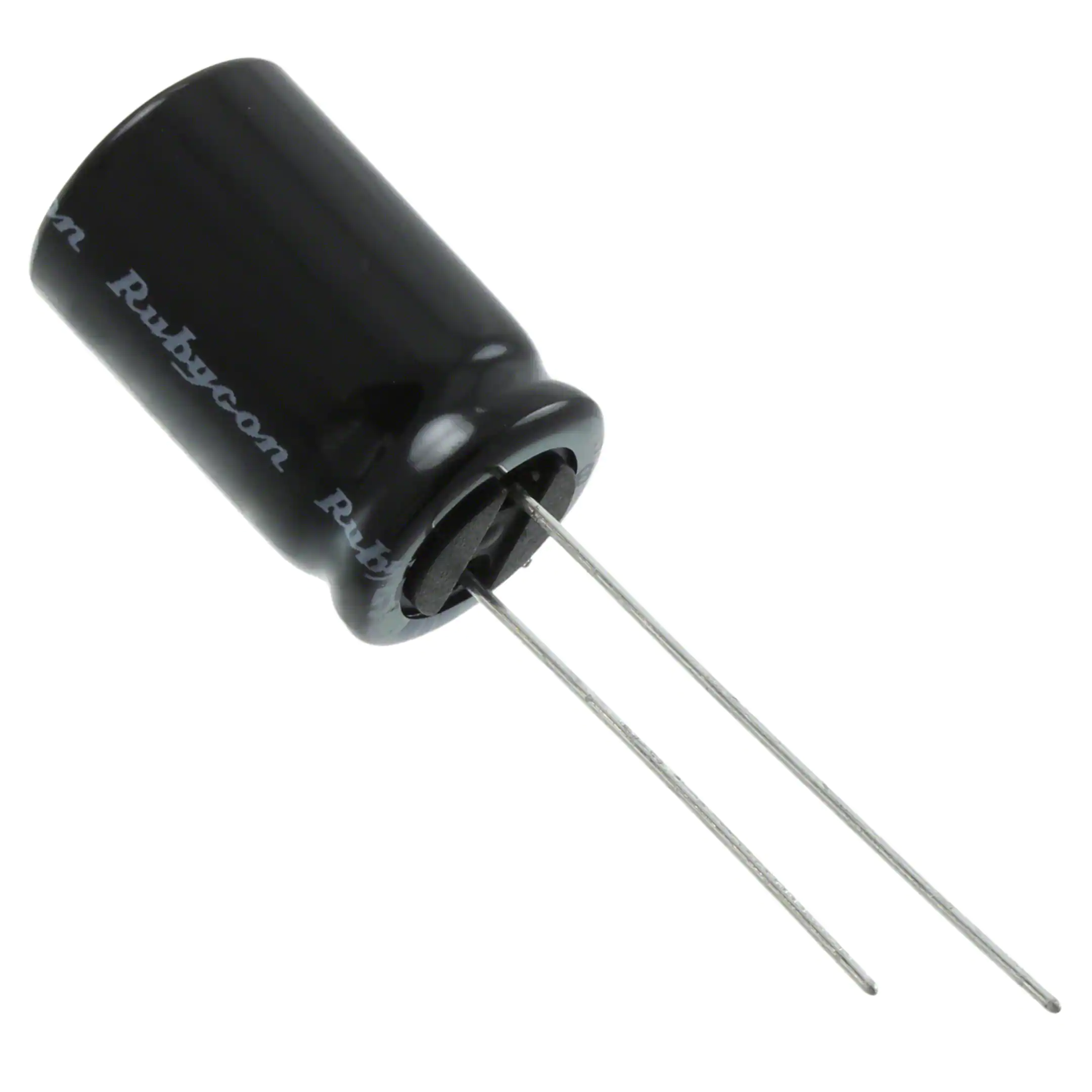

25ZLS1500MEFC12.5X20 CAP ALUM 1500UF 20% 25V RADIAL Rubycon	1,014	-	RFQ	Datasheet	Bulk	ZLS	Active	1500 µF	±20%	25 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.488 A @ 120 Hz	2.48 A @ 100 kHz	17 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole

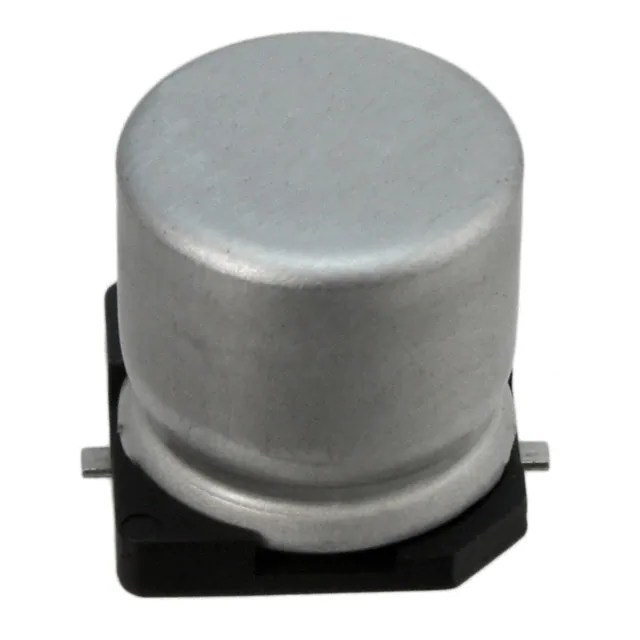

MAL214099001E3 CAP ALUM 100UF 20% 35V SMD Vishay Beyschlag/Draloric/BC Components	3,765	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	140 CRH	Active	100 µF	±20%	35 V	-	1500 Hrs @ 125°C	-55°C ~ 125°C	-	AEC-Q200	Automotive	-	255 mA @ 100 kHz	250 mOhms	-	0.394 Dia (10.00mm)	0.394 (10.00mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount

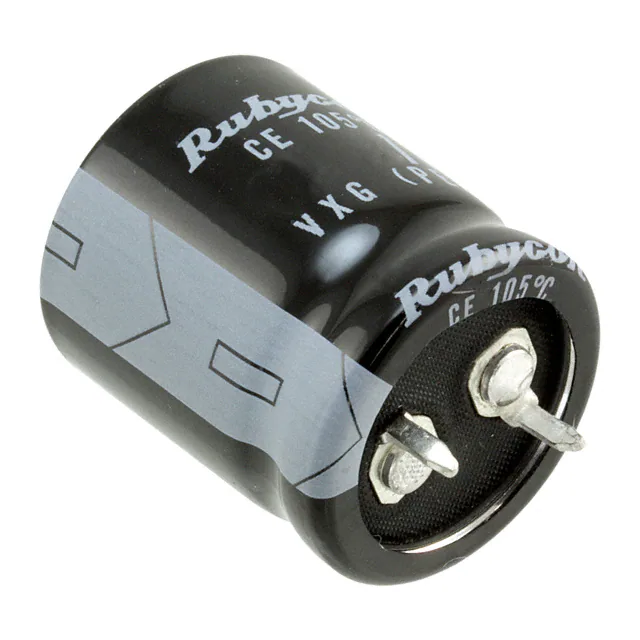

250VXG220MEFCSN22X25 CAP ALUM 220UF 20% 250V SNAP Rubycon	6,218	-	RFQ	Datasheet	Bulk	VXG	Active	220 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.22 A @ 120 Hz	1.83 A @ 10 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.063 (27.00mm)	-	Through Hole

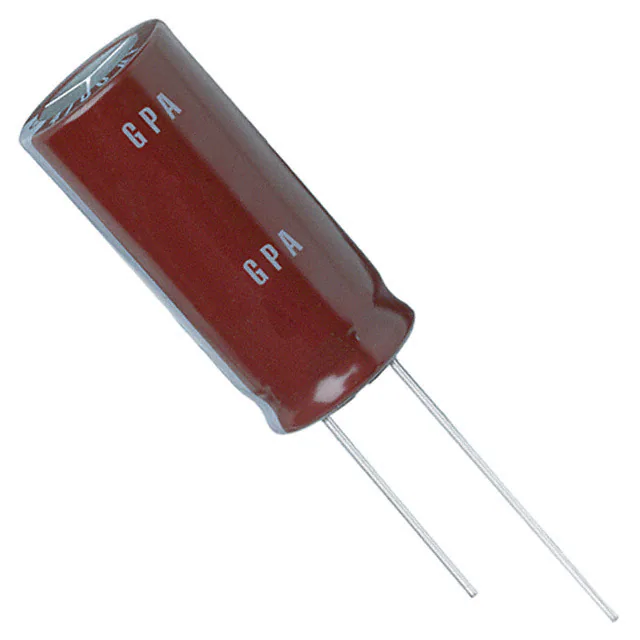

EGPA101ELL201ML20S CAP ALUM 200UF 20% 100V RADIAL United Chemi-Con	566	-	RFQ	Datasheet	Bulk	GPA	Active	200 µF	±20%	100 V	110mOhm @ 100kHz	3000 Hrs @ 125°C	-40°C ~ 125°C	Polar	AEC-Q200	Automotive	632 mA @ 120 Hz	1.58 A @ 100 kHz	-	-	0.630 Dia (16.00mm)	0.846 (21.50mm)	-	Through Hole

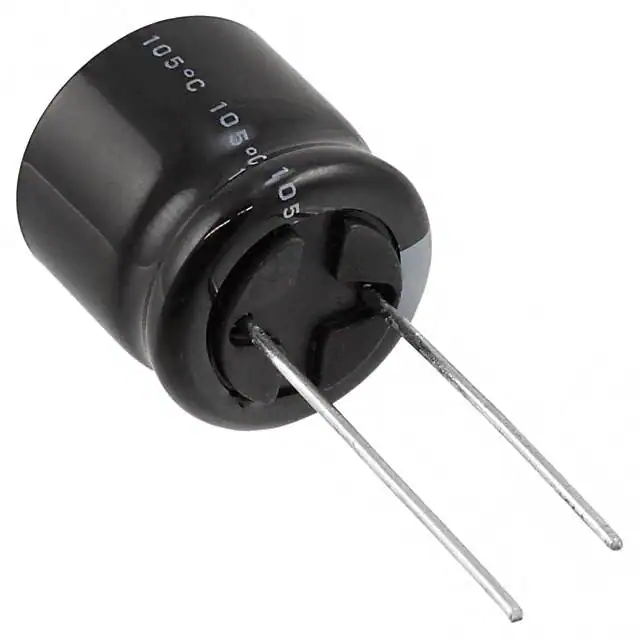

URZ1V102MHD CAP ALUM 1000UF 20% 35V RADIAL Nichicon	3,229	-	RFQ	Datasheet	Bulk	URZ	Active	1000 µF	±20%	35 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	720 mA @ 120 Hz	828 mA @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.650 (16.50mm)	-	Through Hole
107TTA050M CAP ALUM 100UF 20% 50V AXIAL Cornell Dubilier / Illinois Capacitor	15,420	-	RFQ	Datasheet	Bulk	TTA	Active	100 µF	±20%	50 V	1.9894Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	220 mA @ 120 Hz	336.6 mA @ 50 kHz	-	-	0.315 Dia x 0.630 L (8.00mm x 16.00mm)	-	-	Through Hole
URZ2E220MHD CAP ALUM 22UF 20% 250V RADIAL Nichicon	8,737	-	RFQ	Datasheet	Bulk	URZ	Active	22 µF	±20%	250 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	200 mA @ 120 Hz	320 mA @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.650 (16.50mm)	-	Through Hole

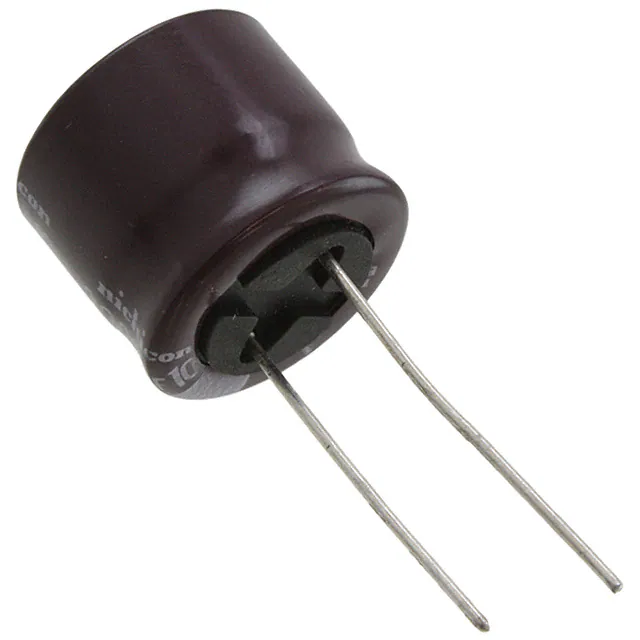

UPJ1E102MHD6 CAP ALUM 1000UF 20% 25V RADIAL Nichicon	2,440	-	RFQ	Datasheet	Bulk	UPJ	Not For New Designs	1000 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.31 A @ 120 Hz	1.52 A @ 10 kHz	66 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.650 (16.50mm)	-	Through Hole
100TXW100MEFC8X30 CAP ALUM 100UF 20% 100V RADIAL Rubycon	5,790	-	RFQ	Datasheet	Bulk	TXW	Active	100 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	785 mA @ 120 Hz	1.57 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	1.260 (32.00mm)	-	Through Hole
EKXG401ELL470ML25S CAP ALUM 47UF 20% 400V RADIAL United Chemi-Con	13,076	-	RFQ	Datasheet	Bulk	KXG	Active	47 µF	±20%	400 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	470 mA @ 120 Hz	1.175 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.984 (25.00mm)	-	Through Hole
MAL214099801E3 CAP ALUM 47UF 20% 63V SMD Vishay Beyschlag/Draloric/BC Components	2,401	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	140 CRH	Active	47 µF	±20%	63 V	-	1500 Hrs @ 125°C	-55°C ~ 125°C	-	AEC-Q200	Automotive	-	205 mA @ 100 kHz	500 mOhms	-	0.394 Dia (10.00mm)	0.394 (10.00mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount
108KXM025M CAP ALUM 1000UF 20% 25V RADIAL Cornell Dubilier / Illinois Capacitor	6,145	-	RFQ	Datasheet	Bulk	KXM	Active	1000 µF	±20%	25 V	199mOhm @ 120Hz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.416 A @ 120 Hz	2.36 A @ 100 kHz	53 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
EEU-FR2A101 CAP ALUM 100UF 20% 100V RAD TH Panasonic Electronic Components	5,765	-	RFQ	Datasheet	Bulk	FR-A	Active	100 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.05 A @ 120 Hz	1.5 A @ 100 kHz	84 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole

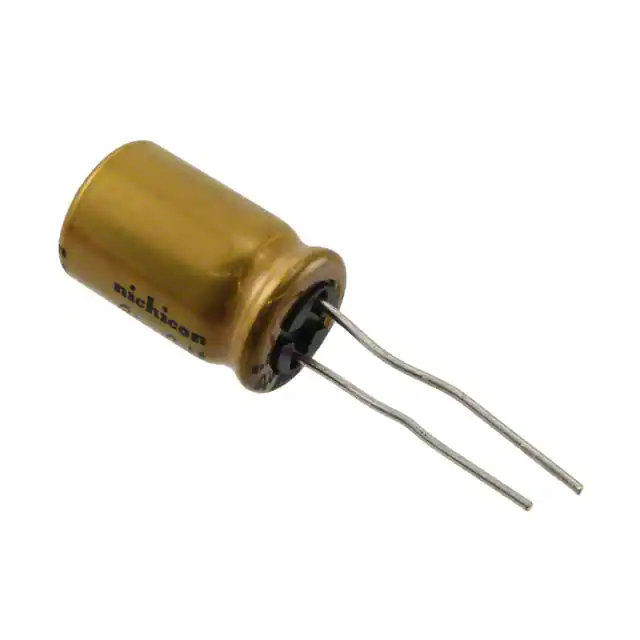

UFG1H331MHM CAP ALUM 330UF 20% 50V RADIAL Nichicon	1,146	-	RFQ	Datasheet	Bulk	UFG	Not For New Designs	330 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	488 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole

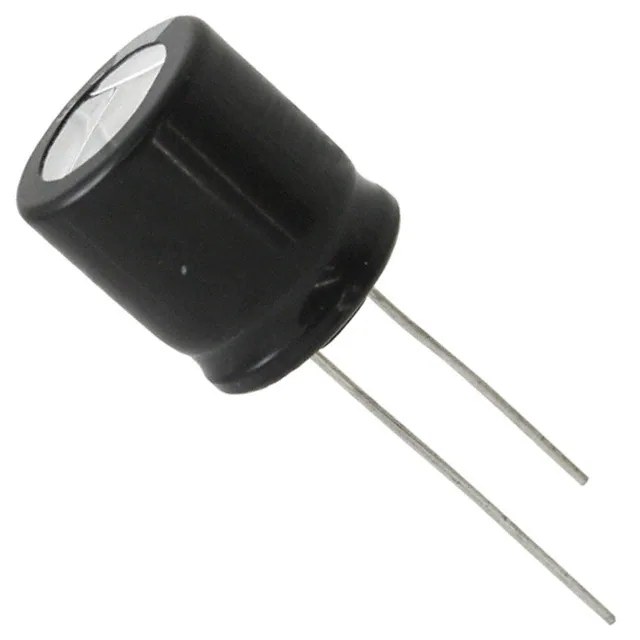

EEU-EB2W470 CAP ALUM 47UF 20% 450V RADIAL Panasonic Electronic Components	2,751	-	RFQ	Datasheet	Bulk	EB-A	Active	47 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	425 mA @ 120 Hz	850 mA @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.319 (33.50mm)	-	Through Hole
ESE228M035AM7AA CAP ALUM 2200UF 20% 35V RADIAL KEMET	4,595	-	RFQ	Datasheet	Box	ESE	Active	2200 µF	±20%	35 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.23 A @ 120 Hz	1.415 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
400KXW150MEFC18X35 CAP ALUM 150UF 20% 400V RADIAL Rubycon	1,761	-	RFQ	Datasheet	Bulk	KXW	Active	150 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	770 mA @ 120 Hz	1.155 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.457 (37.00mm)	-	Through Hole
ESH108M050AM7AA CAP ALUM 1000UF 20% 50V RADIAL KEMET	1,108	-	RFQ	Datasheet	Bulk	ESH	Active	1000 µF	±20%	50 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.11 A @ 120 Hz	1.2765 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
UBT1V102MHD1TN CAP ALUM 1000UF 20% 35V RADIAL Nichicon	1,671	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UBT	Active	1000 µF	±20%	35 V	-	10000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	1.347 A @ 120 Hz	2.01 A @ 100 kHz	31 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
