Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
EKXJ161ELL331MM25S CAP ALUM 330UF 20% 160V RADIAL United Chemi-Con	393	-	RFQ	Datasheet	Bulk	KXJ	Active	330 µF	±20%	160 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	1.29 A @ 120 Hz	2.9025 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.043 (26.50mm)	-	Through Hole
MAL203038229E3 CAP ALUM 22UF 63V AXIAL Vishay Beyschlag/Draloric/BC Components	2,270	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	22 µF	-10%, +50%	63 V	5.79Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	110 mA @ 100 Hz	-	2.5 Ohms	-	0.315 Dia x 0.433 L (8.00mm x 11.00mm)	-	-	Through Hole
MAL203034221E3 CAP ALUM 220UF 10V AXIAL Vishay Beyschlag/Draloric/BC Components	2,390	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	220 µF	-10%, +50%	10 V	1.45Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	210 mA @ 100 Hz	-	730 mOhms	-	0.315 Dia x 0.433 L (8.00mm x 11.00mm)	-	-	Through Hole
MAL203037479E3 CAP ALUM 47UF 40V AXIAL Vishay Beyschlag/Draloric/BC Components	1,907	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	47 µF	-10%, +50%	40 V	3.73Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	150 mA @ 100 Hz	-	1.5 Ohms	-	0.315 Dia x 0.433 L (8.00mm x 11.00mm)	-	-	Through Hole
107TTA063M CAP ALUM 100UF 20% 63V AXIAL Cornell Dubilier / Illinois Capacitor	15,563	-	RFQ	Datasheet	Bulk	TTA	Active	100 µF	±20%	63 V	1.658Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	260 mA @ 120 Hz	397.8 mA @ 50 kHz	-	-	0.315 Dia x 0.787 L (8.00mm x 20.00mm)	-	-	Through Hole
ESG106M450AL3AA CAP ALUM 10UF 20% 450V RADIAL KEMET	2,508	-	RFQ	Datasheet	Box	ESG	Active	10 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	110 mA @ 120 Hz	176 mA @ 100 kHz	-	0.197 (5.00mm)	0.512 Dia (13.00mm)	0.866 (22.00mm)	-	Through Hole

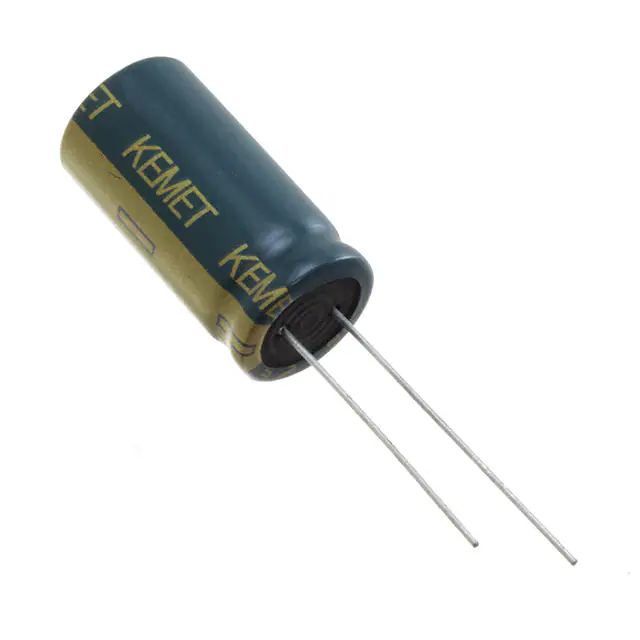

ESC108M035AL4AA CAP ALUM 1000UF 20% 35V RADIAL KEMET	1,794	-	RFQ	Datasheet	Bulk	ESC	Active	1000 µF	±20%	35 V	29mOhm @ 100kHz	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.53 A @ 120 Hz	1.7 A @ 100 kHz	29 mOhms	0.197 (5.00mm)	0.512 Dia (13.00mm)	1.063 (27.00mm)	-	Through Hole

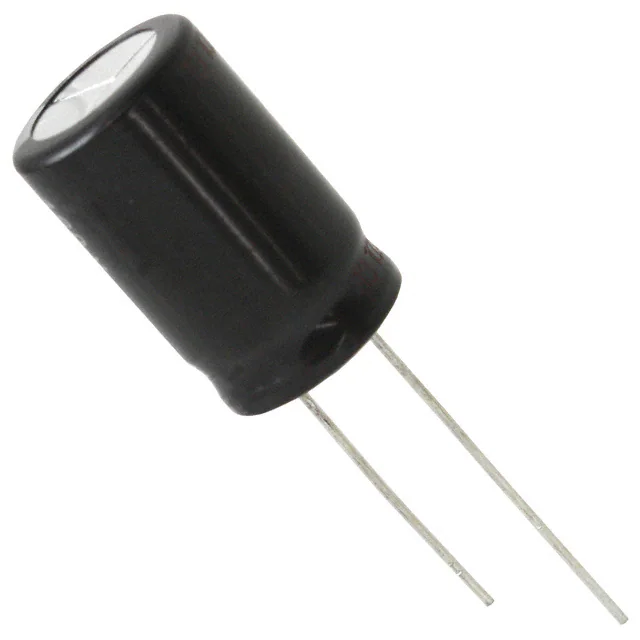

EEU-EB2W330 CAP ALUM 33UF 20% 450V RADIAL Panasonic Electronic Components	2,682	-	RFQ	Datasheet	Bulk	EB-A	Active	33 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	340 mA @ 120 Hz	680 mA @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)	-	Through Hole
URS1H222MRD CAP ALUM 2200UF 20% 50V RADIAL Nichicon	2,886	-	RFQ	Datasheet	Bulk	URS	Active	2200 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.75 A @ 120 Hz	2.0125 A @ 10 kHz	-	0.394 (10.00mm)	0.787 Dia (20.00mm)	1.063 (27.00mm)	-	Through Hole

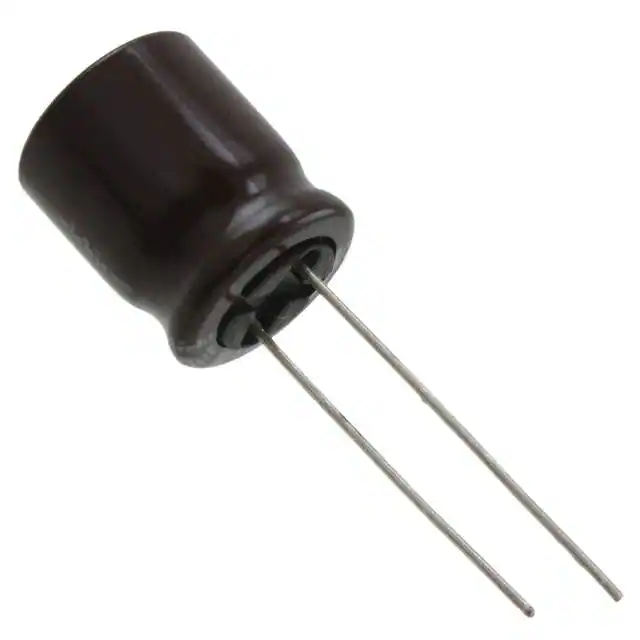

UPM2A470MHD6 CAP ALUM 47UF 20% 100V RADIAL Nichicon	2,249	-	RFQ	Datasheet	Bulk	UPM	Not For New Designs	47 µF	±20%	100 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	310 mA @ 120 Hz	520 mA @ 10 kHz	310 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.669 (17.00mm)	-	Through Hole
107TTA035M CAP ALUM 100UF 20% 35V AXIAL Cornell Dubilier / Illinois Capacitor	18,172	-	RFQ	Datasheet	Bulk	TTA	Active	100 µF	±20%	35 V	2.231Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	200 mA @ 120 Hz	306 mA @ 50 kHz	-	-	0.315 Dia x 0.630 L (8.00mm x 16.00mm)	-	-	Through Hole
108CKE050M CAP ALUM 1000UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	2,281	-	RFQ	Datasheet	Bulk	CKE	Active	1000 µF	±20%	50 V	166mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.285 A @ 120 Hz	1.799 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
UHW1A103MHD CAP ALUM 10000UF 20% 10V RADIAL Nichicon	101	-	RFQ	Datasheet	Bulk	UHW	Not For New Designs	10000 µF	±20%	10 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	3.2 A @ 120 Hz	4 A @ 100 kHz	11 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)	-	Through Hole

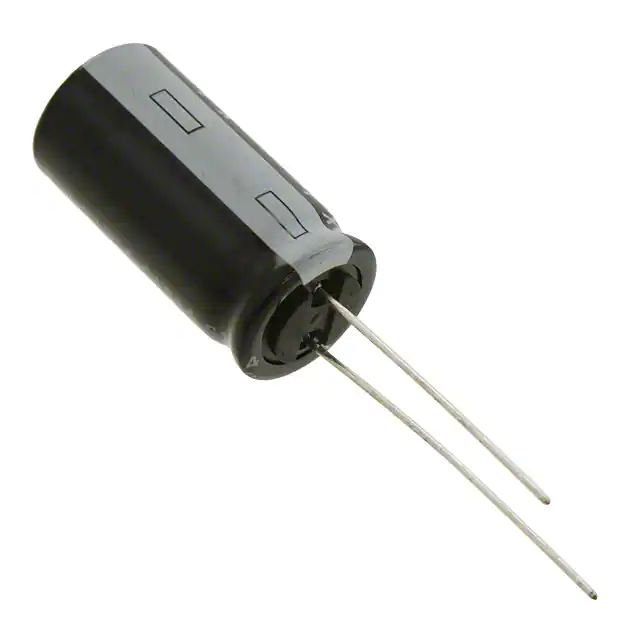

100PX330MEFC12.5X25 CAP ALUM 330UF 20% 100V RADIAL Rubycon	3,900	-	RFQ	Datasheet	Bulk	PX	Active	330 µF	±20%	100 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	690 mA @ 120 Hz	828 mA @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
MAL214250102E3 CAP ALUM 1000UF 20% 35V RADIAL Vishay Beyschlag/Draloric/BC Components	1,875	-	RFQ	Datasheet	Bulk	142 RHS	Active	1000 µF	±20%	35 V	-	2500 Hrs @ 105°C	-40°C ~ 105°C	-	-	General Purpose	-	1.094 A @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
157TTA035M CAP ALUM 150UF 20% 35V AXIAL Cornell Dubilier / Illinois Capacitor	4,823	-	RFQ	Datasheet	Bulk	TTA	Active	150 µF	±20%	35 V	1.5473Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	270 mA @ 120 Hz	372.6 mA @ 50 kHz	-	-	0.315 Dia x 0.787 L (8.00mm x 20.00mm)	-	-	Through Hole
UHE1H102MHD6TN CAP ALUM 1000UF 20% 50V RADIAL Nichicon	4,333	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UHE	Not For New Designs	1000 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	2.92 A @ 100 kHz	25 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
EEU-FR1C332SB CAP ALUM 3300UF 20% 16V RADIAL Panasonic Electronic Components	1,649	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FR-A	Active	3300 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.64 A @ 120 Hz	3.3 A @ 100 kHz	17 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole

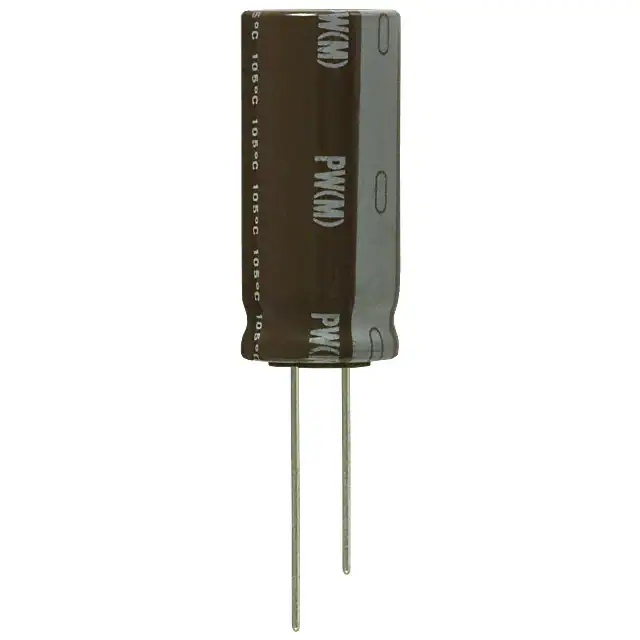

UPW1V272MHD CAP ALUM 2700UF 20% 35V RADIAL Nichicon	5,883	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	2700 µF	±20%	35 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.678 A @ 120 Hz	3.15 A @ 100 kHz	16 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.398 (35.50mm)	-	Through Hole
LGU2D221MELY CAP ALUM 220UF 20% 200V SNAP Nichicon	3,591	-	RFQ	Datasheet	Bulk	LGU	Active	220 µF	±20%	200 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1 A @ 120 Hz	1.5 A @ 50 kHz	-	0.394 (10.00mm)	0.787 Dia (20.00mm)	0.984 (25.00mm)	-	Through Hole
