Aluminum Electrolytic Capacitors- Page 123

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

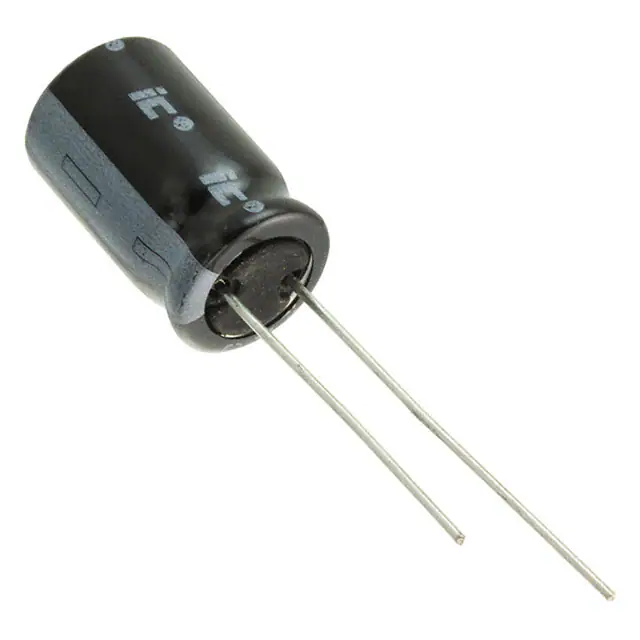

475CKS450M CAP ALUM 4.7UF 20% 450V RADIAL Cornell Dubilier / Illinois Capacitor	13,725	-	RFQ	Datasheet	Bulk	CKS	Active	4.7 µF	±20%	450 V	70.547Ohm @ 120Hz	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	75 mA @ 120 Hz	187.5 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
450LLE4R7MEFC10X16 CAP ALUM 4.7UF 20% 450V RADIAL Rubycon	5,880	-	RFQ	Datasheet	Bulk	LLE	Active	4.7 µF	±20%	450 V	-	20000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	54 mA @ 120 Hz	180 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole

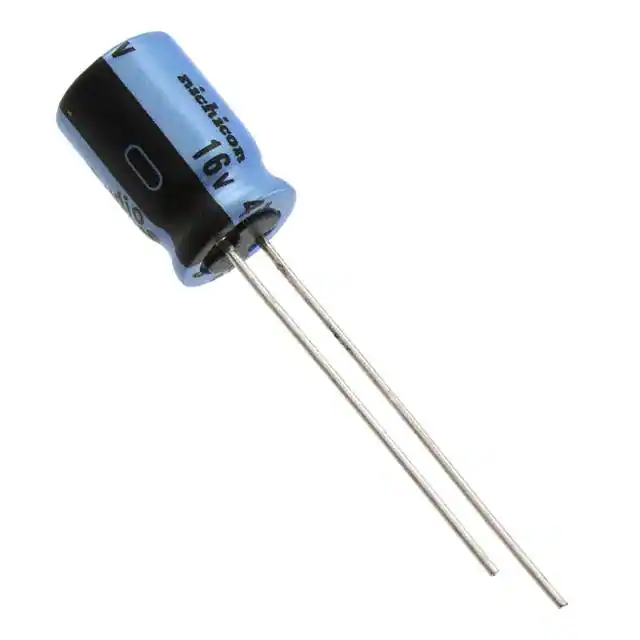

UKA1C471MPD CAP ALUM 470UF 20% 16V RADIAL Nichicon	5,750	-	RFQ	Datasheet	Bulk	UKA	Not For New Designs	470 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Audio	315 mA @ 120 Hz	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole

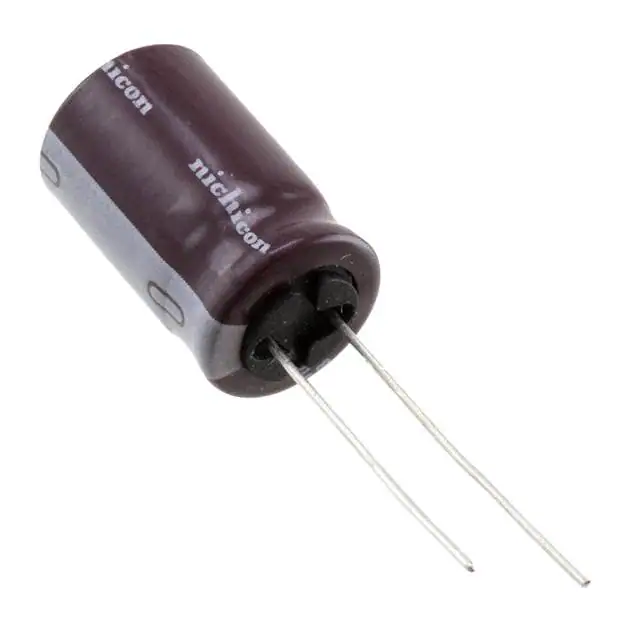

UPS1E102MHD CAP ALUM 1000UF 20% 25V RADIAL Nichicon	3,848	-	RFQ	Datasheet	Bulk	UPS	Not For New Designs	1000 µF	±20%	25 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.088 A @ 120 Hz	1.25 A @ 100 kHz	75 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
227CKH063M CAP ALUM 220UF 20% 63V RADIAL Cornell Dubilier / Illinois Capacitor	3,099	-	RFQ	Datasheet	Bulk	CKH	Active	220 µF	±20%	63 V	90mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	505 mA @ 120 Hz	833.25 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
250PX22MEFC10X16 CAP ALUM 22UF 20% 250V RADIAL Rubycon	1,855	-	RFQ	Datasheet	Bulk	PX	Active	22 µF	±20%	250 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	105 mA @ 120 Hz	157.5 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole

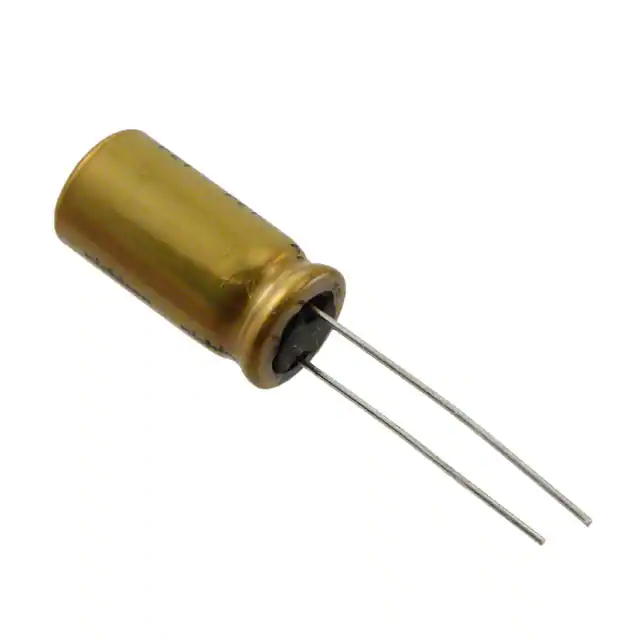

UFW1E102MPD CAP ALUM 1000UF 20% 25V RADIAL Nichicon	1,843	-	RFQ	Datasheet	Bulk	UFW	Not For New Designs	1000 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	950 mA @ 120 Hz	1.0925 A @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.787 (20.00mm)	-	Through Hole
UEP1E101MPD CAP ALUM 100UF 20% 25V RADIAL Nichicon	1,554	-	RFQ	Datasheet	Bulk	UEP	Not For New Designs	100 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Bi-Polar	-	General Purpose	110 mA @ 120 Hz	165 mA @ 10 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole

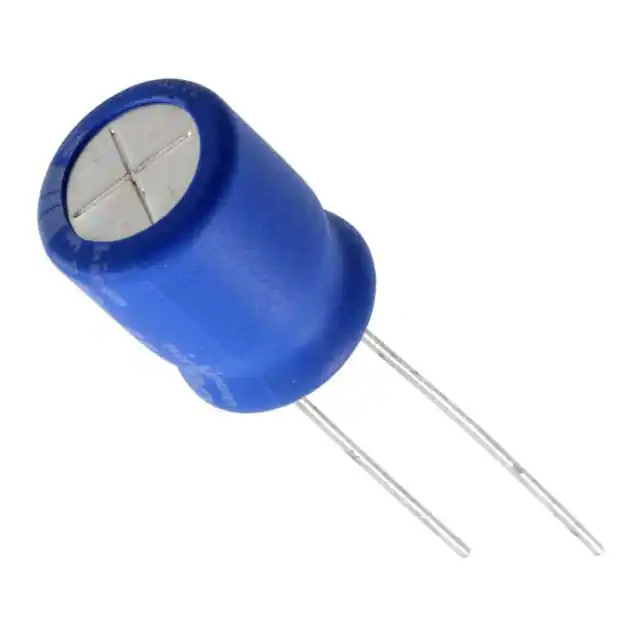

UBW1J470MPD CAP ALUM 47UF 20% 63V RADIAL Nichicon	1,211	-	RFQ	Datasheet	Bulk	UBW	Active	47 µF	±20%	63 V	-	2000 Hrs @ 135°C	-55°C ~ 135°C	Polar	-	Automotive	265 mA @ 120 Hz	530 mA @ 100 kHz	590 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.571 (14.50mm)	-	Through Hole
ESY337M035AH2AA CAP ALUM 330UF 20% 35V RADIAL KEMET	1,030	-	RFQ	Datasheet	Bulk	ESY	Active	330 µF	±20%	35 V	38mOhm @ 100kHz	4000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	-	38 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.669 (17.00mm)	-	Through Hole

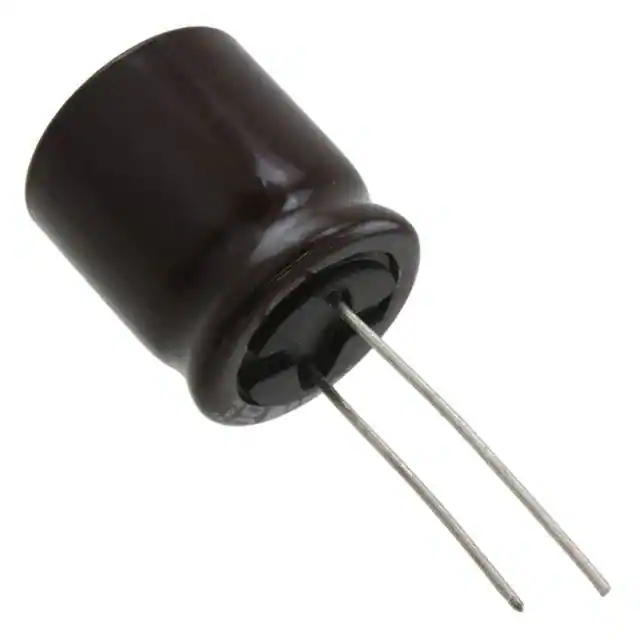

UPJ1E222MHD6TN CAP ALUM 2200UF 20% 25V RADIAL Nichicon	15,371	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPJ	Not For New Designs	2200 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.84 A @ 120 Hz	2.05 A @ 10 kHz	40 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.846 (21.50mm)	-	Through Hole
EEU-FR1A152L CAP ALUM 1500UF 20% 10V RADIAL Panasonic Electronic Components	15,643	-	RFQ	Datasheet	Bulk	FR-A	Active	1500 µF	±20%	10 V	-	9000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.248 A @ 120 Hz	1.56 A @ 100 kHz	30 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.866 (22.00mm)	-	Through Hole
EEU-FR1V271 CAP ALUM 270UF 20% 35V RADIAL Panasonic Electronic Components	6,476	-	RFQ	Datasheet	Bulk	FR-A	Active	270 µF	±20%	35 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	903 mA @ 120 Hz	1.29 A @ 100 kHz	43 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
UBT1H101MPD CAP ALUM 100UF 20% 50V RADIAL Nichicon	3,942	-	RFQ	Datasheet	Bulk	UBT	Active	100 µF	±20%	50 V	-	5000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	277.5 mA @ 120 Hz	555 mA @ 100 kHz	180 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.571 (14.50mm)	-	Through Hole

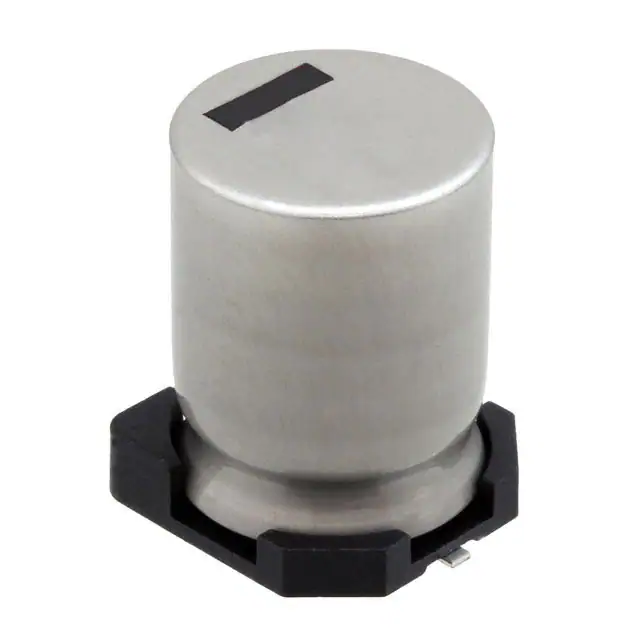

35TLV2200M16X21.5 CAP ALUM 2200UF 20% 35V SMD Rubycon	10,842	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TLV	Active	2200 µF	±20%	35 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.398 A @ 120 Hz	2.33 A @ 100 kHz	29 mOhms	-	0.630 Dia (16.00mm)	0.866 (22.00mm)	0.669 L x 0.669 W (17.00mm x 17.00mm)	Surface Mount

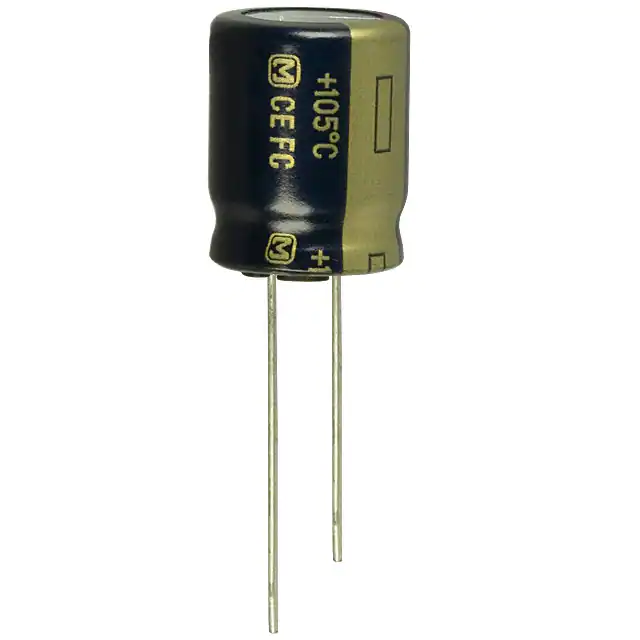

EEU-FC1E222S CAP ALUM 2200UF 20% 25V RADIAL Panasonic Electronic Components	2,355	-	RFQ	Datasheet	Bulk	FC	Active	2200 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.992 A @ 120 Hz	2.49 A @ 100 kHz	28 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.787 (20.00mm)	-	Through Hole
EEU-FC1J681S CAP ALUM 680UF 20% 63V RADIAL Panasonic Electronic Components	2,442	-	RFQ	Datasheet	Bulk	FC	Active	680 µF	±20%	63 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.718 A @ 120 Hz	2.29 A @ 100 kHz	55 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.787 (20.00mm)	-	Through Hole
106CKE400M CAP ALUM 10UF 20% 400V RADIAL Cornell Dubilier / Illinois Capacitor	28,564	-	RFQ	Datasheet	Bulk	CKE	Active	10 µF	±20%	400 V	33.16Ohm @ 120Hz	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	73 mA @ 120 Hz	131.4 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole

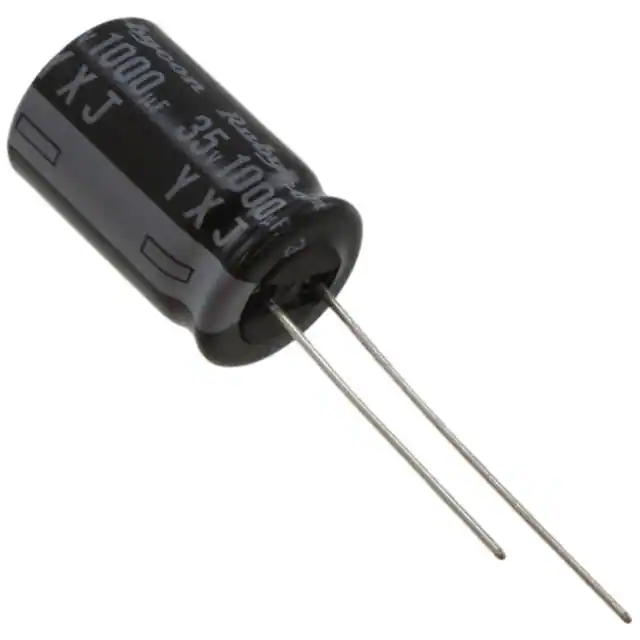

35YXJ1000M12.5X20 CAP ALUM 1000UF 20% 35V RADIAL Rubycon	3,149	-	RFQ	Datasheet	Bulk	YXJ	Active	1000 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.425 A @ 120 Hz	1.9 A @ 100 kHz	41 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
UPW1J102MHD CAP ALUM 1000UF 20% 63V RADIAL Nichicon	4,517	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	1000 µF	±20%	63 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.078 A @ 120 Hz	2.77 A @ 100 kHz	43 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.240 (31.50mm)	-	Through Hole
