Aluminum Electrolytic Capacitors- Page 118

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

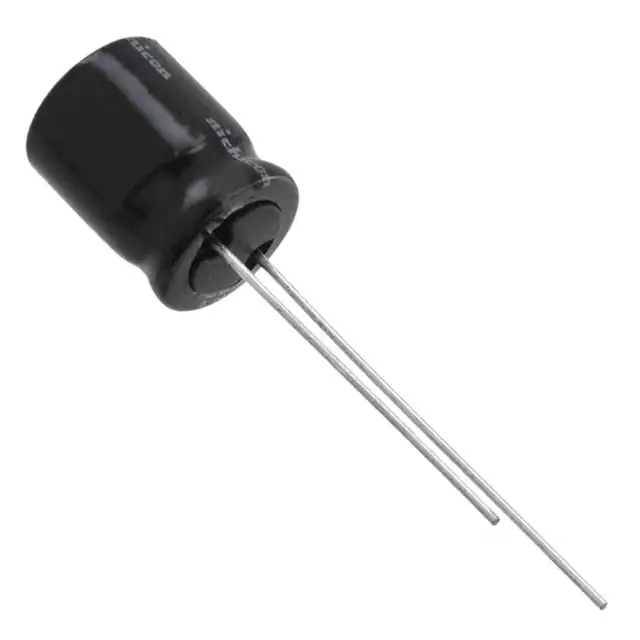

UVP1H470MPD CAP ALUM 47UF 20% 50V RADIAL Nichicon	3,093	-	RFQ	Datasheet	Bulk	UVP	Not For New Designs	47 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	General Purpose	150 mA @ 120 Hz	300 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole

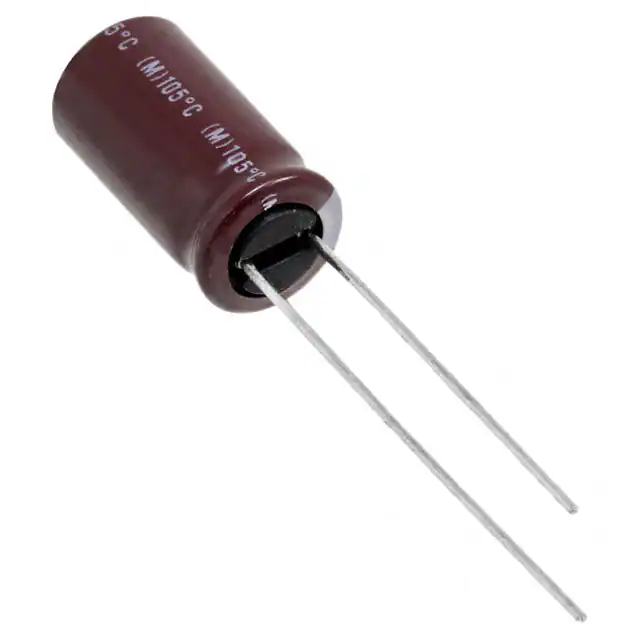

EKZN630ELL101MH15D CAP ALUM 100UF 20% 63V RADIAL United Chemi-Con	2,907	-	RFQ	Datasheet	Bulk	KZN	Active	100 µF	±20%	63 V	-	9000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	396 mA @ 120 Hz	990 mA @ 100 kHz	100 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.650 (16.50mm)	-	Through Hole

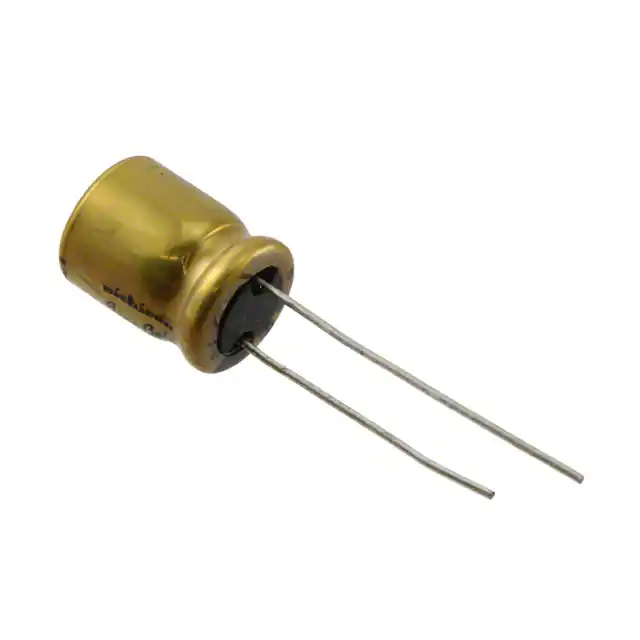

UFG1C221MPM CAP ALUM 220UF 20% 16V RADIAL Nichicon	2,219	-	RFQ	Datasheet	Bulk	UFG	Not For New Designs	220 µF	±20%	16 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	226 mA @ 120 Hz	339 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
RFS-25V331MI6#5 CAP ALUM 330UF 20% 25V RADIAL Elna America	1,423	-	RFQ	Datasheet	Bulk	RFS, SILMIC II	Last Time Buy	330 µF	±20%	25 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	675 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.984 (25.00mm)	-	Through Hole
EKXJ501ELL100MJ30S CAP ALUM 10UF 20% 500V RADIAL TH United Chemi-Con	1,069	-	RFQ	Datasheet	Bulk	KXJ	Active	10 µF	±20%	500 V	-	8000 Hrs @ 105°C	-25°C ~ 105°C	Polar	AEC-Q200	Automotive	130 mA @ 120 Hz	336.7 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.240 (31.50mm)	-	Through Hole
MAL213835101E3 CAP ALUM 100UF 20% 16V AXIAL Vishay Beyschlag/Draloric/BC Components	3,128	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	138 AML	Active	100 µF	±20%	16 V	2.5Ohm @ 100Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	130 mA @ 100 Hz	169 mA @ 10 kHz	1.6 Ohms	-	0.303 Dia x 0.500 L (7.70mm x 12.70mm)	-	-	Through Hole
MAL211839229E3 CAP ALUM 22UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	2,560	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	118 AHT	Active	22 µF	±20%	100 V	5.1Ohm	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	-	127.4 mA @ 10 kHz	4 Ohms	-	0.315 Dia x 0.709 L (8.00mm x 18.00mm)	-	-	Through Hole
EEV-EB2W3R3Q CAP ALUM 3.3UF 20% 450V SMD Panasonic Electronic Components	1,416	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EB	Last Time Buy	3.3 µF	±20%	450 V	-	4000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	20.5 mA @ 120 Hz	41 mA @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.669 (17.00mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount

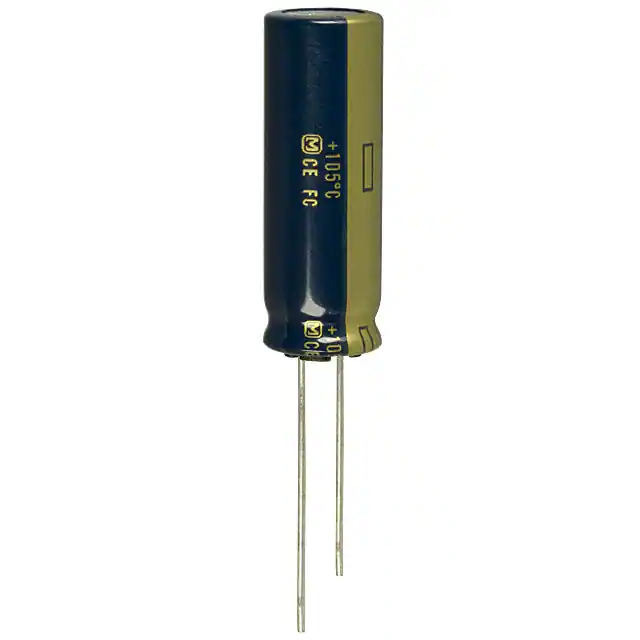

EEU-FC1H821L CAP ALUM 820UF 20% 50V RADIAL Panasonic Electronic Components	6,673	-	RFQ	Datasheet	Bulk	FC	Active	820 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.714 A @ 120 Hz	2.285 A @ 100 kHz	34 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.378 (35.00mm)	-	Through Hole
100ZLJ82M10X16 CAP ALUM 82UF 20% 100V RADIAL Rubycon	33,163	-	RFQ	Datasheet	Bulk	ZLJ	Active	82 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	520 mA @ 120 Hz	1.04 A @ 100 kHz	110 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole
16ZLJ1500M10X20 CAP ALUM 1500UF 20% 16V RADIAL Rubycon	11,221	-	RFQ	Datasheet	Bulk	ZLJ	Active	1500 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.5 A @ 120 Hz	2.5 A @ 100 kHz	28 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
477KXM025MLQ CAP ALUM 470UF 20% 25V RADIAL Cornell Dubilier / Illinois Capacitor	7,828	-	RFQ	Datasheet	Bulk	KXM	Active	470 µF	±20%	25 V	493.8mOhm @ 120Hz	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	715 mA @ 120 Hz	1.43 A @ 100 kHz	221 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
336TTA050M CAP ALUM 33UF 20% 50V AXIAL Cornell Dubilier / Illinois Capacitor	5,438	-	RFQ	Datasheet	Bulk	TTA	Active	33 µF	±20%	50 V	6.0286Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	115 mA @ 120 Hz	175.95 mA @ 50 kHz	-	-	0.248 Dia x 0.630 L (6.30mm x 16.00mm)	-	-	Through Hole
10ZLJ1200M10X16 CAP ALUM 1200UF 20% 10V RADIAL Rubycon	3,961	-	RFQ	Datasheet	Bulk	ZLJ	Active	1200 µF	±20%	10 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.2 A @ 120 Hz	2 A @ 100 kHz	38 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
EKZN101ELL470MH15D CAP ALUM 47UF 20% 100V RADIAL United Chemi-Con	2,996	-	RFQ	Datasheet	Bulk	KZN	Active	47 µF	±20%	100 V	-	9000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	312 mA @ 120 Hz	780 mA @ 100 kHz	140 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.650 (16.50mm)	-	Through Hole
UPM1J101MPD CAP ALUM 100UF 20% 63V RADIAL Nichicon	2,268	-	RFQ	Datasheet	Bulk	UPM	Not For New Designs	100 µF	±20%	63 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	495 mA @ 120 Hz	750 mA @ 10 kHz	120 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
EKZE630ELL391MK25S CAP ALUM 390UF 20% 63V RADIAL United Chemi-Con	9,967	-	RFQ	Datasheet	Bulk	KZE	Active	390 µF	±20%	63 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	950 mA @ 120 Hz	1.9 A @ 100 kHz	31 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.984 (25.00mm)	-	Through Hole
UHE2A221MHD6 CAP ALUM 220UF 20% 100V RADIAL Nichicon	8,841	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	220 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	791 mA @ 120 Hz	1.13 A @ 100 kHz	91 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.787 (20.00mm)	-	Through Hole
MAL213831229E3 CAP ALUM 22UF 20% 50V AXIAL Vishay Beyschlag/Draloric/BC Components	4,744	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	138 AML	Active	22 µF	±20%	50 V	6.5Ohm @ 100Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	82 mA @ 100 Hz	114.8 mA @ 10 kHz	3.2 Ohms	-	0.303 Dia x 0.500 L (7.70mm x 12.70mm)	-	-	Through Hole

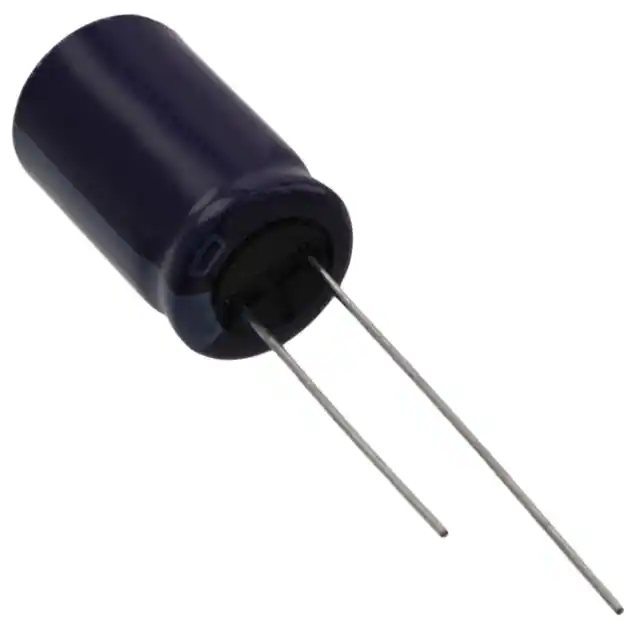

ELXZ160ELL222MK25S CAP ALUM 2200UF 20% 16V RADIAL United Chemi-Con	2,861	-	RFQ	Datasheet	Bulk	LXZ	Active	2200 µF	±20%	16 V	-	7000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.4625 A @ 120 Hz	1.95 A @ 100 kHz	30 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
