Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

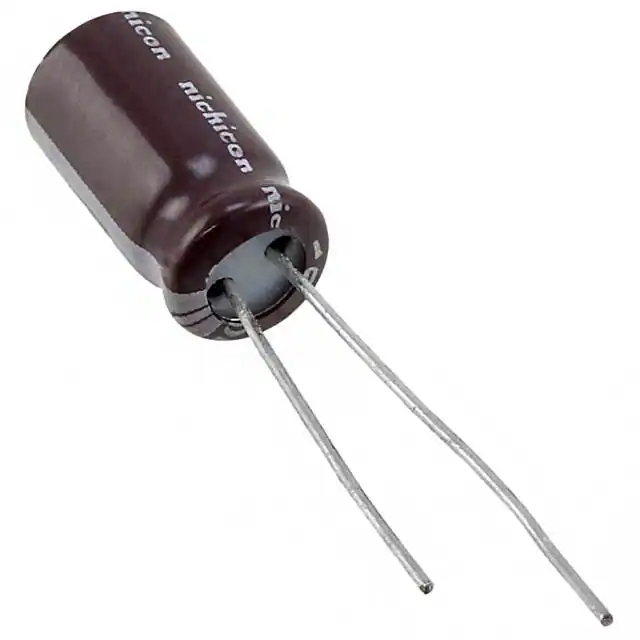

UPV1H330MGD CAP ALUM 33UF 20% 50V RADIAL Nichicon	2,903	-	RFQ	Datasheet	Bulk	UPV	Not For New Designs	33 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	-	600 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

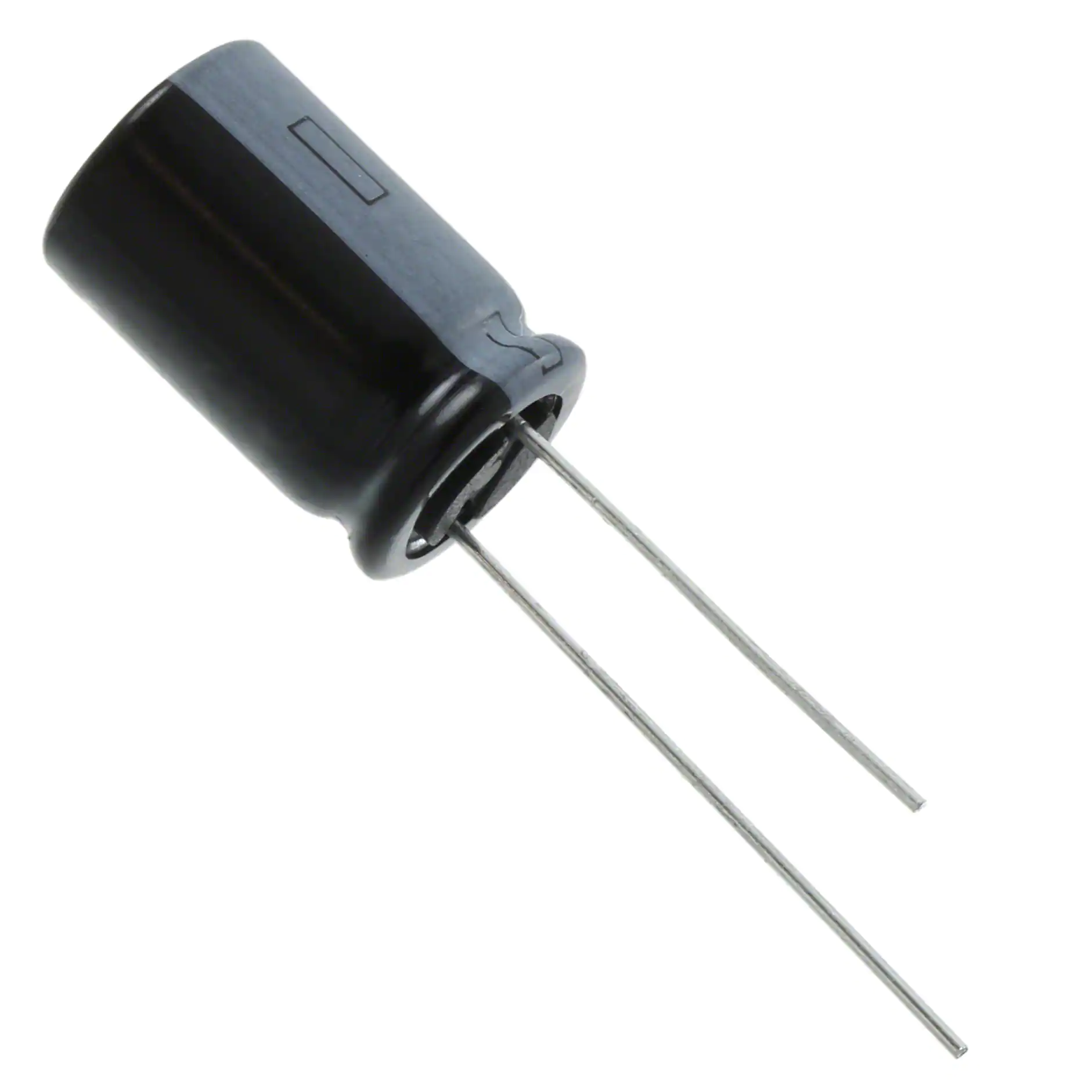

35ZLS470MEFC10X16 CAP ALUM 470UF 20% 35V RADIAL Rubycon	2,715	-	RFQ	Datasheet	Bulk	ZLS	Active	470 µF	±20%	35 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	907.5 mA @ 120 Hz	1.65 A @ 100 kHz	32 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole

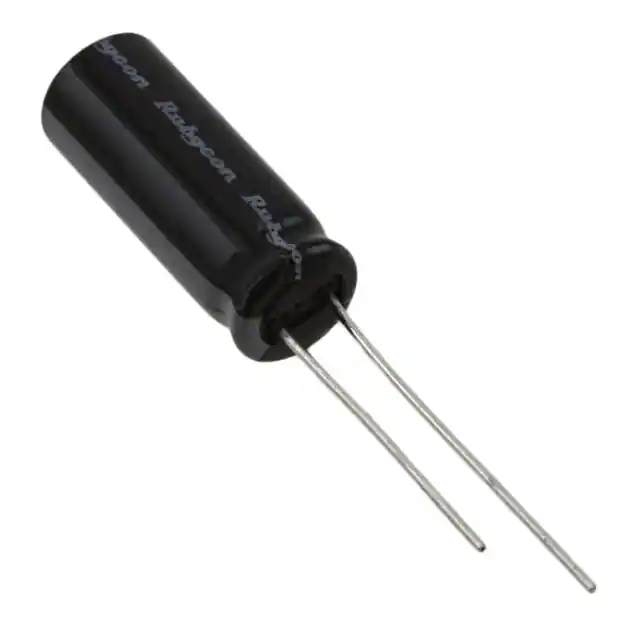

6.3ZLJ1500M8X20 CAP ALUM 1500UF 20% 6.3V RADIAL Rubycon	1,990	-	RFQ	Datasheet	Bulk	ZLJ	Active	1500 µF	±20%	6.3 V	-	9000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	900 mA @ 120 Hz	1.5 A @ 100 kHz	41 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.866 (22.00mm)	-	Through Hole
UCS2W470MHD1TN CAP ALUM 47UF 20% 450V RADIAL Nichicon	2,898	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UCS	Active	47 µF	±20%	450 V	-	10000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	600 mA @ 120 Hz	1.2 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.043 (26.50mm)	-	Through Hole
MAL213831101E3 CAP ALUM 100UF 20% 50V AXIAL Vishay Beyschlag/Draloric/BC Components	2,057	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	138 AML	Active	100 µF	±20%	50 V	1.3Ohm @ 100Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	230 mA @ 100 Hz	322 mA @ 10 kHz	700 mOhms	-	0.394 Dia x 0.709 L (10.00mm x 18.00mm)	-	-	Through Hole
477CKS035M CAP ALUM 470UF 20% 35V RADIAL Cornell Dubilier / Illinois Capacitor	32,684	-	RFQ	Datasheet	Bulk	CKS	Active	470 µF	±20%	35 V	423mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	755 mA @ 120 Hz	1.24575 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
400LLE6R8MEFC10X16 CAP ALUM 6.8UF 20% 400V RADIAL Rubycon	31,920	-	RFQ	Datasheet	Bulk	LLE	Active	6.8 µF	±20%	400 V	-	20000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	85 mA @ 120 Hz	161 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole
63PX220MEFC10X16 CAP ALUM 220UF 20% 63V RADIAL Rubycon	4,778	-	RFQ	Datasheet	Bulk	PX	Active	220 µF	±20%	63 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	390 mA @ 120 Hz	468 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
UEP1H100MED CAP ALUM 10UF 20% 50V RADIAL Nichicon	3,524	-	RFQ	Datasheet	Bulk	UEP	Not For New Designs	10 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Bi-Polar	-	General Purpose	37 mA @ 120 Hz	74 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
ESE106M400AH4AA CAP ALUM 10UF 20% 400V RADIAL KEMET	3,397	-	RFQ	Datasheet	Box	ESE	Active	10 µF	±20%	400 V	-	1000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	65 mA @ 120 Hz	97.5 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole

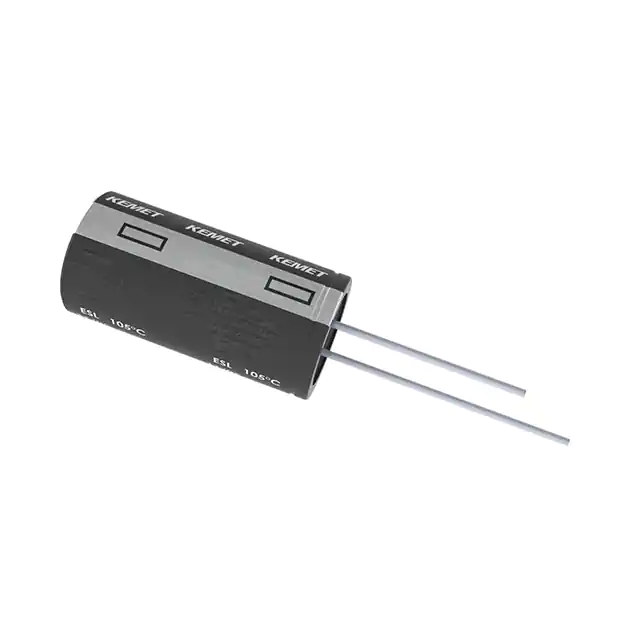

ESL825M400AH8AA CAP ALUM 8.2UF 20% 400V RADIAL KEMET	2,571	-	RFQ	Datasheet	Box	ESL	Active	8.2 µF	±20%	400 V	7.5Ohm @ 100kHz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	126 mA @ 120 Hz	252 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole

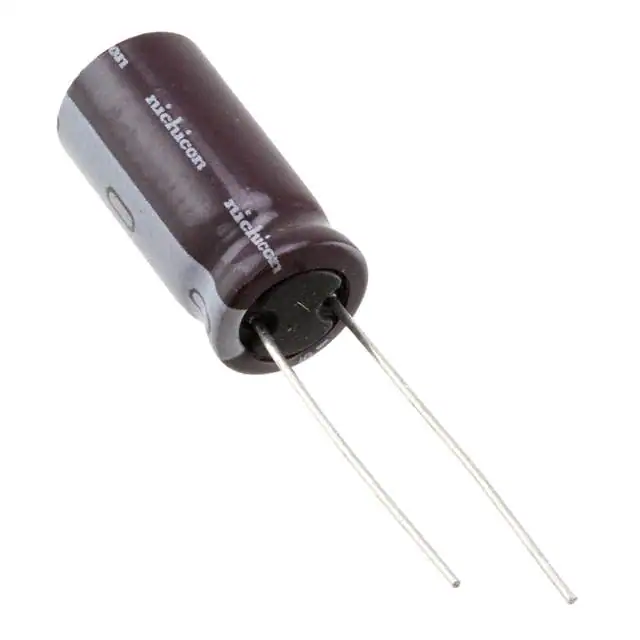

UPS1V471MPD CAP ALUM 470UF 20% 35V RADIAL Nichicon	1,230	-	RFQ	Datasheet	Bulk	UPS	Not For New Designs	470 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	710 mA @ 120 Hz	1 A @ 100 kHz	110 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
EEV-FK2A221M CAP ALUM 220UF 20% 100V SMD Panasonic Electronic Components	38,706	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FK	Active	220 µF	±20%	100 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	687.8 mA @ 120 Hz	917 mA @ 100 kHz	153 mOhms	-	0.709 Dia (18.00mm)	0.669 (17.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount

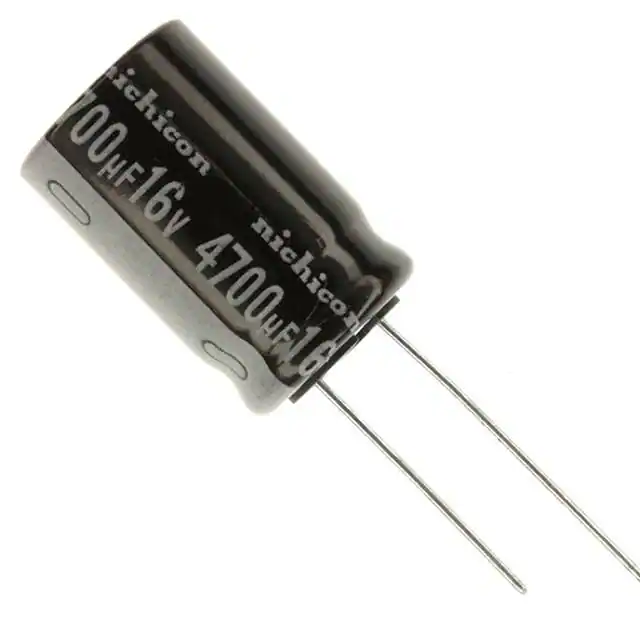

UVZ1C472MHD CAP ALUM 4700UF 20% 16V RADIAL Nichicon	1,543	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	4700 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.48 A @ 120 Hz	1.702 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
EEU-FC0J472S CAP ALUM 4700UF 20% 6.3V RADIAL Panasonic Electronic Components	1,004	-	RFQ	Datasheet	Bulk	FC	Active	4700 µF	±20%	6.3 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.874 A @ 120 Hz	2.205 A @ 100 kHz	29 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.787 (20.00mm)	-	Through Hole

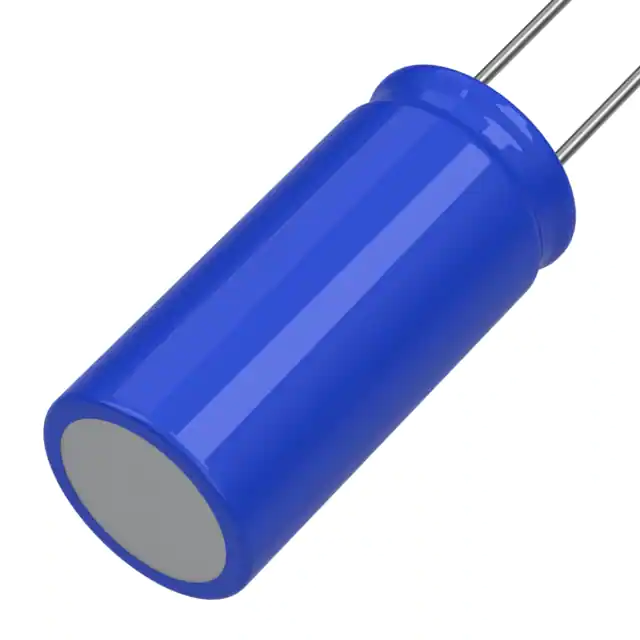

MAL204830471E3 CAP ALUM 470UF 20% 35V RADIAL Vishay Beyschlag/Draloric/BC Components	4,243	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	048 RML	Active	470 µF	±20%	35 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	500 mA @ 100 Hz	-	150 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole

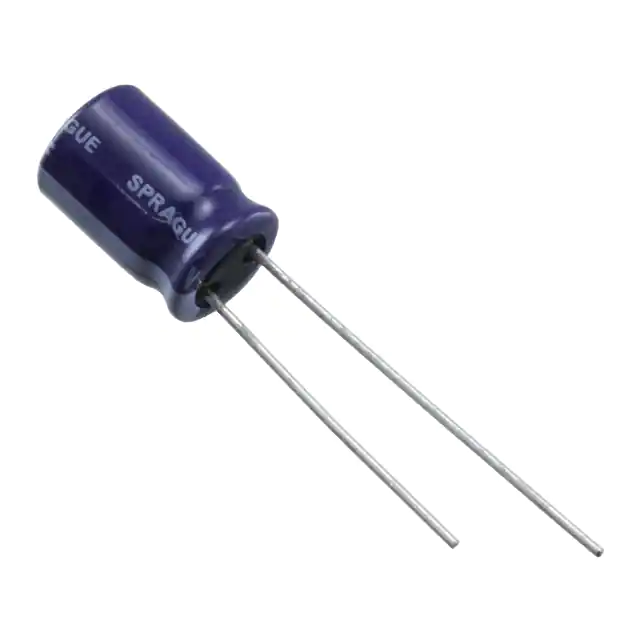

515D107M035BB6AE3 CAP ALUM 100UF 20% 35V RADIAL Vishay Sprague	7,068	-	RFQ	Datasheet	Bulk	515D	Last Time Buy	100 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	230 mA @ 120 Hz	345 mA @ 10 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.453 (11.50mm)	-	Through Hole
35YXJ470MCA10X16 CAP ALUM 470UF 20% 35V RADIAL Rubycon	6,341	-	RFQ	Datasheet	Bulk	YXJ	Active	470 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	907.5 mA @ 120 Hz	1.21 A @ 100 kHz	62 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole

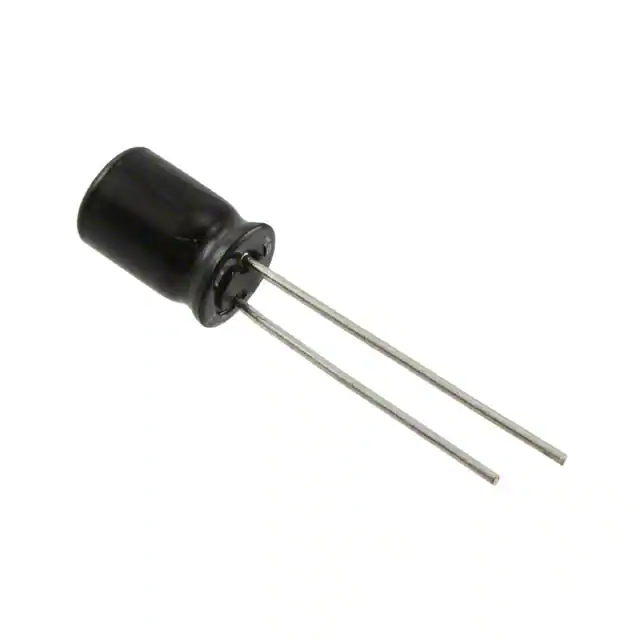

UDB1H010MPM CAP ALUM 1UF 20% 50V RADIAL Nichicon	6,256	-	RFQ	Datasheet	Bulk	UDB	Active	1 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	205 mA @ 20 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.492 (12.50mm)	-	Through Hole
227KXM050M CAP ALUM 220UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	1,456	-	RFQ	Datasheet	Bulk	KXM	Active	220 µF	±20%	50 V	753.6mOhm @ 120Hz	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	568 mA @ 120 Hz	1.136 A @ 100 kHz	120 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
