Aluminum Electrolytic Capacitors- Page 110

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

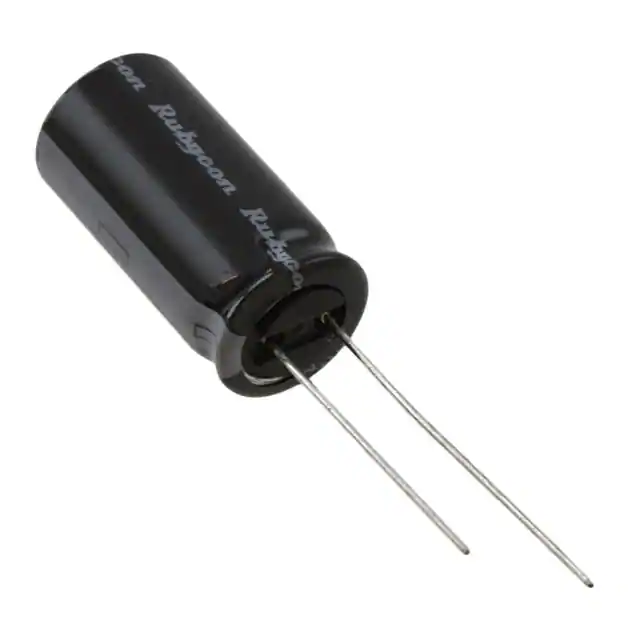

35ZLH1200MEFC12.5X25 CAP ALUM 1200UF 20% 35V RADIAL Rubycon	1,272	-	RFQ	Datasheet	Bulk	ZLH	Active	1200 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.74 A @ 120 Hz	2.9 A @ 100 kHz	15 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
MAL213836101E3 CAP ALUM 100UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	3,995	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	138 AML	Active	100 µF	±20%	25 V	2.1Ohm @ 100Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	160 mA @ 100 Hz	208 mA @ 10 kHz	1.2 Ohms	-	0.256 Dia x 0.709 L (6.50mm x 18.00mm)	-	-	Through Hole

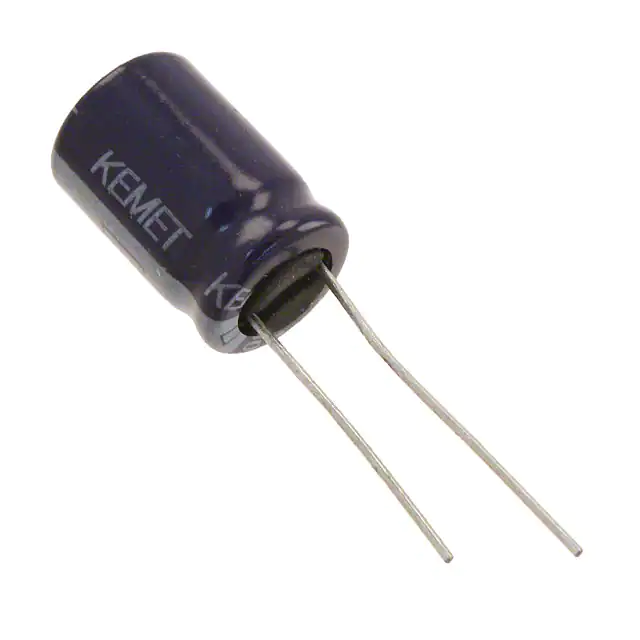

ESK108M025AH4AA CAP ALUM 1000UF 20% 25V RADIAL KEMET	12,314	-	RFQ	Datasheet	Bulk	ESK	Active	1000 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	760 mA @ 120 Hz	874 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.827 (21.00mm)	-	Through Hole
B41866C6106M000 CAP ALUM 10UF 20% 50V RADIAL EPCOS - TDK Electronics	8,070	-	RFQ	Datasheet	Bulk	B41866	Active	10 µF	±20%	50 V	931mOhm @ 100kHz	2000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	160 mA @ 100 kHz	826 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole

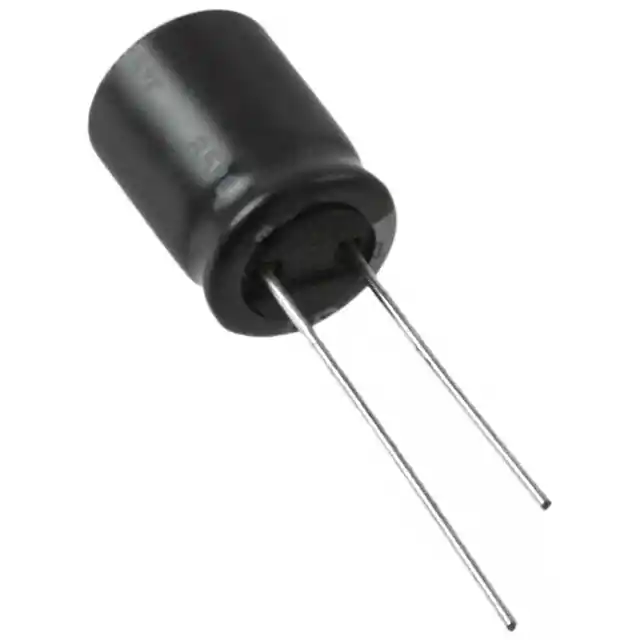

450PK4R7MEFC10X12.5 CAP ALUM 4.7UF 20% 450V RADIAL Rubycon	3,459	-	RFQ	Datasheet	Bulk	PK	Active	4.7 µF	±20%	450 V	-	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	46 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.571 (14.50mm)	-	Through Hole
UHE1J471MHD CAP ALUM 470UF 20% 63V RADIAL Nichicon	4,119	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	470 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	757.5 mA @ 120 Hz	1.01 A @ 100 kHz	100 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.240 (31.50mm)	-	Through Hole

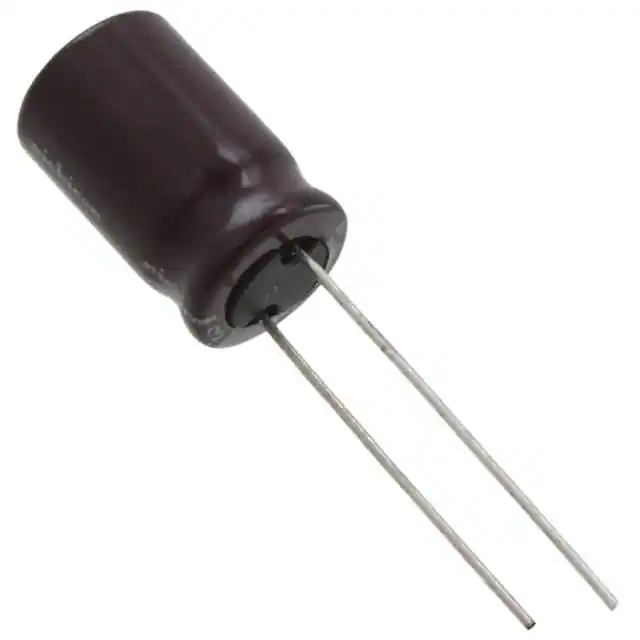

UPJ1C471MPD6 CAP ALUM 470UF 20% 16V RADIAL Nichicon	1,141	-	RFQ	Datasheet	Bulk	UPJ	Not For New Designs	470 µF	±20%	16 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	615 mA @ 120 Hz	770 mA @ 10 kHz	140 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.650 (16.50mm)	-	Through Hole
100ZLH220MEFC12.5X25 CAP ALUM 220UF 20% 100V RADIAL Rubycon	551	-	RFQ	Datasheet	Bulk	ZLH	Active	220 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	810 mA @ 120 Hz	1.62 A @ 100 kHz	60 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

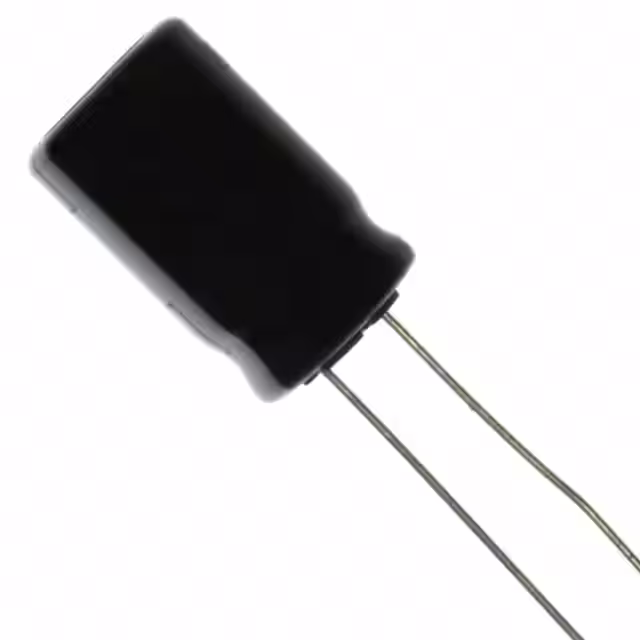

EEU-EB1V102 CAP ALUM 1000UF 20% 35V RADIAL Panasonic Electronic Components	1,116	-	RFQ	Datasheet	Bulk	EB-A	Active	1000 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	586 mA @ 120 Hz	673.9 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
EEV-TG1C471Q CAP ALUM 470UF 20% 16V SMD Panasonic Electronic Components	1,716	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TG	Active	470 µF	±20%	16 V	120mOhm @ 100kHz	2000 Hrs @ 125°C	-40°C ~ 125°C	Polar	AEC-Q200	Automotive	520 mA @ 120 Hz	800 mA @ 100 kHz	-	-	0.492 Dia (12.50mm)	0.531 (13.50mm)	0.531 L x 0.531 W (13.50mm x 13.50mm)	Surface Mount

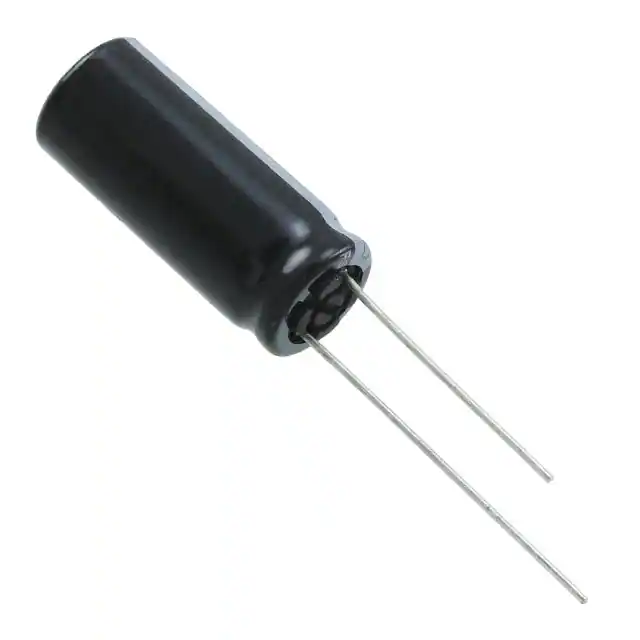

EEU-FS1C222L CAP ALUM 2200UF 20% 16V RADIAL Panasonic Electronic Components	1,676	-	RFQ	Datasheet	Bulk	FS-A	Active	2200 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.976 A @ 120 Hz	2.47 A @ 100 kHz	18 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole
25ZLJ390M8X16 CAP ALUM 390UF 20% 25V RADIAL Rubycon	39,925	-	RFQ	Datasheet	Bulk	ZLJ	Active	390 µF	±20%	25 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	880 mA @ 120 Hz	1.6 A @ 100 kHz	59 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.689 (17.50mm)	-	Through Hole
MAL202139479E3 CAP ALUM 47UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	9,198	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	021 ASM	Active	47 µF	±20%	100 V	2.7Ohm	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	224 mA @ 10 kHz	1.9 Ohms	-	0.315 Dia x 0.709 L (8.00mm x 18.00mm)	-	-	Through Hole
105TTA050M CAP ALUM 1UF 20% 50V AXIAL Cornell Dubilier / Illinois Capacitor	20,628	-	RFQ	Datasheet	Bulk	TTA	Active	1 µF	±20%	50 V	165.786Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	10 mA @ 120 Hz	17 mA @ 50 kHz	-	-	0.197 Dia x 0.512 L (5.00mm x 13.00mm)	-	-	Through Hole

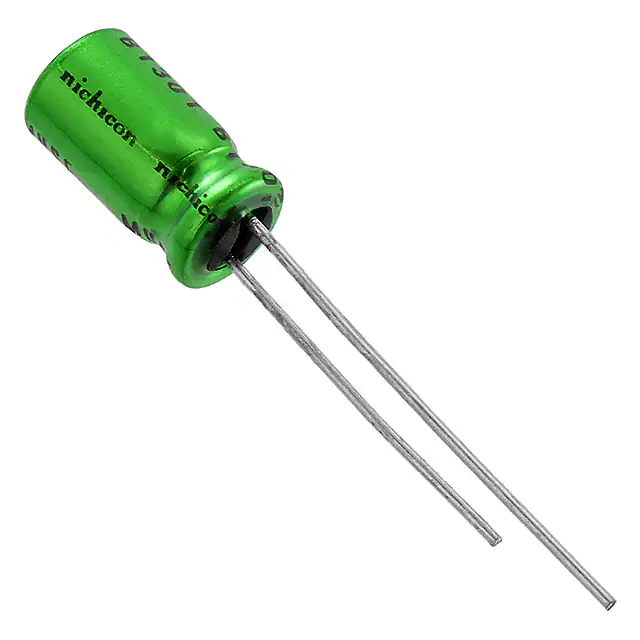

UES1V100MEM CAP ALUM 10UF 20% 35V RADIAL Nichicon	4,203	-	RFQ	Datasheet	Bulk	UES	Not For New Designs	10 µF	±20%	35 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
EEU-HD1C101 CAP ALUM 100UF 20% 16V RADIAL Panasonic Electronic Components	3,600	-	RFQ	Datasheet	Bulk	HD	Active	100 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	110 mA @ 120 Hz	165 mA @ 100 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
16PX3300MEFC12.5X20 CAP ALUM 3300UF 20% 16V RADIAL Rubycon	2,171	-	RFQ	Datasheet	Bulk	PX	Active	3300 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.3 A @ 120 Hz	1.495 A @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
25ZLJ470M10X12.5 CAP ALUM 470UF 20% 25V RADIAL Rubycon	44,133	-	RFQ	Datasheet	Bulk	ZLJ	Active	470 µF	±20%	25 V	-	9000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	935 mA @ 120 Hz	1.7 A @ 100 kHz	53 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole

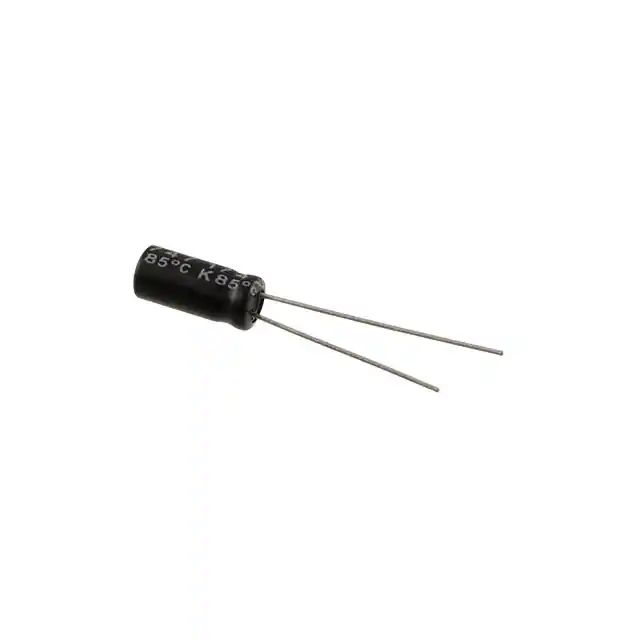

476BPS050M CAP ALUM 47UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	11,096	-	RFQ	Datasheet	Bulk	BPS	Active	47 µF	±20%	50 V	5.644Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	150 mA @ 120 Hz	235.5 mA @ 50 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.571 (14.50mm)	-	Through Hole
35ZLH1500MEFC16X20 CAP ALUM 1500UF 20% 35V RADIAL Rubycon	5,127	-	RFQ	Datasheet	Bulk	ZLH	Active	1500 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.95 A @ 120 Hz	3.25 A @ 100 kHz	15 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole
