Aluminum Electrolytic Capacitors- Page 111

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
50PX330MEFC10X16 CAP ALUM 330UF 20% 50V RADIAL Rubycon	4,352	-	RFQ	Datasheet	Bulk	PX	Active	330 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	470 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
UHW1A222MPD CAP ALUM 2200UF 20% 10V RADIAL Nichicon	4,552	-	RFQ	Datasheet	Bulk	UHW	Not For New Designs	2200 µF	±20%	10 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.175 A @ 120 Hz	2.9 A @ 100 kHz	17 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole
MAL213837101E3 CAP ALUM 100UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	3,350	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	138 AML	Active	100 µF	±20%	40 V	1.6Ohm @ 100Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	180 mA @ 100 Hz	216 mA @ 10 kHz	900 mOhms	-	0.315 Dia x 0.709 L (8.00mm x 18.00mm)	-	-	Through Hole
MAL213839229E3 CAP ALUM 22UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	1,877	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	138 AML	Active	22 µF	±20%	100 V	5.1Ohm @ 100Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	100 mA @ 100 Hz	140 mA @ 10 kHz	3.6 Ohms	-	0.315 Dia x 0.709 L (8.00mm x 18.00mm)	-	-	Through Hole
UHE1V102MHD6TN CAP ALUM 1000UF 20% 35V RADIAL Nichicon	5,240	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UHE	Not For New Designs	1000 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.658 A @ 120 Hz	2.21 A @ 100 kHz	43 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.650 (16.50mm)	-	Through Hole
108CKE016MLN CAP ALUM 1000UF 20% 16V RADIAL Cornell Dubilier / Illinois Capacitor	30,649	-	RFQ	Datasheet	Bulk	CKE	Active	1000 µF	±20%	16 V	265.3mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	500 mA @ 120 Hz	700 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
107CKH063M CAP ALUM 100UF 20% 63V RADIAL Cornell Dubilier / Illinois Capacitor	15,433	-	RFQ	Datasheet	Bulk	CKH	Active	100 µF	±20%	63 V	1.4921Ohm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	260 mA @ 120 Hz	390 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
B41896C7477M000 CAP ALUM 470UF 20% 35V RADIAL EPCOS - TDK Electronics	1,884	-	RFQ	Datasheet	Bulk	B41896	Active	470 µF	±20%	35 V	323mOhm @ 120Hz	7000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	-	1.82 A @ 100 kHz	55 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
UES1C101MPM CAP ALUM 100UF 20% 16V RADIAL Nichicon	11,313	-	RFQ	Datasheet	Bulk	UES	Not For New Designs	100 µF	±20%	16 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
EEU-HD1E470 CAP ALUM 47UF 20% 25V RADIAL Panasonic Electronic Components	1,278	-	RFQ	Datasheet	Bulk	HD	Active	47 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	91 mA @ 120 Hz	136.5 mA @ 100 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
63ZLJ330M10X25 CAP ALUM 330UF 20% 63V RADIAL Rubycon	2,710	-	RFQ	Datasheet	Bulk	ZLJ	Active	330 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.095 A @ 120 Hz	-	46 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole
UPW1E152MHD6 CAP ALUM 1500UF 20% 25V RADIAL Nichicon	2,535	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	1500 µF	±20%	25 V	-	7000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.658 A @ 120 Hz	1.95 A @ 100 kHz	30 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.984 (25.00mm)	-	Through Hole

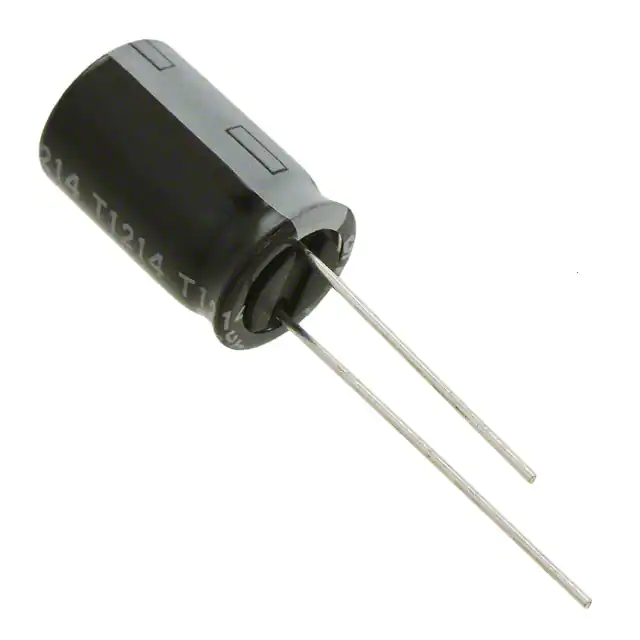

25PK1000MEFC10X16 CAP ALUM 1000UF 20% 25V RADIAL Rubycon	30,906	-	RFQ	Datasheet	Bulk	PK	Active	1000 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	870 mA @ 120 Hz	1.044 A @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
ESC477M035AH4AA CAP ALUM 470UF 20% 35V RADIAL KEMET	16,221	-	RFQ	Datasheet	Bulk	ESC	Active	470 µF	±20%	35 V	39mOhm @ 100kHz	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.17 A @ 120 Hz	1.3 A @ 100 kHz	39 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.827 (21.00mm)	-	Through Hole
ESH475M400AH2AA CAP ALUM 4.7UF 20% 400V RADIAL KEMET	15,749	-	RFQ	Datasheet	Bulk	ESH	Active	4.7 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	60 mA @ 120 Hz	96 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.669 (17.00mm)	-	Through Hole
ESH107M100AH4AA CAP ALUM 100UF 20% 100V RADIAL KEMET	13,785	-	RFQ	Datasheet	Box	ESH	Active	100 µF	±20%	100 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	305 mA @ 120 Hz	457.5 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole

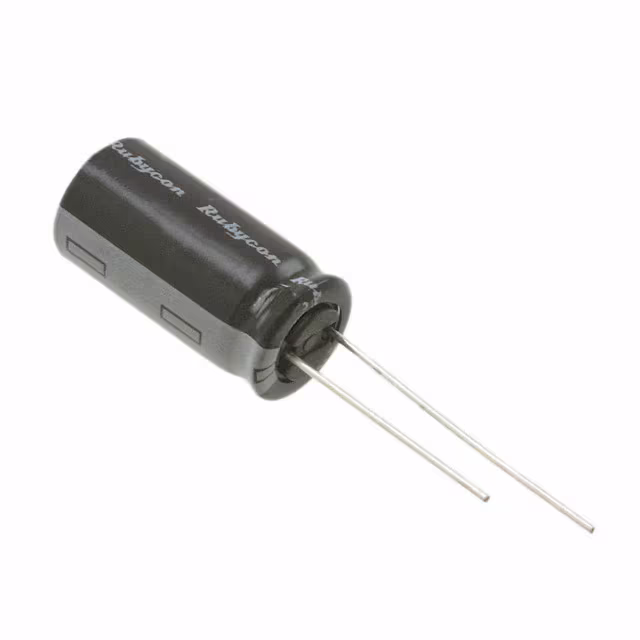

6.3ZLH2200MEFC10X20 CAP ALUM 2200UF 20% 6.3V RADIAL Rubycon	12,897	-	RFQ	Datasheet	Bulk	ZLH	Active	2200 µF	±20%	6.3 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.372 A @ 120 Hz	1.96 A @ 100 kHz	20 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
ECA-1JHG471 CAP ALUM 470UF 20% 63V RADIAL Panasonic Electronic Components	9,344	-	RFQ	Datasheet	Bulk	NHG-A	Active	470 µF	±20%	63 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	640 mA @ 120 Hz	960 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
EEU-FR0J821 CAP ALUM 820UF 20% 6.3V RADIAL Panasonic Electronic Components	3,568	-	RFQ	Datasheet	Bulk	FR-A	Active	820 µF	±20%	6.3 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	712.5 mA @ 120 Hz	950 mA @ 100 kHz	56 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole

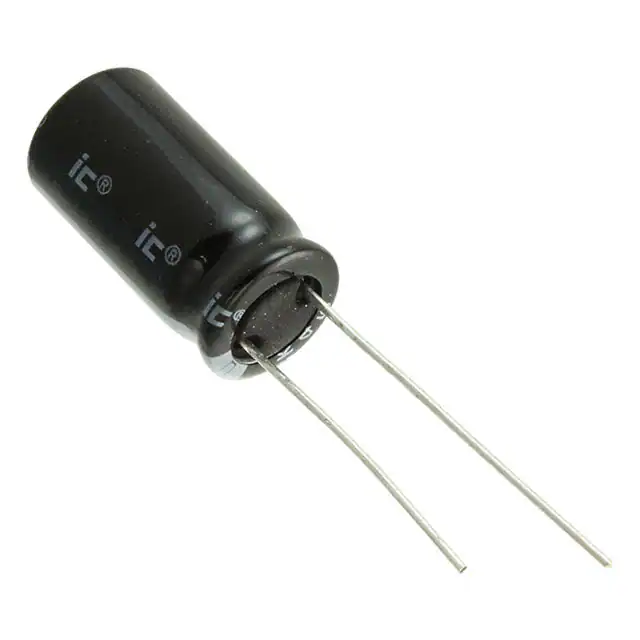

228CKS010M CAP ALUM 2200UF 20% 10V RADIAL Cornell Dubilier / Illinois Capacitor	2,379	-	RFQ	Datasheet	Bulk	CKS	Active	2200 µF	±20%	10 V	180.9mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.23 A @ 120 Hz	1.722 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
