Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
50YXF47MEFCTA6.3X11 CAP ALUM 47UF 20% 50V RADIAL Rubycon	11,797	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	YXF	Active	47 µF	±20%	50 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	175 mA @ 120 Hz	250 mA @ 100 kHz	400 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

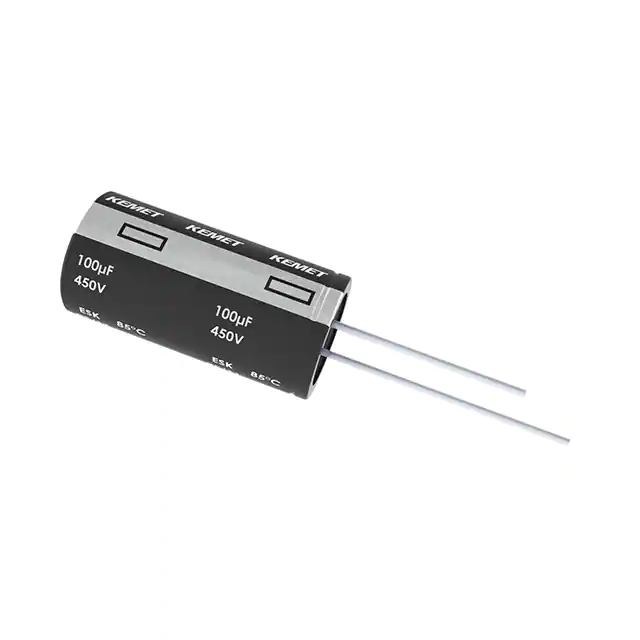

ESK106M016AC3KA CAP ALUM 10UF 20% 16V RADIAL KEMET	6,789	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ESK	Active	10 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	40 mA @ 120 Hz	60 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
ESK105M100AC3FA CAP ALUM 1UF 20% 100V RADIAL KEMET	1,201	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ESK	Active	1 µF	±20%	100 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	21 mA @ 120 Hz	31.5 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVZ1J220MDD1TD CAP ALUM 22UF 20% 63V RADIAL Nichicon	13,206	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVZ	Not For New Designs	22 µF	±20%	63 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	71 mA @ 120 Hz	142 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVZ1C100MDD1TD CAP ALUM 10UF 20% 16V RADIAL Nichicon	7,664	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVZ	Not For New Designs	10 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	35 mA @ 120 Hz	-	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

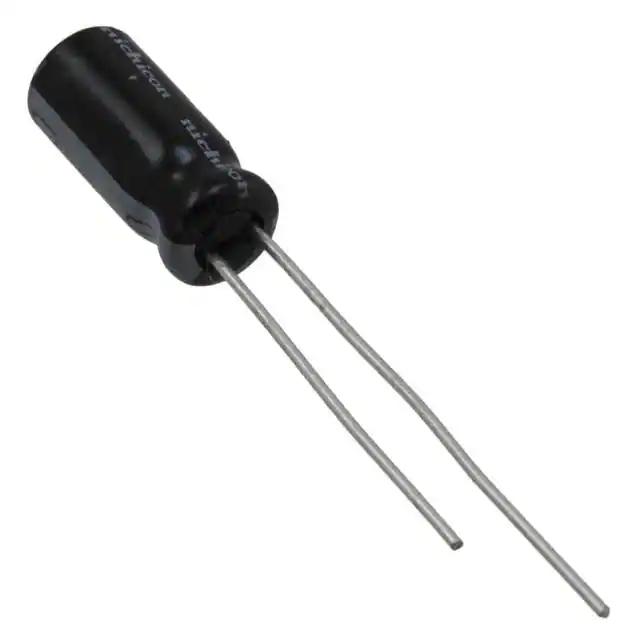

UKL1H010MDD1TD CAP ALUM 1UF 20% 50V RADIAL Nichicon	5,743	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKL	Not For New Designs	1 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	10.7 mA @ 120 Hz	21.4 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UKL1HR22MDD1TD CAP ALUM 0.22UF 20% 50V RADIAL Nichicon	5,722	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKL	Not For New Designs	0.22 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.3 mA @ 120 Hz	4.6 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UKL1HR33MDD1TD CAP ALUM 0.33UF 20% 50V RADIAL Nichicon	4,715	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKL	Not For New Designs	0.33 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.5 mA @ 120 Hz	7 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UPJ1HR68MDD1TD CAP ALUM 0.68UF 20% 50V RADIAL Nichicon	1,855	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPJ	Not For New Designs	0.68 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	14 mA @ 120 Hz	28 mA @ 10 kHz	21 Ohms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVZ1E470MDD1TD CAP ALUM 47UF 20% 25V RADIAL Nichicon	2,964	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVZ	Not For New Designs	47 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	83 mA @ 120 Hz	166 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

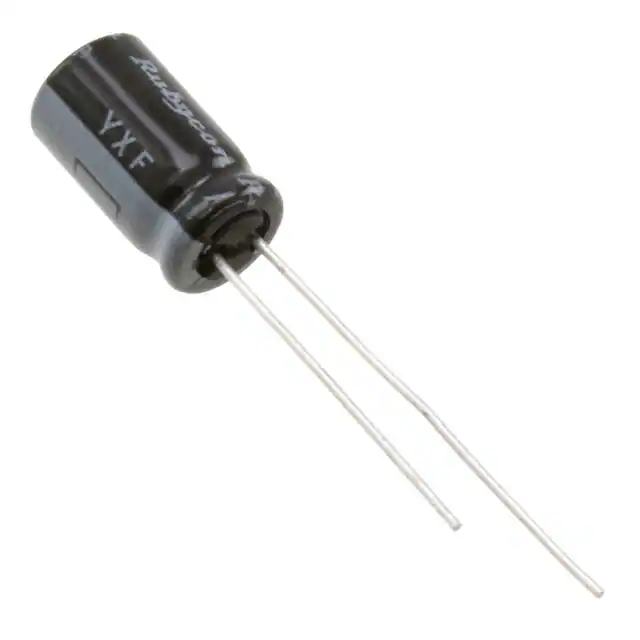

25YXF100MEFCTA6.3X11 CAP ALUM 100UF 20% 25V RADIAL Rubycon	58,932	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	YXF	Active	100 µF	±20%	25 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	175 mA @ 120 Hz	250 mA @ 100 kHz	400 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

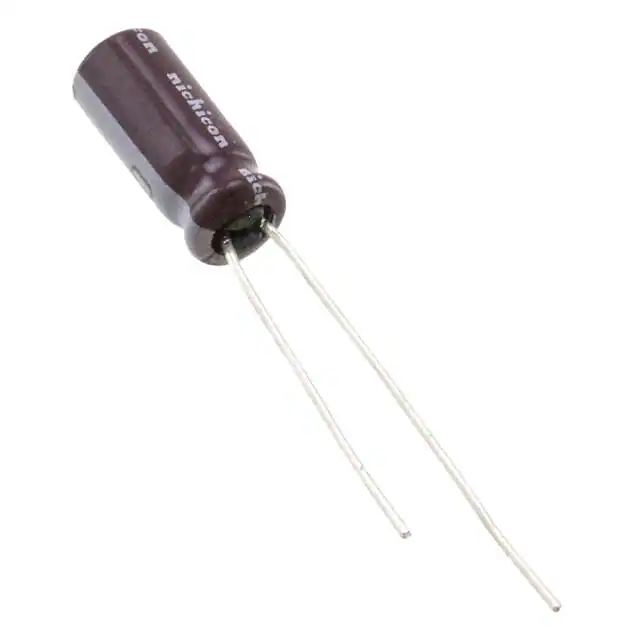

UPW1H010MDD1TD CAP ALUM 1UF 20% 50V RADIAL Nichicon	41,846	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPW	Not For New Designs	1 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	12 mA @ 120 Hz	40 mA @ 100 kHz	3.5 Ohms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

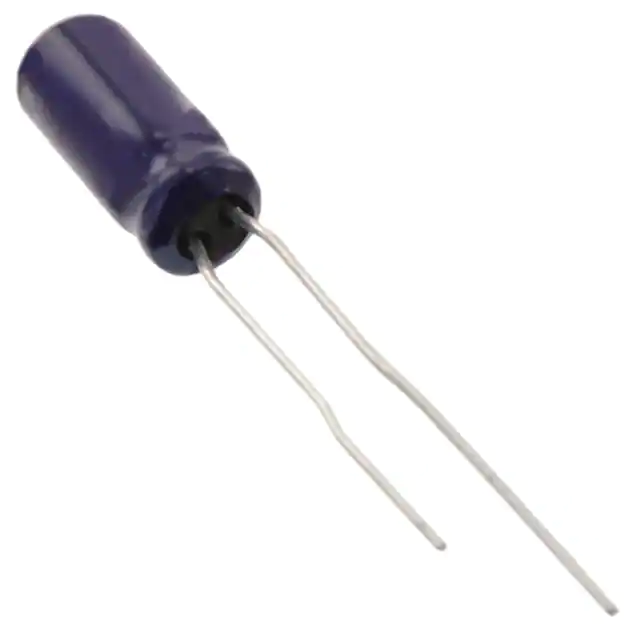

ECA-1EM220I CAP ALUM 22UF 20% 25V RADIAL Panasonic Electronic Components	29,537	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	M-A	Active	22 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	153 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UVY1E221MED1TD CAP ALUM 220UF 20% 25V RADIAL Nichicon	16,474	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVY	Not For New Designs	220 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	200 mA @ 120 Hz	300 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UKL1H4R7MDD1TD CAP ALUM 4.7UF 20% 50V RADIAL Nichicon	2,975	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKL	Not For New Designs	4.7 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	45 mA @ 120 Hz	-	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UKL1V150MDD1TD CAP ALUM 15UF 20% 35V RADIAL Nichicon	4,020	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKL	Not For New Designs	15 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	85 mA @ 120 Hz	170 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
100YXF10MEFCTA6.3X11 CAP ALUM 10UF 20% 100V RADIAL Rubycon	10,732	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	YXF	Active	10 µF	±20%	100 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	58.8 mA @ 120 Hz	140 mA @ 100 kHz	1.2 Ohms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

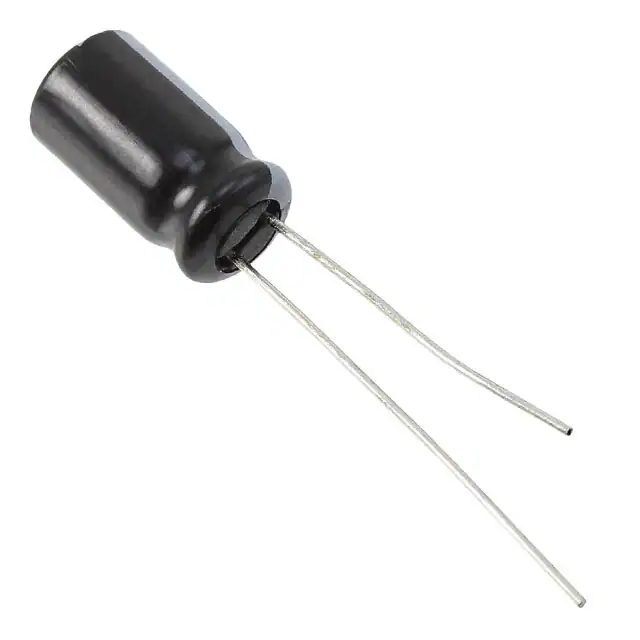

UVK1H470MED1TD CAP ALUM 47UF 20% 50V RADIAL Nichicon	2,718	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVK	Not For New Designs	47 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	155 mA @ 120 Hz	310 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UPW1E470MDD1TD CAP ALUM 47UF 20% 25V RADIAL Nichicon	44,856	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPW	Not For New Designs	47 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	54 mA @ 120 Hz	180 mA @ 100 kHz	600 mOhms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UPW0J101MDD1TD CAP ALUM 100UF 20% 6.3V RADIAL Nichicon	7,980	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPW	Not For New Designs	100 µF	±20%	6.3 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	117 mA @ 120 Hz	180 mA @ 100 kHz	600 mOhms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
