Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

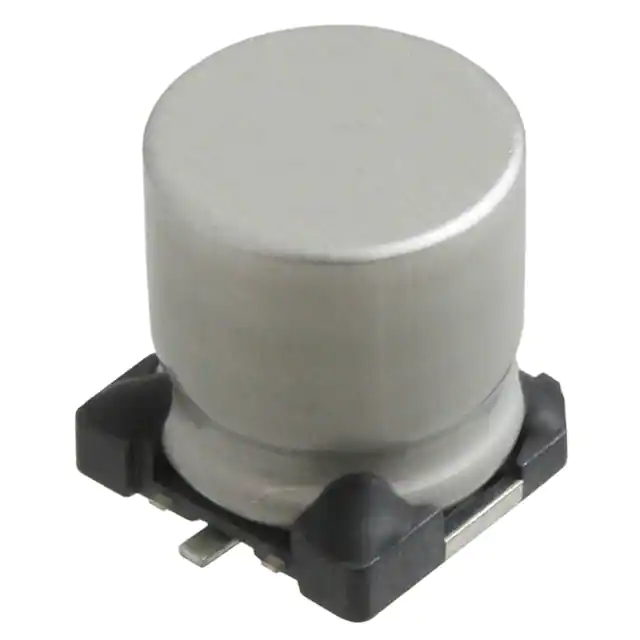

MAL215099804E3 CAP ALUM 100UF 20% 63V SMD Vishay Beyschlag/Draloric/BC Components	3,719	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	150 CRZ	Active	100 µF	±20%	63 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	304.2 mA @ 100 Hz	-	290 mOhms	-	0.394 Dia (10.00mm)	0.591 (15.00mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount

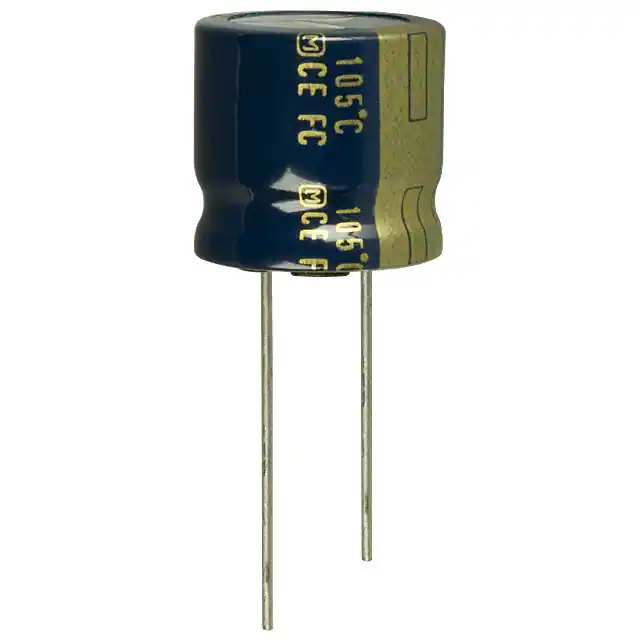

EEU-FC1E222 CAP ALUM 2200UF 20% 25V RADIAL Panasonic Electronic Components	19,802	-	RFQ	Datasheet	Bulk	FC	Active	2200 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	2.008 A @ 120 Hz	2.51 A @ 100 kHz	22 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.378 (35.00mm)	-	Through Hole
EEV-FK1E332M CAP ALUM 3300UF 20% 25V SMD Panasonic Electronic Components	23,942	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FK	Active	3300 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.545 A @ 120 Hz	2.06 A @ 100 kHz	33 mOhms	-	0.709 Dia (18.00mm)	0.669 (17.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount
EEV-FK1C472M CAP ALUM 4700UF 20% 16V SMD Panasonic Electronic Components	24,008	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FK	Active	4700 µF	±20%	16 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.545 A @ 120 Hz	2 A @ 100 kHz	33 mOhms	-	0.709 Dia (18.00mm)	0.669 (17.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount

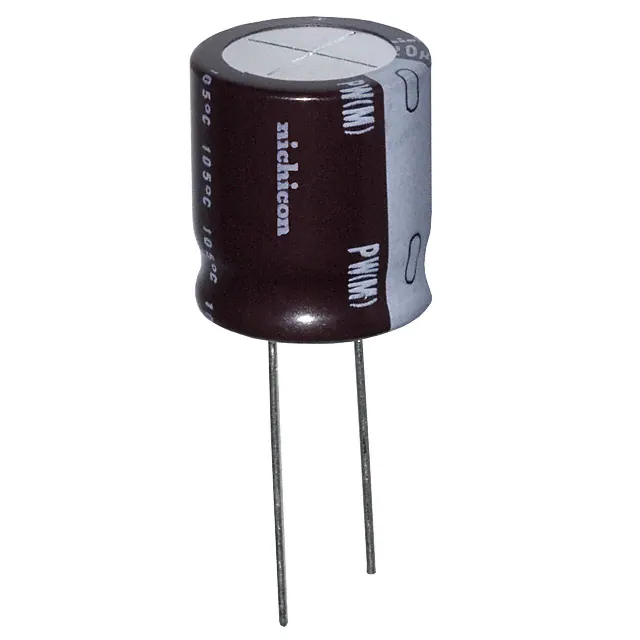

UPW2A331MHD CAP ALUM 330UF 20% 100V RADIAL Nichicon	25,943	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	330 µF	±20%	100 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	702 mA @ 120 Hz	1.08 A @ 100 kHz	90 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.984 (25.00mm)	-	Through Hole
UPW1V122MHD6 CAP ALUM 1200UF 20% 35V RADIAL Nichicon	12,347	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	1200 µF	±20%	35 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.879 A @ 120 Hz	2.21 A @ 100 kHz	29 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.787 (20.00mm)	-	Through Hole
ECA-2WHG220 CAP ALUM 22UF 20% 450V RADIAL Panasonic Electronic Components	2,176	-	RFQ	Datasheet	Bulk	NHG-A	Active	22 µF	±20%	450 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	115 mA @ 120 Hz	172.5 mA @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
EKMG401ELL220MK25S CAP ALUM 22UF 20% 400V RADIAL United Chemi-Con	826	-	RFQ	Datasheet	Bulk	KMG	Active	22 µF	±20%	400 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	145 mA @ 120 Hz	261 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole

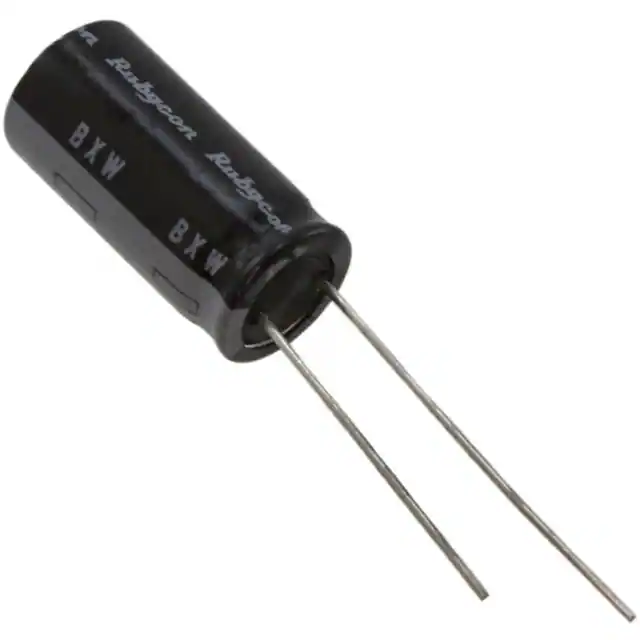

400BXW12MEFR10X16 CAP ALUM 12UF 20% 400V RADIAL Rubycon	6,298	-	RFQ	Datasheet	Bulk	BXW	Active	12 µF	±20%	400 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	160 mA @ 120 Hz	400 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole
MAL214699004E3 CAP ALUM 220UF 20% 35V SMD Vishay Beyschlag/Draloric/BC Components	4,330	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	220 µF	±20%	35 V	-	2000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	585 mA @ 100 Hz	900 mA @ 100 kHz	97 mOhms	-	0.394 Dia (10.00mm)	0.492 (12.50mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount
450BXW10MEFR10X16 CAP ALUM 10UF 20% 450V RADIAL Rubycon	96,696	-	RFQ	Datasheet	Bulk	BXW	Active	10 µF	±20%	450 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	130 mA @ 120 Hz	325 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole

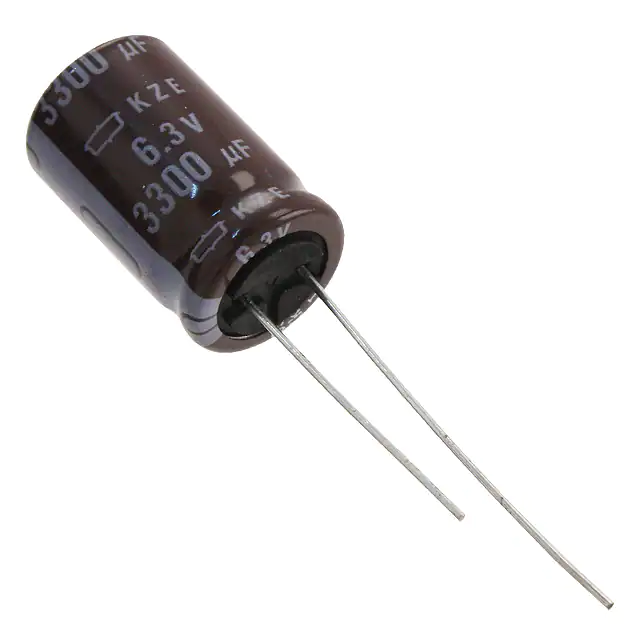

EKZE630ELL471MK30S CAP ALUM 470UF 20% 63V RADIAL United Chemi-Con	22,536	-	RFQ	Datasheet	Bulk	KZE	Active	470 µF	±20%	63 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.15 A @ 120 Hz	2.3 A @ 100 kHz	28 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.181 (30.00mm)	-	Through Hole
UHE1V182MHD CAP ALUM 1800UF 20% 35V RADIAL Nichicon	46,683	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	1800 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.68 A @ 120 Hz	3.35 A @ 100 kHz	17 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.575 (40.00mm)	-	Through Hole
EEV-EB2C330SQ CAP ALUM 33UF 20% 160V SMD Panasonic Electronic Components	6,020	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EB	Last Time Buy	33 µF	±20%	160 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	258.5 mA @ 120 Hz	470 mA @ 100 kHz	-	-	0.492 Dia (12.50mm)	0.669 (17.00mm)	0.531 L x 0.531 W (13.50mm x 13.50mm)	Surface Mount
UHE1H102MHD6 CAP ALUM 1000UF 20% 50V RADIAL Nichicon	8,965	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	1000 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	2.555 A @ 100 kHz	25 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.984 (25.00mm)	-	Through Hole
EEE-FK1V222SM CAP ALUM 2200UF 20% 35V SMD Panasonic Electronic Components	12,123	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FKS	Active	2200 µF	±20%	35 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.545 A @ 120 Hz	2.06 A @ 100 kHz	-	-	0.709 Dia (18.00mm)	0.669 (17.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount
EEU-FC1H561S CAP ALUM 560UF 20% 50V RADIAL Panasonic Electronic Components	5,435	-	RFQ	Datasheet	Bulk	FC	Active	560 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.425 A @ 120 Hz	1.9 A @ 100 kHz	68 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.591 (15.00mm)	-	Through Hole

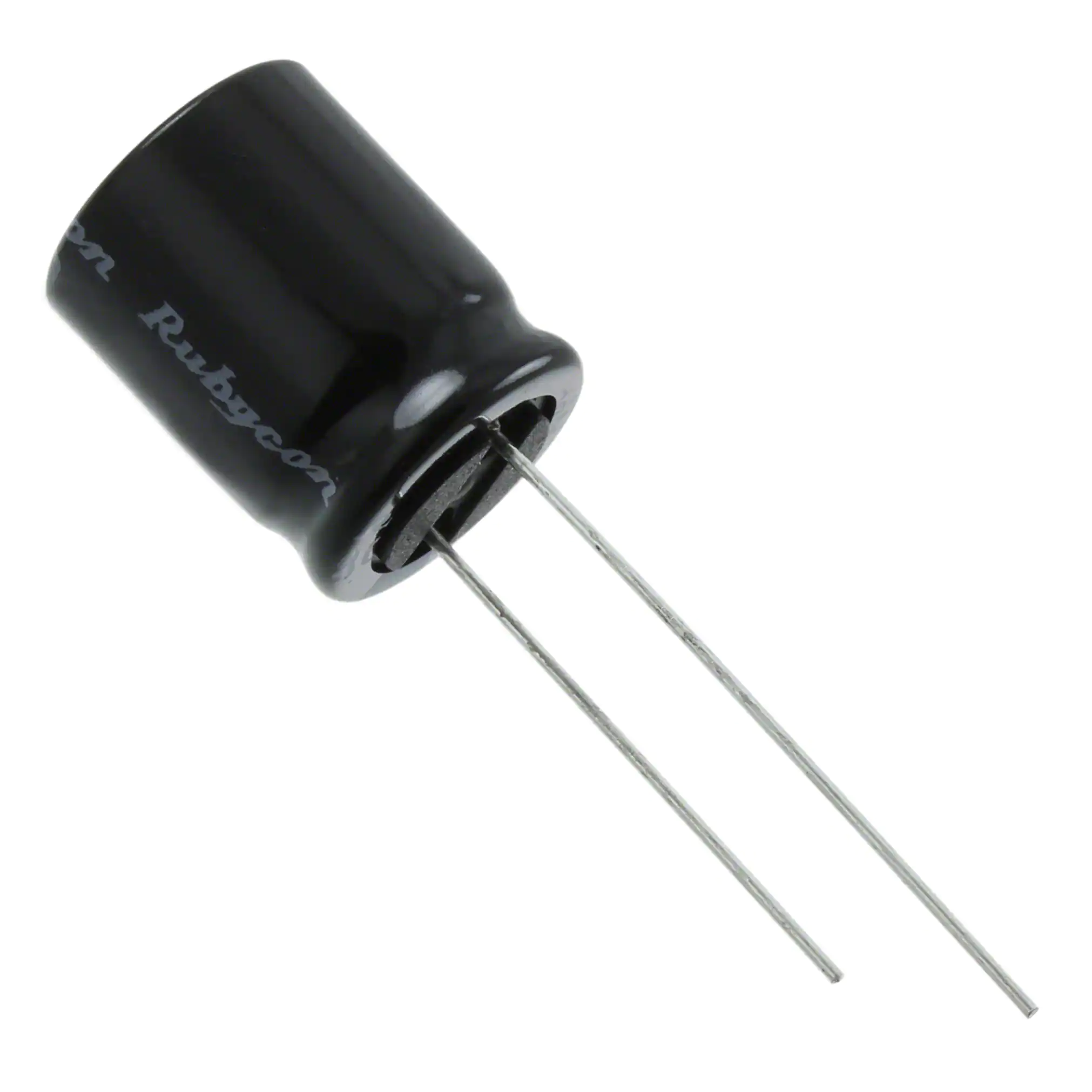

100ZLJ220M12.5X25 CAP ALUM 220UF 20% 100V RADIAL Rubycon	167,650	-	RFQ	Datasheet	Bulk	ZLJ	Active	220 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.105 A @ 120 Hz	2.21 A @ 100 kHz	47 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
MAL215099112E3 CAP ALUM 330UF 20% 50V SMD Vishay Beyschlag/Draloric/BC Components	828	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	150 CRZ	Active	330 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	-	690 mA @ 100 kHz	130 mOhms	-	0.492 Dia (12.50mm)	0.551 (14.00mm)	0.492 L x 0.492 W (12.50mm x 12.50mm)	Surface Mount
450BXW22MEFR12.5X20 CAP ALUM 22UF 20% 450V RADIAL Rubycon	14,006	-	RFQ	Datasheet	Bulk	BXW	Active	22 µF	±20%	450 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	280 mA @ 120 Hz	700 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
