Aluminum Electrolytic Capacitors- Page 8

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
EEU-FC2A221 CAP ALUM 220UF 20% 100V RADIAL Panasonic Electronic Components	2,258	-	RFQ	Datasheet	Bulk	FC	Active	220 µF	±20%	100 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	760.5 mA @ 120 Hz	1.08 A @ 100 kHz	89 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.984 (25.00mm)	-	Through Hole
UHE1H122MHD6 CAP ALUM 1200UF 20% 50V RADIAL Nichicon	3,911	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	1200 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.192 A @ 120 Hz	2.74 A @ 100 kHz	26 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.984 (25.00mm)	-	Through Hole
EEE-FK1E222AM CAP ALUM 2200UF 20% 25V SMD Panasonic Electronic Components	6,926	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FK	Active	2200 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	1.35 A @ 120 Hz	1.8 A @ 100 kHz	35 mOhms	-	0.630 Dia (16.00mm)	0.669 (17.00mm)	0.669 L x 0.669 W (17.00mm x 17.00mm)	Surface Mount
UHE1V222MHD6 CAP ALUM 2200UF 20% 35V RADIAL Nichicon	3,467	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	2200 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.512 A @ 120 Hz	3.14 A @ 100 kHz	19 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.984 (25.00mm)	-	Through Hole
UHE2A471MHD CAP ALUM 470UF 20% 100V RADIAL Nichicon	4,719	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	470 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.425 A @ 120 Hz	1.9 A @ 100 kHz	45 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.398 (35.50mm)	-	Through Hole
UHW1H102MHD CAP ALUM 1000UF 20% 50V RADIAL Nichicon	3,100	-	RFQ	Datasheet	Bulk	UHW	Not For New Designs	1000 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.1 A @ 120 Hz	3.5 A @ 100 kHz	20 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.319 (33.50mm)	-	Through Hole
108CKE063M CAP ALUM 1000UF 20% 63V RADIAL Cornell Dubilier / Illinois Capacitor	168,711	-	RFQ	Datasheet	Bulk	CKE	Active	1000 µF	±20%	63 V	149.2mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.45 A @ 120 Hz	2.03 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
100ZLJ330M12.5X35 CAP ALUM 330UF 20% 100V RADIAL Rubycon	22,742	-	RFQ	Datasheet	Bulk	ZLJ	Active	330 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.43 A @ 120 Hz	2.6 A @ 100 kHz	36 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.457 (37.00mm)	-	Through Hole
MAL214699806E3 CAP ALUM 100UF 20% 63V SMD Vishay Beyschlag/Draloric/BC Components	7,041	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	100 µF	±20%	63 V	-	3000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	390 mA @ 100 Hz	650 mA @ 100 kHz	210 mOhms	-	0.492 Dia (12.50mm)	0.551 (14.00mm)	0.492 L x 0.492 W (12.50mm x 12.50mm)	Surface Mount

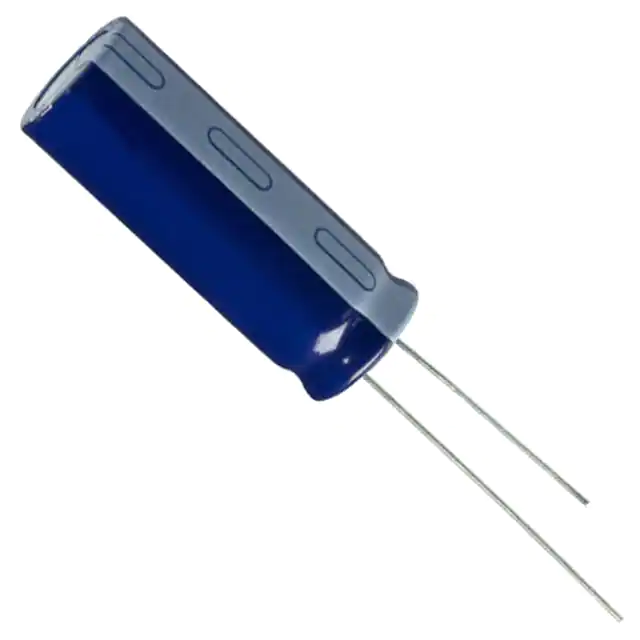

ELXZ350ELL182MK40S CAP ALUM 1800UF 20% 35V RADIAL United Chemi-Con	17,085	-	RFQ	Datasheet	Bulk	LXZ	Active	1800 µF	±20%	35 V	-	7000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.722 A @ 120 Hz	2.87 A @ 100 kHz	17 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.634 (41.50mm)	-	Through Hole
ECA-1EHG472 CAP ALUM 4700UF 20% 25V RADIAL Panasonic Electronic Components	358	-	RFQ	Datasheet	Bulk	NHG-A	Active	4700 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.75 A @ 120 Hz	2.013 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)	-	Through Hole
EEE-FK2A331AM CAP ALUM 330UF 20% 100V SMD Panasonic Electronic Components	37,850	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FK	Active	330 µF	±20%	100 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	687.8 mA @ 120 Hz	917 mA @ 100 kHz	153 mOhms	-	0.709 Dia (18.00mm)	0.669 (17.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount
UVZ1E472MHD CAP ALUM 4700UF 20% 25V RADIAL Nichicon	2,927	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	4700 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.71 A @ 120 Hz	1.9665 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.299 (33.00mm)	-	Through Hole
UPW1J122MHD CAP ALUM 1200UF 20% 63V RADIAL Nichicon	10,757	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	1200 µF	±20%	63 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.508 A @ 120 Hz	2.95 A @ 100 kHz	32 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.240 (31.50mm)	-	Through Hole
EKXG401ELL330ML20S CAP ALUM 33UF 20% 400V RADIAL United Chemi-Con	2,808	-	RFQ	Datasheet	Bulk	KXG	Active	33 µF	±20%	400 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	360 mA @ 120 Hz	900 mA @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.787 (20.00mm)	-	Through Hole
UPW1V222MHD6 CAP ALUM 2200UF 20% 35V RADIAL Nichicon	669	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	2200 µF	±20%	35 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.329 A @ 120 Hz	2.74 A @ 100 kHz	20 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.984 (25.00mm)	-	Through Hole

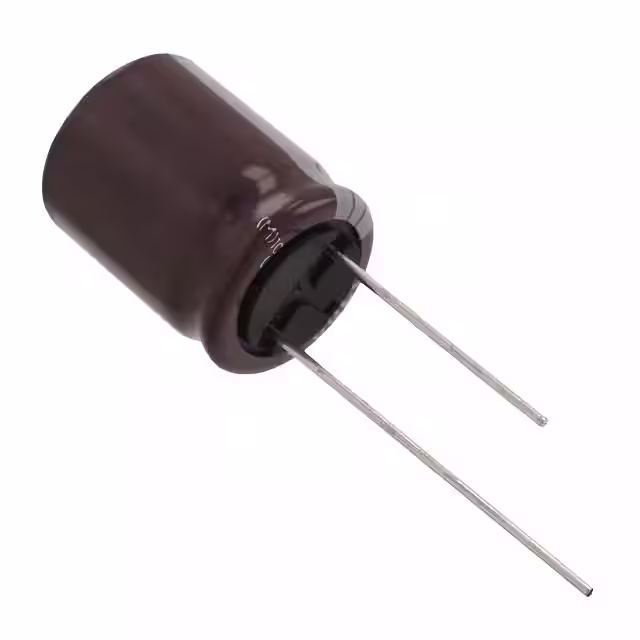

EKZE500ELL102ML25S CAP ALUM 1000UF 20% 50V RADIAL United Chemi-Con	3,640	-	RFQ	Datasheet	Bulk	KZE	Active	1000 µF	±20%	50 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.806 A @ 120 Hz	3.01 A @ 100 kHz	21 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.984 (25.00mm)	-	Through Hole
100ZLJ270M12.5X30 CAP ALUM 270UF 20% 100V RADIAL Rubycon	5,861	-	RFQ	Datasheet	Bulk	ZLJ	Active	270 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.2 A @ 120 Hz	2.4 A @ 100 kHz	42 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.260 (32.00mm)	-	Through Hole
400KXW100MEFC16X30 CAP ALUM 100UF 20% 400V RADIAL Rubycon	3,627	-	RFQ	Datasheet	Bulk	KXW	Active	100 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	580 mA @ 120 Hz	870 mA @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.260 (32.00mm)	-	Through Hole
EEU-FC1J821S CAP ALUM 820UF 20% 63V RADIAL Panasonic Electronic Components	11,652	-	RFQ	Datasheet	Bulk	FC	Active	820 µF	±20%	63 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.939 A @ 120 Hz	2.585 A @ 100 kHz	43 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.984 (25.00mm)	-	Through Hole
