Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
EKXG401ELL121MMP1S CAP ALUM 120UF 20% 400V RADIAL United Chemi-Con	3,841	-	RFQ	Datasheet	Bulk	KXG	Active	120 µF	±20%	400 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	865 mA @ 120 Hz	1.94625 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.398 (35.50mm)	-	Through Hole

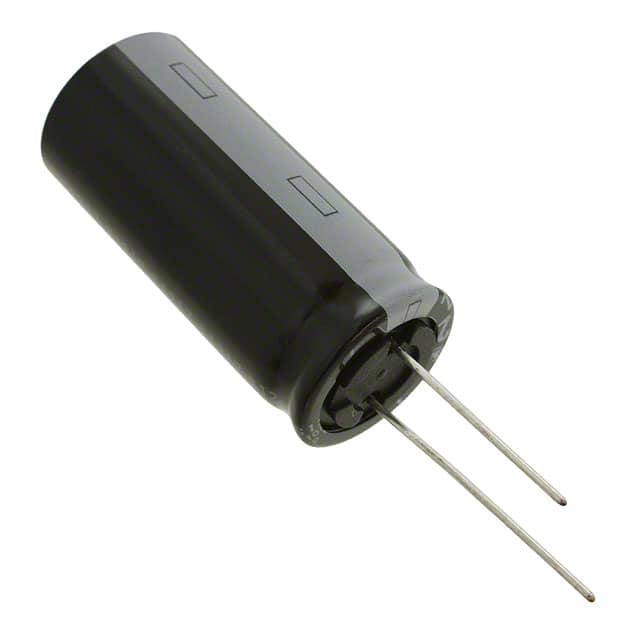

63ZLH2200MEFC18X40 CAP ALUM 2200UF 20% 63V RADIAL Rubycon	19,268	-	RFQ	Datasheet	Bulk	ZLH	Active	2200 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.569 A @ 120 Hz	3.67 A @ 100 kHz	18 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)	-	Through Hole
400BXW68MEFR16X25 CAP ALUM 68UF 20% 400V RADIAL Rubycon	1,918	-	RFQ	Datasheet	Bulk	BXW	Active	68 µF	±20%	400 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	570 mA @ 120 Hz	1.425 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
EKZE101ELL821MM40S CAP ALUM 820UF 20% 100V RADIAL United Chemi-Con	753	-	RFQ	Datasheet	Bulk	KZE	Active	820 µF	±20%	100 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.62 A @ 120 Hz	2.7 A @ 100 kHz	26 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.575 (40.00mm)	-	Through Hole
MAL202116332E3 CAP ALUM 3300UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	1,907	-	RFQ	Datasheet	Bulk	021 ASM	Active	3300 µF	±20%	25 V	99mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	1.911 A @ 10 kHz	65 mOhms	-	0.709 Dia x 1.181 L (18.00mm x 30.00mm)	-	-	Through Hole
SLPX102M100A3P3 CAP ALUM 1000UF 20% 100V SNAP Cornell Dubilier Electronics (CDE)	12,717	-	RFQ	Datasheet	Bulk	SLPX	Active	1000 µF	±20%	100 V	265mOhm @ 120Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.02 A @ 120 Hz	2.53 A @ 20 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.181 (30.00mm)	-	Through Hole
MAL202117222E3 CAP ALUM 2200UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	1,981	-	RFQ	Datasheet	Bulk	021 ASM	Active	2200 µF	±20%	40 V	118mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	1.807 A @ 10 kHz	65 mOhms	-	0.709 Dia x 1.181 L (18.00mm x 30.00mm)	-	-	Through Hole
450BXW47MEFR18X20 CAP ALUM 47UF 20% 450V RADIAL Rubycon	3,247	-	RFQ	Datasheet	Bulk	BXW	Active	47 µF	±20%	450 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	460 mA @ 120 Hz	1.15 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.866 (22.00mm)	-	Through Hole
50PK4700MEFC18X40 CAP ALUM 4700UF 20% 50V RADIAL Rubycon	3,780	-	RFQ	Datasheet	Bulk	PK	Active	4700 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.8 A @ 120 Hz	3.22 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.634 (41.50mm)	-	Through Hole
SLPX103M025A5P3 CAP ALUM 10000UF 20% 25V SNAP Cornell Dubilier Electronics (CDE)	61,394	-	RFQ	Datasheet	Bulk	SLPX	Active	10000 µF	±20%	25 V	60mOhm @ 120Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.31 A @ 120 Hz	4.14 A @ 20 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.378 (35.00mm)	-	Through Hole
SLP472M035C1P3 CAP ALUM 4700UF 20% 35V SNAP Cornell Dubilier Electronics (CDE)	60,426	-	RFQ	Datasheet	Bulk	SLP0712TE (750W)	Active	4700 µF	±20%	35 V	113mOhm	3000 Hrs @ 105°C	-40°C ~ 105°C	-	-	General Purpose	-	-	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	0.984 (25.00mm)	-	Through Hole
EKXJ451ELL151MM50S CAP ALUM 150UF 20% 450V RADIAL United Chemi-Con	10,198	-	RFQ	Datasheet	Bulk	KXJ	Active	150 µF	±20%	450 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	1.06 A @ 120 Hz	2.25 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	2.047 (52.00mm)	-	Through Hole
LLG2G221MELA30 CAP ALUM 220UF 20% 400V SNAP Nichicon	2,489	-	RFQ	Datasheet	Bulk	LLG	Active	220 µF	±20%	400 V	-	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	1.4 A @ 120 Hz	2.002 A @ 50 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.260 (32.00mm)	-	Through Hole
SLPX472M050C3P3 CAP ALUM 4700UF 20% 50V SNAP Cornell Dubilier Electronics (CDE)	13,497	-	RFQ	Datasheet	Bulk	SLPX	Active	4700 µF	±20%	50 V	99mOhm @ 120Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.07 A @ 120 Hz	3.84 A @ 20 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.181 (30.00mm)	-	Through Hole
EKMQ401VSN331MQ45S CAP ALUM 330UF 20% 400V SNAP United Chemi-Con	612	-	RFQ	Datasheet	Bulk	KMQ	Active	330 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.44 A @ 120 Hz	2.0592 A @ 50 kHz	-	0.394 (10.00mm)	1.000 Dia (25.40mm)	1.850 (47.00mm)	-	Through Hole
860010472003 CAP ALUM 22UF 20% 25V RADIAL Würth Elektronik	5,837	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG8	Active	22 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	94 mA @ 120 Hz	143.82 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860010472001 CAP ALUM 4.7UF 20% 25V RADIAL Würth Elektronik	3,211	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG8	Active	4.7 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	34 mA @ 120 Hz	57.8 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVR1V101MED1TD CAP ALUM 100UF 20% 35V RADIAL Nichicon	12,096	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVR	Not For New Designs	100 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	210 mA @ 120 Hz	315 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UWT1E4R7MCL1GB CAP ALUM 4.7UF 20% 25V SMD Nichicon	13,570	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UWT	Active	4.7 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	13 mA @ 120 Hz	19.5 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.213 (5.40mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UWX1C220MCL1GB CAP ALUM 22UF 20% 16V SMD Nichicon	2,553	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UWX	Not For New Designs	22 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	37 mA @ 120 Hz	55.5 mA @ 10 kHz	-	-	0.197 Dia (5.00mm)	0.213 (5.40mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount
