Aluminum - Polymer Capacitors- Page 13

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Ratings	Applications	Features	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
875105245015 CAP ALUM POLY 330UF 20% 10V SMD Würth Elektronik	9,504	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLP	Active	Polymer	330 µF	±20%	10 V	20mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	134.5 mA @ 120 Hz	2.69 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.303 (7.70mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
875105445006 CAP ALUM POLY 47UF 20% 20V SMD Würth Elektronik	5,183	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLP	Active	Polymer	47 µF	±20%	20 V	25mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	133.5 mA @ 120 Hz	2.67 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.303 (7.70mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
870025574002 CAP ALUM POLY 47UF 20% 25V T/H Würth Elektronik	4,427	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-PTG5	Active	Polymer	47 µF	±20%	25 V	20mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	225 mA @ 120 Hz	4.5 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.354 (9.00mm)	-	Through Hole
875115644009 CAP ALUM POLY 10UF 20% 35V SMD Würth Elektronik	4,021	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSHP	Active	Polymer	10 µF	±20%	35 V	75mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	49 mA @ 120 Hz	980 mA @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.240 (6.10mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
RSL0J221MCN1GB CAP ALUM POLY 220UF 20% 6.3V SMD Nichicon	35,263	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FPCAP, RSL	Active	Polymer	220 µF	±20%	6.3 V	18mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	320 mA @ 120 Hz	3.2 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.165 (4.20mm)	0.256 L x 0.256 W (6.50mm x 6.50mm)	Surface Mount
PCF0J101MCL1GS CAP ALUM POLY 100UF 20% 6.3V SMD Nichicon	7,909	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCF	Active	Polymer	100 µF	±20%	6.3 V	23mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.8 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.236 (6.00mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
APXF6R3ARA561MH80G CAP ALUM POLY 560UF 20% 6.3V SMD United Chemi-Con	4,021	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXF	Active	Polymer	560 µF	±20%	6.3 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.5 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.303 (7.70mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount

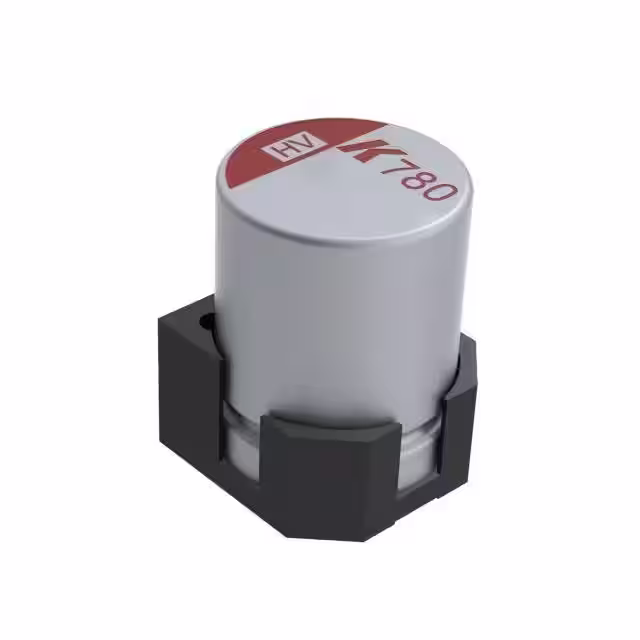

A780MS566M1JLAS030 CAP ALUM POLY HYB 56UF 63V SMD KEMET	5,685	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A780	Active	Hybrid	56 µF	±20%	63 V	30mOhm	3000 Hrs @ 125°C	-55°C ~ 125°C	AEC-Q200	Automotive	-	330 mA @ 100 Hz	1.5 A @ 100 kHz	-	-	0.394 Dia x 0.480 L (10.00mm x 12.20mm)	0.500 (12.70mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
ECASD41C686M040KA0 CAP ALUM POLY 68UF 20% 16V SMD Murata Electronics	3,651	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ECAS	Active	Polymer	68 µF	±20%	16 V	40mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	General Purpose	-	-	1.6 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
A750EK477M0JAAE018 CAP ALUM POLY 470UF 20% 6.3V T/H KEMET	9,334	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	470 µF	±20%	6.3 V	18mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	155 mA @ 120 Hz	3.1 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
16SVPG100M CAP ALUM POLY 100UF 20% 16V SMD Panasonic Electronic Components	4,909	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPG	Active	Polymer	100 µF	±20%	16 V	15mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	200 mA @ 120 Hz	4 A @ 100 kHz	-	-	-	-	-	Surface Mount
A768KS337M1ELAE019 CAP ALUM POLY 330UF 20% 25V SMD KEMET	2,409	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A768	Active	Polymer	330 µF	±20%	25 V	19mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	116.25 mA @ 120 Hz	2.325 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.492 (12.50mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
PCF1A471MCL1GS CAP ALUM POLY 470UF 20% 10V SMD Nichicon	8,493	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCF	Active	Polymer	470 µF	±20%	10 V	16mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.6 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.394 (10.00mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
RSA1E101MCN1GS CAP ALUM POLY 100UF 20% 25V SMD Nichicon	4,190	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FPCAP, RSA	Active	Polymer	100 µF	±20%	25 V	22mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	310 mA @ 120 Hz	3.1 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.315 (8.00mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
APXH200ARA220MF60G CAP ALUM POLY 22UF 20% 20V SMD United Chemi-Con	6,095	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXH	Active	Polymer	22 µF	±20%	20 V	60mOhm	1000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	-	1.65 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.224 (5.70mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
A750EK567M0JAAE018 CAP ALUM POLY 560UF 20% 6.3V T/H KEMET	7,730	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	560 µF	±20%	6.3 V	18mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	155 mA @ 120 Hz	3.1 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
6SVP330M CAP ALUM POLY 330UF 20% 6.3V SMD Panasonic Electronic Components	3,688	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVP	Active	Polymer	330 µF	±20%	6.3 V	25mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	185 mA @ 120 Hz	3.7 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.315 (8.00mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
10SVP270M CAP ALUM POLY 270UF 20% 10V SMD Panasonic Electronic Components	2,998	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVP	Active	Polymer	270 µF	±20%	10 V	25mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	185 mA @ 120 Hz	3.7 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.315 (8.00mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
A758BG106M1EAAE070 CAP ALUM POLY 10UF 20% 25V T/H KEMET	1,244	-	RFQ	Datasheet	Bulk	A758	Active	Polymer	10 µF	±20%	25 V	70mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	750 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.315 (8.00mm)	-	Through Hole
A768MS277M1VLAE022 CAP ALUM POLY 270UF 20% 35V SMD KEMET	2,809	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A768	Active	Polymer	270 µF	±20%	35 V	22mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	110 mA @ 120 Hz	2.2 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.512 (13.00mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
