Aluminum - Polymer Capacitors- Page 15

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Ratings	Applications	Features	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

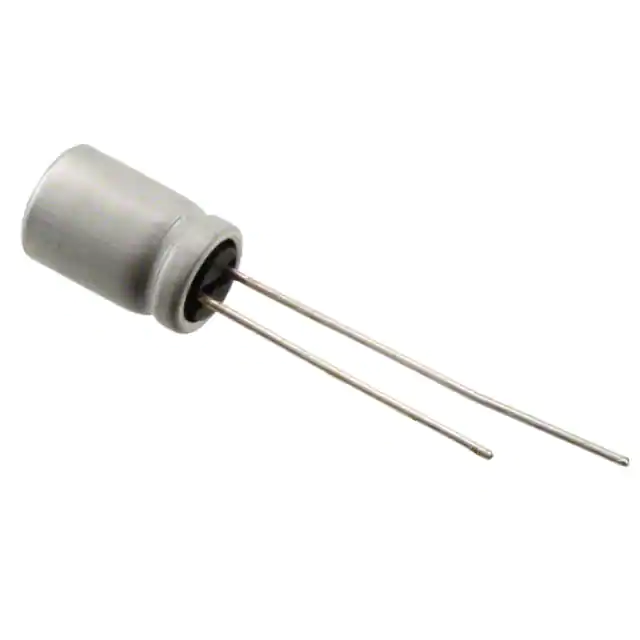

PLF1A101MDL4TD CAP ALUM POLY 100UF 20% 10V T/H Nichicon	3,728	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	PLF	Active	Polymer	100 µF	±20%	10 V	25mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.9 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.413 (10.50mm)	-	Through Hole

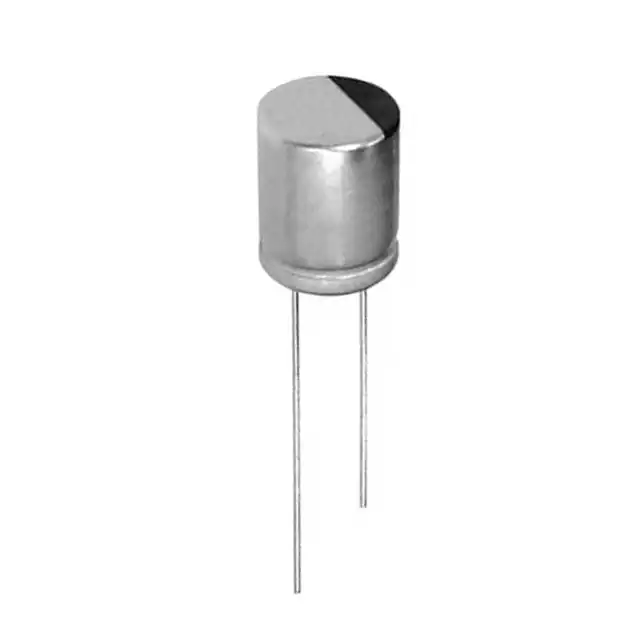

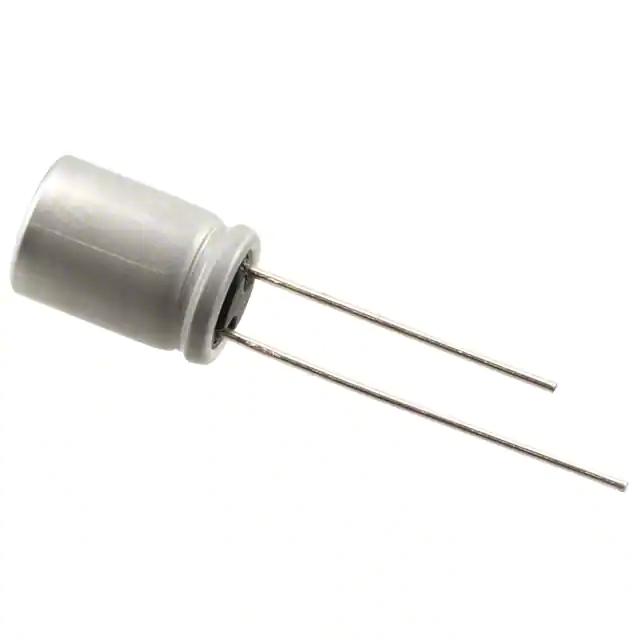

PLF1C271MDO1 CAP ALUM POLY 270UF 20% 16V T/H Nichicon	3,320	-	RFQ	Datasheet	Bulk	PLF	Active	Polymer	270 µF	±20%	16 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.1 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.472 (12.00mm)	-	Through Hole
A750EK476M1EAAE040 CAP ALUM POLY 47UF 20% 25V T/H KEMET	42,142	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	47 µF	±20%	25 V	40mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	145 mA @ 120 Hz	2.9 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
20SEPF560M+T CAP ALUM POLY 560UF 20% 20V T/H Panasonic Electronic Components	8,000	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	OS-CON™, SEPF	Active	Polymer	560 µF	±20%	20 V	12mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	270 mA @ 120 Hz	5.4 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.512 (13.00mm)	-	Through Hole
16SVPK100M CAP ALUM POLY 100UF 20% 16V SMD Panasonic Electronic Components	3,961	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPK	Active	Polymer	100 µF	±20%	16 V	27mOhm	1000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	47 mA @ 120 Hz	940 mA @ 100 kHz	-	-	0.197 Dia (5.00mm)	0.236 (6.00mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount

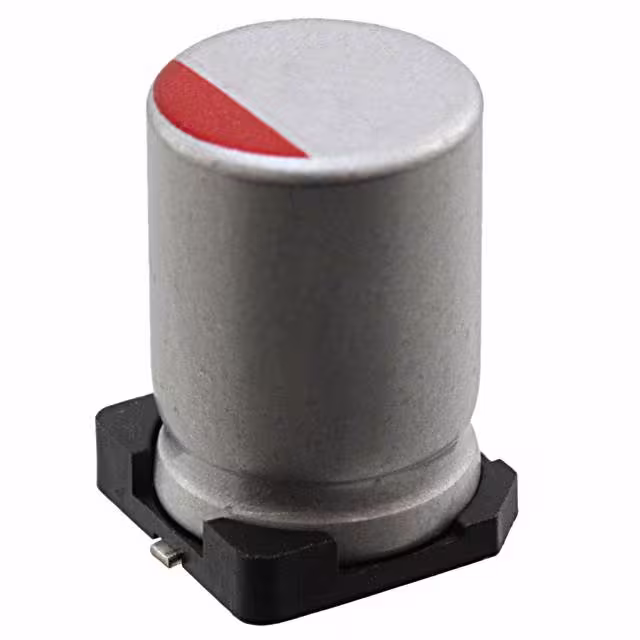

RHS0J821MCN1GS CAP ALUM POLY 820UF 20% 6.3V SMD Nichicon	16,958	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FPCAP, RHS	Active	Polymer	820 µF	±20%	6.3 V	10mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	515 mA @ 120 Hz	5.15 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.461 (11.70mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
A750EK227M1CAAE016 CAP ALUM POLY 220UF 20% 16V T/H KEMET	2,777	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	220 µF	±20%	16 V	16mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	145 mA @ 120 Hz	2.9 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
A759MS228M0JAAE013 CAP ALUM POLY 2200UF 20% 6.3V TH KEMET	544	-	RFQ	Datasheet	Bulk	A759	Active	Polymer	2200 µF	±20%	6.3 V	13mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	389.25 mA @ 120 Hz	7.785 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.512 (13.00mm)	-	Through Hole
870025574005 CAP ALUM POLY 100UF 20% 25V T/H Würth Elektronik	6,462	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-PTG5	Active	Polymer	100 µF	±20%	25 V	15mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	225 mA @ 120 Hz	4.5 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.354 (9.00mm)	-	Through Hole
A768MS108M1CLAS015 CAP ALUM POLY 1000UF 20% 16V SMD KEMET	3,997	-	RFQ	Datasheet	Bulk	A768	Active	Polymer	1000 µF	±20%	16 V	15mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	AEC-Q200	Automotive	-	135 mA @ 120 Hz	2.7 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.500 (12.70mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
PLF1C471MDO1 CAP ALUM POLY 470UF 20% 16V T/H Nichicon	6,263	-	RFQ	Datasheet	Bulk	PLF	Active	Polymer	470 µF	±20%	16 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	6.1 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.512 (13.00mm)	-	Through Hole
A750MV827M1EAAE014 CAP ALUM POLY 820UF 20% 25V T/H KEMET	1,116	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	820 µF	±20%	25 V	14mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	255 mA @ 120 Hz	5.1 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.630 (16.00mm)	-	Through Hole
A767KN476M1VLAE031 CAP ALUM POLY 47UF 20% 35V SMD KEMET	3,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A767	Active	Polymer	47 µF	±20%	35 V	31mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	95 mA @ 120 Hz	1.9 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.394 (10.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
A767KS106M2ALAE045 CAP ALUM POLY 10UF 20% 100V SMD KEMET	1,601	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A767	Active	Polymer	10 µF	±20%	100 V	45mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	85 mA @ 120 Hz	1.7 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.508 (12.90mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
PLF1A471MDO1 CAP ALUM POLY 470UF 20% 10V T/H Nichicon	3,275	-	RFQ	Datasheet	Bulk	PLF	Active	Polymer	470 µF	±20%	10 V	7mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.7 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.512 (13.00mm)	-	Through Hole
APSG160ELL471MH08S CAP ALUM POLY 470UF 20% 16V T/H United Chemi-Con	13,758	-	RFQ	Datasheet	Bulk	NPCAP™-PSG	Active	Polymer	470 µF	±20%	16 V	16mOhm	20000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.315 (8.00mm)	-	Through Hole
A750MW228M1CAAE010 CAP ALUM POLY 2200UF 20% 16V T/H KEMET	1,166	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	2200 µF	±20%	16 V	10mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	350 mA @ 120 Hz	7 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole
A750MV277M1HAAE018 CAP ALUM POLY 270UF 20% 50V T/H KEMET	3,919	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	270 µF	±20%	50 V	18mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	225 mA @ 120 Hz	4.5 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.630 (16.00mm)	-	Through Hole
A750MV108M1EAAE014 CAP ALUM POLY 1000UF 20% 25V T/H KEMET	3,030	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	1000 µF	±20%	25 V	14mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	255 mA @ 120 Hz	5.1 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.630 (16.00mm)	-	Through Hole
A750MW188M1CAAE010 CAP ALUM POLY 1800UF 20% 16V T/H KEMET	2,779	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	1800 µF	±20%	16 V	10mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	350 mA @ 120 Hz	7 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole
