Aluminum - Polymer Capacitors- Page 18

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Ratings	Applications	Features	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
PCG1A331MCL1GS CAP ALUM POLY 330UF 20% 10V SMD Nichicon	35,908	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCG	Active	Polymer	330 µF	±20%	10 V	23mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.1 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
875075355004 CAP ALUM POLY 330UF 20% 16V SMD Würth Elektronik	2,071	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLC	Active	Polymer	330 µF	±20%	16 V	10mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	235 mA @ 120 Hz	4.7 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.461 (11.70mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount

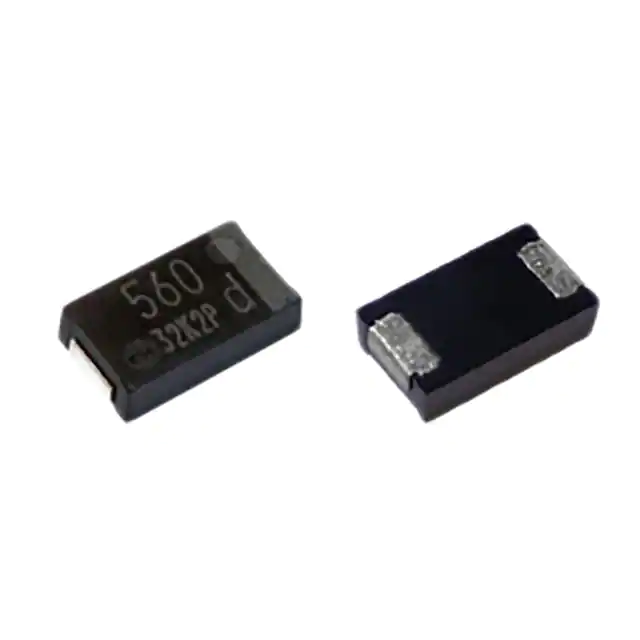

EEF-HX0E331R6 CAP ALUM POLY 330UF 20% 2.5V SMD Panasonic Electronic Components	49,363	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap HX	Active	Polymer	330 µF	±20%	2.5 V	6mOhm	1000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	-	7.5 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
EEF-HX0E471R9 CAP ALUM POLY 470UF 20% 2.5V SMD Panasonic Electronic Components	5,553	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap HX	Active	Polymer	470 µF	±20%	2.5 V	9mOhm	1000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	-	6.3 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
A759BQ106M1HAAE105 CAP ALUM POLY 10UF 20% 50V T/H KEMET	2,203	-	RFQ	Datasheet	Bulk	A759	Active	Polymer	10 µF	±20%	50 V	105mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	19 mA @ 120 Hz	380 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
A767MU107M1JLAE028 CAP ALUM POLY 100UF 20% 63V SMD KEMET	6,313	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A767	Active	Polymer	100 µF	±20%	63 V	28mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	127.5 mA @ 120 Hz	2.55 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.508 (12.90mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
A759BQ226M1HAAE075 CAP ALUM POLY 22UF 20% 50V T/H KEMET	3,636	-	RFQ	Datasheet	Bulk	A759	Active	Polymer	22 µF	±20%	50 V	75mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	28 mA @ 120 Hz	560 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
APSG160ELL271MF08J CAP ALUM POLY 270UF 20% 16V T/H United Chemi-Con	1,188	-	RFQ	Datasheet	Bulk	NPCAP™-PSG	Active	Polymer	270 µF	±20%	16 V	10mOhm	20000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.08 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
25SEPF180M CAP ALUM POLY 180UF 20% 25V T/H Panasonic Electronic Components	5,131	-	RFQ	Datasheet	Bulk	OS-CON™, SEPF	Active	Polymer	180 µF	±20%	25 V	16mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	232.5 mA @ 120 Hz	4.65 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.472 (12.00mm)	-	Through Hole

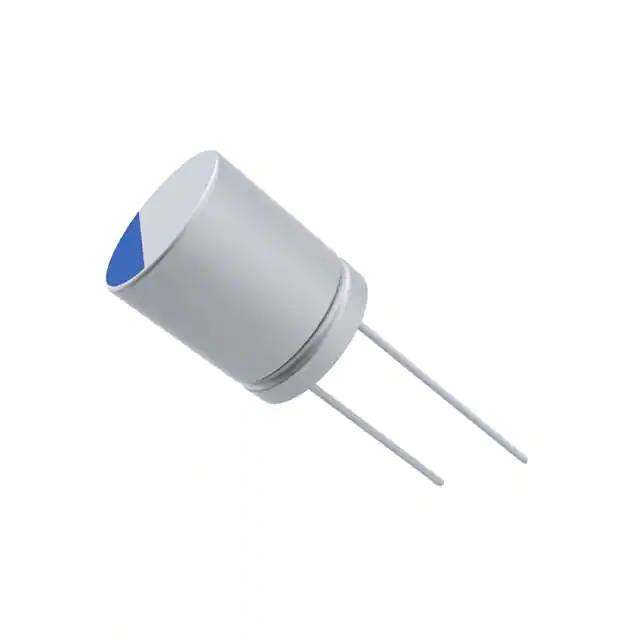

A755KS107M1EAAE025 CAP ALUM POLY 100UF 20% 25V T/H KEMET	1,823	-	RFQ	Datasheet	Bulk	A755	Active	Polymer	100 µF	±20%	25 V	25mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	125 mA @ 120 Hz	2.5 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
PCR1H390MCL1GS CAP ALUM POLY 39UF 20% 50V SMD Nichicon	2,100	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCR	Active	Polymer	39 µF	±20%	50 V	45mOhm	4000 Hrs @ 125°C	-55°C ~ 125°C	AEC-Q200	Automotive	-	-	1.3 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
APXE160ARA820MF80G CAP ALUM POLY 82UF 20% 16V SMD United Chemi-Con	1,807	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXE	Active	Polymer	82 µF	±20%	16 V	24mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.7 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.303 (7.70mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
100SXV22M CAP ALUM POLY 22UF 20% 100V SMD Panasonic Electronic Components	430	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SXV	Active	Polymer	22 µF	±20%	100 V	30mOhm	1000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	150 mA @ 120 Hz	3 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.500 (12.70mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
EEF-HX0D561R4 CAP ALUM POLY 560UF 20% 2V SMD Panasonic Electronic Components	7,140	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap HX	Active	Polymer	560 µF	±20%	2 V	4.5mOhm	1000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	-	8.5 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
APXE100ARA151MF80G CAP ALUM POLY 150UF 20% 10V SMD United Chemi-Con	2,716	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXE	Active	Polymer	150 µF	±20%	10 V	21mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.88 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.303 (7.70mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
PCJ0G152MCL1GS CAP ALUM POLY 1500UF 20% 4V SMD Nichicon	2,107	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCJ	Active	Polymer	1500 µF	±20%	4 V	10mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.5 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.394 (10.00mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
RE50G561MDN1 CAP ALUM POLY 560UF 20% 4V T/H Nichicon	9,798	-	RFQ	Datasheet	Bulk	FPCAP, RE5	Active	Polymer	560 µF	±20%	4 V	5mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	630 mA @ 120 Hz	6.3 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.315 (8.00mm)	-	Through Hole
A750KS337M1EAAE018 CAP ALUM POLY 330UF 20% 25V T/H KEMET	2,466	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	330 µF	±20%	25 V	18mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	175 mA @ 120 Hz	3.5 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
PLV1V560MCL1TD CAP ALUM POLY 56UF 20% 35V T/H Nichicon	2,449	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	PLV	Not For New Designs	Polymer	56 µF	±20%	35 V	29mOhm	3000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	1.9 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.354 (9.00mm)	-	Through Hole
PCR1E101MCL1GS CAP ALUM POLY 100UF 20% 25V SMD Nichicon	2,874	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCR	Active	Polymer	100 µF	±20%	25 V	41mOhm	4000 Hrs @ 125°C	-55°C ~ 125°C	AEC-Q200	Automotive	-	-	1.2 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
