Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Ratings	Applications	Features	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
35SVPK180M CAP ALUM POLY 180UF 20% 35V SMD Panasonic Electronic Components	3,950	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPK	Active	Polymer	180 µF	±20%	35 V	20mOhm	1000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	63 mA @ 120 Hz	1.26 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.472 (12.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
APXE100ARA680ME61G CAP ALUM POLY 68UF 20% 10V SMD United Chemi-Con	6,329	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXE	Active	Polymer	68 µF	±20%	10 V	28mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.31 A @ 100 kHz	-	-	0.197 Dia (5.00mm)	0.228 (5.80mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount
APXE6R3ARA101ME61G CAP ALUM POLY 100UF 20% 6.3V SMD United Chemi-Con	7,447	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXE	Active	Polymer	100 µF	±20%	6.3 V	24mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.5 A @ 100 kHz	-	-	0.197 Dia (5.00mm)	0.228 (5.80mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount
APXA160ARA181MJ80G CAP ALUM POLY 180UF 20% 16V SMD United Chemi-Con	8,322	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXA	Active	Polymer	180 µF	±20%	16 V	26mOhm	15000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.43 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.303 (7.70mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
16SEPC270MX CAP ALUM POLY 270UF 20% 16V T/H Panasonic Electronic Components	18,318	-	RFQ	Datasheet	Bulk	OS-CON™, SEPC	Active	Polymer	270 µF	±20%	16 V	10mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	250 mA @ 120 Hz	5 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.354 (9.00mm)	-	Through Hole
A750KS227M1EAAE015 CAP ALUM POLY 220UF 20% 25V T/H KEMET	13,768	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	220 µF	±20%	25 V	15mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	221 mA @ 120 Hz	4.42 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
875075555002 CAP ALUM POLY 47UF 20% 25V SMD Würth Elektronik	2,255	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLC	Active	Polymer	47 µF	±20%	25 V	15mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	210.5 mA @ 120 Hz	4.21 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.461 (11.70mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount

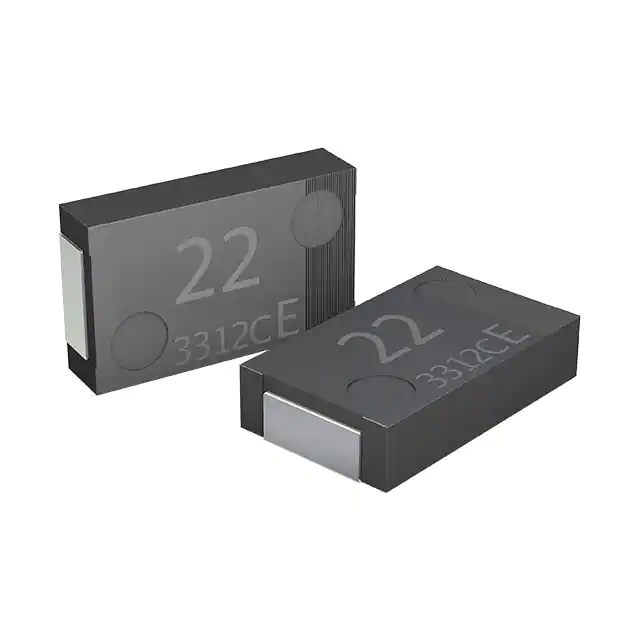

EEF-CX1E220R CAP ALUM POLY 22UF 20% 25V SMD Panasonic Electronic Components	23,972	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap CX	Not For New Designs	Polymer	22 µF	±20%	25 V	40mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.2 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.075 (1.90mm)	-	Surface Mount
EEF-SR0J680R CAP ALUM POLY 68UF 20% 6.3V SMD Panasonic Electronic Components	5,970	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap, SR	Active	Polymer	68 µF	±20%	6.3 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	6.3 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.039 (1.00mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount

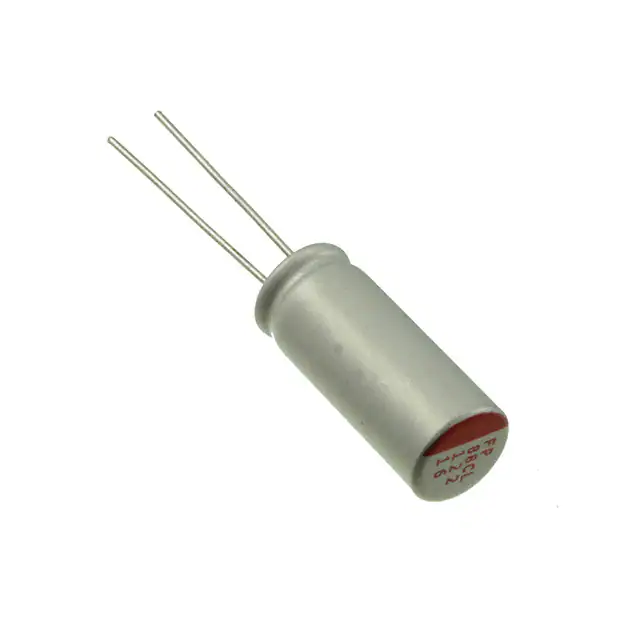

RNL1C222MDS1PH CAP ALUM POLY 2200UF 20% 16V T/H Nichicon	2,257	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FPCAP, RNL	Active	Polymer	2200 µF	±20%	16 V	8mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	810 mA @ 120 Hz	8.1 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
16SVPK330M CAP ALUM POLY 330UF 20% 16V SMD Panasonic Electronic Components	7,616	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPK	Active	Polymer	330 µF	±20%	16 V	22mOhm	1000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	52 mA @ 120 Hz	1.04 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount

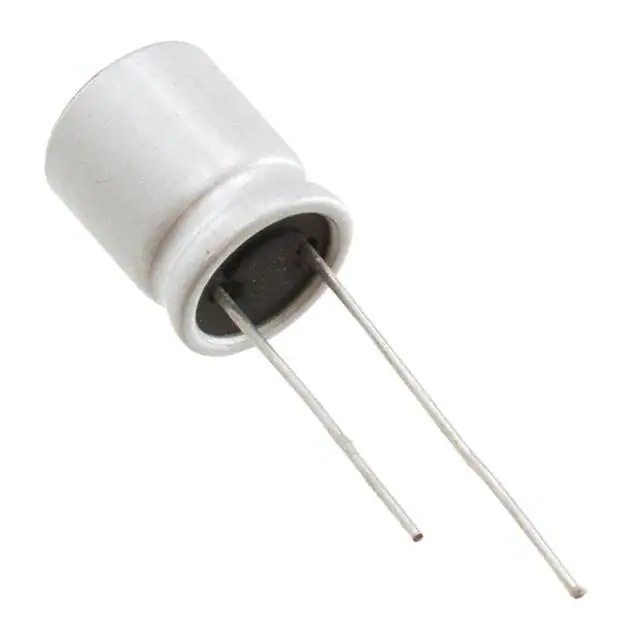

RNU1E331MDN1PH CAP ALUM POLY 330UF 20% 25V T/H Nichicon	7,680	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FPCAP, RNU	Active	Polymer	330 µF	±20%	25 V	14mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	500 mA @ 120 Hz	5 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
PCG1C101MCL1GS CAP ALUM POLY 100UF 20% 16V SMD Nichicon	4,600	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCG	Active	Polymer	100 µF	±20%	16 V	30mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.4 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.236 (6.00mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
870025575007 CAP ALUM POLY 220UF 20% 25V T/H Würth Elektronik	2,341	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-PTG5	Active	Polymer	220 µF	±20%	25 V	20mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	245 mA @ 120 Hz	4.9 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
A759BQ106M1VAAE090 CAP ALUM POLY 10UF 20% 35V T/H KEMET	8,019	-	RFQ	Datasheet	Bulk	A759	Active	Polymer	10 µF	±20%	35 V	90mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	17 mA @ 120 Hz	340 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
EEF-CX0J151R CAP ALUM POLY 150UF 20% 6.3V SMD Panasonic Electronic Components	2,702	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap CX	Active	Polymer	150 µF	±20%	6.3 V	15mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.1 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.075 (1.90mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
EEF-SX0E331R CAP ALUM POLY 330UF 20% 2.5V SMD Panasonic Electronic Components	3,500	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap SX	Not For New Designs	Polymer	330 µF	±20%	2.5 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	-	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	-	Surface Mount
RHA1C271MCN1GS CAP ALUM POLY 270UF 20% 16V SMD Nichicon	6,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FPCAP, RHA	Active	Polymer	270 µF	±20%	16 V	22mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	330 mA @ 120 Hz	3.3 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
PCJ1C121MCL1GS CAP ALUM POLY 120UF 20% 16V SMD Nichicon	9,987	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCJ	Active	Polymer	120 µF	±20%	16 V	24mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.01 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount

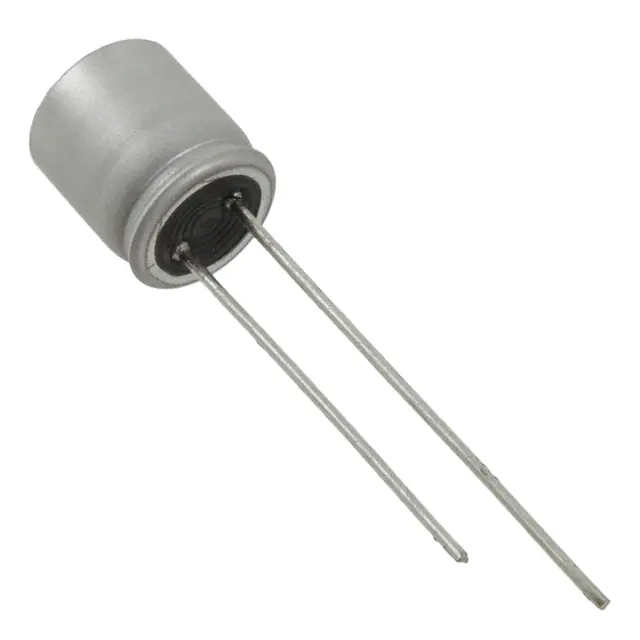

APSF160ELL271MH08S CAP ALUM POLY 270UF 20% 16V T/H United Chemi-Con	2,302	-	RFQ	Datasheet	Bulk	NPCAP™-PSF	Active	Polymer	270 µF	±20%	16 V	10mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.315 (8.00mm)	-	Through Hole
