Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Ratings	Applications	Features	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
EEF-CS1C330R CAP ALUM POLY 33UF 20% 16V SMD Panasonic Electronic Components	4,868	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap CS	Not For New Designs	Polymer	33 µF	±20%	16 V	40mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.2 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.047 (1.20mm)	-	Surface Mount
RPS1C181MCN1GS CAP ALUM POLY 180UF 20% 16V SMD Nichicon	3,485	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FPCAP, RPS	Active	Polymer	180 µF	±20%	16 V	20mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	370 mA @ 120 Hz	3.7 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.461 (11.70mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount

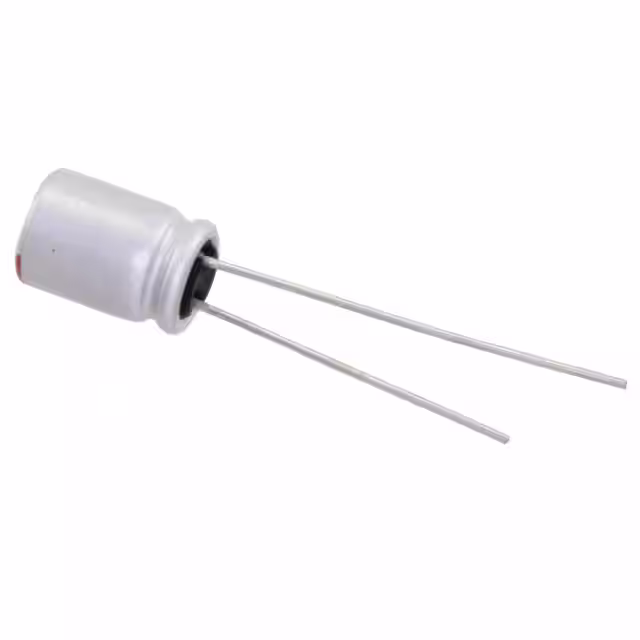

RNS1D330MDS1 CAP ALUM POLY 33UF 20% 20V T/H Nichicon	2,642	-	RFQ	Datasheet	Bulk	FPCAP, RNS	Active	Polymer	33 µF	±20%	20 V	49mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	220 mA @ 120 Hz	2.2 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.433 (11.00mm)	-	Through Hole
PCG1C151MCL1GS CAP ALUM POLY 150UF 20% 16V SMD Nichicon	2,464	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCG	Active	Polymer	150 µF	±20%	16 V	28mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.8 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
EEF-CT1E220R CAP ALUM POLY 22UF 20% 25V SMD Panasonic Electronic Components	21,645	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap CT	Not For New Designs	Polymer	22 µF	±20%	25 V	40mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.2 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.059 (1.50mm)	-	Surface Mount
875115360004 CAP ALUM POLY 330UF 20% 16V SMD Würth Elektronik	2,498	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSHP	Active	Polymer	330 µF	±20%	16 V	20mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	185 mA @ 120 Hz	3.7 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.343 (8.70mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
A750KS827M1AAAE014 CAP ALUM POLY 820UF 20% 10V T/H KEMET	2,621	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	820 µF	±20%	10 V	14mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	205 mA @ 120 Hz	4.1 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
EEF-LR0J680R CAP ALUM POLY 68UF 20% 6.3V SMD Panasonic Electronic Components	4,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap, LR	Active	Polymer	68 µF	±20%	6.3 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	6.3 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.039 (1.00mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
APXG160ARA821MJA0G CAP ALUM POLY 820UF 20% 16V SMD United Chemi-Con	2,317	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXG	Active	Polymer	820 µF	±20%	16 V	16mOhm	15000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.2 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.406 (10.30mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
PLG1C471MDO1TD CAP ALUM POLY 470UF 20% 16V T/H Nichicon	5,500	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	PLG	Active	Polymer	470 µF	±20%	16 V	11mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.4 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.472 (12.00mm)	-	Through Hole
A758KK187M1CAAE014 CAP ALUM POLY 180UF 20% 16V T/H KEMET	2,304	-	RFQ	Datasheet	Bulk	A758	Active	Polymer	180 µF	±20%	16 V	14mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.55 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.354 (9.00mm)	-	Through Hole
RPS1C221MCN1GS CAP ALUM POLY 220UF 20% 16V SMD Nichicon	7,500	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FPCAP, RPS	Active	Polymer	220 µF	±20%	16 V	20mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	370 mA @ 120 Hz	3.7 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.461 (11.70mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
RR70J151MDN1 CAP ALUM POLY 150UF 20% 6.3V T/H Nichicon	1,698	-	RFQ	Datasheet	Bulk	FPCAP, RR7	Active	Polymer	150 µF	±20%	6.3 V	7mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	560 mA @ 120 Hz	5.6 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
25SVPS10M CAP ALUM POLY 10UF 20% 25V SMD Panasonic Electronic Components	2,410	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPS	Active	Polymer	10 µF	±20%	25 V	60mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	75 mA @ 120 Hz	1.5 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
A758KK227M1CAAE014 CAP ALUM POLY 220UF 20% 16V T/H KEMET	4,606	-	RFQ	Datasheet	Bulk	A758	Active	Polymer	220 µF	±20%	16 V	14mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.8 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.354 (9.00mm)	-	Through Hole
APSG250ELL560MF05S CAP ALUM POLY 56UF 20% 25V T/H United Chemi-Con	1,152	-	RFQ	Datasheet	Bulk	NPCAP™-PSG	Active	Polymer	56 µF	±20%	25 V	30mOhm	15000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.6 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.236 (6.00mm)	-	Through Hole
RNE1A221MDS1 CAP ALUM POLY 220UF 20% 10V T/H Nichicon	9,264	-	RFQ	Datasheet	Bulk	FPCAP, RNE	Active	Polymer	220 µF	±20%	10 V	30mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	250 mA @ 120 Hz	2.5 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.433 (11.00mm)	-	Through Hole
A755KS107M1DAAE020 CAP ALUM POLY 100UF 20% 20V SING KEMET	4,087	-	RFQ	Datasheet	Bulk	A755	Active	Polymer	100 µF	±20%	20 V	20mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	221 mA @ 120 Hz	4.42 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
APSF160EC3101MF05S CAP ALUM POLY 100UF 20% 16V T/H United Chemi-Con	1,844	-	RFQ	Datasheet	Bulk	NPCAP™-PSF	Active	Polymer	100 µF	±20%	16 V	24mOhm	20000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.49 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.236 (6.00mm)	-	Through Hole
A755KS476M1EAAE025 CAP ALUM POLY 47UF 20% 25V T/HL KEMET	4,843	-	RFQ	Datasheet	Bulk	A755	Active	Polymer	47 µF	±20%	25 V	25mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	116 mA @ 120 Hz	2.32 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
