Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DAC8408FSZ-REELIC DAC 8BIT A-OUT 28SOIC |
1,449 | - |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR),Bulk | - | Active | 8 | 4 | 250ns | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | |
AD5064BRUZ-1REEL7IC DAC 16BIT V-OUT 14TSSOP |
2,835 | - |
RFQ |
Datasheet |
14-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Bulk | nanoDAC® | Active | 16 | 4 | 13µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 5V | ±0.5, ±0.2 | R-2R | -40°C ~ 125°C | |
AD5064BRUZ-REEL7IC DAC 16BIT V-OUT 16TSSOP |
3,008 | - |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR) | nanoDAC® | Active | 16 | 4 | 13µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 5V | ±0.5, ±0.2 | R-2R | -40°C ~ 125°C | |
AD7245JPZ-REELIC DAC 12BIT V-OUT 28PLCC |
720 | - |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tape & Reel (TR),Bulk | DACPORT® | Active | 12 | 1 | 5µs, 10µs | Voltage - Buffered | No | Parallel | Internal | ±14.25V ~ 15.75V | 14.25V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | |
MX7547JP+IC DAC 12BIT A-OUT 28PLCC |
2,534 | - |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tube | - | Active | 12 | 2 | 1.5µs | Current - Unbuffered | No | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | |
MAX5886EGK+TDIC DAC 12BIT A-OUT 68QFN |
3,646 | - |
RFQ |
Datasheet |
68-VFQFN Exposed Pad | Tape & Reel (TR) | - | Active | 12 | 1 | 11µs (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.135V ~ 3.465V | 3.135V ~ 3.465V | ±0.2, ±0.15 | Current Steering | -40°C ~ 85°C | |

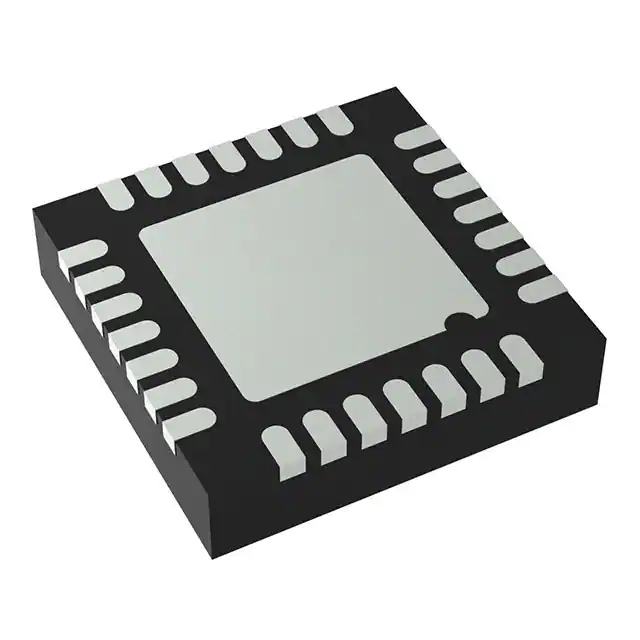

AD5679BCPZ-1-RL716-CH16-BITNANODAC+WITH2PPM/CREF |
2,630 | - |
RFQ |
Datasheet |
28-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | nanoDAC+® | Active | 16 | 16 | 8µs | Voltage - Buffered | No | DSP, SPI | External | 2.7V ~ 5.5V | 1.62V ~ 5.5V | ±1.8LSB, ±0.7LSB | String DAC | -40°C ~ 125°C | |
AD7524SRZ-EP-RL7IC DAC 8BIT MULTIPLYING 16SOIC |
2,212 | - |
RFQ |
Datasheet |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
MX7547JEWG+IC DAC 12BIT A-OUT 24SOIC |
3,171 | - |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 2 | 1.5µs | Current - Unbuffered | No | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | |
MAX5151AEEE+IC DAC 13BIT V-OUT 16QSOP |
3,219 | - |
RFQ |
Datasheet |
16-SSOP (0.154, 3.90mm Width) | Tube | - | Active | 13 | 2 | 16µs (Typ) | Voltage - Buffered | No | SPI | External | 2.7V ~ 3.6V | 2.7V ~ 3.6V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | |
AD8582ARZ-REELIC DAC 12BIT V-OUT 24SOIC |
2,583 | - |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR) | - | Active | 12 | 2 | 16µs (Typ) | Voltage - Buffered | No | Parallel | Internal | 5V | 5V | ±0.75, ±0.75 | R-2R | -40°C ~ 85°C | |
LTC2686IUJ-16#TRPBF8 CH +/-15V SOFTSPAN DACS |
3,255 | - |
RFQ |
Datasheet |
40-WFQFN Exposed Pad | Tape & Reel (TR) | - | Active | 16 | 8 | 18µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±3 (Max), ±1 (Max) | - | -40°C ~ 85°C | |
MAX500AEPE+IC DAC 8BIT V-OUT 16DIP |
2,526 | - |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | 8 | 4 | 4.5µs | Voltage - Buffered | No | I²C | External | 11.4V ~ 16.5V | 11.4V ~ 16.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | |
DAC7624UIC DAC 12BIT V-OUT 28SOIC |
2,866 | - |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Bulk,Tube | - | Active | 12 | 4 | 10µs | Voltage - Buffered | No | Parallel | External | ±5V | 5V | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | |
MAX541ACSA+TIC DAC 16BIT V-OUT 8SOIC |
2,753 | - |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR) | - | Active | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI | External | 5V | 5V | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C | |
MAX542ACSD+TIC DAC 16BIT V-OUT 14SOIC |
3,166 | - |
RFQ |
Datasheet |
14-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR) | - | Active | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI | External | 5V | 5V | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C | |
LTC2755BCUP-16#TRPBFIC DAC 16BIT A-OUT 64QFN |
3,571 | - |
RFQ |
Datasheet |
64-WFQFN Exposed Pad | Tape & Reel (TR) | SoftSpan™ | Active | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | |
LTC2754BCUKG-16#TRPBFIC DAC 16BIT A-OUT 52QFN |
2,355 | - |
RFQ |
Datasheet |
52-WFQFN Exposed Pad | Tape & Reel (TR) | SoftSpan™ | Active | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | |
DAC81001PFBRIC DIGITAL TO ANALOG CONVERTER |
3,064 | - |
RFQ |
48-TQFP | Tape & Reel (TR) | DAC81001 | Active | 16 | 1 | 2.5µs (Typ) | Voltage - Unbuffered | No | SPI | External | 4.5V ~ 5.5V | 2.7V ~ 5.5V | ±4 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C | ||
LTC2662IUH-16#TRPBFIC DAC 16BIT A-OUT 32QFN |
2,256 | - |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | SoftSpan™ | Active | 16 | 5 | 8.7ms (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.85V ~ 5.5V | 1.71V ~ 5.5V | ±12, ±0.2 | Current Source | -40°C ~ 85°C |
