Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LTC1596BISW#TRPBFIC DAC 16BIT A-OUT 16SOIC |
3,000 | - |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR) | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | |
AD7545LPZ-REELIC DAC 12BIT A-OUT 20PLCC |
5,000 | - |
RFQ |
Datasheet |
20-LCC (J-Lead) | Tape & Reel (TR),Bulk | - | Active | 12 | 1 | 2µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | |
LTC1596-1BCSW#PBFIC DAC 16BIT A-OUT 16SOIC |
2,485 | - |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | |
AD667JPZ-REELIC DAC 12BIT V-OUT 28PLCC |
3,424 | - |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tape & Reel (TR) | - | Active | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C | |
DAC813JUIC DAC 12BIT V-OUT 28SOIC |
817 | - |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Bulk,Tube | - | Active | 12 | 1 | 6µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | 11.4V ~ 16.5V | ±0.25, ±0.5 | R-2R | -40°C ~ 85°C | |
MX7538KEWG+TIC DAC 14BIT A-OUT 24SOIC |
3,666 | - |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR) | - | Active | 14 | 1 | 1.5µs | Current - Unbuffered | No | Parallel | External | 11.4V ~ 15.75V | 11.4V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | |
AD9747BCPZRLIC DAC 16BIT A-OUT 72LFCSP |
2,057 | - |
RFQ |
Datasheet |
72-VFQFN Exposed Pad, CSP | Tape & Reel (TR),Bulk | - | Active | 16 | 2 | - | Current - Unbuffered | Yes | Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±4, ±2 | Quad-Switch | -40°C ~ 85°C | |
AD5762RCSUZ-REEL7IC DAC 16BIT V-OUT 32TQFP |
3,287 | - |
RFQ |
Datasheet |
32-TQFP | Tape & Reel (TR) | iCMOS® | Active | 16 | 2 | 10µs | Voltage - Buffered | No | SPI, DSP | External, Internal | ±11.4V ~ 16.5V | 2.7V ~ 5.25V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | |
LTC1589CGIC DAC 14BIT A-OUT 16SSOP |
2,507 | - |
RFQ |
Datasheet |
16-SSOP (0.209, 5.30mm Width) | Tube | SoftSpan™ | Obsolete | 14 | 1 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±1 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | |
AD7845KRZIC DAC 12BIT V-OUT 24SOIC |
2,135 | - |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Bulk,Tube | - | Active | 12 | 1 | 5µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | - | ±0.75 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C | |
AD9780BCPZRLIC DAC 12BIT A-OUT 72LFCSP |
2,266 | - |
RFQ |
72-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | - | Active | 12 | 2 | - | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±0.25, ±0.13 | Quad-Switch | -40°C ~ 85°C | ||
AD5679RBCPZ-1-RL716-CH16-BITNANODAC+WITH2PPM/CREF |
3,467 | - |
RFQ |
Datasheet |
28-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | nanoDAC+® | Active | 16 | 16 | 8µs | Voltage - Buffered | No | DSP, SPI | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.8LSB, ±0.7LSB | String DAC | -40°C ~ 125°C | |
AD5679RBCPZ-2-RL716-CH16-BITNANODAC+WITH2PPM/CREF |
2,538 | - |
RFQ |
Datasheet |
28-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | nanoDAC+® | Active | 16 | 16 | 8µs | Voltage - Buffered | No | DSP, SPI | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.8LSB, ±0.7LSB | String DAC | -40°C ~ 125°C | |
LTC2755ACUP-16#TRPBFIC DAC 16BIT A-OUT 64QFN |
2,289 | - |
RFQ |
Datasheet |
64-WFQFN Exposed Pad | Tape & Reel (TR) | SoftSpan™ | Active | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.2 | Multiplying DAC | 0°C ~ 70°C | |
LTC2754ACUKG-16#TRPBFIC DAC 16BIT A-OUT 52QFN |
3,829 | - |
RFQ |
Datasheet |
52-WFQFN Exposed Pad | Tape & Reel (TR) | SoftSpan™ | Active | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.2 | Multiplying DAC | 0°C ~ 70°C | |
DAC7724NB/750IC DAC 12BIT V-OUT 28PLCC |
63,271 | - |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tape & Reel (TR),Bulk | - | Active | 12 | 4 | 10µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | 5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | |
LTC1650ACN#PBFIC DAC 16BIT V-OUT 16DIP |
2,280 | - |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | 16 | 1 | 4µs (Typ) | Voltage - Buffered | No | SPI | External | ±5V | 5V | ±4, ±0.15 | - | 0°C ~ 70°C | |
LTC2656CIFE-L16#PBFIC DAC 16BIT V-OUT 20TSSOP |
3,914 | - |
RFQ |
Datasheet |
20-TSSOP (0.173, 4.40mm Width) Exposed Pad | Tube | - | Active | 16 | 8 | 8.9µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±6, ±0.3 | - | -40°C ~ 85°C | |

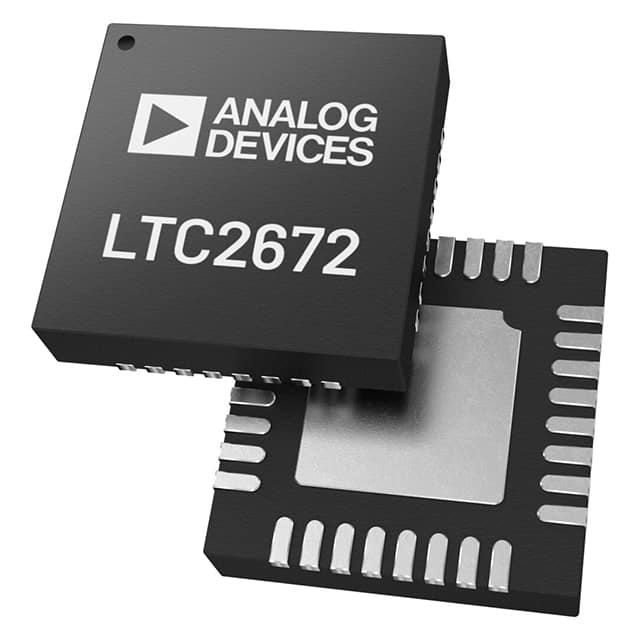

LTC2672IUH-16#TRPBF5CH 300MA 16BIT CURRENTSOURCEOUT |
2,727 | - |
RFQ |
Datasheet |
32-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | SoftSpan™ | Active | 16 | 5 | 21.1µs (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.85V ~ 5.5V | 1.7V ~ 5.5V | ±12, ±0.45LSB | Current Source | -40°C ~ 85°C | |
LTC1596-1CISW#PBFIC DAC 16BIT A-OUT 16SOIC |
3,894 | - |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±4 (Max), ±2 (Max) | R-2R | -40°C ~ 85°C |
