Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VBO72-12NO7BRIDGE RECT 1P 1.2KV 72A PWS-D |
3,119 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1.2 kV | 72 A | 1.08 V @ 30 A | 100 µA @ 800 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-D | |||||||
VBO52-18NO7BRIDGE RECT 1P 1.8KV 52A PWS-D |
3,085 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1.8 kV | 52 A | 1.8 V @ 150 A | 300 µA @ 1800 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-D | |||||||
VUO62-18NO7BRIDGE RECT 3P 1.8KV 63A PWS-D |
2,069 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.8 kV | 63 A | 1.8 V @ 150 A | 300 µA @ 1800 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-D | |||||||
VUI30-12N1BRIDGE RECT 3P 1.2KV 40A MODULE |
3,088 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase (PFC Module) | Standard | 1.2 kV | 40 A | 2.4 V @ 20 A | 750 µA @ 1200 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | |||||||
VBO50-12NO7BRIDGE RECT 1P 1.2KV 50A PWS-A |
3,235 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1.2 kV | 50 A | 1.14 V @ 40 A | 100 µA @ 1200 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-A | |||||||

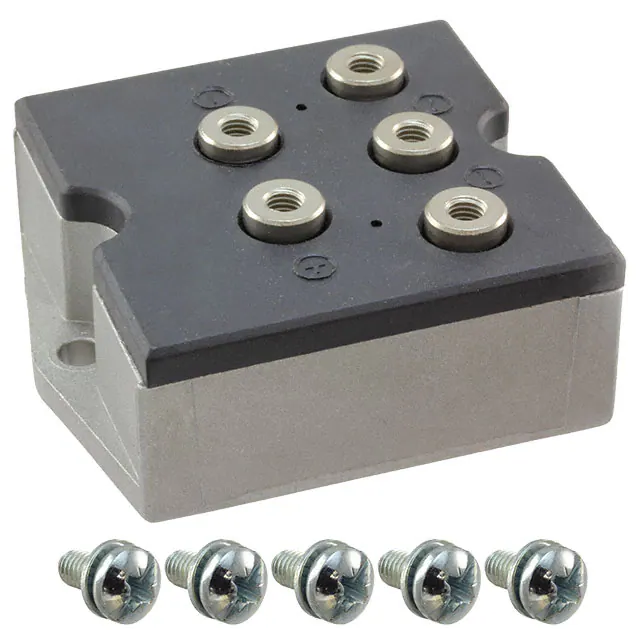

VUO55-12NO7BRIDGE RECT 3P 1.2KV 58A PWS-B |
2,910 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.2 kV | 58 A | 1.03 V @ 20 A | 100 µA @ 1200 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-B | |||||||
VBO72-08NO7BRIDGE RECT 1P 800V 72A PWS-D |
2,843 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 800 V | 72 A | 1.08 V @ 30 A | 100 µA @ 800 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-D | |||||||
VUO82-08NO7BRIDGE RECT 3P 800V 88A PWS-D |
3,488 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 800 V | 88 A | 1.6 V @ 150 A | 300 µA @ 800 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-D | |||||||
VBO52-16NO7BRIDGE RECT 1P 1.6KV 52A PWS-D |
2,912 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1.6 kV | 52 A | 1.8 V @ 150 A | 300 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-D | |||||||
VBO50-08NO7BRIDGE RECT 1P 800V 50A PWS-A |
2,094 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 800 V | 50 A | 1.14 V @ 40 A | 100 µA @ 800 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-A | |||||||

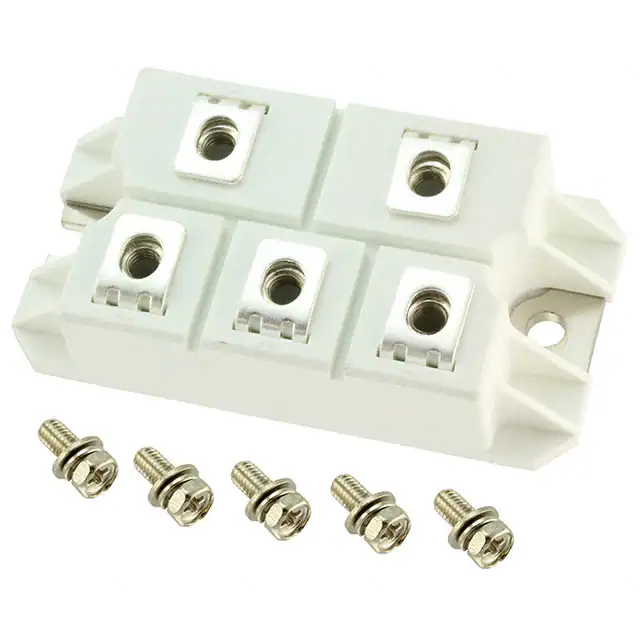

MD100S16M4-BPBRIDGE RECT 3PHASE 1.6KV 100A |
3,687 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 100 A | 1.9 V @ 300 A | 300 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | M4 Module | |||||||
MD60S16M2-BPBRIDGE RECT 3PHASE 1.6KV 60A |
3,736 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 60 A | 1.8 V @ 150 A | 300 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | |||||||
MD75S16M4-BPBRIDGE RECT 3PHASE 1.6KV 75A |
2,399 | - |
RFQ |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 75 A | 1.5 V @ 150 A | 300 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | Chassis Mount | ||||||||
VUO80-18NO1BRIDGE RECT 3P 1.8KV 82A V1-A |
2,785 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.8 kV | 82 A | 1.14 V @ 30 A | 40 µA @ 1800 V | -40°C ~ 150°C (TJ) | Chassis Mount | V1-A | |||||||
VS-70MT160PAPBFBRIDGE RECT 3PHASE 1.6KV 75A MTK |
2,729 | - |
RFQ |
Datasheet |
Tray | - | Active | Three Phase | Standard | 1.6 kV | 75 A | - | - | -40°C ~ 150°C (TJ) | Chassis Mount | MTK | |||||||
VUO64-16NO7BRIDGE RECT 3P 1.6KV PWS-D-FLAT |
3,291 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 60 A | 1.3 V @ 60 A | 40 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-D Flat | |||||||

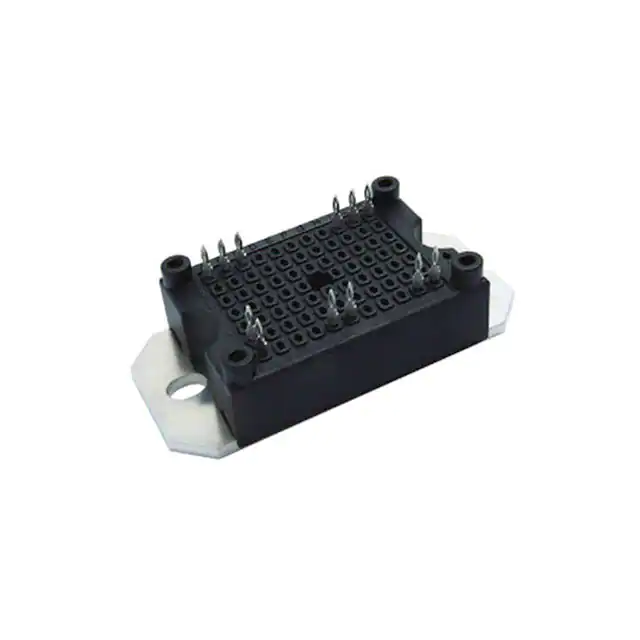

VS-70MT160P-PBRIDGE RECT 3P 1.6KV 75A 12MTP |
2,266 | - |
RFQ |
Datasheet |
Tray | - | Active | Three Phase | Standard | 1.6 kV | 75 A | - | - | -40°C ~ 150°C (TJ) | Chassis Mount | 12-MTP Module | |||||||
VBO50-16NO7BRIDGE RECT 1P 1.6KV 50A PWS-A |
3,457 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1.6 kV | 50 A | 1.6 V @ 150 A | 300 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-A | |||||||
VUO55-16NO7BRIDGE RECT 3P 1.6KV 58A PWS-B |
2,485 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 58 A | 1.03 V @ 20 A | 100 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-B | |||||||
APTDF30H601GBRIDGE RECT 1PHASE 600V 42A SP1 |
2,057 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 42 A | 2.2 V @ 30 A | 250 µA @ 600 V | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
