Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VS-300MT180CBRIDGE RECT 3P 1.8KV 258A MTC |
2,700 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.8 kV | 258 A | 1.7 V @ 300 A | - | -40°C ~ 150°C (TJ) | Chassis Mount | MTC | |||||||
VUO120-16NO2TBRIDGE RECT 3P 1.6KV 180A V2-PAK |
3,984 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 180 A | 1.16 V @ 60 A | 100 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | V2-PAK | |||||||
M2550TB600BRIDGE RECT 3P 600V 50A MODULE |
3,821 | - |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | Three Phase | Standard | 600 V | 50 A | - | - | - | Chassis Mount | Module | |||||||
B485F-2TBRIDGE RECT 1PHASE 1.2KV 50A |
3,153 | - |
RFQ |
Datasheet |
Bulk,Box | - | Active | Single Phase | Standard | 1.2 kV | 50 A | 1.35 V @ 50 A | - | -40°C ~ 125°C (TJ) | QC Terminal | B48 Module | |||||||
B485G-2BRIDGE RECT 1PHASE 1.4KV 50A |
2,303 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1.4 kV | 50 A | 1.35 V @ 50 A | - | -40°C ~ 125°C (TJ) | QC Terminal | B48 Module | |||||||
VBO130-18NO7BRIDGE RECT 1P 1.8KV 122A PWS-E |
2,056 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1.8 kV | 122 A | 1.65 V @ 300 A | 300 µA @ 1800 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-E | |||||||
VUO160-18NO7BRIDGE RECT 3P 1.8KV 175A PWS-E1 |
3,368 | - |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.8 kV | 175 A | 1.1 V @ 60 A | 200 µA @ 1800 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-E | |||||||
286-840RECT-MOD 250VAC VDR, GRAY |
2,674 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 250 V | 1 A | - | - | -25°C ~ 40°C | - | - | |||||||
VBO160-12NO7BRIDGE RECT 1P 1.2KV 174A PWS-E |
3,267 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1.2 kV | 174 A | 1.07 V @ 160 A | 200 µA @ 1200 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-E | |||||||
T483FBRIDGE RECT 1P 1.2KV 10A MODULE |
2,302 | - |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | Single Phase | Standard | 1.2 kV | 10 A | - | - | - | Surface Mount | Module | |||||||
B485H-2BRIDGE RECT 1PHASE 1.6KV 50A |
2,311 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1.6 kV | 50 A | 1.35 V @ 50 A | - | -40°C ~ 125°C (TJ) | QC Terminal | B48 Module | |||||||
VS-110MT80KPBFBRIDGE RECT 3P 800V 110A MT-K |
3,755 | - |
RFQ |
Datasheet |
Tray | - | Active | Three Phase | Standard | 800 V | 110 A | - | - | -40°C ~ 150°C (TJ) | Chassis Mount | MT-K Module | |||||||
M2550TB1200BRIDGE RECT 3P 1.2KV 50A MODULE |
3,842 | - |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | Three Phase | Standard | 1.2 kV | 50 A | - | - | - | Chassis Mount | Module | |||||||
VS-110MT100KPBFBRIDGE RECT 3PHASE 1KV 110A MT-K |
3,945 | - |
RFQ |
Datasheet |
Tray | - | Active | Three Phase | Standard | 1 kV | 110 A | - | - | -40°C ~ 150°C (TJ) | Chassis Mount | MT-K Module | |||||||
VS-130MT80KPBFBRIDGE RECT 3P 800V 130A MT-K |
2,197 | - |
RFQ |
Datasheet |
Tray | - | Active | Three Phase | Standard | 800 V | 130 A | - | - | -40°C ~ 150°C (TJ) | Chassis Mount | MT-K Module | |||||||
APTDF100H20GBRIDGE RECT 1PHASE 200V 145A SP4 |
3,153 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 200 V | 145 A | 1.1 V @ 100 A | 250 µA @ 200 V | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 | |||||||

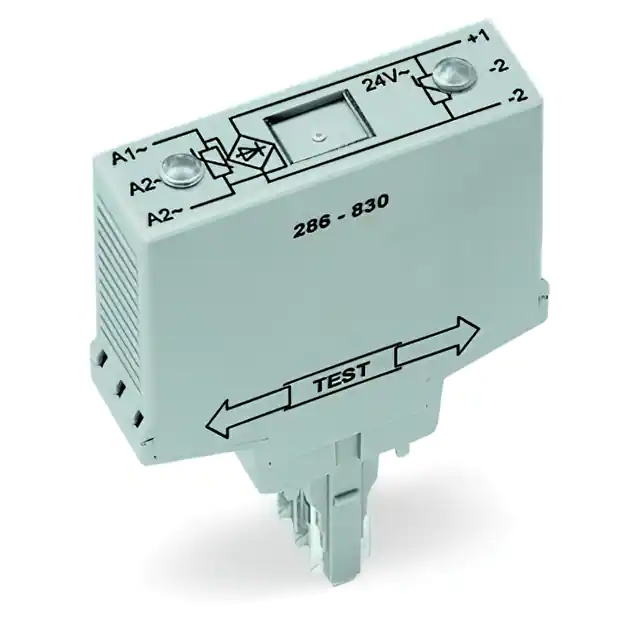

286-830RECT-MOD 24VAC VDR, GRAY |
3,173 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 35 V | 1 A | - | - | -25°C ~ 40°C | DIN Rail | Module | |||||||
M2550TB1600BRIDGE RECT 3P 1.6KV 50A MODULE |
2,405 | - |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | Three Phase | Standard | 1.6 kV | 50 A | - | - | - | Chassis Mount | Module | |||||||
VBO160-16NO7BRIDGE RECT 1P 1.6KV 174A PWS-E |
2,505 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1.6 kV | 174 A | 1.43 V @ 300 A | 300 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | PWS-E | |||||||
APTDF100H100GBRIDGE RECT 1PHASE 1KV 130A SP4 |
3,311 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1 kV | 130 A | 2.7 V @ 100 A | 100 µA @ 1000 V | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
