Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B500C5000A1PH BRIDGE 30X20X3.6 1000V 5A |
3,323 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 4 A | 1 V @ 5 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | |||||||
NTE53000BRIDGE-200VRM 10A |
828 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 200 V | 10 A | 1.1 V @ 5 A | 10 µA @ 200 V | -65°C ~ 125°C (TJ) | - | - | |||||||
B500C7000A1PH BRIDGE 30X20X3.6 1000V 7A |
3,086 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 4.8 A | 1 V @ 5 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | |||||||
GBJ2006-BPBRIDGE RECT 1PHASE 600V 20A GBJ |
3,461 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 20 A | 1.05 V @ 10 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
NTE5305R-SI BRG 600V 1.5A |
2,047 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 1.5 A | 1 V @ 1 A | 10 µA @ 600 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular | |||||||
NTE169R-SI BRIDGE 600V 2A |
3,852 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 2 A | 1.1 V @ 2 A | 10 µA @ 600 V | -55°C ~ 165°C (TJ) | Through Hole | 4-SIP | |||||||
TS15P06GBRIDGE RECT 1P 800V 15A TS-6P |
3,118 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 15 A | 1.1 V @ 15 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
DBF10TCBRIDGE RECTIFIER, 1 PHASE, 1A, 6 |
2,037 | - |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | ||||||||
NTE53001BRIDGE-400VRM 10A |
685 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 8 A | 1.1 V @ 5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | - | - | |||||||
TS20P05GBRIDGE RECT 1P 600V 20A TS-6P |
2,828 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 20 A | 1.1 V @ 20 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
TS20P06GBRIDGE RECT 1P 800V 20A TS-6P |
2,028 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 20 A | 1.1 V @ 20 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
GBJ3502-BPBRIDGE RECT 1PHASE 200V 35A GBJ |
3,657 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 35 A | 1.05 V @ 17.5 A | 10 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
GBJ3501-BPBRIDGE RECT 1PHASE 100V 35A GBJ |
2,200 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 35 A | 1.05 V @ 17.5 A | 10 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
GBUK8G1PH BRIDGE GBU 380V 8A |
2,029 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 380 V | 8 A | 900 mV @ 8 A | 5 µA @ 380 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||

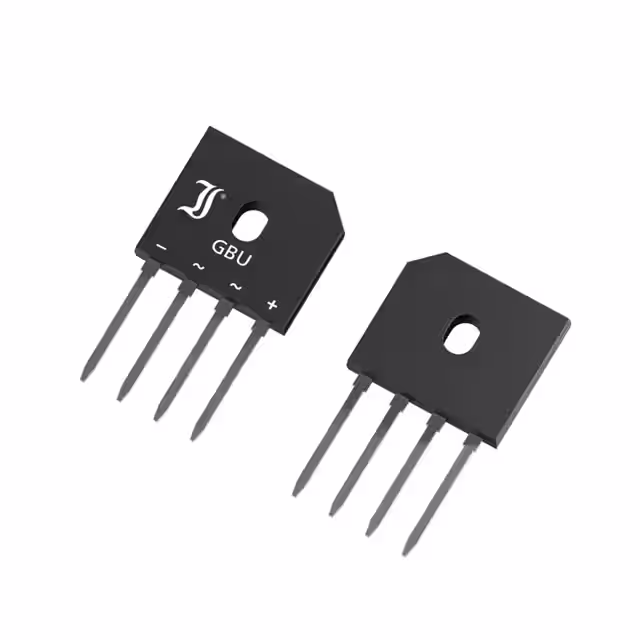

GBUK8D1PH BRIDGE GBU 190V 8A |
3,547 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 190 V | 8 A | 900 mV @ 8 A | 5 µA @ 190 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||

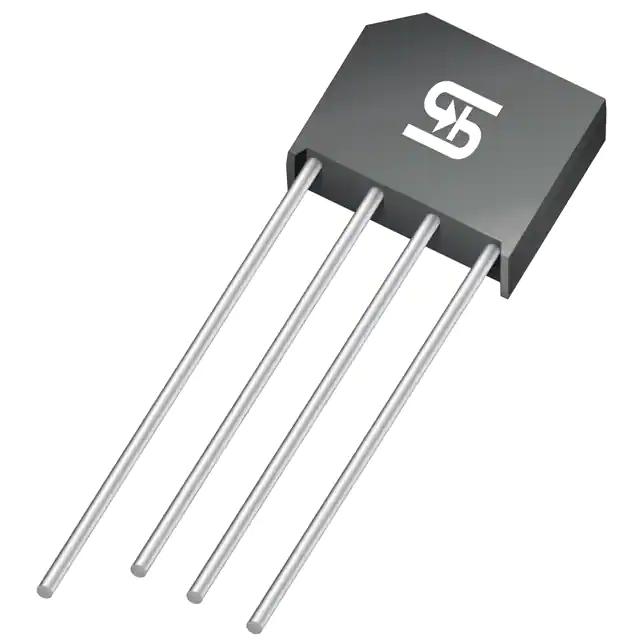

KBL406GBRIDGE RECT 1PHASE 800V 4A KBL |
3,647 | - |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 800 V | 4 A | 1.1 V @ 4 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBL | |||||||
NTE5306R-SI BRG 800V 1.5A |
556 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 800 V | 1.5 A | 1 V @ 1 A | 10 µA @ 800 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular | |||||||
NTE53002BRIDGE-600VRM 10A |
3,592 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 10 A | 1.1 V @ 5 A | 10 µA @ 600 V | -65°C ~ 125°C (TJ) | - | - | |||||||
NTE5304R-SI BRG 400V 1.5A |
3,022 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 400 V | 1.5 A | 1 V @ 1 A | 10 µA @ 400 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular | |||||||
DBF150G15 A SILICON DIFFUSED JUNCTION T |
2,331 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 3.2 A | 1.1 V @ 7.5 A | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-SIP, DBF |
