Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KBPC3508FP1PH BRIDGE KBPC 800V 35A |
2,199 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 800 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 800 V | -50°C ~ 150°C (TJ) | Chassis Mount | 4-Square, KBPC35 | |||||||

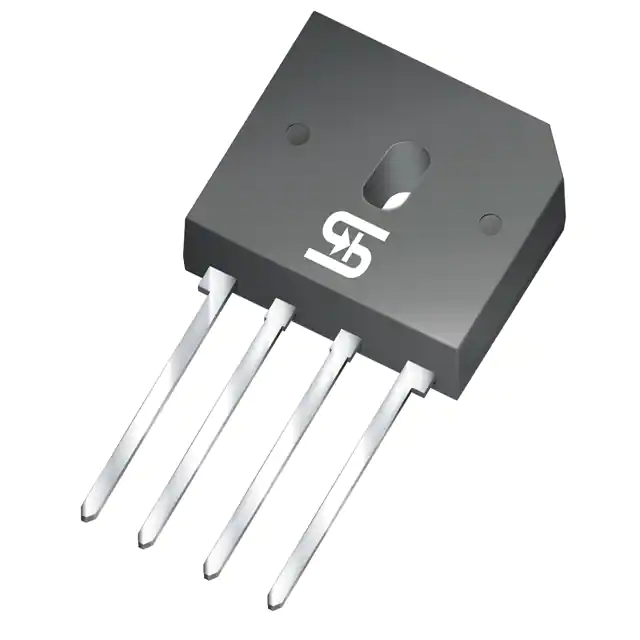

GBU2506BRIDGE RECT 1PHASE 800V 25A GBU |
2,338 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 25 A | 1.2 V @ 25 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||

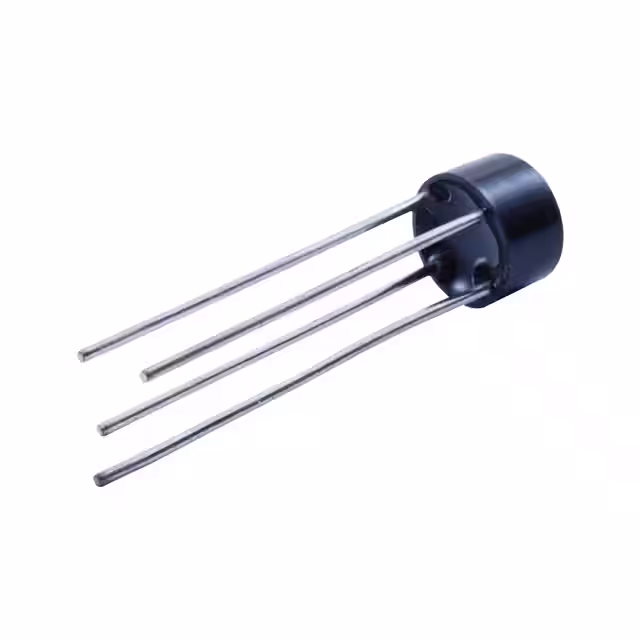

NTE5307R-SI BRG 1KV 1.5A |
3,092 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 1 kV | 1.5 A | 1 V @ 1 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular | |||||||
KBPC3508WP1PH BRIDGE KBPC 800V 35A |
2,447 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 800 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC WP | |||||||
KBPC3504WP1PH BRIDGE KBPC 400V 35A |
2,960 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 400 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC WP | |||||||
KBPC3506WP1PH BRIDGE KBPC 600V 35A |
800 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 600 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC WP | |||||||
KBPC3510WP1PH BRIDGE KBPC 1000V 35A |
160 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 17.5 A | 10 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC WP | |||||||
KBPC3502WP1PH BRIDGE KBPC 200V 35A |
160 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 200 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC WP | |||||||
KBPC3501WP1PH BRIDGE KBPC 100V 35A |
640 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 100 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 100 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC WP | |||||||
KBPC10/15/2510FP1PH BRIDGE KBPC 1000V 25A |
240 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.2 V @ 12.5 A | 10 µA @ 1000 V | -50°C ~ 150°C (TJ) | Chassis Mount | 4-Square, KBPC FP | |||||||

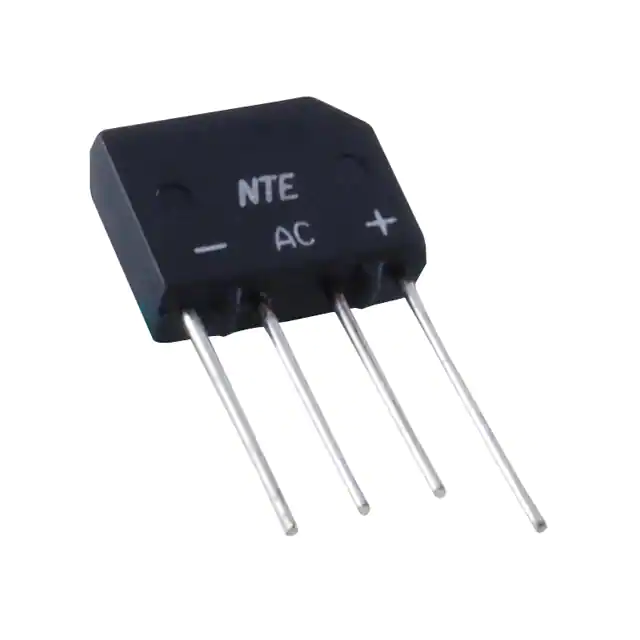

NTE168R-SI BRIDGE 400V 2A |
3,457 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 400 V | 2 A | 1.1 V @ 2 A | 10 µA @ 400 V | -55°C ~ 165°C (TJ) | Through Hole | 4-SIP | |||||||
KBPC10/15/2516WP1PH BRIDGE KBPC 1600V 25A |
2,407 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 1.6 kV | 25 A | 1.2 V @ 12.5 A | 10 µA @ 1600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC WP | |||||||
KBPC10/15/2512WP1PH BRIDGE KBPC 1200V 25A |
3,664 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 1.2 kV | 25 A | 1.2 V @ 12.5 A | 10 µA @ 1200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC WP | |||||||
KBPC10/15/2514WP1PH BRIDGE KBPC 1400V 25A |
160 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 1.4 kV | 25 A | 1.2 V @ 12.5 A | 10 µA @ 1400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC WP | |||||||
KBPC10/15/2514FP1PH BRIDGE KBPC 1400V 25A |
240 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 1.4 kV | 25 A | 1.2 V @ 12.5 A | 10 µA @ 1400 V | -50°C ~ 150°C (TJ) | Chassis Mount | 4-Square, KBPC FP | |||||||

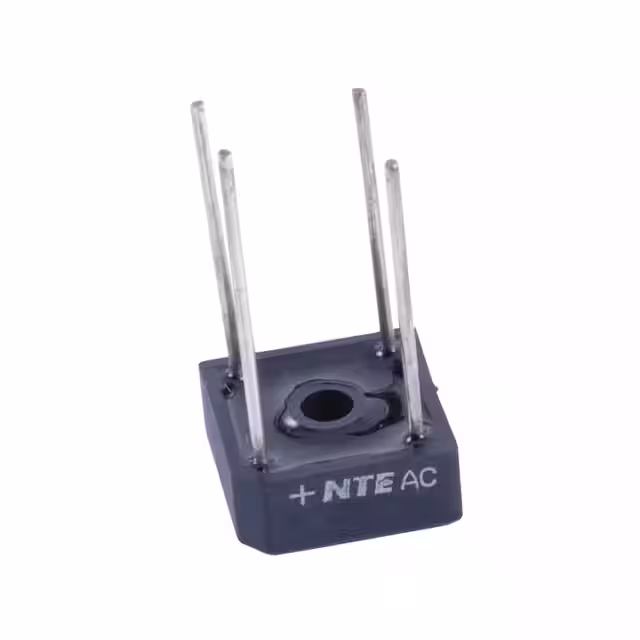

NTE53004BRIDGE-1000VRM 10A |
3,098 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 5 A | 10 µA @ 1000 V | -65°C ~ 125°C (TJ) | - | - | |||||||

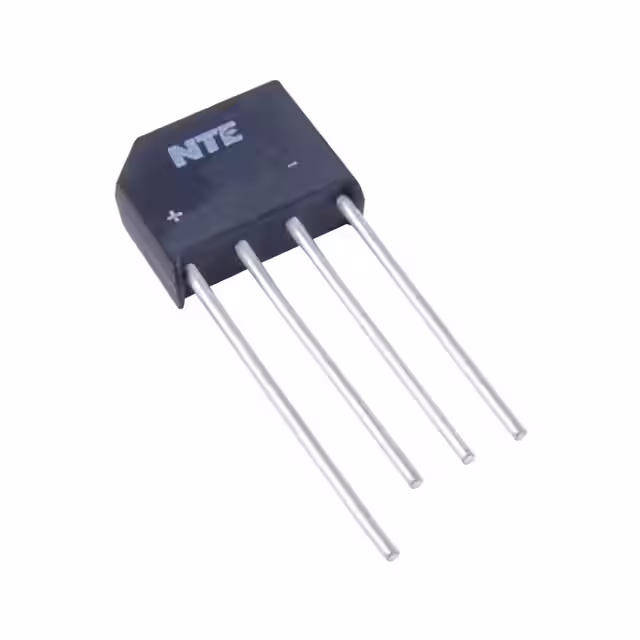

NTE5310R-SI BRIDGE 600V 4A |
2,498 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 4 A | 1.1 V @ 2 A | 10 µA @ 600 V | -65°C ~ 125°C (TJ) | Through Hole | 4-ESIP | |||||||
KBPC3510FP1PH BRIDGE KBPC 1000V 35A |
3,195 | - |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 17.5 A | 10 µA @ 1000 V | -50°C ~ 150°C (TJ) | Chassis Mount | 4-Square, KBPC35 | |||||||
TS25P06GBRIDGE RECT 1P 800V 25A TS-6P |
2,483 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 25 A | 1.1 V @ 15 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
GBU150615A, 800V, STANDARD BRIDGE RECTI |
2,827 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 15 A | 1.1 V @ 15 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU |
