Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

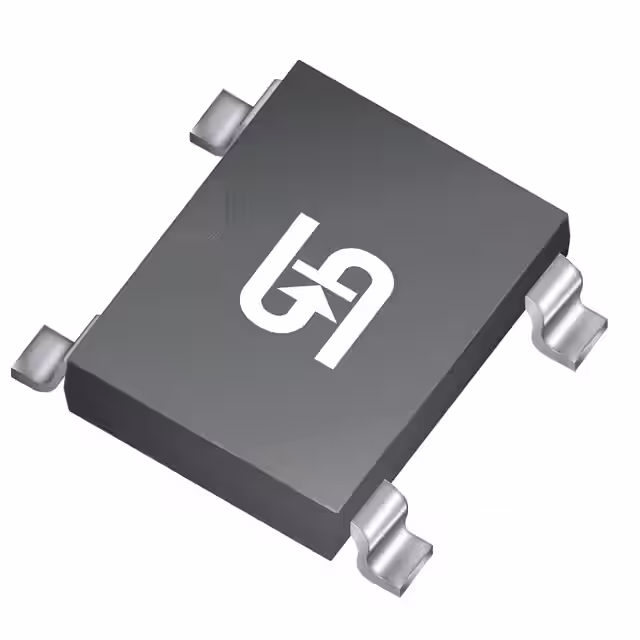

BABS1100PLANAR SCHOTTKY RECTIFIER ABS/SO |
2,244 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 100 V | 1 A | 0.85 V @ 1 A | 10 µA @ 100 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||

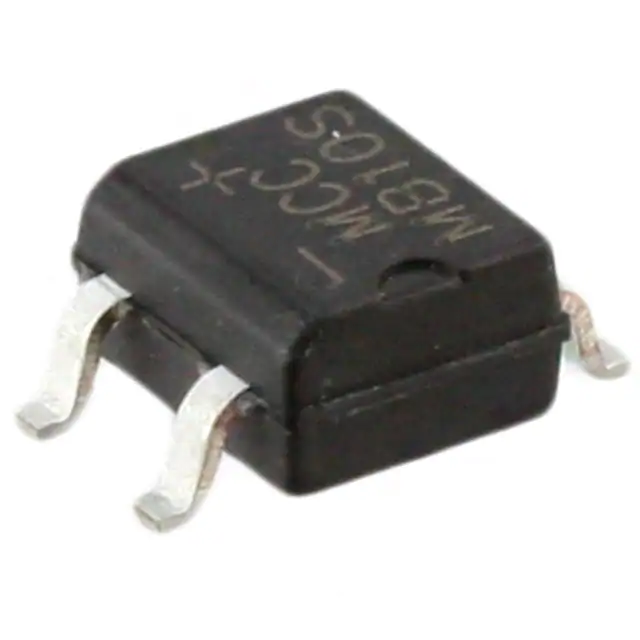

MB10S-TPBRIDGE RECT 1P 1KV 500MA MBS-1 |
2,389 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 500 mA | 1 V @ 400 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | |||||||
MBS6BRIDGE RECT 1P 600V 800MA MBS |
3,215 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 600 V | 800 mA | 1 V @ 2 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-BESOP (0.173, 4.40mm Width) | |||||||
DBF210-13BRIDGE RECT 1PHASE 1KV 2A DBF |
2,907 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 2 A | 1 V @ 2 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Flat Leads | |||||||
RTT410RAPID GPP RECTIFIER TT T&R 1.5K |
2,889 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 4 A | 1.3 V @ 4 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||
LMB12S-TPBRIDGE RECT 20V 1A LMBS-1 |
3,723 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 20 V | 1 A | 550 mV @ 500 mA | 500 µA @ 20 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||
LMB10S-TPBRIDGE RECT 1PHASE 1KV 1A LMBS-1 |
3,951 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 1 A | 950 mV @ 400 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||
DF005MBRIDGE RECT 1PHASE 50V 1.5A 4DIP |
2,586 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 50 V | 1.5 A | 1.1 V @ 1 A | 10 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-EDIP (0.300, 7.62mm) | |||||||

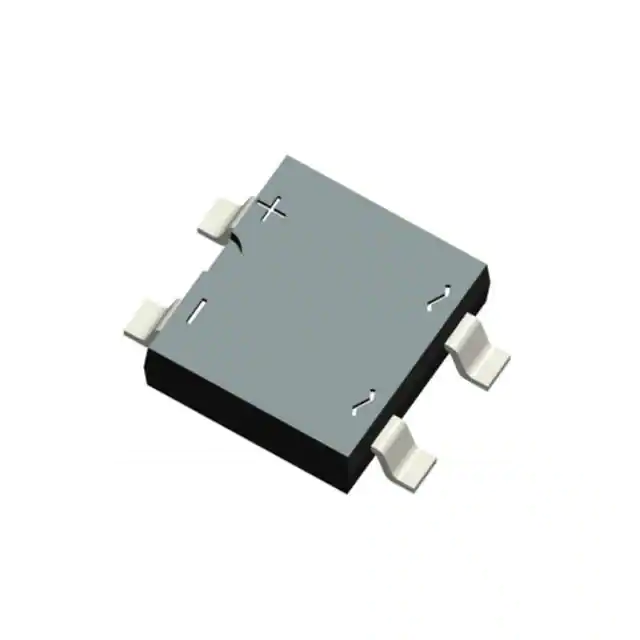

HBS3101000V,3APACKAGE HBS BRIDGE RECTI |
3,078 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 3 A | 960 mV @ 3 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||
TBS4084A 800V STANDARD BRIDGE RECTIFIE |
3,629 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 800 V | 4 A | 1 V @ 4 A | 2 µA @ 800 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||
RABS20M300NS, 2A, 1000V, FAST RECOVERY |
2,913 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 2 A | 1.3 V @ 2 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||||
RDBF1510U-13BRIDGE RECT 1PHASE 1KV 1.5A DBF |
3,676 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 1.5 A | 1.3 V @ 1.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Flat Leads | |||||||
CBRDFSH1-40 TR131A,40V SURFACE MOUNT RECTIFIER-B |
3,642 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 40 V | 1 A | 500 mV @ 1 A | 200 µA @ 40 V | -55°C ~ 125°C (TJ) | Surface Mount | 4-LDFN | |||||||
B4S-E3/80BRIDGE RECT 1P 400V TO269AA |
3,184 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 400 V | 500 mA | 1 V @ 500 mA | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | |||||||
HBS4101000V,4APACKAGE HBS BRIDGE RECTI |
2,991 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 4 A | 980 mV @ 4 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||

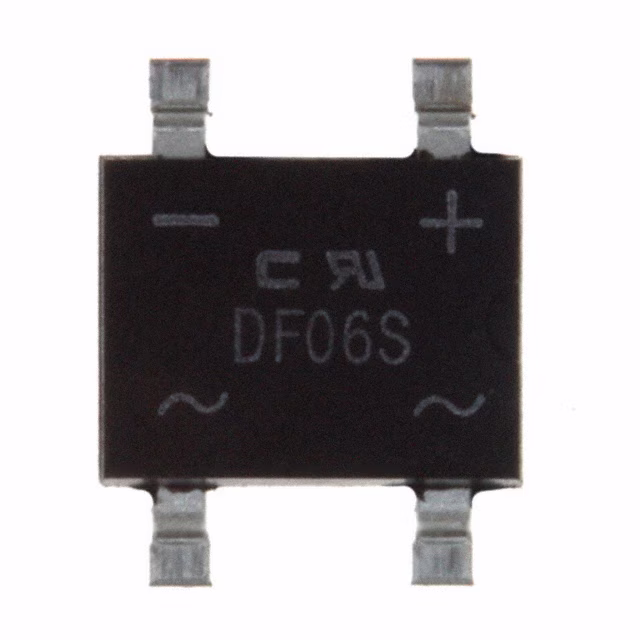

DF06S-GBRIDGE RECT 1PHASE 600V 1A DFS |
3,403 | - |
RFQ |
Datasheet |
Tube | - | Last Time Buy | Single Phase | Standard | 600 V | 1 A | 1.1 V @ 1 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||

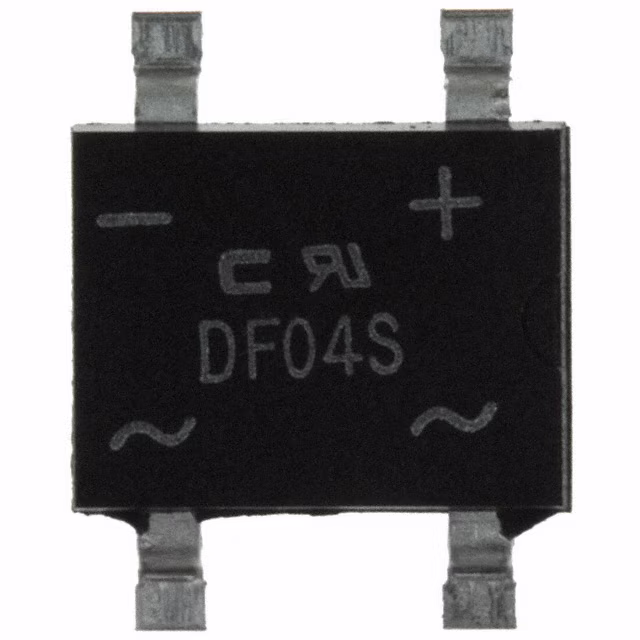

DF04S-GBRIDGE RECT 1PHASE 400V 1A DFS |
2,045 | - |
RFQ |
Datasheet |
Tube | - | Last Time Buy | Single Phase | Standard | 400 V | 1 A | 1.1 V @ 1 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||
CBRHD-02 TR13 PBFREEBRIDGE RECT 1P 200V 500MA HD DIP |
2,012 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 200 V | 500 mA | 1 V @ 400 mA | 5 µA @ 200 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||

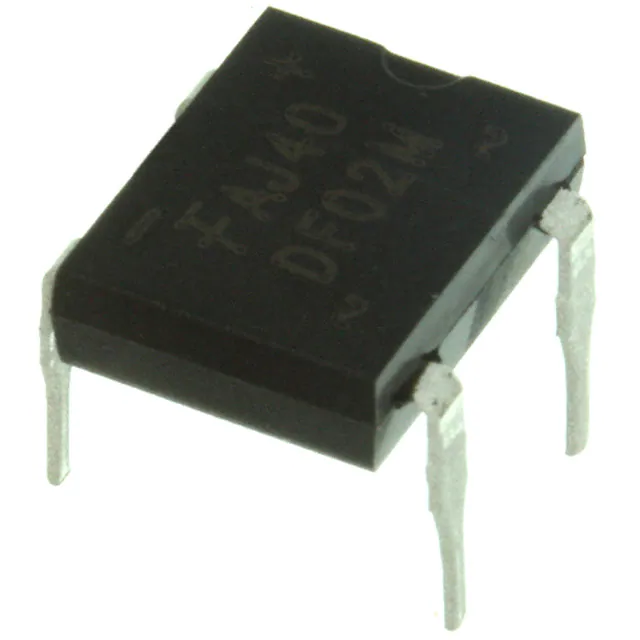

DF02MBRIDGE RECT 1P 200V 1.5A 4DIP |
3,929 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 200 V | 1.5 A | 1.1 V @ 1 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-EDIP (0.300, 7.62mm) | |||||||
HBS5101000V,5APACKAGE HBS BRIDGE RECTI |
3,606 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 5 A | 970 mV @ 5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing |
