Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GBU6M-BPBRIDGE RECT 1PHASE 1KV 6A GBU |
3,891 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 6 A | 1 V @ 3 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
TS10K40-ABRIDGE RECT 1PHASE 400V 10A TS4K |
2,220 | - |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | Single Phase | Standard | 400 V | 10 A | 1 V @ 5 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS4K | |||||||
DF10S1BRIDGE RECT 1PHASE 1KV 1A 4SDIP |
3,426 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 1 A | 1.1 V @ 1 A | 3 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||
RYBS30M M2G300NS, 3A, 1000V, FAST RECOVERY |
2,468 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 3 A | 1.3 V @ 3 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Flat Leads | |||||||
CBRLDSH1-40 TR13 PBFREEBRIDGE RECT 1PHASE 40V 1A 4LPDIP |
2,065 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 40 V | 1 A | 500 mV @ 1 A | 100 µA @ 40 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||
TBS6106A 1000V STANDARD BRIDGE RECTIFI |
2,922 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 6 A | 1 V @ 6 A | 2 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||
TBS6066A 600V STANDARD BRIDGE RECTIFIE |
2,412 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 600 V | 6 A | 1 V @ 6 A | 2 µA @ 600 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | |||||||
GBJ1504-BPBRIDGE RECT 1PHASE 400V 15A GBJ |
3,295 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 15 A | 1.05 V @ 7.5 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
GBU8MBRIDGE RECT 1PHASE 1KV 8A GBU |
3,239 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1 kV | 8 A | 1.1 V @ 8 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
TS6P05GBRIDGE RECT 1PHASE 600V 6A TS-6P |
2,312 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 6 A | 1.1 V @ 15 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
BR102-BPBRIDGE RECT 1PHASE 200V 10A PB-6 |
3,840 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 200 V | 10 A | 1.1 V @ 5 A | 10 µA @ 200 V | -55°C ~ 150°C | Through Hole | 4-Square, PB-6 | |||||||
GBJ2504-BPBRIDGE RECT 1PHASE 400V 25A GBJ |
2,264 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 25 A | 1.05 V @ 12.5 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
GBJ2010-BPBRIDGE RECT 1PHASE 1KV 20A GBJ |
3,801 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1 kV | 20 A | 1.05 V @ 10 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
GBJ2502-BPBRIDGE RECT 1PHASE 200V 25A GBJ |
2,212 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 25 A | 1.05 V @ 12.5 A | 10 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
TS10P05GBRIDGE RECT 1P 600V 10A TS-6P |
3,659 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 10 A | 1.1 V @ 15 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
TS10K80-ABRIDGE RECT 1PHASE 800V 10A TS4K |
3,660 | - |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | Single Phase | Standard | 800 V | 10 A | 1 V @ 5 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS4K | |||||||
GBPC3504W-BPBRIDGE RECT 1P 400V 35A GBPC-W |
134 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 400 V | 35 A | 1.1 V @ 17.5 A | 5 µA @ 400 V | -55°C ~ 150°C | Through Hole | 4-Square, GBPC-W | |||||||
TS20P05G C2GBRIDGE RECT 1P 600V 20A TS-6P |
3,321 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 20 A | 1.1 V @ 20 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
MP502W-BPBRIDGE RECT 1P 200V 50A MP-50WW |
3,627 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 200 V | 50 A | 1.2 V @ 25 A | 10 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-50W | |||||||

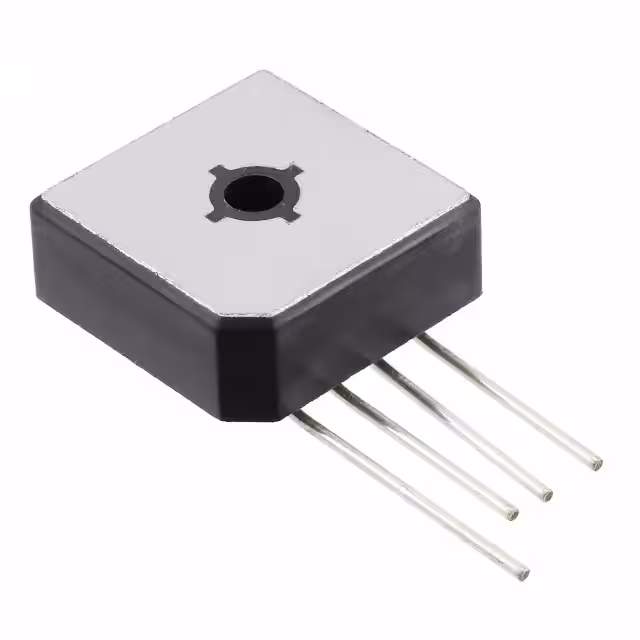

BR5010L-GBRIDGE RECT 1PHASE 1KV 50A BR-L |
213 | - |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, with Heat Sink |
