Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BR801STD 8A, CASE TYPE: BR10 |
2,297 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 100 V | 8 A | 1 V @ 4 A | 10 µA @ 100 V | -40°C ~ 150°C (TJ) | Through Hole | 4-Square, BR-10 | |||||||
RS2505MBRIDGE RECT GLASS 600V 25A RS25M |
300 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 25 A | 1 V @ 12.5 A | 500 nA @ 600 V | 150°C (TJ) | Through Hole | 4-SIP, RS-25M | |||||||
RBV1004BRIGDE RECTIFIER 10A 400V, CASE |
3,504 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 400 V | 10 A | 1 V @ 5 A | 10 µA @ 400 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
FBR804FR 8A, CASE TYPE: BR10 |
200 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 400 V | 8 A | 1.3 V @ 4 A | 10 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-Square, BR-10 | |||||||
GBU4M1BRect, 1000V, 4A |
2,877 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 2.8 A | 1 V @ 4 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU4K1BRect, 800V, 4A |
2,631 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 2.8 A | 1 V @ 4 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
BR610BRIDGE RECT 1000V 6A BR-6 |
200 | - |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 1 kV | 6 A | 1.1 V @ 3 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, BR-6 | |||||||
GBU6A1BRect, 50V, 6A |
2,641 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 50 V | 4.2 A | 1 V @ 6 A | 5 µA @ 50 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU6D1BRect, 200V, 6A |
3,313 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 200 V | 4.2 A | 1 V @ 6 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
RBV1008BRIGDE RECTIFIER 10A 800V, CASE |
900 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 800 V | 10 A | 1 V @ 5 A | 10 µA @ 800 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
RBV1006BRIGDE RECTIFIER 10A 600V, CASE |
500 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 10 A | 1 V @ 5 A | 10 µA @ 600 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||

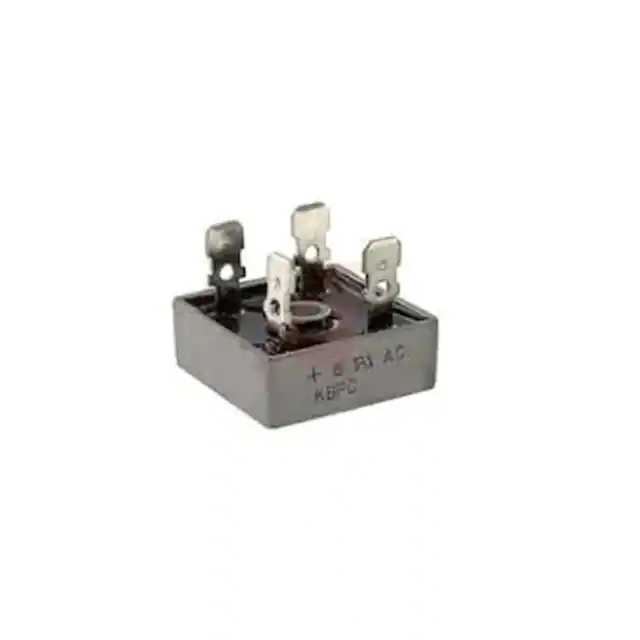

KBPC2510W25 AMP BRIDGE RECTIFIER |
940 | - |
RFQ |
Datasheet |
Bulk | KBPC25 | Active | Single Phase | Standard | 1 kV | 25 A | 1.2 V @ 12.5 A | 10 µA @ 1000 V | -65°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | |||||||
KBPC3510W35 AMP BRIDGE RECTIFIER |
410 | - |
RFQ |
Datasheet |
Bulk | KBPC35 | Active | Single Phase | Standard | 1 kV | 35 A | 1.2 V @ 17.5 A | 10 µA @ 1000 V | -65°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | |||||||
RBV1502BRIGDE RECTIFIER 15A 200V, CASE |
2,643 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 200 V | 15 A | 1.1 V @ 7.5 A | 10 µA @ 200 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
KBU810BRIDGE RECT GLASS 1000V 8A KBU |
3,276 | - |
RFQ |
Datasheet |
Box | KBU | Active | Single Phase | Standard | 1 kV | 333 mA | 1 V @ 4 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBL | |||||||
KBU1010BRIDGE RECT 1PHASE 1KV 10A KBU |
2,450 | - |
RFQ |
Datasheet |
Box | KBU | Active | Single Phase | Standard | 1 kV | 416 mA | 1 V @ 5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBL | |||||||
RBV2502BRIGDE RECTIFIER 25A 200V, CASE |
500 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 200 V | 25 A | 1.1 V @ 12.5 A | 10 µA @ 200 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
RBV1508BRIGDE RECTIFIER 15A 800V, CASE |
800 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 800 V | 15 A | 1.1 V @ 7.5 A | 10 µA @ 800 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
GBU8J1BRect, 600V, 8A |
2,421 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 5.6 A | 1 V @ 8 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU8K1BRect, 800V, 8A |
2,756 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 5.6 A | 1 V @ 8 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU |
