Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GBU8D1BRect, 200V, 8A |
2,519 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 200 V | 5.6 A | 1 V @ 8 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU8A1BRect, 50V, 8A |
2,325 | - |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 50 V | 5.6 A | 1 V @ 8 A | 5 µA @ 50 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
RBV1510BRIGDE RECTIFIER 15A 1000V, CASE |
2,067 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.1 V @ 7.5 A | 10 µA @ 1000 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
RBV2501BRIGDE RECTIFIER 25A 100V, CASE |
3,361 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 100 V | 25 A | 1.1 V @ 12.5 A | 10 µA @ 100 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
RBV3502BRIGDE RECTIFIER 35A 200V, CASE |
2,604 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 200 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 200 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
RBV1010BRIGDE RECTIFIER 10A 1000V, CASE |
2,936 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 1 kV | 10 A | 1 V @ 5 A | 10 µA @ 1000 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
RBV2504BRIGDE RECTIFIER 25A 400V, CASE |
2,870 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 400 V | 25 A | 1.1 V @ 12.5 A | 10 µA @ 400 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
RBV2508BRIGDE RECTIFIER 25A 800V, CASE |
700 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 800 V | 25 A | 1.1 V @ 12.5 A | 10 µA @ 800 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
GBJ1510RECTIFIER BRIDGE 15A 1000V GBJ |
3,543 | - |
RFQ |
Datasheet |
Box | GBJ | Active | Single Phase | Standard | 1 kV | 15 A | 1.05 V @ 7.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
KBP210GBRIDGE RECTIFIER, SINGLE PHASE |
2,300 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 1.2 A | 1.1 V @ 2 A | 5 µA @ 1 V | -50°C ~ 150°C (TJ) | Through Hole | ||||||||
RBV5002BRIGDE RECTIFIER 50A 200V, CASE |
3,102 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 200 V | 50 A | 1.1 V @ 25 A | 10 µA @ 200 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||

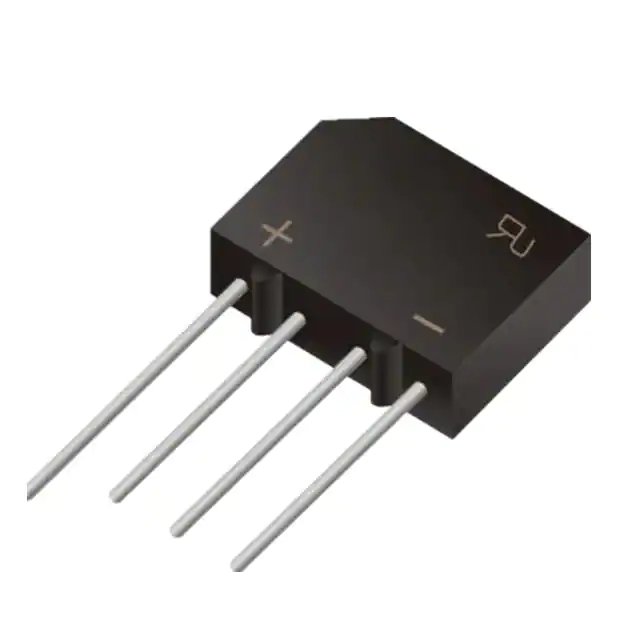

KBU1510BRIDGE RECT 1PHASE 1KV 15A KBU |
2,882 | - |
RFQ |
Datasheet |
Box | KBU | Active | Single Phase | Standard | 1 kV | 15 A | 1 V @ 7.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBL | |||||||
FKBL406MBULKFR 2A, CASE TYPE: KBL |
900 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 4 A | 1.4 V @ 4 A | 10 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBL | |||||||
KBP310GBRIDGE RECTIFIER, SINGLE PHASE |
2,868 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 1.8 A | 1.1 V @ 3 A | 5 µA @ 1 V | -50°C ~ 150°C (TJ) | Through Hole | ||||||||
RBV1504BRIGDE RECTIFIER 15A 400V, CASE |
600 | - |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 400 V | 15 A | 1.1 V @ 7.5 A | 10 µA @ 400 V | -40°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBV-25 | |||||||
GBPC1006W10A -600V - GBPC-W - BRIDGE |
250 | - |
RFQ |
Datasheet |
Bag | GBPC10 | Active | Single Phase | Standard | 600 V | 10 A | 1.1 V @ 5 A | 5 µA @ 600 V | -65°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | |||||||
GBPC100410A -400V - GBPC - BRIDGE |
250 | - |
RFQ |
Datasheet |
Bag | GBPC10 | Active | Single Phase | Standard | 400 V | 10 A | 1.1 V @ 5 A | 5 µA @ 400 V | -65°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC | |||||||
GBPC1010W10A -1000V - GBPC-W - BRIDGE |
250 | - |
RFQ |
Datasheet |
Bag | GBPC10 | Active | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 5 A | 5 µA @ 1000 V | -65°C ~ 150°C (TJ) | - | - | |||||||
GBPC100610A -600V - GBPC - BRIDGE |
250 | - |
RFQ |
Datasheet |
Bag | GBPC10 | Active | Single Phase | Standard | 600 V | 10 A | 1.1 V @ 5 A | 5 µA @ 600 V | -65°C ~ 150°C (TJ) | - | - | |||||||
GBPC1004W10A -400V - GBPC-W - BRIDGE |
250 | - |
RFQ |
Datasheet |
Bag | GBPC10 | Active | Single Phase | Standard | 400 V | 10 A | 1.1 V @ 5 A | 5 µA @ 400 V | -65°C ~ 150°C (TJ) | - | - |
