Electric Double Layer Capacitors (EDLC), Supercapacitors- Page 10

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)

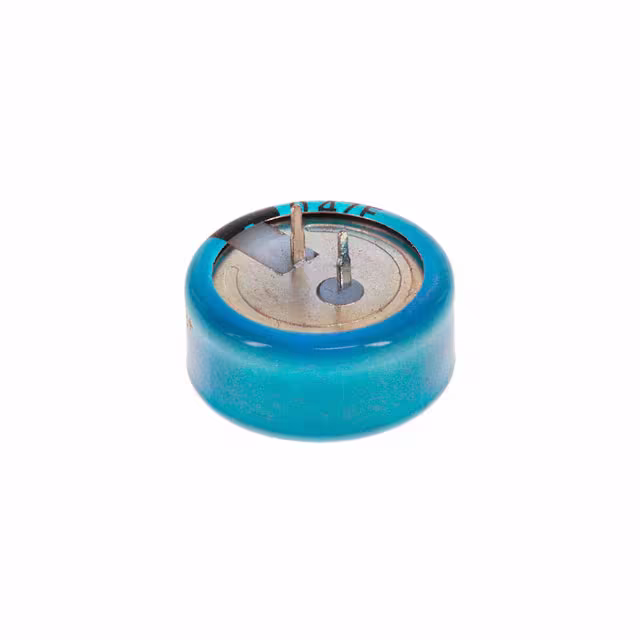

EDS474Z5R5C CAP 470MF -20% +80% 5.5V T/H Cornell Dubilier Electronics (CDE)	500	-	RFQ	Datasheet	Radial, Can	Tray	EDS	Active	470 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.374 (9.50mm)
SCCV40B506SRB CAP 50F -10% +30% 2.7V T/H KYOCERA AVX	1,758	-	RFQ	Datasheet	Radial, Can	Bulk	SCC	Active	50 F	-10%, +30%	2.7 V	18mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	0.315 (8.00mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)
PHVL-3R9H474-R SUPERCAP 3.9V 0.47F 0.40 OHM HZ Eaton - Electronics Division	319	-	RFQ	Datasheet	Radial	Bulk	PHVL	Active	470 mF	-10%, +30%	3.9 V	400mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	0.465 (11.80mm)	0.681 L x 0.354 W (17.30mm x 9.00mm)	0.571 (14.50mm)
SCMR14G334SRBB0 CAP 330MF -10% +30% 7.5V T/H KYOCERA AVX	1,722	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	330 mF	-10%, +30%	7.5 V	450mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.531 (13.50mm)	0.945 L x 0.315 W (24.00mm x 8.00mm)	0.610 (15.50mm)
MAL223051008E3 CAP ALUM 50F 3V 2000H Vishay Beyschlag/Draloric/BC Components	501	-	RFQ	Datasheet	Radial, Can	Box	ENYCAP™ 230 EDLC-HV	Active	50 F	-20%, +50%	3 V	14mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.476 (37.50mm)
SCMT22F505PRBA0 CAP 5F 0% +100% 5.5V T/H KYOCERA AVX	6,308	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	5 F	0%, +100%	5.5 V	120mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.709 (18.00mm)	0.984 L x 0.492 W (25.00mm x 12.50mm)	0.925 (23.50mm)

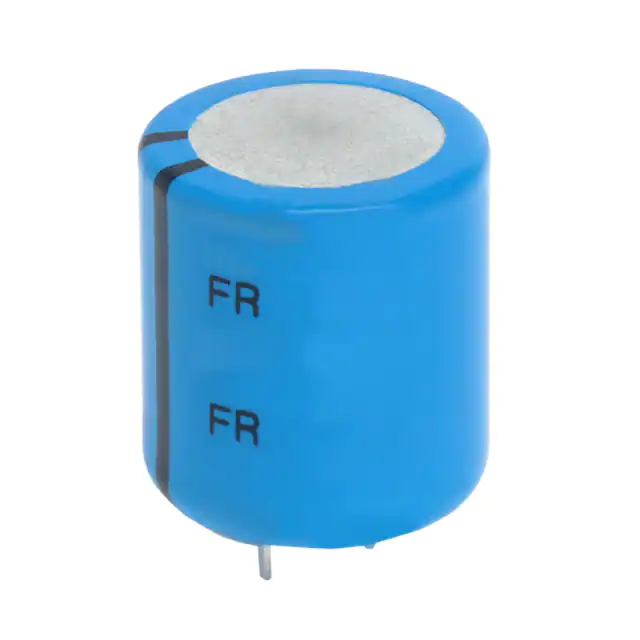

FR0H474ZF CAP 470MF -20% +80% 5.5V T/H KEMET	1,208	-	RFQ	Datasheet	Radial, Can	Bulk	FR	Active	470 mF	-20%, +80%	5.5 V	100Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.650 Dia (16.50mm)	0.846 (21.50mm)
DGH706Q2R7 CAPACITOR 70F -10% +30% 2.7V TH Cornell Dubilier / Illinois Capacitor	4,593	-	RFQ	Datasheet	Radial, Can	Bulk	DGH	Active	70 F	-10%, +30%	2.7 V	14mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	2.047 (52.00mm)

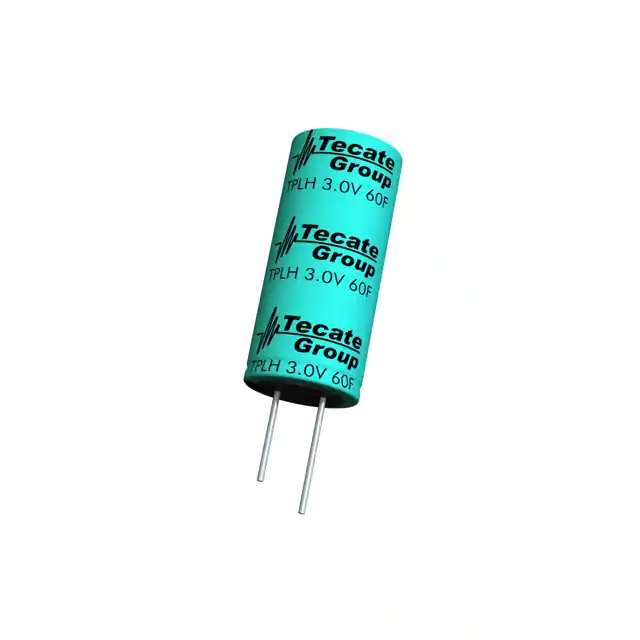

TPLH-3R0/60WR18X40 CAP 60F 3.0V T/H Tecate Group	697	-	RFQ	Datasheet	Radial, Can	Bulk	TPLH-Radial 3V	Active	60 F	±5%	3 V	12mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.634 (41.50mm)
SCMT32C755SRBA0 CAP 7.5F -10% +30% 5V T/H KYOCERA AVX	329	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	7.5 F	-10%, +30%	5 V	70mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.709 (18.00mm)	0.984 L x 0.492 W (25.00mm x 12.50mm)	1.319 (33.50mm)
PM-5R0H105-R CAP 1F -20% +80% 5V T/H Eaton - Electronics Division	3,082	-	RFQ	Datasheet	Radial, Can, Horizontal	Bulk	PM	Active	1 F	-20%, +80%	5 V	200mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	0.465 (11.80mm)	0.866 L x 0.681 W (22.00mm x 17.30mm)	0.354 (9.00mm)
PHVL-3R9V305-R SUPERCAP 3.9V 3F 0.08 OHM VT Eaton - Electronics Division	117	-	RFQ	Datasheet	Radial	Bulk	PHVL	Active	3 F	-10%, +30%	3.9 V	80mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	0.465 (11.80mm)	0.681 L x 0.354 W (17.30mm x 9.00mm)	1.280 (32.50mm)
PM-5R0V155-R CAP 1.5F -20% +80% 5V T/H Eaton - Electronics Division	3,988	-	RFQ	Datasheet	Radial, Can	Bulk	PM	Active	1.5 F	-20%, +80%	5 V	100mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	0.906 (23.00mm)
PHVL-3R9V505-R SUPERCAP 3.9V 5F 0.07 OHM VT Eaton - Electronics Division	219	-	RFQ	Datasheet	Radial	Bulk	PHVL	Active	5 F	-10%, +30%	3.9 V	70mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	1.280 (32.50mm)
FG0H225ZF CAP 2.2F -20% +80% 5.5V T/H KEMET	490	-	RFQ	Datasheet	Radial, Can	Bulk	FG	Active	2.2 F	-20%, +80%	5.5 V	35Ohm @ 1kHz	-	PC Pins	Through Hole	0.300 (7.62mm)	0.846 Dia (21.50mm)	0.748 (19.00mm)
BCAP0050 P300 X11 CAP 50F 3V THROUGH HOLE Maxwell Technologies Korea Co., Ltd.	45,991	-	RFQ	Datasheet	Radial, Can	Bulk	-	Active	50 F	-	3 V	13mOhm	-	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)
BCAP0050 P270 X01 CAP 50F -10% +20% 2.7V T/H Maxwell Technologies Korea Co., Ltd.	683	-	RFQ	Datasheet	Radial, Can	Bulk	-	Active	50 F	-10%, +20%	2.7 V	16mOhm	-	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)
FS0H105ZF CAP 1F -20% +80% 5.5V T/H KEMET	1,286	-	RFQ	Datasheet	Radial, Can	Bulk	FS	Active	1 F	-20%, +80%	5.5 V	7Ohm @ 1kHz	-	PC Pins	Through Hole	0.400 (10.16mm)	1.122 Dia (28.50mm)	0.551 (14.00mm)
SCMR22G105SRBB0 CAP 1F -10% +30% 7.5V T/H KYOCERA AVX	677	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	1 F	-10%, +30%	7.5 V	180mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.531 (13.50mm)	0.945 L x 0.315 W (24.00mm x 8.00mm)	0.925 (23.50mm)

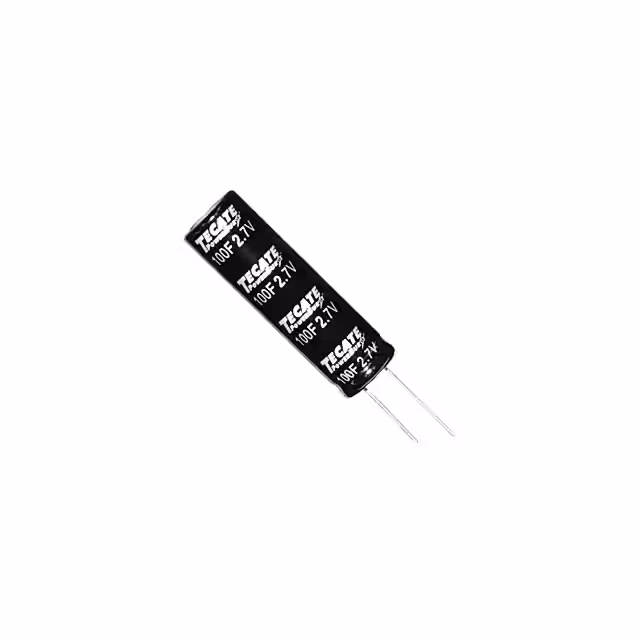

TPL-100/18X60F CAP 100F -10% +20% 2.7V T/H Tecate Group	3,240	-	RFQ	Datasheet	Radial, Can	Bulk	TPL	Active	100 F	-10%, +20%	2.7 V	10mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	2.421 (61.50mm)
