Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
850617021002 CAP 7F -10% +30% 2.7V T/H Würth Elektronik	288	-	RFQ	Datasheet	Radial, Can	Bulk	WCAP-STSC	Active	7 F	-10%, +30%	2.7 V	45mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)
FYD0H224ZF CAP 220MF -20% +80% 5.5V T/H KEMET	400	-	RFQ	Datasheet	Radial, Can	Bulk	FYD	Active	220 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.571 Dia (14.50mm)	0.591 (15.00mm)
SCCT30B156SRB CAPACITOR 15F -10% +30% 2.7V T/H KYOCERA AVX	3,764	-	RFQ	Datasheet	Radial, Can	Bulk	SCC	Active	15 F	-10%, +30%	2.7 V	35mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	0.217 (5.50mm)	0.492 Dia (12.50mm)	1.260 (32.00mm)
DGH206Q2R7 CAP EDLC 2.7V 20F TH Cornell Dubilier / Illinois Capacitor	663	-	RFQ	Datasheet	Radial, Can	Bag	DGH	Active	20 F	-10%, +30%	2.7 V	30mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)
SCMR22H155PSBB0 CAP 1.5F 0% +100% 6V T/H KYOCERA AVX	1,029	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	1.5 F	0%, +100%	6 V	200mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.453 (11.50mm)	0.728 L x 0.374 W (18.50mm x 9.50mm)	1.004 (25.50mm)

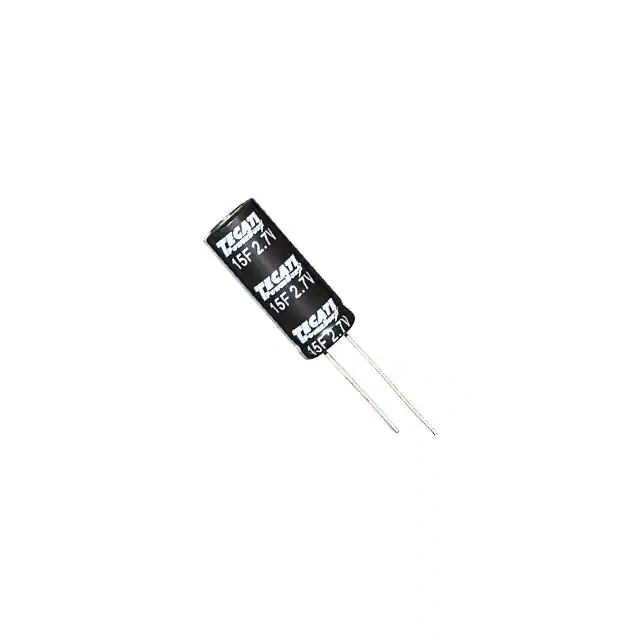

TPL-15/12X31F CAP 15F -10% +20% 2.7V T/H Tecate Group	951	-	RFQ	Datasheet	Radial, Can	Bulk	TPL	Active	15 F	-10%, +20%	2.7 V	35mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.209 (5.30mm)	0.492 Dia (12.50mm)	1.299 (33.00mm)
SCMR14J334SSBA0 CAP 330MF -10% +30% 8.1V T/H KYOCERA AVX	112	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	330 mF	-10%, +30%	8.1 V	500mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.453 (11.50mm)	1.047 L x 0.374 W (26.60mm x 9.50mm)	0.689 (17.50mm)
FR0H104ZF CAP 100MF -20% +80% 5.5V T/H KEMET	1,037	-	RFQ	Datasheet	Radial, Can	Bulk	FR	Active	100 mF	-20%, +80%	5.5 V	150Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.571 Dia (14.50mm)	0.610 (15.50mm)
TPLH-2R7/22WR12X31 CAP 22F 2.7V THROUGH HOLE Tecate Group	961	-	RFQ	Datasheet	Radial, Can	Bulk	TPLH-Radial	Active	22 F	-	2.7 V	32mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.209 (5.30mm)	0.492 Dia (12.50mm)	1.319 (33.50mm)
SCAP,PBL-1.0/5.4 CAP 1F 5.4V THROUGH HOLE UCAP PK Tecate Group	310	-	RFQ	Datasheet	Radial, Can	Bulk	PBL	Active	1 F	-	5.4 V	360mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.472 (12.00mm)	0.866 L x 0.394 W (22.00mm x 10.00mm)	0.827 (21.00mm)

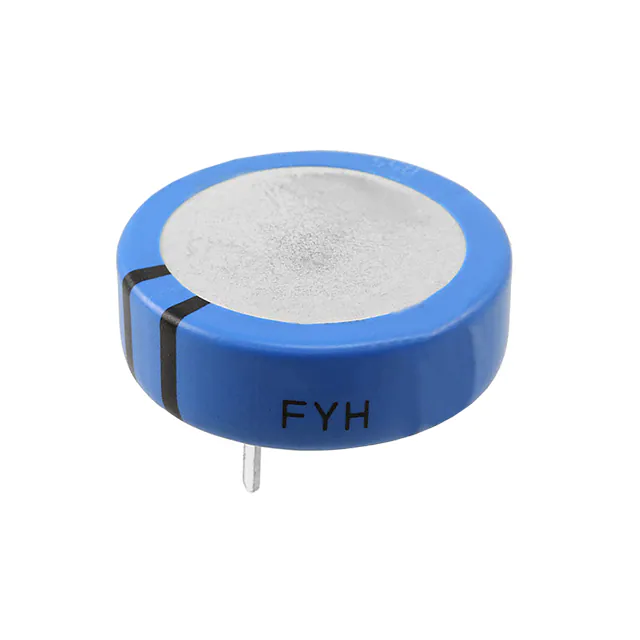

FYH0H104ZF CAP 100MF -20% +80% 5.5V T/H KEMET	118	-	RFQ	Datasheet	Radial, Can	Bulk	FYH	Active	100 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.650 Dia (16.50mm)	0.295 (7.50mm)
TPLH-2R7/25WR12X35 CAP 25F 2.7V THROUGH HOLE Tecate Group	5,320	-	RFQ	Datasheet	Radial, Can	Bulk	TPLH-Radial	Active	25 F	-	2.7 V	20mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.209 (5.30mm)	0.492 Dia (12.50mm)	1.476 (37.50mm)
DSF255Q6R0JBE 2.5F 6.0V 112123 Cornell Dubilier / Illinois Capacitor	5,484	-	RFQ	Datasheet	Radial, Can	Bulk	DSF	Active	2.5 F	-10%, +30%	6 V	160mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.610 (15.50mm)	0.827 L x 0.433 W (21.00mm x 11.00mm)	0.945 (24.00mm)
SCMR22C155PSBA0H CAP 1.5F 0% +100% 5V T/H KYOCERA AVX	289	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	1.5 F	0%, +100%	5 V	200mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.453 (11.50mm)	0.728 L x 0.374 W (18.50mm x 9.50mm)	1.004 (25.50mm)

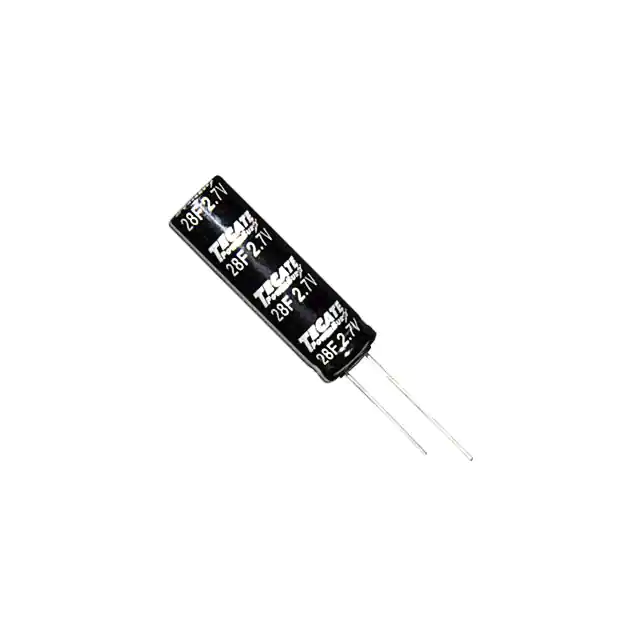

TPL-28/12X40F CAP 28F -10% +20% 2.7V T/H Tecate Group	5,544	-	RFQ	Datasheet	Radial, Can	Bulk	TPL	Active	28 F	-10%, +20%	2.7 V	25mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.209 (5.30mm)	0.492 Dia (12.50mm)	1.634 (41.50mm)
BCAP0010 P300 X12 CAP 10F 3V THROUGH HOLE Maxwell Technologies Korea Co., Ltd.	293	-	RFQ	Datasheet	Radial, Can	Bulk	-	Active	10 F	-	3 V	25mOhm	-	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.240 (31.50mm)

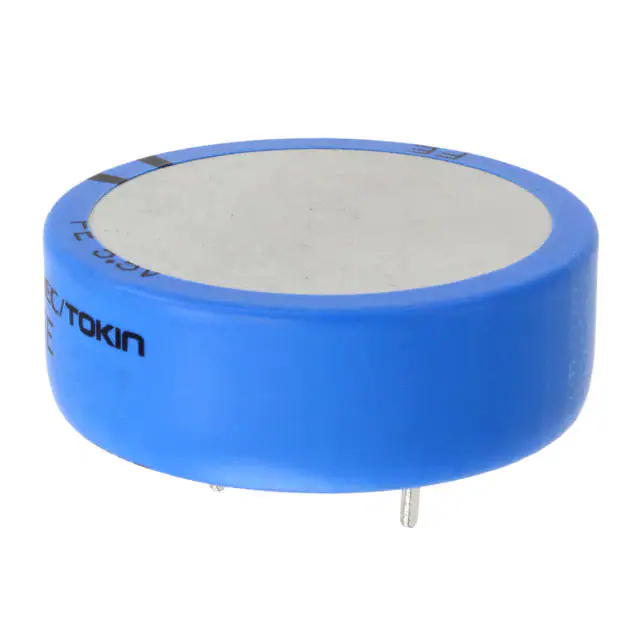

FE0H104ZF CAP 100MF -20% +80% 5.5V T/H KEMET	130	-	RFQ	Datasheet	Radial, Can	Bulk	FE	Active	100 mF	-20%, +80%	5.5 V	6.5Ohm @ 1kHz	-	PC Pins	Through Hole	0.201 (5.10mm)	0.650 Dia (16.50mm)	0.551 (14.00mm)

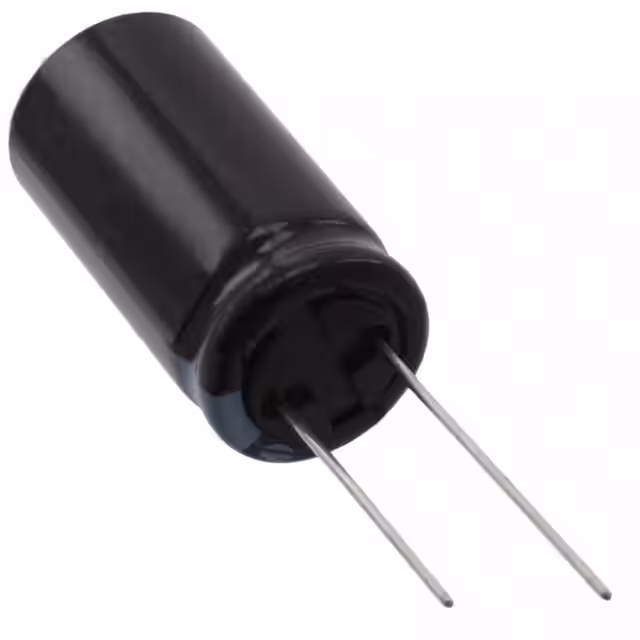

JUWT1336MHD CAP 33F 20% 2.7V T/H Nichicon	785	-	RFQ	Datasheet	Radial, Can	Bulk	EVerCAP® JUW	Active	33 F	±20%	2.7 V	200mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)
HB1635-2R5356-R CAP 35F -10% +30% 2.5V T/H Eaton - Electronics Division	1,084	-	RFQ	Datasheet	Radial, Can	Bulk	HB	Active	35 F	-10%, +30%	2.5 V	30mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.650 Dia (16.50mm)	1.496 (38.00mm)

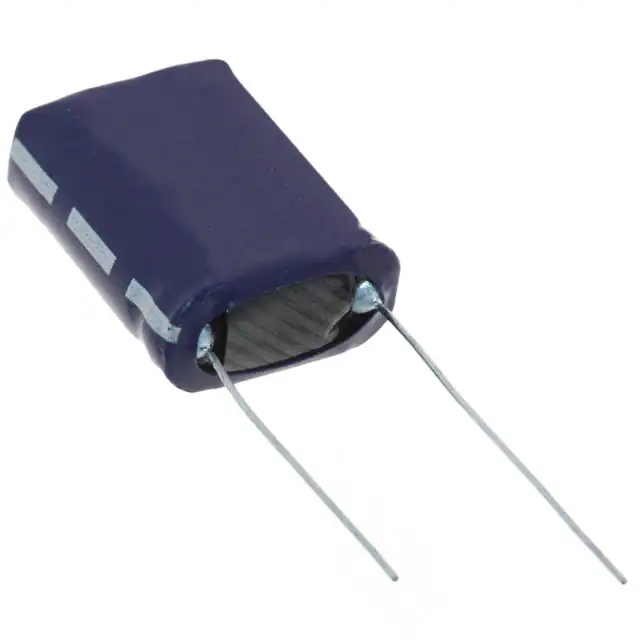

PHB-5R0V155-R CAP 1.5F -10% +30% 5V T/H Eaton - Electronics Division	1,742	-	RFQ	Datasheet	Radial, Can	Bulk	PHB	Active	1.5 F	-10%, +30%	5 V	330mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.465 (11.80mm)	0.681 L x 0.354 W (17.30mm x 9.00mm)	0.866 (22.00mm)
