Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
PB-5R0H474-R CAP 470MF -20% +80% 5V T/H Eaton - Electronics Division	837	-	RFQ	Datasheet	Radial, Can	Bulk	PB	Active	470 mF	-20%, +80%	5 V	1Ohm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.465 (11.80mm)	0.571 L x 0.681 W (14.50mm x 17.30mm)	0.354 (9.00mm)
HVZ0E106NF CAP 10F 30% 2.7V T/H KEMET	1,939	-	RFQ	Datasheet	Radial, Can	Bulk	HVZ	Active	10 F	±30%	2.7 V	100mOhm @ 1kHz	-	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.457 (37.00mm)

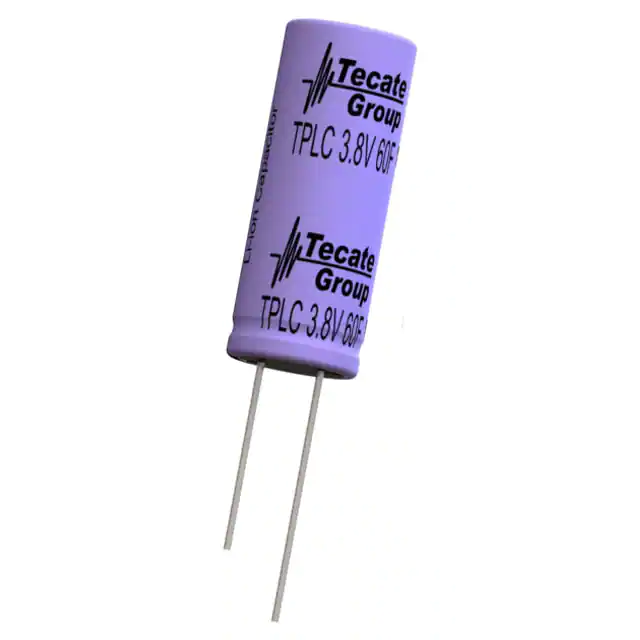

TPLC-3R8/60MR10X25 CAP LITH HYBRID 60F 3.8V T/H Tecate Group	384	-	RFQ	Datasheet	Radial, Can	Tray	TPLC	Active	60 F	±20%	3.8 V	110mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)
MAL219691131E3 CAP 4F -20% +80% 1.4V SMD Vishay Beyschlag/Draloric/BC Components	541	-	RFQ	Datasheet	Coin, Wide Terminals - Opposite Sides	Tray	ENYCAP™ 196HVC	Active	4 F	-20%, +80%	1.4 V	2.5Ohm @ 1kHz	1000 Hrs @ 70°C	SMD (SMT) Tabs	Surface Mount	-	0.276 L x 0.276 W (7.00mm x 7.00mm)	0.138 (3.50mm)

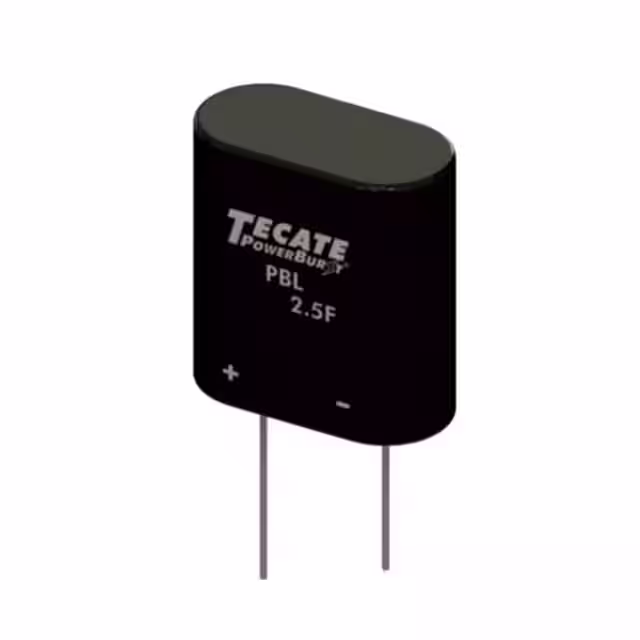

SCAP,PBL-2.5/5.4 CAP 2.5F 5.4V UCAP PACK Tecate Group	998	-	RFQ	Datasheet	Radial, Can	Bulk	PBL	Active	2.5 F	-	5.4 V	180mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.472 (12.00mm)	0.866 L x 0.472 W (22.00mm x 12.00mm)	0.984 (25.00mm)
TPLH-2R7/44WR12X46 CAP 44F 2.7V THROUGH HOLE Tecate Group	500	-	RFQ	Datasheet	Radial, Can	Bulk	TPLH-Radial	Active	44 F	-	2.7 V	13mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.209 (5.30mm)	0.492 Dia (12.50mm)	1.890 (48.00mm)
FE0H473ZF CAP 47MF -20% +80% 5.5V T/H KEMET	2,675	-	RFQ	Datasheet	Radial, Can	Bulk	FE	Active	47 mF	-20%, +80%	5.5 V	14Ohm @ 1kHz	-	PC Pins	Through Hole	0.201 (5.10mm)	0.571 Dia (14.50mm)	0.551 (14.00mm)
SCMS32F505PRBA0 CAP 5F 0% +100% 5.5V T/H KYOCERA AVX	297	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	5 F	0%, +100%	5.5 V	120mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.610 (15.50mm)	0.787 L x 0.394 W (20.00mm x 10.00mm)	1.319 (33.50mm)

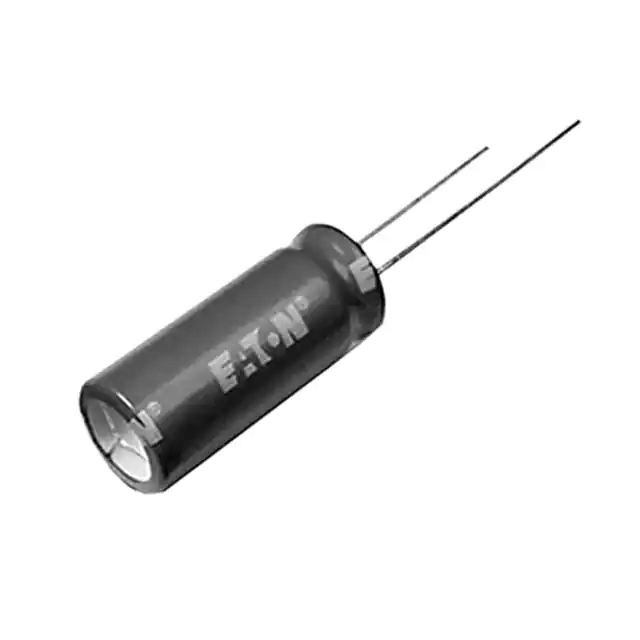

HSL1025-3R8706-R CAP LITH HYBRID 70F 20% 3.8V TH Eaton - Electronics Division	197	-	RFQ	Datasheet	Radial, Can	Bulk	HSL	Active	70 F	±20%	3.8 V	250mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	0.197 (5.00mm)	0.413 Dia (10.50mm)	1.063 (27.00mm)
DSF506Q3R0 50F 3.0V 18*40 Cornell Dubilier / Illinois Capacitor	111	-	RFQ	Datasheet	Radial, Can	Bulk	DSF	Active	50 F	-10%, +30%	3 V	15mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)
BCAP0025 P300 X12 CAP 25F 3V THROUGH HOLE Maxwell Technologies Korea Co., Ltd.	377	-	RFQ	Datasheet	Radial, Can	Bulk	-	Active	25 F	-	3 V	22mOhm	-	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)
SCCV40E506SRB CAPACITOR 50F -10% +30% 3V T/H KYOCERA AVX	2,388	-	RFQ	Datasheet	Radial, Can	Bulk	SCC	Active	50 F	-10%, +30%	3 V	-	1000 Hrs @ 60°C	PC Pins	Through Hole	0.315 (8.00mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)
SCMR18G604SRBB0 CAP 600MF -10% +30% 7.5V T/H KYOCERA AVX	248	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	600 mF	-10%, +30%	7.5 V	225mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.531 (13.50mm)	0.945 L x 0.315 W (24.00mm x 8.00mm)	0.768 (19.50mm)

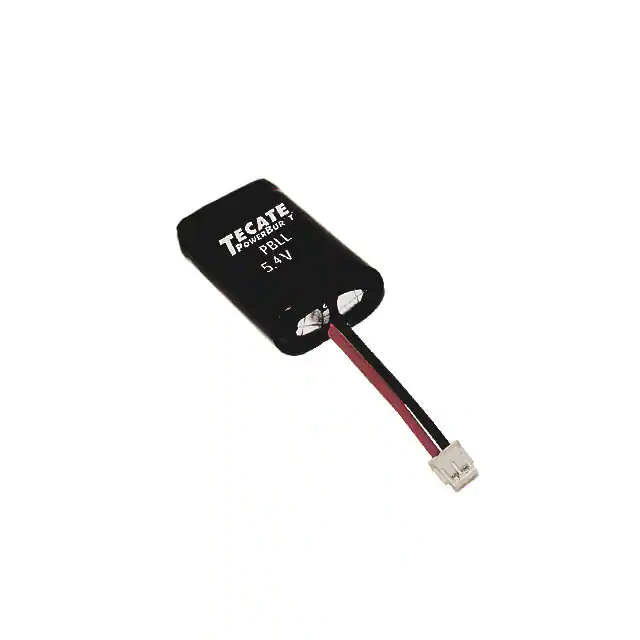

SCAP,PBLL-5.0/5.4 CAP 5F 5.4V UCAP PACK Tecate Group	425	-	RFQ	Datasheet	Radial, Can	Bulk	PBLL	Active	5 F	-	5.4 V	185mOhm @ 1kHz	1000 Hrs @ 85°C	Wire Leads with Connector	User Defined	-	0.866 L x 0.472 W (22.00mm x 12.00mm)	1.378 (35.00mm)
256DCN2R7Q CAP 25F -10%, +30% 2.7V T/H Cornell Dubilier / Illinois Capacitor	1,033	-	RFQ	Datasheet	Radial, Can	Bulk	DCN	Active	25 F	-10%, +30%	2.7 V	30mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.984 (25.00mm)
HVZ0E226NF CAP 22F 30% 2.7V T/H KEMET	877	-	RFQ	Datasheet	Radial, Can	Bulk	HVZ	Active	22 F	±30%	2.7 V	100mOhm @ 1kHz	-	PC Pins	Through Hole	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.457 (37.00mm)

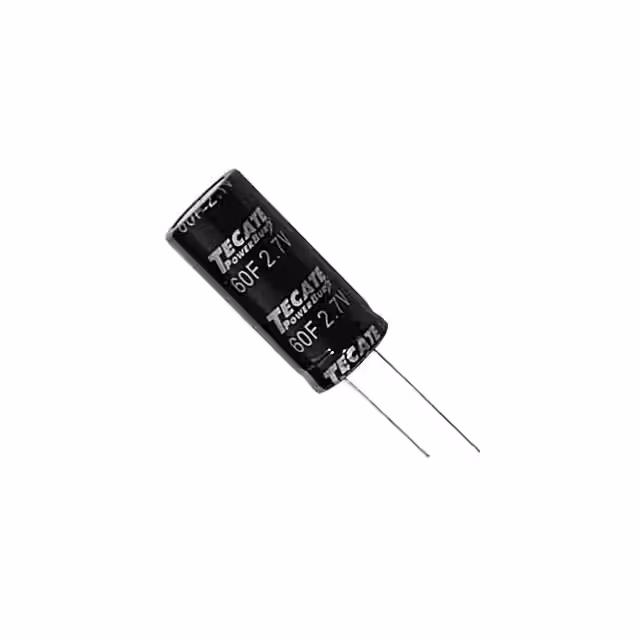

TPL-60/18X40F CAP 60F -10% +20% 2.7V T/H Tecate Group	822	-	RFQ	Datasheet	Radial, Can	Bulk	TPL	Active	60 F	-10%, +20%	2.7 V	14mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.634 (41.50mm)
MAL219691252E3 CAP 15F -20% +80% 2.8V SMD Vishay Beyschlag/Draloric/BC Components	610	-	RFQ	Datasheet	Coin, Wide Terminals - Opposite Sides	Tray	ENYCAP™ 196HVC	Active	15 F	-20%, +80%	2.8 V	1.2Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	Surface Mount	-	0.945 L x 0.472 W (24.00mm x 12.00mm)	0.150 (3.80mm)
FA1A223ZF CAP 22MF -20% +80% 11V T/H KEMET	235	-	RFQ	Datasheet	Radial, Can	Bulk	FA	Active	22 mF	-20%, +80%	11 V	20Ohm @ 1kHz	-	PC Pins	Through Hole	0.201 (5.10mm)	0.630 Dia (16.00mm)	0.984 (25.00mm)

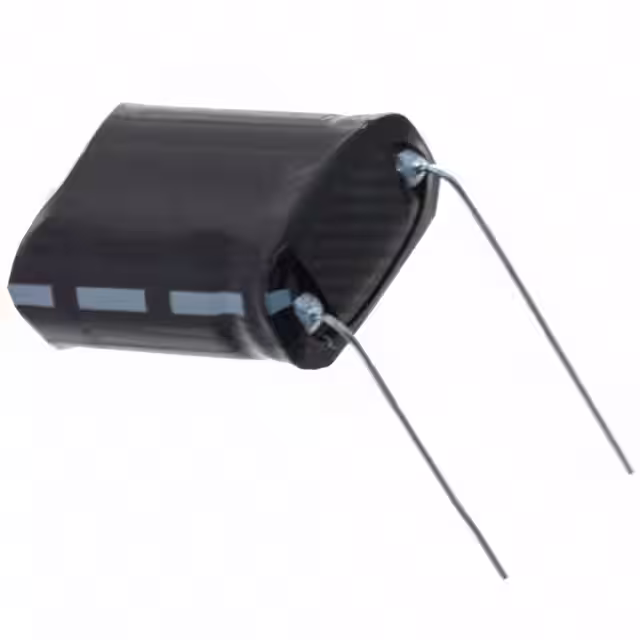

PB-5R0H105-R CAP 1F -20% +80% 5V T/H Eaton - Electronics Division	342	-	RFQ	Datasheet	Radial, Can	Bulk	PB	Active	1 F	-20%, +80%	5 V	500mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.465 (11.80mm)	0.866 L x 0.681 W (22.00mm x 17.30mm)	0.354 (9.00mm)
