Electric Double Layer Capacitors (EDLC), Supercapacitors- Page 14

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)

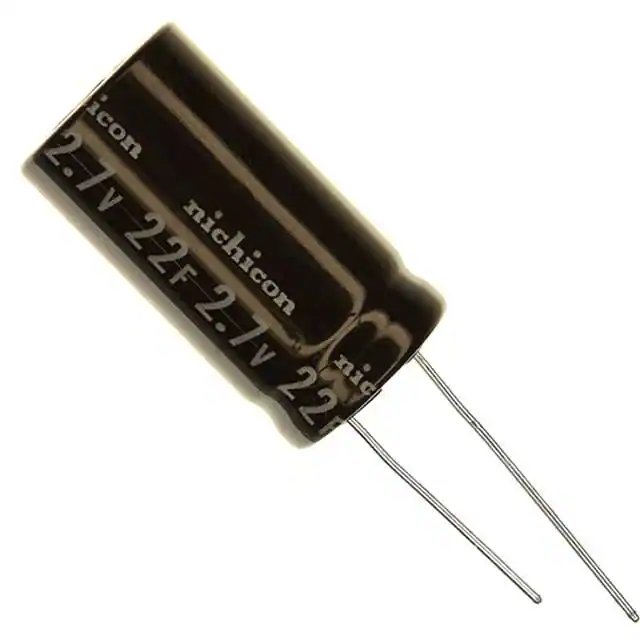

JUMT1226MHD CAP 22F 20% 2.7V T/H Nichicon	4,975	-	RFQ	Datasheet	Radial, Can	Bulk	EVerCAP® JUM	Active	22 F	±20%	2.7 V	200mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)
EDC155Z5R5V 1.5F, 5.5V Cornell Dubilier Electronics (CDE)	700	-	RFQ	Datasheet	Axial, Can - Vertical	Tray	EDC	Active	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.748 Dia (19.00mm)	0.787 (20.00mm)
RSELT3362R7J32007 CAPACITOR 33F 20% 2.7V T/H Taiyo Yuden	500	-	RFQ	Datasheet	Radial, Can	Bulk	RSELT	Active	33 F	±20%	2.7 V	-	-	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.339 (34.00mm)
M0820-2R5205-R CAP 2F -20% +80% 2.5V T/H Eaton - Electronics Division	16,243	-	RFQ	Datasheet	Radial, Can	Bulk	M	Active	2 F	-20%, +80%	2.5 V	100mOhm @ 100Hz	1000 Hrs @ 60°C	PC Pins	Through Hole	0.138 (3.50mm)	0.335 Dia (8.50mm)	0.827 (21.00mm)
KR-5R5V104-R CAP 100MF -20% +80% 5.5V T/H Eaton - Electronics Division	3,325	-	RFQ	Datasheet	Axial, Can - Vertical	Bulk	KR	Active	100 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.453 Dia (11.50mm)	0.492 (12.50mm)

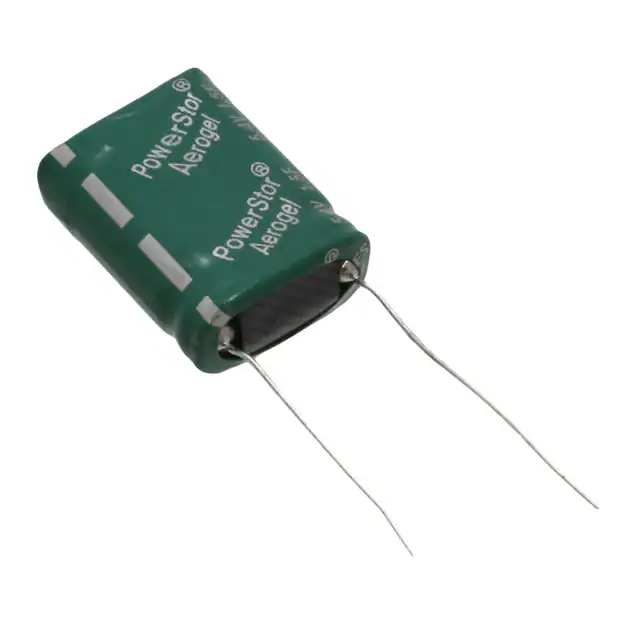

PHV-5R4H155-R CAP 1.5F -10% +30% 5.4V T/H Eaton - Electronics Division	8,531	-	RFQ	Datasheet	Radial, Can, Horizontal	Bulk	PHV	Active	1.5 F	-10%, +30%	5.4 V	160mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.465 (11.80mm)	0.866 L x 0.681 W (22.00mm x 17.30mm)	0.354 (9.00mm)

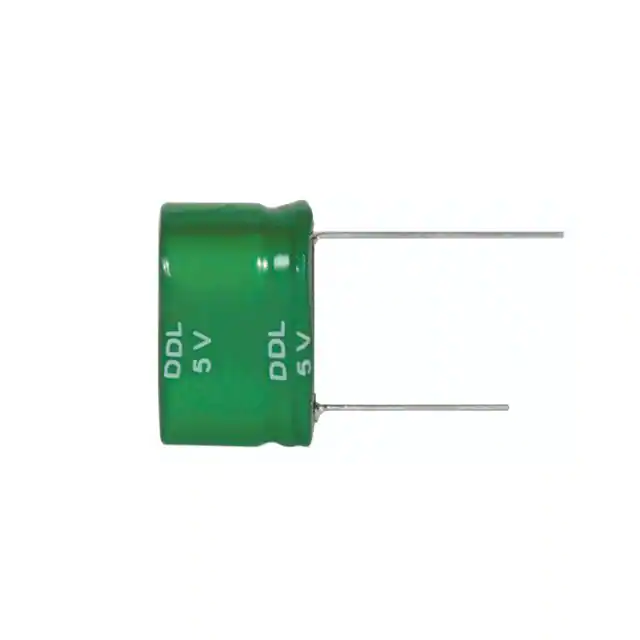

DDL105Q05F1JRRASPZ1 CAP 1F 5.5V T/H ANGA POW	980	-	RFQ	Datasheet	Radial, Can	Bulk	DDL	Active	1 F	-10%, +30%	5.5 V	350mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.465 (11.80mm)	0.394 L x 0.708 W (10.00mm x 18.00mm)	0.768 (19.50mm)

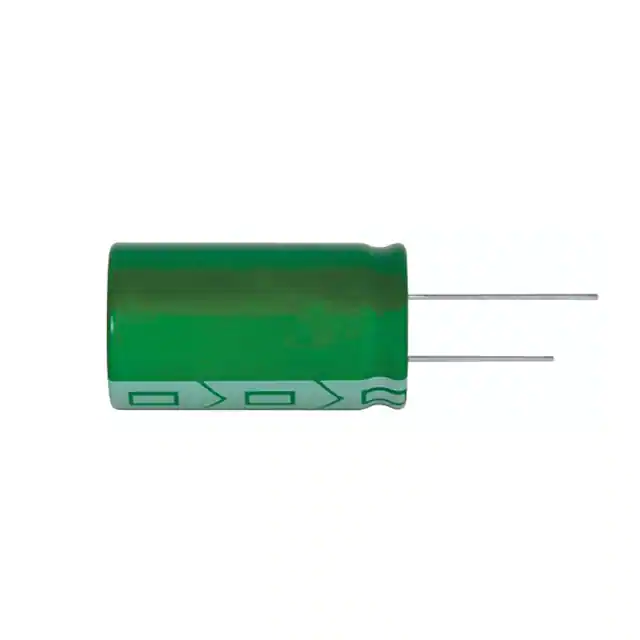

DRL156Q0TI25RR CAP 15F 2.7V T/H ANGA POW	1,000	-	RFQ	Datasheet	Radial, Can	Bulk	DRL	Active	15 F	-10%, +30%	2.7 V	40mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)
LX055105A MAXCAP 1F 5.5V Ohmite	1,185	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	1 F	-20%, +80%	5.5 V	65Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.201 (5.10mm)	0.650 Dia (16.50mm)	0.748 (19.00mm)
DDL474Q05F1ERRASPZ1 CAP 0.47F 5.5V T/H ANGA POW	1,000	-	RFQ	Datasheet	Radial, Can	Bulk	DDL	Active	0.47 F	-10%, +30%	5.5 V	500mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.465 (11.80mm)	0.394 L x 0.708 W (10.00mm x 18.00mm)	0.610 (15.50mm)
LX055474A DOUBLE LAYER CAPACITOR Ohmite	185	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	470 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.201 (5.10mm)	0.571 Dia (14.50mm)	0.709 (18.00mm)
MAL223091004E3 CAP 25F -20% +50% 3V T/H Vishay Beyschlag/Draloric/BC Components	1,500	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 230 EDLC-HV	Active	25 F	-20%, +50%	3 V	24mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.866 (22.00mm)

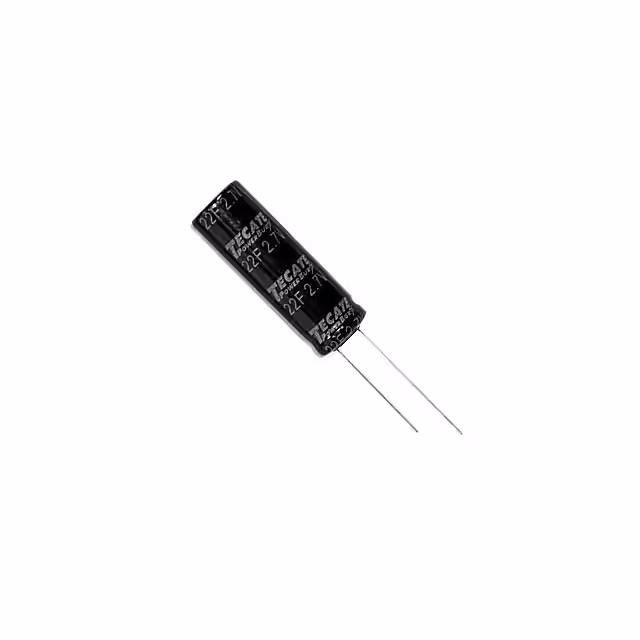

TPL-22/12X35F CAP 22F -10% +20% 2.7V T/H Tecate Group	307	-	RFQ	Datasheet	Radial, Can	Bulk	TPL	Active	22 F	-10%, +20%	2.7 V	30mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.209 (5.30mm)	0.492 Dia (12.50mm)	1.457 (37.00mm)
LP10202R7505 CAP 5F 20% 2.7V T/H Taiyo Yuden	201	-	RFQ	Datasheet	Radial, Can	Bulk	LP	Active	5 F	±20%	2.7 V	60mOhm @ 1kHz	-	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)

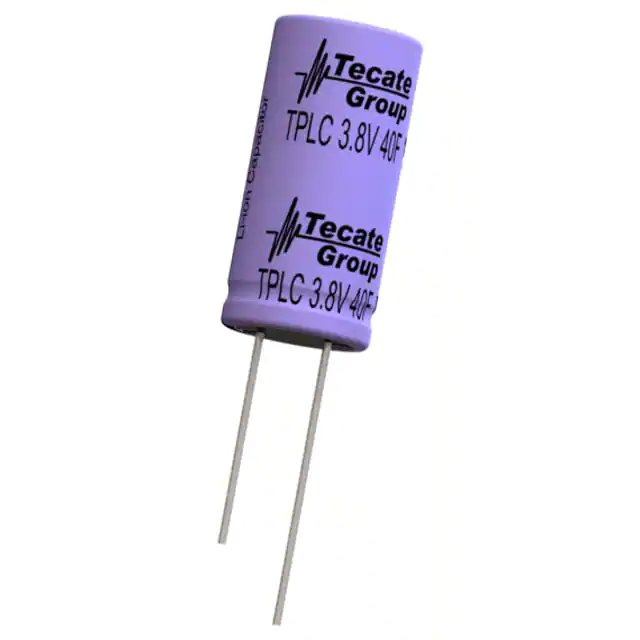

TPLC-3R8/40MR10X20 CAP LITH HYBRID 40F 3.8V T/H Tecate Group	3,303	-	RFQ	Datasheet	Radial, Can	Tray	TPLC	Active	40 F	±20%	3.8 V	240mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)
DSF256Q3R0 25F 3.0V 16*25 Cornell Dubilier / Illinois Capacitor	903	-	RFQ	Datasheet	Radial, Can	Bulk	DSF	Active	25 F	-10%, +30%	3 V	25mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)
LP12202R7106 CAP 10F 20% 2.7V T/H Taiyo Yuden	2,958	-	RFQ	Datasheet	Radial, Can	Bulk	LP	Active	10 F	±20%	2.7 V	45mOhm @ 1kHz	-	PC Pins	Through Hole	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)
MAL223091002E3 CAP 35F -20% +50% 3V T/H Vishay Beyschlag/Draloric/BC Components	103	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 230 EDLC-HV	Active	35 F	-20%, +50%	3 V	24mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)
MAL222090003E3 CAP 15F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	1,765	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 220 EDLC	Active	15 F	-20%, +50%	2.7 V	30mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.846 (21.50mm)

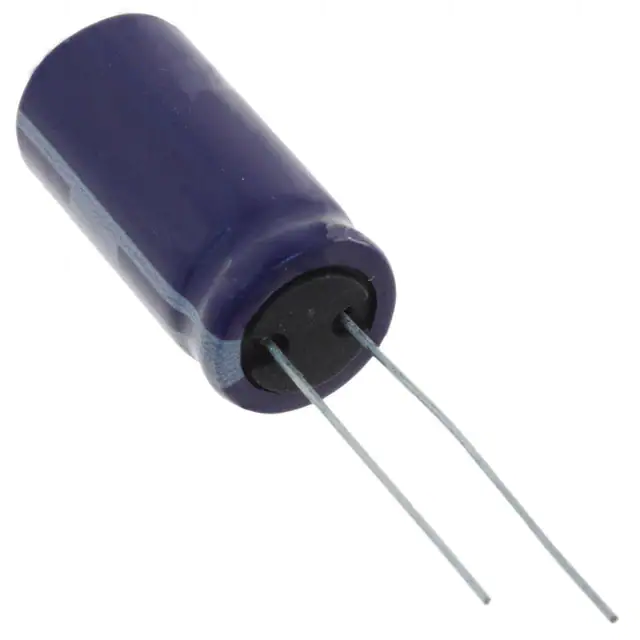

HB1325-2R5156-R CAP 15F -10% +30% 2.5V T/H Eaton - Electronics Division	236	-	RFQ	Datasheet	Radial, Can	Bulk	HB	Active	15 F	-10%, +30%	2.5 V	50mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	1.118 (28.40mm)
