Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
PHVL-3R9H255-R SUPERCAP 3.9V 2.5F 0.08 OHM HZ Eaton - Electronics Division	3,391	-	RFQ	Datasheet	Radial	Bulk	PHVL	Active	2.5 F	-10%, +30%	3.9 V	80mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	0.906 (23.00mm)

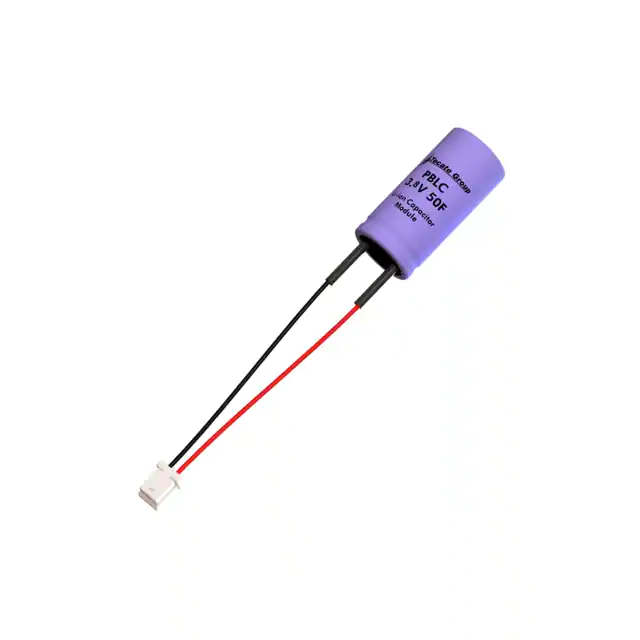

PBLC-3R8/50MA2 CAP LITH HYBRID 50F 20% 3.8V Tecate Group	2,878	-	RFQ	Datasheet	Radial, Can	Bulk	PBLC™	Active	50 F	±20%	3.8 V	-	1000 Hrs @ 70°C	Wire Leads	User Defined	-	0.394 Dia (10.00mm)	0.787 (20.00mm)
TVA1840-3R0606-R CAP 60F 3V .013 OHM AECQ Eaton - Electronics Division	2,483	-	RFQ	Datasheet	Radial, Can	Bulk	ELX1087	Active	60 F	-10%, +30%	3 V	130mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	0.295 (7.50mm)	0.728 Dia (18.50mm)	1.654 (42.00mm)
SCMU33F156SRBA0 CAP 15F -10% +30% 5.5V MODULE KYOCERA AVX	3,082	-	RFQ	Datasheet	Module	Bulk	SCM	Active	15 F	-10%, +30%	5.5 V	35mOhm @ 1kHz	1000 Hrs @ 65°C	Cable with Connector	User Defined	-	16.339 L x 7.480 W (415.00mm x 190.00mm)	7.087 (180.00mm)
MAL222090009E3 CAPACITOR 55F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	3,301	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 220 EDLC	Active	55 F	-20%, +50%	2.7 V	18mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.673 (42.50mm)
PBLC-3R8/100MA2 CAP LITH HYBRID 100F 20% 3.8V Tecate Group	3,907	-	RFQ	Datasheet	Radial, Can	Bulk	PBLC™	Active	100 F	±20%	3.8 V	-	1000 Hrs @ 70°C	Wire Leads	User Defined	-	0.492 Dia (12.50mm)	0.984 (25.00mm)
HSL1040-3R8157-R CAP 150F 20% 3.8V THROUGH HOLE Eaton - Electronics Division	100	-	RFQ	Datasheet	Radial, Can	Strip	HSL	Active	150 F	±20%	3.8 V	140mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	0.197 (5.00mm)	0.413 Dia (10.50mm)	1.654 (42.00mm)
HS1040-3R8157-R CAP 150F 20% 3.8V THROUGH HOLE Eaton - Electronics Division	2,763	-	RFQ	Datasheet	Radial, Can	Strip	HS	Active	150 F	±20%	3.8 V	140mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.413 Dia (10.50mm)	1.654 (42.00mm)

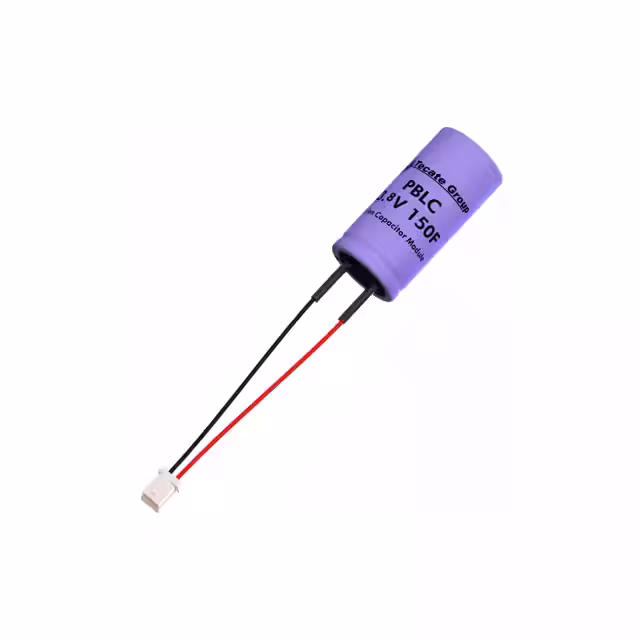

PBLC-3R8/150MA2 CAP LITH HYBRID 150F 20% 3.8V Tecate Group	2,132	-	RFQ	Datasheet	Radial, Can	Bulk	PBLC™	Active	150 F	±20%	3.8 V	-	1000 Hrs @ 70°C	Wire Leads	User Defined	-	0.492 Dia (12.50mm)	0.984 (25.00mm)

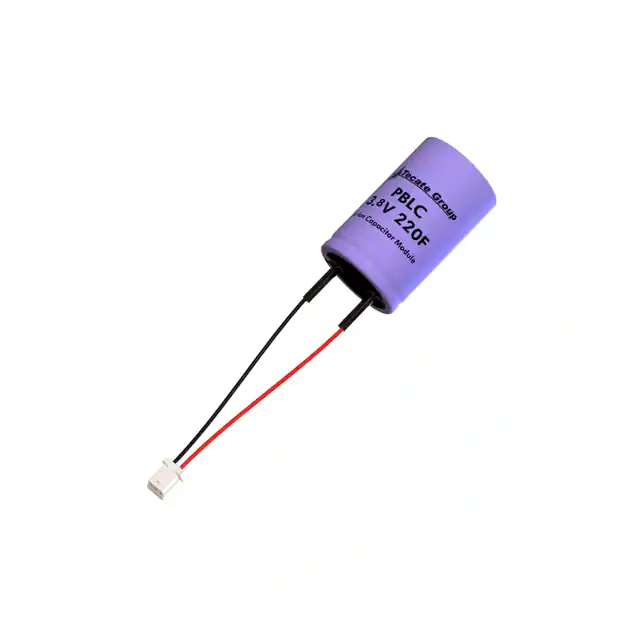

PBLC-3R8/220MA2 CAP LITH HYBRID 220F 20% 3.8V Tecate Group	3,134	-	RFQ	Datasheet	Radial, Can	Bulk	PBLC™	Active	220 F	±20%	3.8 V	-	1000 Hrs @ 70°C	Wire Leads	User Defined	-	0.630 Dia (16.00mm)	0.984 (25.00mm)

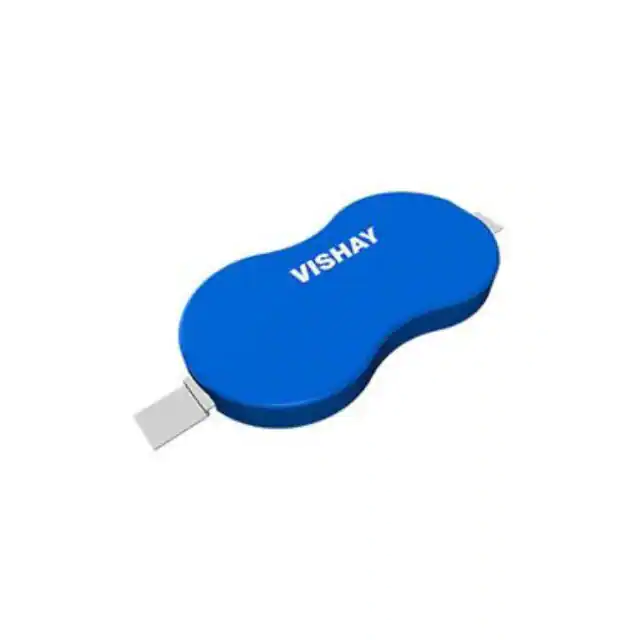

MAL219691264E3 CAP 15F -20% +80% 5.6V SNAP Vishay Beyschlag/Draloric/BC Components	3,402	-	RFQ	Datasheet	Coin	Tray	ENYCAP™ 196HVC	Active	15 F	-20%, +80%	5.6 V	2.4Ohm @ 1kHz	1000 Hrs @ 85°C	SMD (SMT) Tabs	User Defined	-	1.890 L x 0.571 W (48.00mm x 14.50mm)	0.138 (3.50mm)

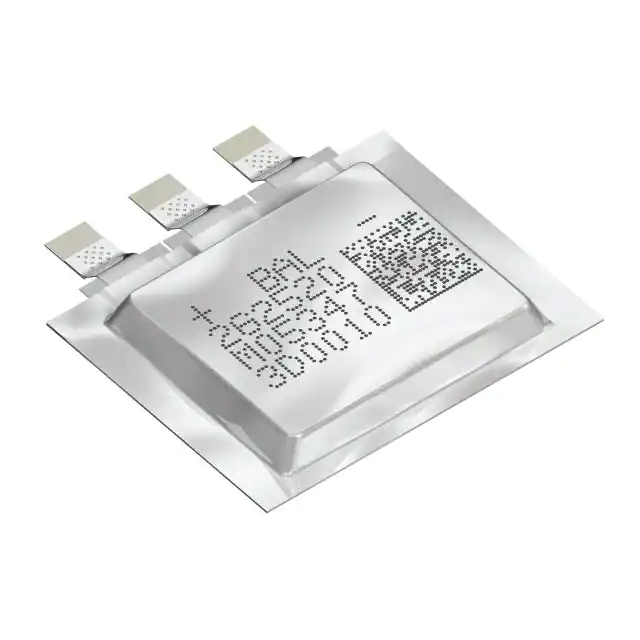

EDLC262520-501-2F-40 CAP 500MF 4.2V LOW HEIGHT TDK Corporation	3,660	-	RFQ	Datasheet	3-SMD, Flat Lead	Tray	EDLC262520	Active	500 mF	-	4.2 V	-	-	-	Surface Mount	0.246 (6.25mm)	1.024 L x 0.787 W (26.00mm x 20.00mm)	0.106 (2.70mm)

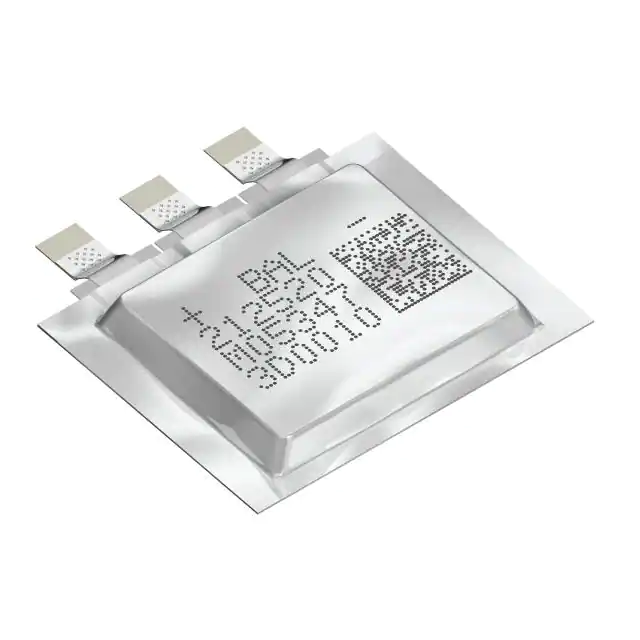

EDLC212520-351-2F-50 CAP 350MF 4.2V LOW HEIGHT TDK Corporation	2,367	-	RFQ	Datasheet	3-SMD, Flat Lead	Tray	EDLC212520	Active	350 mF	-	4.2 V	-	-	-	Surface Mount	0.246 (6.25mm)	1.024 L x 0.787 W (26.00mm x 20.00mm)	0.098 (2.50mm)

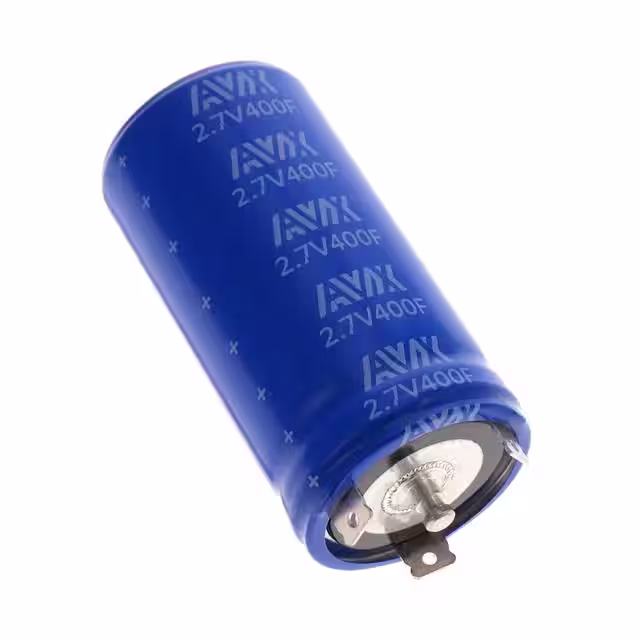

SCCY69B407S3PBLE SUPERCAP CYLINDRICAL KYOCERA AVX	2,900	-	RFQ	Datasheet	Radial, Can - 3 Lead	Bulk	SCC LE	Active	400 F	-10%, +30%	2.7 V	1.3mOhm @ 1kHz	2000 Hrs @ 65°C	Quick Connect, Disconnect	Chassis Mount	0.810 (20.57mm)	1.378 Dia (35.00mm)	2.795 (71.00mm)
SCPB20A156SNA 2.1V, 15 FARADS, +30%/-10% CAP T KYOCERA AVX	3,467	-	RFQ	Datasheet	Nonstandard SMD	Bulk	PrizmaCap™ SCP	Active	15 F	-10%, +30%	2.1 V	30mOhm @ 1kHz	2000 Hrs @ 65°C	-	Surface Mount	-	1.890 L x 1.772 W (48.00mm x 45.00mm)	0.079 (2.00mm)
SCCY71B407SLBLE CAP 400F -10% +30% 2.7V CHAS MT KYOCERA AVX	3,789	-	RFQ	Datasheet	Radial, Can	Bulk	SCC LE	Active	400 F	-10%, +30%	2.7 V	1.8mOhm @ 1kHz	1000 Hrs @ 60°C	Weld Stud	Chassis Mount	-	1.378 Dia (35.00mm)	2.874 (73.00mm)
SCCY83B507S3PBLE SUPERCAP CYLINDRICAL KYOCERA AVX	2,231	-	RFQ	Datasheet	Radial, Can - 3 Lead	Bulk	SCC LE	Active	500 F	-10%, +30%	2.7 V	1.2mOhm @ 1kHz	2000 Hrs @ 65°C	Quick Connect, Disconnect	Chassis Mount	0.810 (20.57mm)	1.378 Dia (35.00mm)	3.346 (85.00mm)
SCCY1KB707S3PBLE SUPERCAP CYLINDRICAL KYOCERA AVX	2,273	-	RFQ	Datasheet	Radial, Can - 3 Lead	Bulk	SCC LE	Active	700 F	-10%, +30%	2.7 V	1.1mOhm @ 1kHz	2000 Hrs @ 65°C	Quick Connect, Disconnect	Chassis Mount	0.810 (20.57mm)	1.378 Dia (35.00mm)	4.213 (107.00mm)

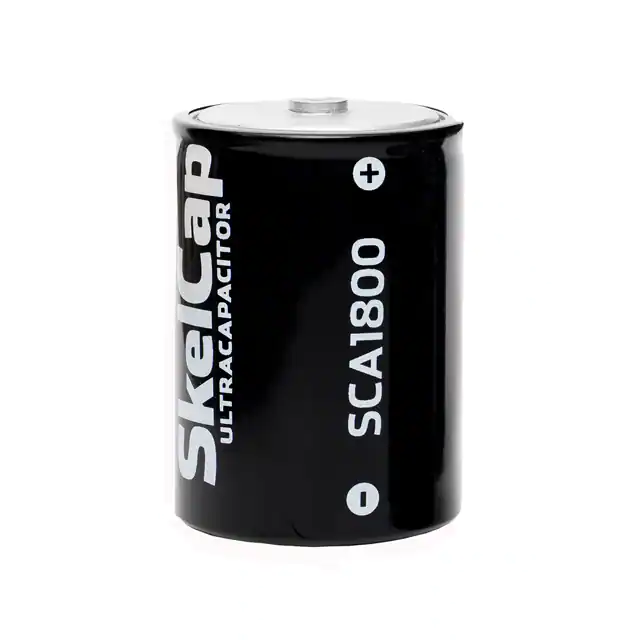

SKELCAP SCA1800 CAP 2049F 285V CHASSIS MNT Skeleton Technologies GmbH	2,446	-	RFQ	Datasheet	Axial, Can	Box	-	Active	1800 F	-	2.85 V	0.27mOhm	1500 Hrs @ 65°C	Weld Stud	Chassis Mount	-	2.370 Dia (60.20mm)	3.358 (85.30mm)

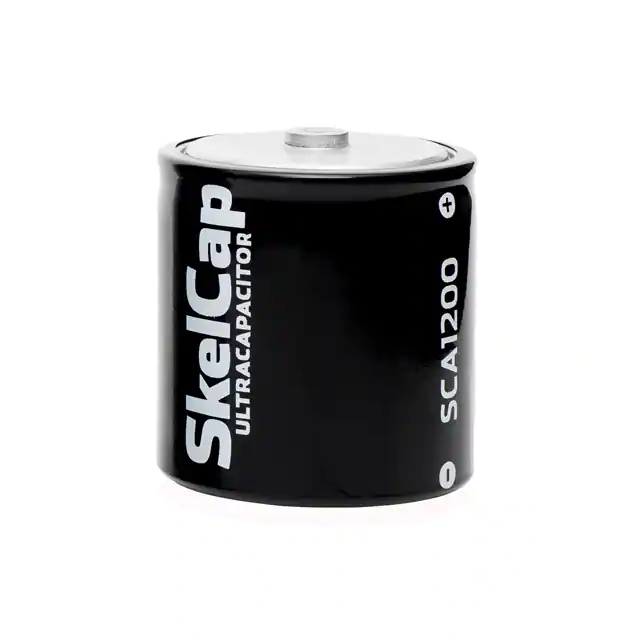

SKELCAP SCA1200 CAP 1200F 2.85V CHASSIS MNT Skeleton Technologies GmbH	2,291	-	RFQ	Datasheet	Axial, Can	Box	-	Active	1200 F	-	2.85 V	0.3mOhm	1500 Hrs @ 65°C	Weld Stud	Chassis Mount	-	2.370 Dia (60.20mm)	2.492 (63.30mm)
