Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)

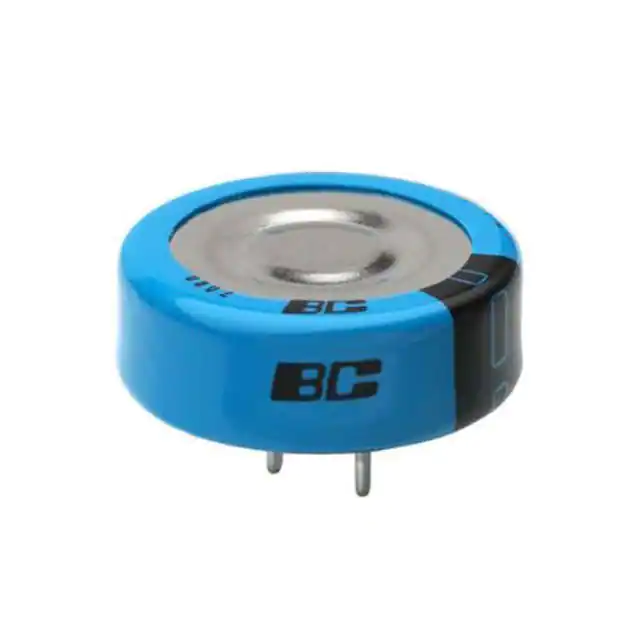

MAL219622474E3 CAP 470MF -20% +80% 5.5V T/H Vishay Beyschlag/Draloric/BC Components	3,705	-	RFQ	Datasheet	Radial, Can	Bulk	196 DLC	Active	470 mF	-20%, +80%	5.5 V	50Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.827 Dia (21.00mm)	0.374 (9.50mm)
JJC0E396MELC CAP 39F 20% 2.5V T/H Nichicon	2,972	-	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	EVerCAP® JC	Active	39 F	±20%	2.5 V	80mOhm	2000 Hrs @ 60°C	PC Pins	Through Hole	0.394 (10.00mm)	1.378 Dia (35.00mm)	0.866 (22.00mm)
JJC0E566MELA CAP 56F 20% 2.5V T/H Nichicon	3,745	-	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	EVerCAP® JC	Active	56 F	±20%	2.5 V	70mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.654 (42.00mm)
SCCY62V307VSB CAP 300F -5% +25% 2.7V T/H KYOCERA AVX	3,809	-	RFQ	Datasheet	Radial, Can - Solder Lug	Bulk	SCC	Active	300 F	-5%, +25%	2.7 V	-	1000 Hrs @ 60°C	Solder Lug	Through Hole	0.886 (22.50mm)	1.378 Dia (35.00mm)	2.520 (64.00mm)
SCAP,PBLS-1.83/32.4 CAP 1.83F -10% +20% 32.4V UCAP Tecate Group	3,809	-	RFQ	Datasheet	Module, Wire Leads	Bulk	PBLS	Active	1.83 F	-10%, +20%	32.4 V	420mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	-	3.110 L x 1.083 W (79.00mm x 27.50mm)	1.614 (41.00mm)
SCAP,PBLS-2.8/27 CAP 2.8F -10% +20% 27V UCAP PACK Tecate Group	3,618	-	RFQ	Datasheet	Module, Wire Leads	Bulk	PBLS	Active	2.8 F	-10%, +20%	27 V	310mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	-	2.598 L x 1.083 W (66.00mm x 27.50mm)	1.811 (46.00mm)
SCAP,PBLS-3.75/32.4 CAP 3.75F -10% +20% 32.4V UCAP Tecate Group	2,662	-	RFQ	Datasheet	Module, Wire Leads	Bulk	PBLS	Active	3.75 F	-10%, +20%	32.4 V	252mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	-	3.110 L x 1.083 W (79.00mm x 27.50mm)	2.402 (61.00mm)
XB3585-2R5607-R CAP 600F 10% 2.5V T/H Eaton - Electronics Division	2,458	-	RFQ	Datasheet	Radial, Can - Snap-In - 4 Lead	Bulk	XB	Active	600 F	±10%	2.5 V	3.7mOhm	1500 Hrs @ 70°C	PC Pins	Through Hole	0.886 (22.50mm)	1.378 Dia (35.00mm)	3.484 (88.50mm)
SCCZ1EB308SWB SUPERCAP CYLINDRICAL KYOCERA AVX	2,303	-	RFQ	Datasheet	Axial, Can - Screw Terminals	Bulk	SCC	Active	3000 F	-10%, +30%	2.7 V	0.2mOhm @ 1kHz	2000 Hrs @ 65°C	Screw Terminals	Chassis Mount	-	2.362 Dia x 5.433 L (60.00mm x 138.00mm)	-

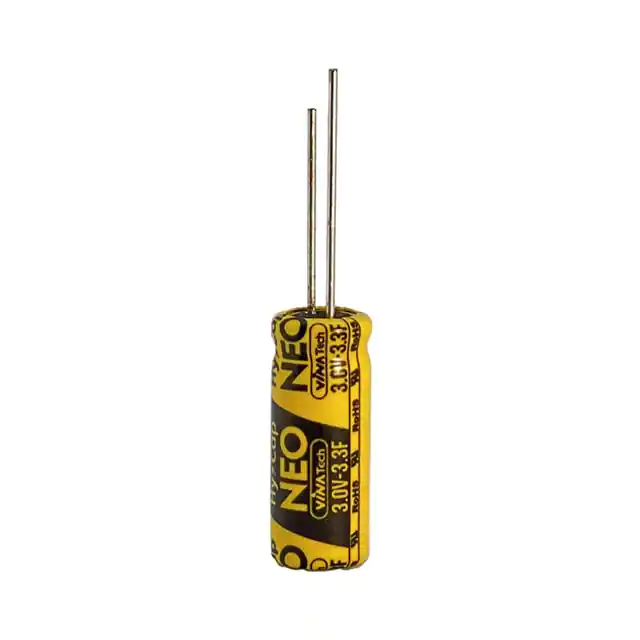

WEC3R0335QG 3.3F 3.0V 08*20 EDLC VINATech Co LTD	363	-	RFQ	Datasheet	Radial, Can	Bag	-	Active	3.3 F	-10%, +30%	3 V	85mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.846 (21.50mm)

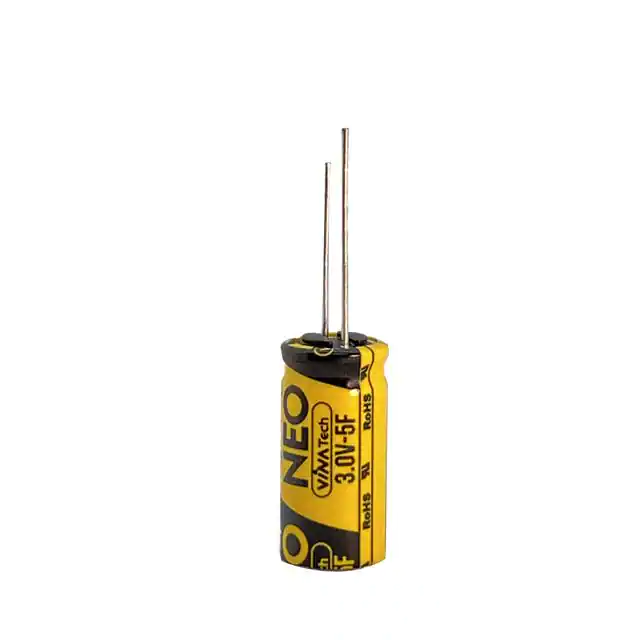

WEC3R0505QG 5F 3.0V 10*20 EDLC VINATech Co LTD	321	-	RFQ	Datasheet	Radial, Can	Bag	-	Active	5 F	-10%, +30%	3 V	80mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)

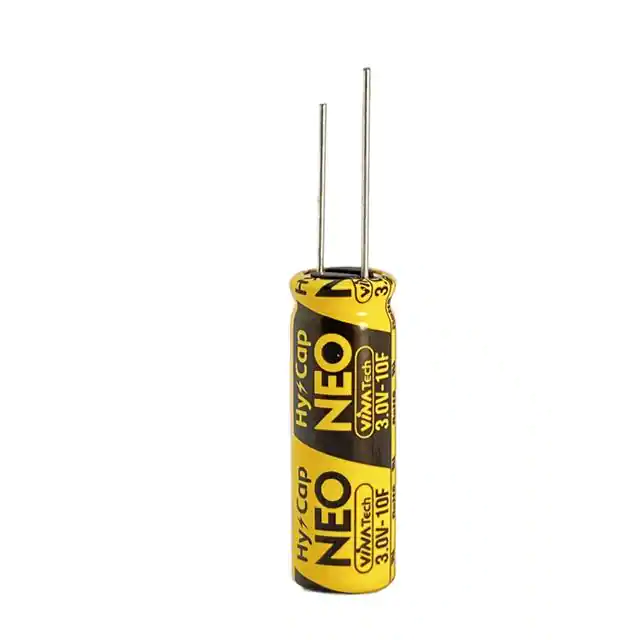

WEC3R0106QG 10F 3.0V 10*30 EDLC VINATech Co LTD	308	-	RFQ	Datasheet	Radial, Can	Bag	-	Active	10 F	-10%, +30%	3 V	30mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.240 (31.50mm)
LT055104AE DOUBLE LAYER CAPACITOR W/EPOXY Ohmite	3,677	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	100 mF	-20%, +80%	5.5 V	150Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.201 (5.10mm)	0.571 Dia (14.50mm)	0.610 (15.50mm)
LJ055224AE DOUBLE LAYER CAPACITOR W/EPOXY Ohmite	3,953	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	220 mF	-20%, +80%	5.5 V	10Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.201 (5.10mm)	0.571 Dia (14.50mm)	0.472 (12.00mm)

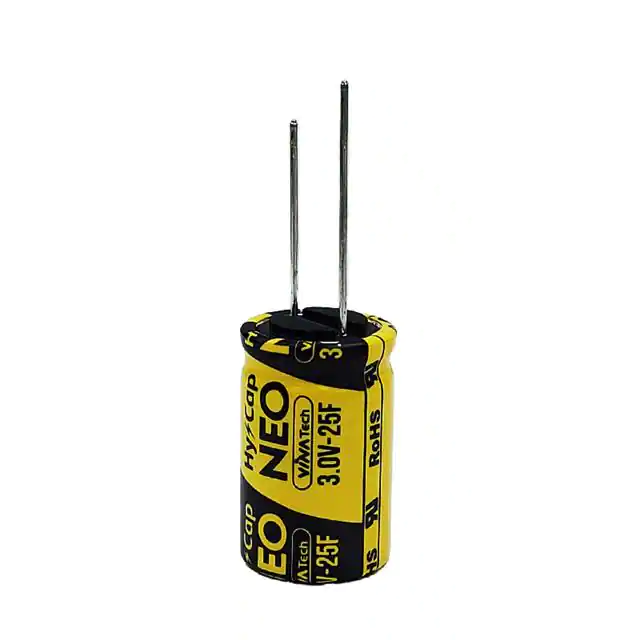

WEC3R0256QG 25F 3.0V 16*25 EDLC VINATech Co LTD	100	-	RFQ	Datasheet	Radial, Can	Bag	-	Active	25 F	-10%, +30%	3 V	25mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)
LC055145A MAXCAP 1.4F 5.5V Ohmite	3,714	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	1.4 F	-20%, +80%	5.5 V	45Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.299 (7.60mm)	0.846 Dia (21.50mm)	0.748 (19.00mm)

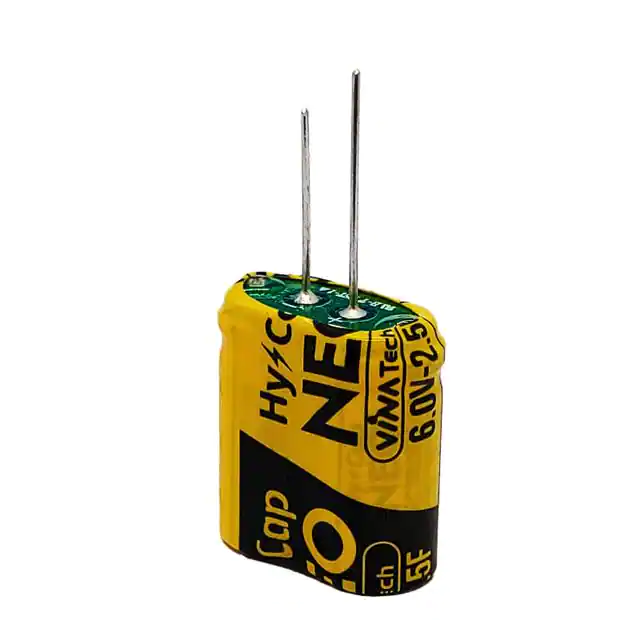

WEC6R0255QG-I 2.5F 6.0V 10.52122.5 EDLC VINATech Co LTD	2,692	-	RFQ	Datasheet	Radial	Bag	-	Active	2.5 F	-10%, +30%	6 V	165mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	-	0.827 L x 0.413 W (21.00mm x 10.50mm)	0.945 (24.00mm)

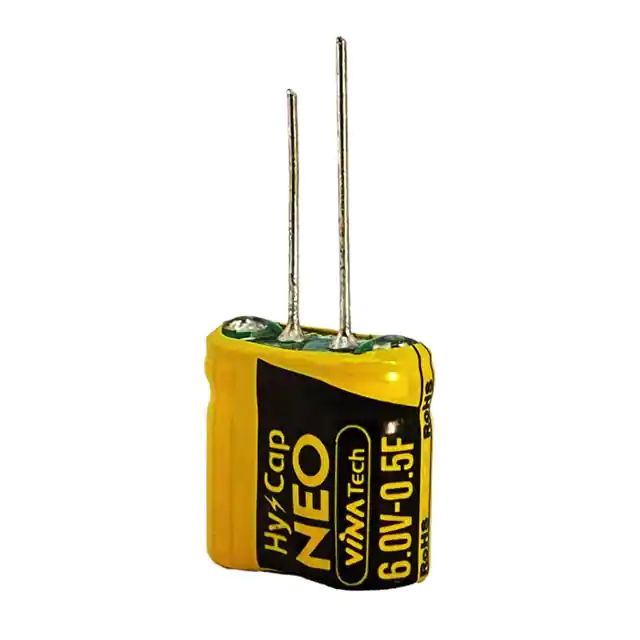

WEC6R0504QG-I 0.5F 6.0V 081715.5 EDLC VINATech Co LTD	3,754	-	RFQ	Datasheet	Radial	Bag	-	Active	500 mF	-10%, +30%	6 V	295mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	-	0.669 L x 0.335 W (17.00mm x 8.50mm)	0.669 (17.00mm)

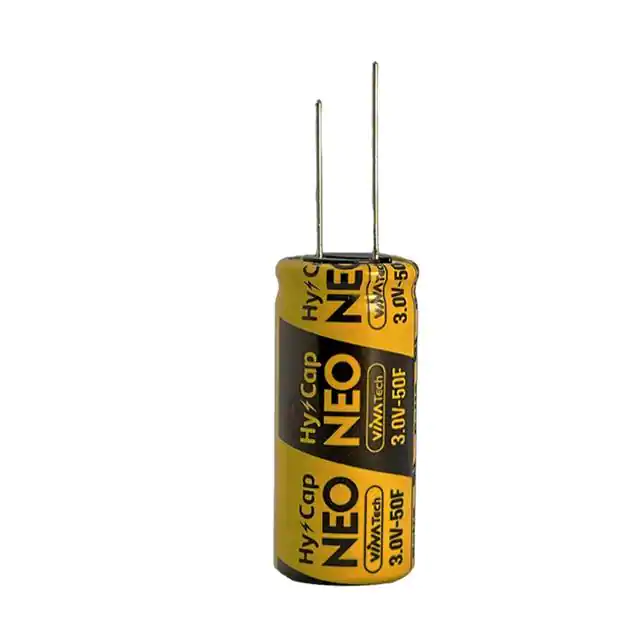

WEC3R0506QG 50F 3.0V 18*40 EDLC VINATech Co LTD	100	-	RFQ	Datasheet	Radial, Can	Bag	-	Active	50 F	-10%, +30%	3 V	13mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.634 (41.50mm)
LC055225A MAXCAP 2.2F 5.5V Ohmite	2,083	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	2.2 F	-20%, +80%	5.5 V	35Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.402 (10.20mm)	1.122 Dia (28.50mm)	0.870 (22.10mm)
