Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
B0510-2R5224-R CAP 220MF -20% +80% 2.5V T/H Eaton - Electronics Division	2,608	-	RFQ	Datasheet	Radial, Can	Bulk	B	Active	220 mF	-20%, +80%	2.5 V	2Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.079 (2.00mm)	0.217 Dia (5.50mm)	0.472 (12.00mm)
RSCH14745R5L09015T CAP 470MF -20% +80% 5.5V T/H Elna America	2,177	-	RFQ	Datasheet	Radial, Can	Bulk	DH	Active	470 mF	-20%, +80%	5.5 V	50Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.374 (9.50mm)
RSCH11055R5L09015T CAP 1F -20% +80% 5.5V T/H Elna America	3,640	-	RFQ	Datasheet	Radial, Can	Bulk	DH	Active	1 F	-20%, +80%	5.5 V	30Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.374 (9.50mm)

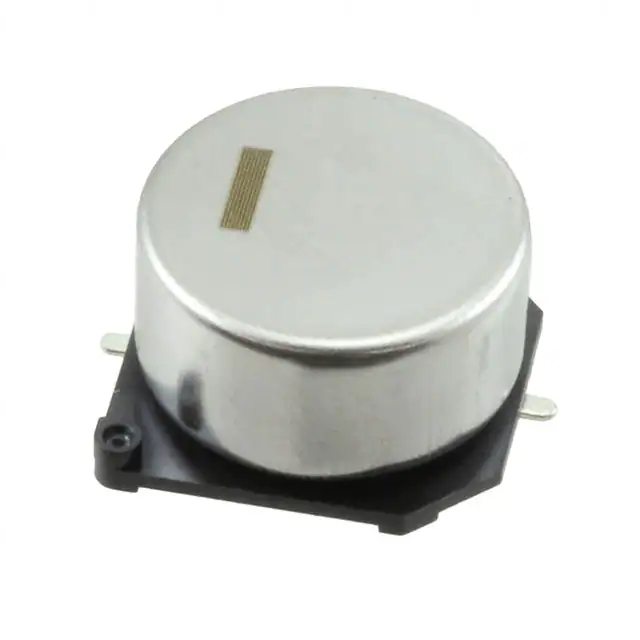

FC0H474ZFTBR32-SS CAP 470MF -20% +80% 5.5V SMD KEMET	3,669	-	RFQ	Datasheet	Radial, Can - SMD	Tape & Reel (TR),Cut Tape (CT)	FC	Active	470 mF	-20%, +80%	5.5 V	13Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	-	0.630 Dia (16.00mm)	0.374 (9.50mm)
RSCH16845R5L09015T CAP 680MF -20% +80% 5.5V T/H Elna America	3,426	-	RFQ	Datasheet	Radial, Can	Bulk	DH	Active	680 mF	-20%, +80%	5.5 V	50Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.374 (9.50mm)

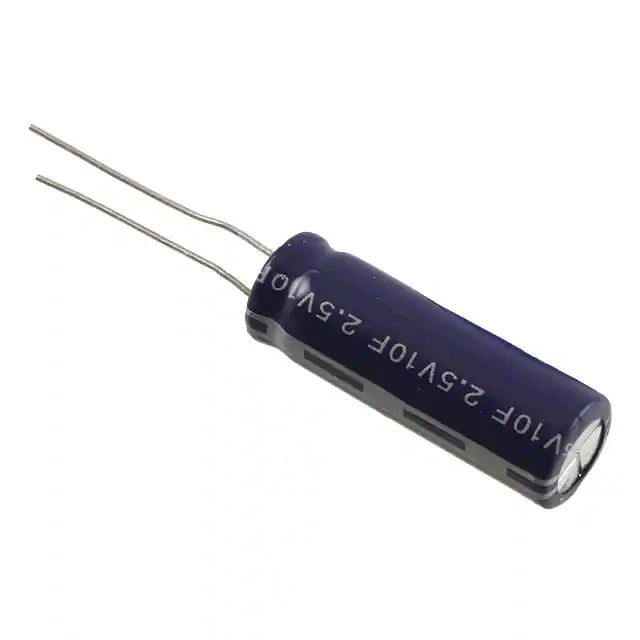

HB1030-2R5106-R CAP 10F -10% +30% 2.5V T/H Eaton - Electronics Division	2,123	-	RFQ	Datasheet	Radial, Can	Bulk	HB	Active	10 F	-10%, +30%	2.5 V	60mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.413 Dia (10.50mm)	1.240 (31.50mm)
FYD0H105ZF CAP 1F -20% +80% 5.5V T/H KEMET	2,339	-	RFQ	Datasheet	Radial, Can	Bulk	FYD	Active	1 F	-20%, +80%	5.5 V	35Ohm @ 1kHz	-	PC Pins	Through Hole	0.300 (7.62mm)	0.846 Dia (21.50mm)	0.630 (16.00mm)
KR-5R5H104-R CAP 100MF -20% +80% 5.5V T/H Eaton - Electronics Division	3,324	-	RFQ	Datasheet	Axial, Can - Horizontal	Bulk	KR	Active	100 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.394 (10.00mm)	0.453 Dia (11.50mm)	0.197 (5.00mm)

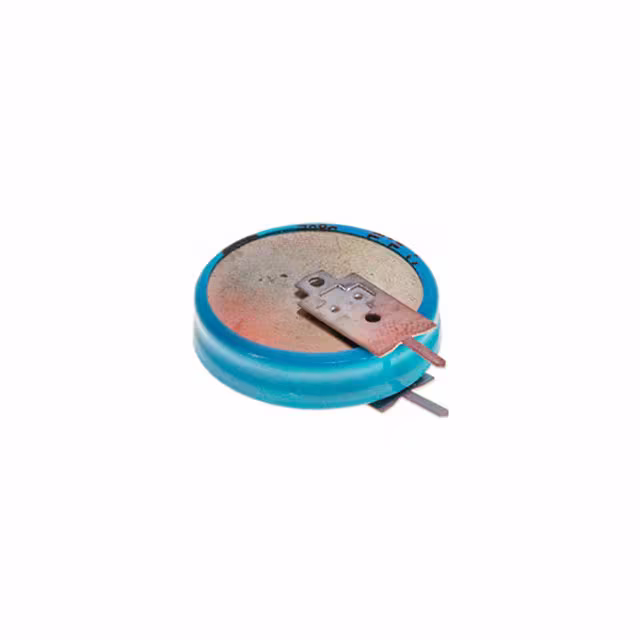

EDC105Z5R5V CAP 1F -20% +80% 5.5V T/H Cornell Dubilier Electronics (CDE)	3,603	-	RFQ	Datasheet	Axial, Can - Vertical	Tray	EDC	Active	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.748 Dia (19.00mm)	0.787 (20.00mm)

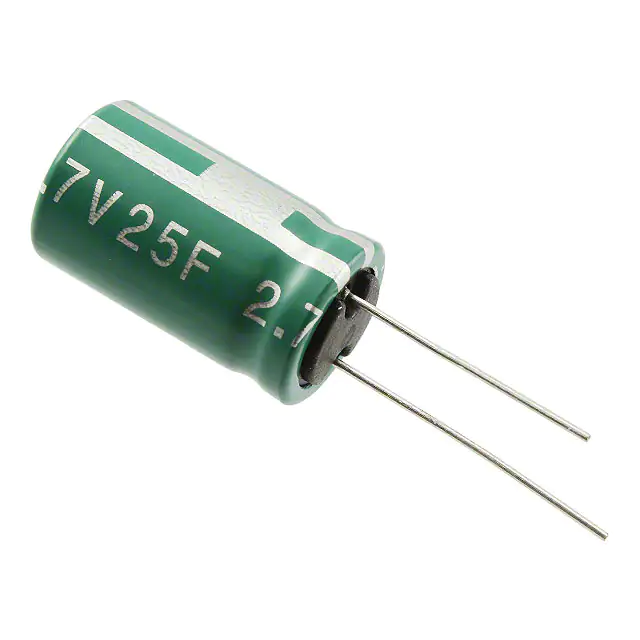

HV1625-2R7256-R CAP 25F -10% +30% 2.7V T/H Eaton - Electronics Division	2,045	-	RFQ	Datasheet	Radial, Can	Bulk	HV	Active	25 F	-10%, +30%	2.7 V	27mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.118 (28.40mm)
TV1325-3R0156-R CAP 15F -10% +30% 3V T/H Eaton - Electronics Division	3,416	-	RFQ	Datasheet	Radial, Can	Bulk	TV	Active	15 F	-10%, +30%	3 V	24mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	1.122 (28.50mm)
SCMR22C155PRBA0 CAP 1.5F 0% +100% 5V T/H KYOCERA AVX	2,946	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	1.5 F	0%, +100%	5 V	190mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.453 (11.50mm)	0.630 L x 0.315 W (16.00mm x 8.00mm)	0.925 (23.50mm)
KR-5R5H224-R CAP 220MF -20% +80% 5.5V T/H Eaton - Electronics Division	2,480	-	RFQ	Datasheet	Axial, Can - Horizontal	Bulk	KR	Active	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.394 (10.00mm)	0.453 Dia (11.50mm)	0.197 (5.00mm)

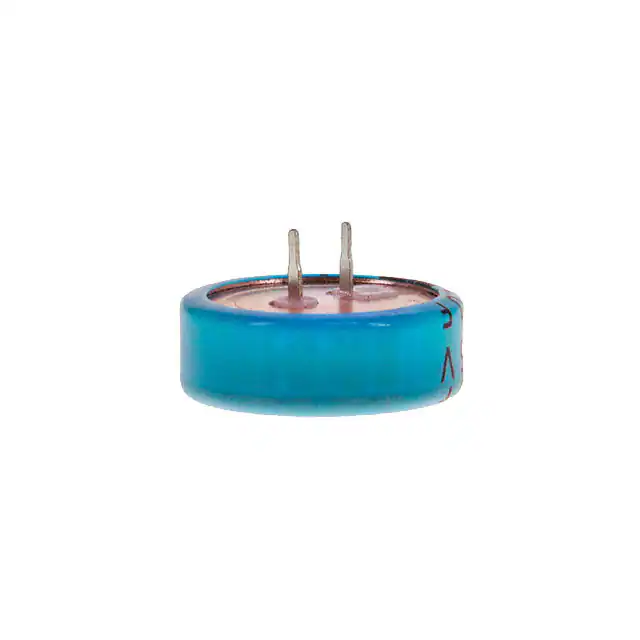

EDC105Z5R5C CAP 1F -20% +80% 5.5V T/H Cornell Dubilier Electronics (CDE)	3,562	-	RFQ	Datasheet	Radial, Can	Tray	EDC	Active	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.295 (7.50mm)
KR-5R5V334-R CAP 330MF -20% +80% 5.5V T/H Eaton - Electronics Division	2,369	-	RFQ	Datasheet	Axial, Can - Vertical	Bulk	KR	Active	330 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.453 Dia (11.50mm)	0.492 (12.50mm)
KR-5R5H334-R CAP 330MF -20% +80% 5.5V T/H Eaton - Electronics Division	3,159	-	RFQ	Datasheet	Axial, Can - Horizontal	Bulk	KR	Active	330 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.394 (10.00mm)	0.453 Dia (11.50mm)	0.197 (5.00mm)

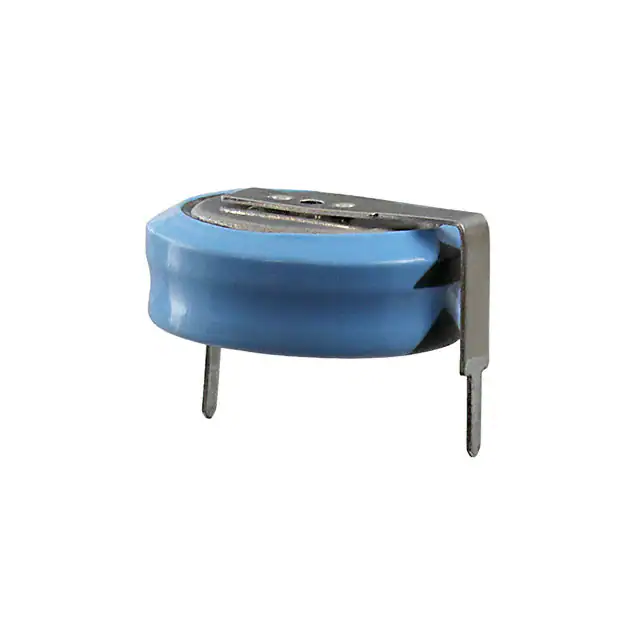

EDC474Z5R5H CAP 470MF -20% +80% 5.5V T/H Cornell Dubilier Electronics (CDE)	2,689	-	RFQ	Datasheet	Axial, Can - Horizontal	Bulk	EDC	Active	470 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.394 (10.00mm)	0.453 Dia (11.50mm)	0.236 (6.00mm)
MAL222091004E3 CAP 25F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	3,967	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 220 EDLC	Active	25 F	-20%, +50%	2.7 V	15mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.866 (22.00mm)
FT0H105ZF CAP 1F -20% +80% 5.5V T/H KEMET	3,767	-	RFQ	Datasheet	Radial, Can	Bulk	FT	Active	1 F	-20%, +80%	5.5 V	3.5Ohm @ 1kHz	-	PC Pins	Through Hole	0.300 (7.62mm)	0.846 Dia (21.50mm)	0.512 (13.00mm)
BCAP0025 P270 S01 CAP 25F -10% +20% 2.7V T/H Maxwell Technologies Korea Co., Ltd.	2,935	-	RFQ	Datasheet	Radial, Can	Bulk	ESHSR	Active	25 F	-10%, +20%	2.7 V	25mOhm	-	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)
