Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
RSCX12245R5F05013U CAP 220MF -20% +80% 5.5V T/H Elna America	3,295	-	RFQ	Datasheet	Axial, Can - Horizontal	Bulk	DX	Active	220 mF	-20%, +80%	5.5 V	75Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.394 (10.00mm)	0.453 Dia (11.50mm)	0.217 (5.50mm)
RSCX13345R5F13013U CAP 330MF -20% +80% 5.5V T/H Elna America	3,550	-	RFQ	Datasheet	Axial, Can - Vertical	Bulk	DX	Active	330 mF	-20%, +80%	5.5 V	75Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.453 Dia (11.50mm)	0.532 (13.50mm)
RSCX13345R5F05013U CAP 330MF -20% +80% 5.5V T/H Elna America	3,867	-	RFQ	Datasheet	Axial, Can - Horizontal	Bulk	DX	Active	330 mF	-20%, +80%	5.5 V	75Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.394 (10.00mm)	0.453 Dia (11.50mm)	0.197 (5.00mm)
RSCXJ2245R5F13013U CAP 220MF -20% +80% 5.5V T/H Elna America	2,684	-	RFQ	Datasheet	Axial, Can - Vertical	Bulk	DXJ	Active	220 mF	-20%, +80%	5.5 V	150Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.453 Dia (11.50mm)	0.532 (13.50mm)
RSCB11045R5G07014T CAP 100MF -20% +80% 5.5V T/H Elna America	3,821	-	RFQ	Datasheet	Radial, Can	Bulk	DB	Active	100 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	0.295 (7.50mm)

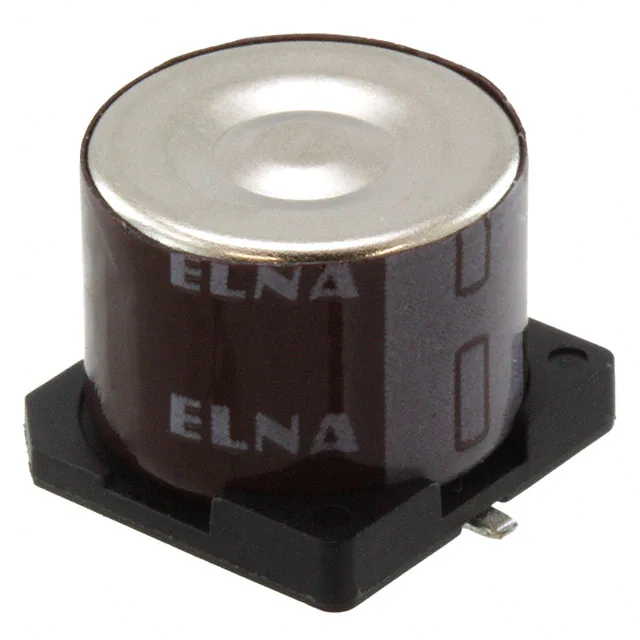

RSCVL2245R5G10012T CAP 220MF -20% +80% 5.5V SMD Elna America	3,050	-	RFQ	Datasheet	Radial, Can - SMD	Tape & Reel (TR),Cut Tape (CT)	DVL	Active	220 mF	-20%, +80%	5.5 V	45Ohm	1000 Hrs @ 85°C	SMD (SMT) Tabs	Surface Mount	-	0.492 Dia (12.50mm)	0.413 (10.50mm)
FCS0H224ZFTBR24 CAP 220MF -20% +80% 5.5V SMD KEMET	3,788	-	RFQ	Datasheet	Radial, Can - SMD	Tape & Reel (TR),Cut Tape (CT)	FC	Active	220 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	-	SMD (SMT) Tabs	Surface Mount	-	0.421 Dia (10.70mm)	0.335 (8.50mm)
FG0H104ZF CAP 100MF -20% +80% 5.5V T/H KEMET	3,792	-	RFQ	Datasheet	Radial, Can	Bulk	FG	Active	100 mF	-20%, +80%	5.5 V	100Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.433 Dia (11.00mm)	0.256 (6.50mm)

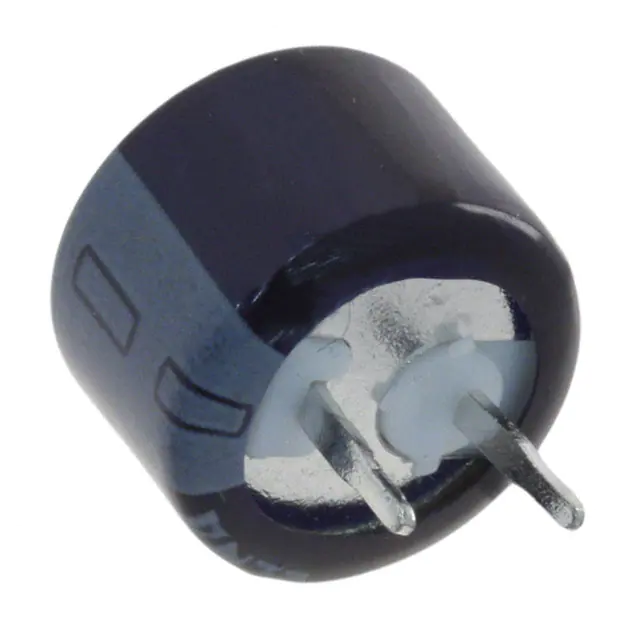

RSCH12245R5G09014T CAP 220MF -20% +80% 5.5V T/H Elna America	3,593	-	RFQ	Datasheet	Radial, Can	Bulk	DH	Active	220 mF	-20%, +80%	5.5 V	120Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	0.374 (9.50mm)

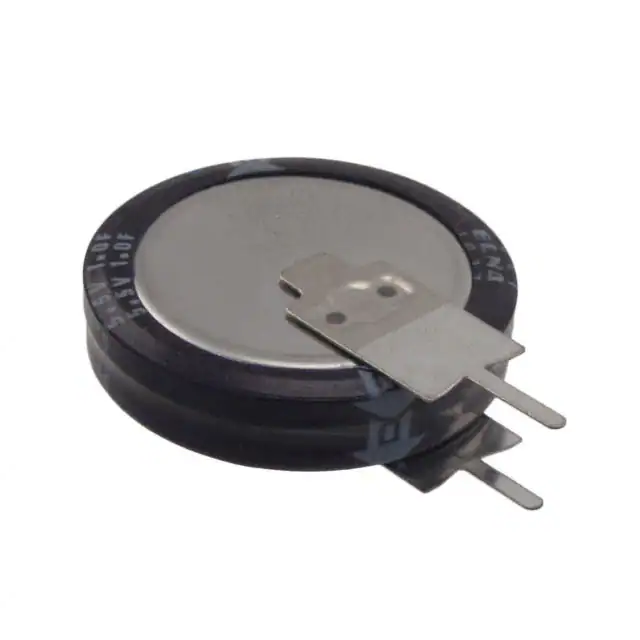

RSCX11055R5K20013U CAP 1F -20% +80% 5.5V T/H Elna America	2,591	-	RFQ	Datasheet	Axial, Can - Vertical	Bulk	DX	Active	1 F	-20%, +80%	5.5 V	30Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.748 Dia (19.00mm)	0.827 (21.00mm)

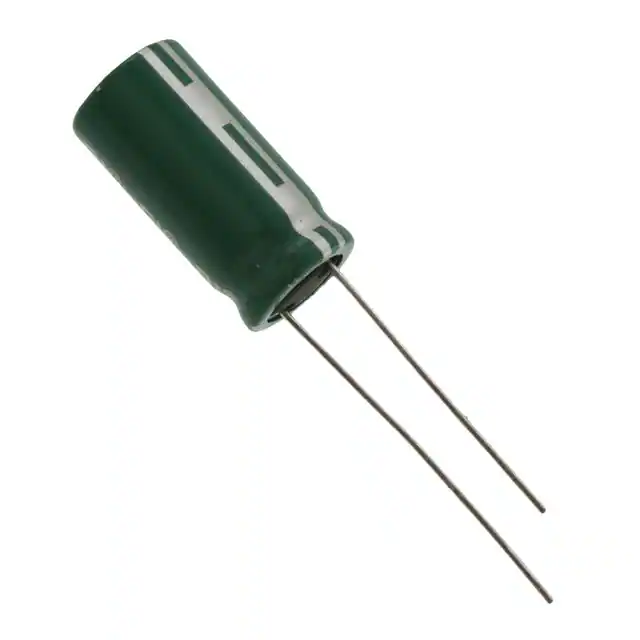

HV1020-2R7505-R CAP 5F -10% +30% 2.7V T/H Eaton - Electronics Division	2,176	-	RFQ	Datasheet	Radial, Can	Bulk	HV	Active	5 F	-10%, +30%	2.7 V	40mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.878 (22.30mm)
RSCB11055R5L08015T CAP 1F -20% +80% 5.5V T/H Elna America	3,105	-	RFQ	Datasheet	Radial, Can	Bulk	DB	Active	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.315 (8.00mm)
RSCB11555R5L08015T CAP 1.5F -20% +80% 5.5V T/H Elna America	2,997	-	RFQ	Datasheet	Radial, Can	Bulk	DB	Active	1.5 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.315 (8.00mm)
DGH504Q5R5 CAP 500MF -10% +30% 5.5V TH Cornell Dubilier / Illinois Capacitor	3,670	-	RFQ	Datasheet	Radial, Can	Bulk	DGH	Active	500 mF	-10%, +30%	5.5 V	400mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.472 (12.00mm)	0.669 L x 0.335 W (17.00mm x 8.50mm)	0.748 (19.00mm)
TV1020-3R0605-R CAP 6F -10% +30% 3V T/H Eaton - Electronics Division	3,359	-	RFQ	Datasheet	Radial, Can	Bulk	TV	Active	6 F	-10%, +30%	3 V	35mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.413 Dia (10.50mm)	0.878 (22.30mm)

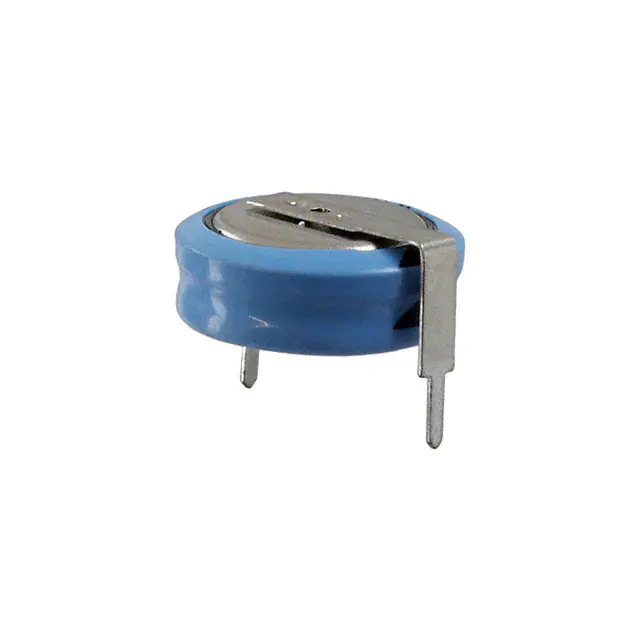

EDC224Z5R5H CAP 220MF -20% +80% 5.5V T/H Cornell Dubilier Electronics (CDE)	2,308	-	RFQ	Datasheet	Axial, Can - Horizontal	Bulk	EDC	Active	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.394 (10.00mm)	0.453 Dia (11.50mm)	0.236 (6.00mm)
EDS224Z3R6H CAP 220MF -20% +80% 3.6V T/H Cornell Dubilier Electronics (CDE)	3,783	-	RFQ	Datasheet	Axial, Can - Horizontal	Bulk	EDS	Active	220 mF	-20%, +80%	3.6 V	75Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.394 (10.00mm)	0.453 Dia (11.50mm)	0.236 (6.00mm)
DGH105Q5R5 CAPACITOR 1F -10% +30% 5.5V TH Cornell Dubilier / Illinois Capacitor	2,841	-	RFQ	Datasheet	Radial, Can	Bulk	DGH	Active	1 F	-10%, +30%	5.5 V	280mOhm @ 1kHz	1500 Hrs @ 85°C	PC Pins	Through Hole	0.472 (12.00mm)	0.669 L x 0.335 W (17.00mm x 8.50mm)	0.748 (19.00mm)

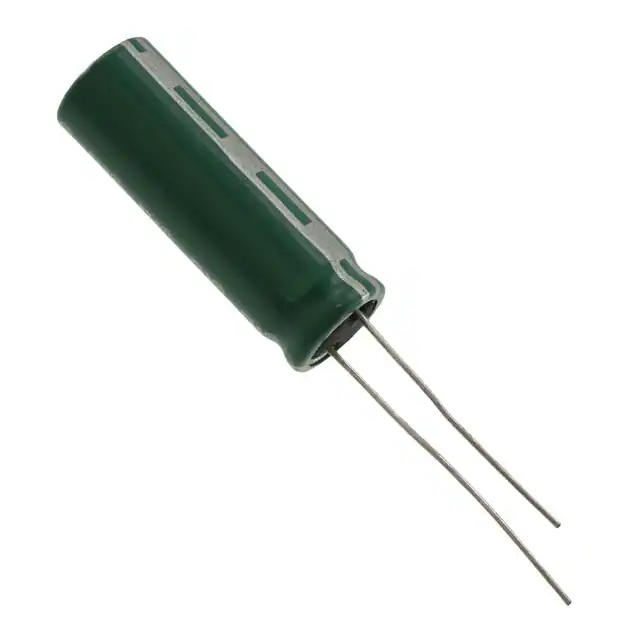

HV1030-2R7106-R CAP 10F -10% +30% 2.7V T/H Eaton - Electronics Division	2,854	-	RFQ	Datasheet	Radial, Can	Bulk	HV	Active	10 F	-10%, +30%	2.7 V	34mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.240 (31.50mm)

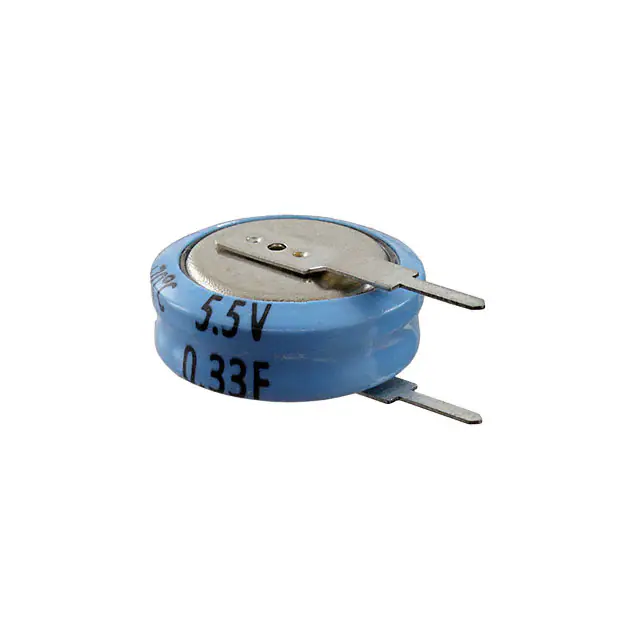

EDC334Z5R5V CAP 330MF -20% +80% 5.5V T/H Cornell Dubilier Electronics (CDE)	3,748	-	RFQ	Datasheet	Axial, Can - Vertical	Bulk	EDC	Active	330 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.453 Dia (11.50mm)	0.512 (13.00mm)
