Electric Double Layer Capacitors (EDLC), Supercapacitors- Page 42

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
FYD0H473ZF CAP 47MF -20% +80% 5.5V T/H KEMET	3,024	-	RFQ	Datasheet	Radial, Can	Bulk	FYD	Active	47 mF	-20%, +80%	5.5 V	220Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.453 Dia (11.50mm)	0.335 (8.50mm)

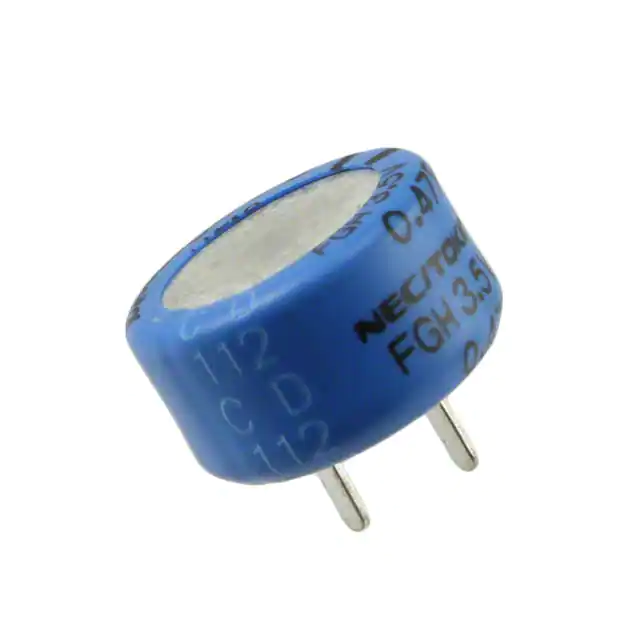

FGH0V474ZF CAP 470MF -20% +80% 3.5V T/H KEMET	2,070	-	RFQ		Radial, Can	Bulk	FGH	Active	470 mF	-20%, +80%	3.5 V	25Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.512 Dia (13.00mm)	0.295 (7.50mm)

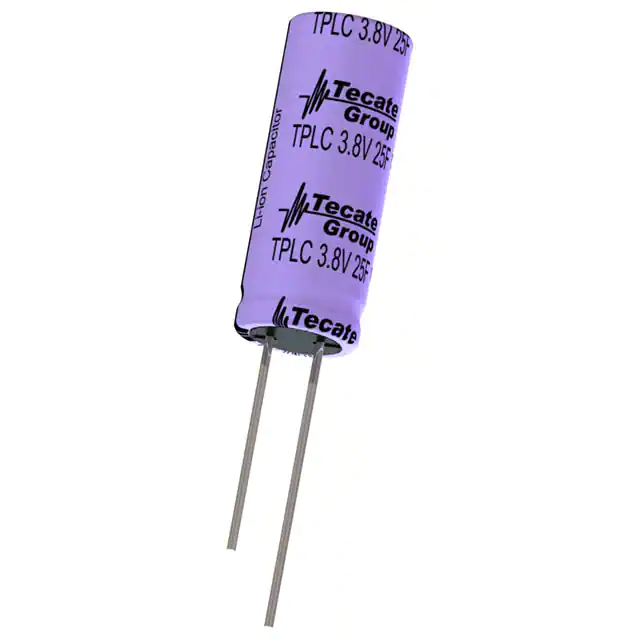

TPLC-3R8/25MR8X20 CAP LITH HYBRID 25F 3.8V T/H Tecate Group	3,281	-	RFQ	Datasheet	Radial, Can	Tray	TPLC	Active	25 F	±20%	3.8 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.866 (22.00mm)
RSCB14745R5L08015T CAP 470MF -20% +80% 5.5V T/H Elna America	2,192	-	RFQ	Datasheet	Radial, Can	Bulk	DB	Active	470 mF	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.315 (8.00mm)
FMC0H334ZF CAP 330MF -20% +80% 5.5V T/H KEMET	3,118	-	RFQ	Datasheet	Radial	Bulk	FM	Active	330 mF	-20%, +80%	5.5 V	25Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.551 L x 0.354 W (14.00mm x 9.00mm)	0.591 (15.00mm)
SCMR18D105PSBB0H CAP 1F 0% +100% 5.4V T/H KYOCERA AVX	3,014	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	1 F	0%, +100%	5.4 V	250mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.453 (11.50mm)	0.728 L x 0.374 W (18.50mm x 9.50mm)	0.846 (21.50mm)
MAL222551011E3 CAP 5F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	3,718	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 225 EDLC-R	Active	5 F	-20%, +50%	2.7 V	28mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)

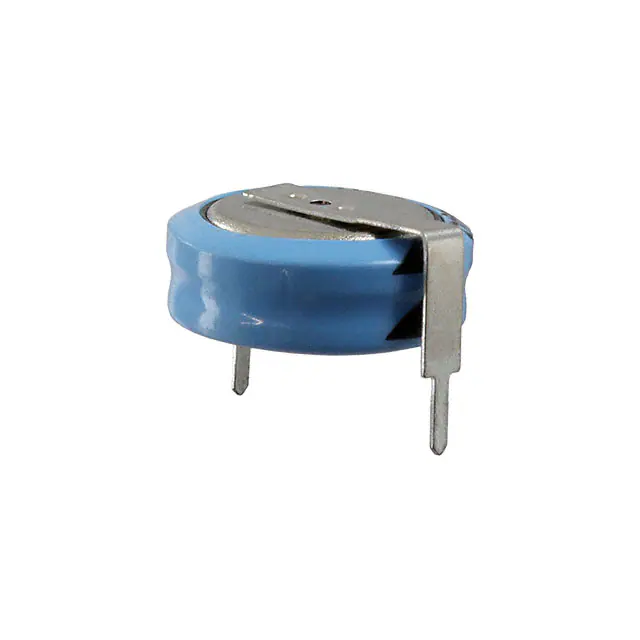

EDC334Z5R5H CAP 330MF -20% +80% 5.5V T/H Cornell Dubilier Electronics (CDE)	3,548	-	RFQ	Datasheet	Axial, Can - Horizontal	Bulk	EDC	Active	330 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.394 (10.00mm)	0.453 Dia (11.50mm)	0.236 (6.00mm)

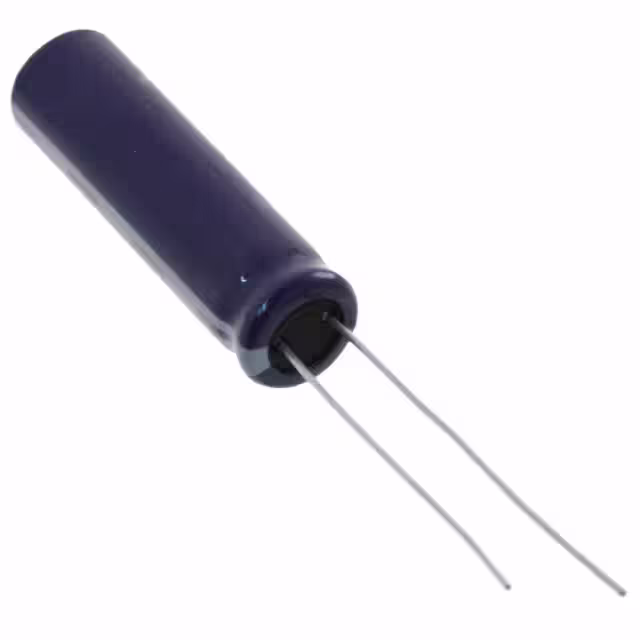

HB0830-2R5605-R CAP 6F -10% +30% 2.5V T/H Eaton - Electronics Division	2,584	-	RFQ	Datasheet	Radial, Can	Bulk	HB	Active	6 F	-10%, +30%	2.5 V	100mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.138 (3.50mm)	0.335 Dia (8.50mm)	1.220 (31.00mm)

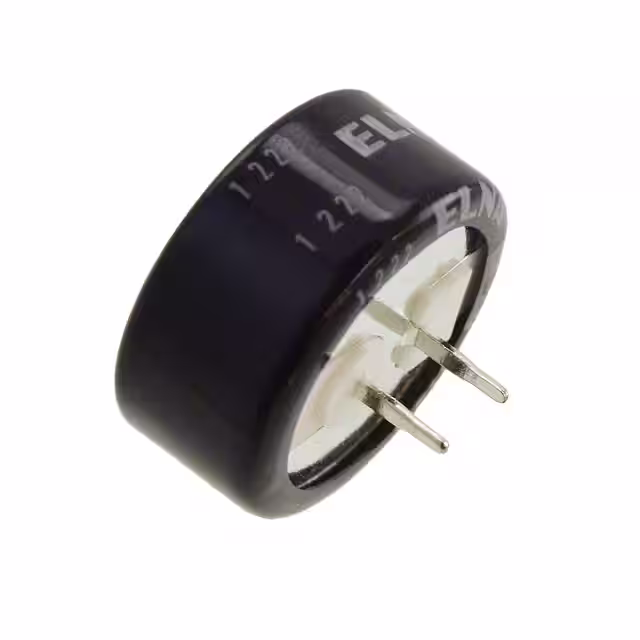

RSCHL1055R5L09015T CAP 1F -20% +80% 5.5V T/H Elna America	2,276	-	RFQ	Datasheet	Radial, Can	Bulk	DHL	Active	1 F	-20%, +80%	5.5 V	20Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.374 (9.50mm)
HS1016-3R8306-R CAP LITH HYBRID 30F 20% 3.8V TH Eaton - Electronics Division	3,628	-	RFQ	Datasheet	Radial, Can	Bulk	HS	Active	30 F	±20%	3.8 V	550mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.413 Dia (10.50mm)	0.709 (18.00mm)
FS0H224ZF CAP 220MF -20% +80% 5.5V T/H KEMET	3,314	-	RFQ	Datasheet	Radial, Can	Bulk	FS	Active	220 mF	-20%, +80%	5.5 V	25Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.650 Dia (16.50mm)	0.512 (13.00mm)
EDS105Z3R6V CAP 1F -20% +80% 3.6V T/H Cornell Dubilier Electronics (CDE)	2,789	-	RFQ	Datasheet	Axial, Can - Vertical	Tray	EDS	Active	1 F	-20%, +80%	3.6 V	30Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.748 Dia (19.00mm)	0.787 (20.00mm)
MAL223591003E3 20F 3,0V 16X20 Vishay Beyschlag/Draloric/BC Components	3,684	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 235 EDLC-HVR	Active	20 F	-20%, +50%	3 V	22mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)
FGR0H474ZF CAP 470MF -20% +80% 5.5V T/H KEMET	2,478	-	RFQ	Datasheet	Radial, Can	Bulk	FGR	Active	470 mF	-20%, +80%	5.5 V	120Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.571 Dia (14.50mm)	0.709 (18.00mm)
MAL222091001E3 CAP 40F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	3,338	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 220 EDLC	Active	40 F	-20%, +50%	2.7 V	12mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.319 (33.50mm)
KR-5R5C224-R CAP 220MF -20% +80% 5.5V T/H Eaton - Electronics Division	3,254	-	RFQ	Datasheet	Radial, Can	Bulk	KR	Active	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	0.256 (6.50mm)
MAL219612104E3 CAP 100MF -20% +80% 5.5V T/H Vishay Beyschlag/Draloric/BC Components	2,259	-	RFQ	Datasheet	Radial, Can	Bulk	196 DLC	Active	100 mF	-20%, +80%	5.5 V	75Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.512 Dia (13.00mm)	0.295 (7.50mm)
MAL219632224E3 CAP 220MF -20% +80% 5.5V T/H Vishay Beyschlag/Draloric/BC Components	3,531	-	RFQ	Datasheet	Axial, Can	Bulk	196 DLC	Active	220 mF	-20%, +80%	5.5 V	75Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.453 Dia x 0.512 L (11.50mm x 13.00mm)	-
SCMR22L105SSBB0 CAP 1F -10% +30% 9V T/H KYOCERA AVX	2,879	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	1 F	-10%, +30%	9 V	350mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.531 (13.50mm)	1.047 L x 0.374 W (26.60mm x 9.50mm)	1.024 (26.00mm)
