Electric Double Layer Capacitors (EDLC), Supercapacitors- Page 45

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
RSCHL1045R5G09014T CAP 100MF -20% +80% 5.5V T/H Elna America	2,121	-	RFQ	Datasheet	Radial, Can	Bulk	DHL	Active	100 mF	-20%, +80%	5.5 V	40Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	0.374 (9.50mm)
RSCBN1055R5L08015T CAP 1F -20% +80% 5.5V T/H Elna America	3,264	-	RFQ	Datasheet	Radial, Can	Bulk	DBN	Active	1 F	-20%, +80%	5.5 V	20Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.315 (8.00mm)
850617021004 CAP 10F -10% +30% 2.7V T/H Würth Elektronik	3,954	-	RFQ	Datasheet	Radial, Can	Bulk	WCAP-STSC	Active	10 F	-10%, +30%	2.7 V	35mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.043 (26.50mm)
FT0H224ZF CAP 220MF -20% +80% 5.5V T/H KEMET	2,935	-	RFQ	Datasheet	Radial, Can	Bulk	FT	Active	220 mF	-20%, +80%	5.5 V	10Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.200 (5.08mm)	0.571 Dia (14.50mm)	0.472 (12.00mm)
SCMR14L334SSBB0 CAP 330MF -10% +30% 9V T/H KYOCERA AVX	3,980	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	330 mF	-10%, +30%	9 V	500mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.453 (11.50mm)	1.047 L x 0.374 W (26.60mm x 9.50mm)	0.689 (17.50mm)
MAL223091006E3 CAP 25F -20% +50% 3V T/H Vishay Beyschlag/Draloric/BC Components	2,037	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 230 EDLC-HV	Active	25 F	-20%, +50%	3 V	26mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)
FG0V155ZF CAP 1.5F -20% +80% 3.5V T/H KEMET	2,246	-	RFQ	Datasheet	Radial, Can	Bulk	FG	Active	1.5 F	-20%, +80%	3.5 V	65Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.650 Dia (16.50mm)	0.551 (14.00mm)
MAL222591003E3 CAP 20F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	3,117	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 225 EDLC-R	Active	20 F	-20%, +50%	2.7 V	18mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)
MAL223091007E3 CAP 30F -20% +50% 3V T/H Vishay Beyschlag/Draloric/BC Components	2,421	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 230 EDLC-HV	Active	30 F	-20%, +50%	3 V	23mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.063 (27.00mm)
SCMR22J105SSBA0 CAP 1F -10% +30% 8.1V T/H KYOCERA AVX	2,848	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	1 F	-10%, +30%	8.1 V	350mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.453 (11.50mm)	1.047 L x 0.374 W (26.60mm x 9.50mm)	1.004 (25.50mm)
MAL223591006E3 25F 3,0V 16X25 Vishay Beyschlag/Draloric/BC Components	2,888	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 235 EDLC-HVR	Active	25 F	-20%, +50%	3 V	20mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)
MAL223591004E3 25F 3,0V 18X20 Vishay Beyschlag/Draloric/BC Components	3,895	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 235 EDLC-HVR	Active	25 F	-20%, +50%	3 V	19mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.866 (22.00mm)
KR-5R5C334-R CAP 330MF -20% +80% 5.5V T/H Eaton - Electronics Division	2,811	-	RFQ	Datasheet	Radial, Can	Bulk	KR	Active	330 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	0.256 (6.50mm)
MAL222091007E3 CAPACITOR 30F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	2,371	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 220 EDLC	Active	30 F	-20%, +50%	2.7 V	13mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.063 (27.00mm)
HSL1020-3R8506-R CAP LITH HYBRID 50F 20% 3.8V TH Eaton - Electronics Division	3,424	-	RFQ	Datasheet	Radial, Can	Bulk	HSL	Active	50 F	±20%	3.8 V	450mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	0.197 (5.00mm)	0.413 Dia (10.50mm)	0.866 (22.00mm)
MAL223591002E3 35F 3,0V 16X31 Vishay Beyschlag/Draloric/BC Components	2,005	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 235 EDLC-HVR	Active	35 F	-20%, +50%	3 V	18mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)
MAL222591008E3 CAP 50F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	3,752	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 225 EDLC-R	Active	50 F	-20%, +50%	2.7 V	10mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.476 (37.50mm)

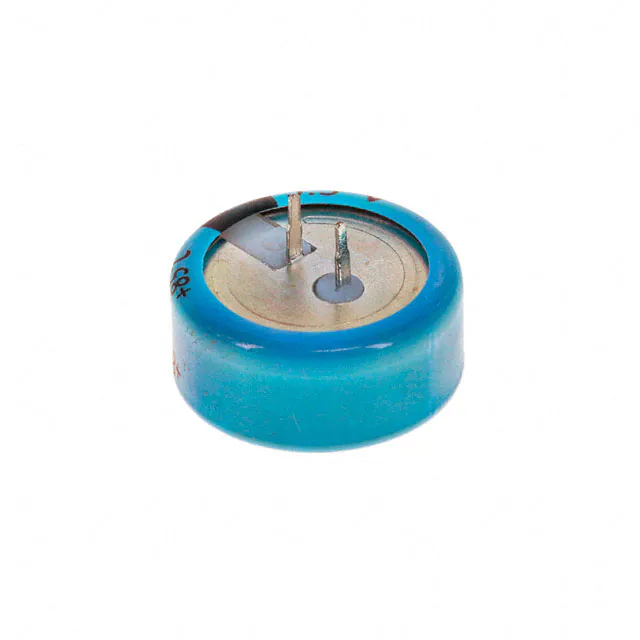

EDS684Z5R5C CAP 680MF -20% +80% 5.5V T/H Cornell Dubilier Electronics (CDE)	2,748	-	RFQ	Datasheet	Radial, Can	Tray	EDS	Active	680 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.374 (9.50mm)
EDS105Z5R5C CAP 1F -20% +80% 5.5V T/H Cornell Dubilier Electronics (CDE)	2,481	-	RFQ	Datasheet	Radial, Can	Tray	EDS	Active	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.374 (9.50mm)
TV1245-3R0346-R CAP 34F -10% +30% 3V T/H Eaton - Electronics Division	2,164	-	RFQ	Datasheet	Radial, Can	Bulk	TV	Active	34 F	-10%, +30%	3 V	16mOhm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.508 Dia (12.90mm)	1.929 (49.00mm)
