Electric Double Layer Capacitors (EDLC), Supercapacitors- Page 43

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
FYH0H224ZF CAP 220MF -20% +80% 5.5V T/H KEMET	3,803	-	RFQ	Datasheet	Radial, Can	Bulk	FYH	Active	220 mF	-20%, +80%	5.5 V	60Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.650 Dia (16.50mm)	0.374 (9.50mm)
DDKA2R5ELL500KM50S SUPERCAP 2.5V 50F United Chemi-Con	2,377	-	RFQ	Datasheet	Radial, Can	Bulk	DLCAP™, DKA	Active	50 F	±10%	2.5 V	110mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.969 (50.00mm)
MAL222091008E3 CAPACITOR 50F -20% +50% 2.7V T/H Vishay Beyschlag/Draloric/BC Components	3,551	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 220 EDLC	Active	50 F	-20%, +50%	2.7 V	10mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.476 (37.50mm)
MAL219612334E3 CAP 330MF -20% +80% 5.5V T/H Vishay Beyschlag/Draloric/BC Components	2,474	-	RFQ	Datasheet	Radial, Can	Bulk	196 DLC	Active	330 mF	-20%, +80%	5.5 V	75Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.512 Dia (13.00mm)	0.295 (7.50mm)

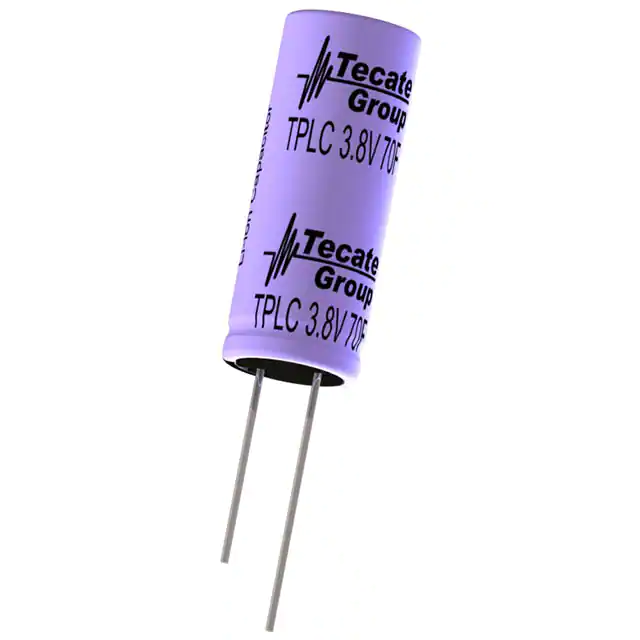

TPLC-3R8/70MR10X25 CAP LITH HYBRID 70F 3.8V T/H Tecate Group	3,241	-	RFQ	Datasheet	Radial, Can	Tray	TPLC	Active	70 F	±20%	3.8 V	105mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)
SCMR14L334SRBB0 CAP 330MF -10% +30% 9V T/H KYOCERA AVX	2,784	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	330 mF	-10%, +30%	9 V	500mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.531 (13.50mm)	0.945 L x 0.315 W (24.00mm x 8.00mm)	0.610 (15.50mm)
PHVL-3R9V155-R SUPERCAP 3.9V 1.5F 0.16 OHM VT Eaton - Electronics Division	2,197	-	RFQ	Datasheet	Radial	Bulk	PHVL	Active	1.5 F	-10%, +30%	3.9 V	160mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	0.465 (11.80mm)	0.681 L x 0.354 W (17.30mm x 9.00mm)	0.866 (22.00mm)
HS1025-3R8706-R CAP LITH HYBRID 70F 20% 3.8V TH Eaton - Electronics Division	2,631	-	RFQ	Datasheet	Radial, Can	Bulk	HS	Active	70 F	±20%	3.8 V	250mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.413 Dia (10.50mm)	1.063 (27.00mm)

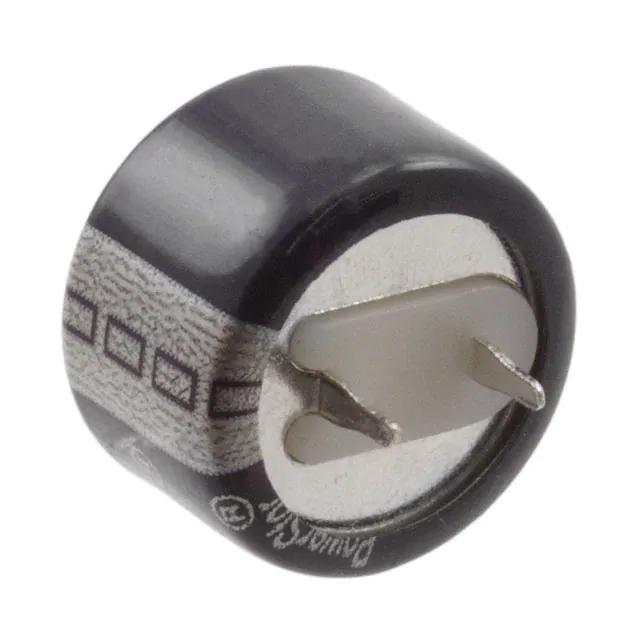

KW-5R5C104-R CAP 100MF -20% +80% 5.5V T/H Eaton - Electronics Division	2,565	-	RFQ	Datasheet	Radial, Can	Bulk	KW	Active	100 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	0.327 (8.30mm)
506DCN2R7Q CAP 50F -10%, +30% 2.7V T/H Cornell Dubilier / Illinois Capacitor	2,931	-	RFQ	Datasheet	Radial, Can	Bulk	DCN	Active	50 F	-10%, +30%	2.7 V	25mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)

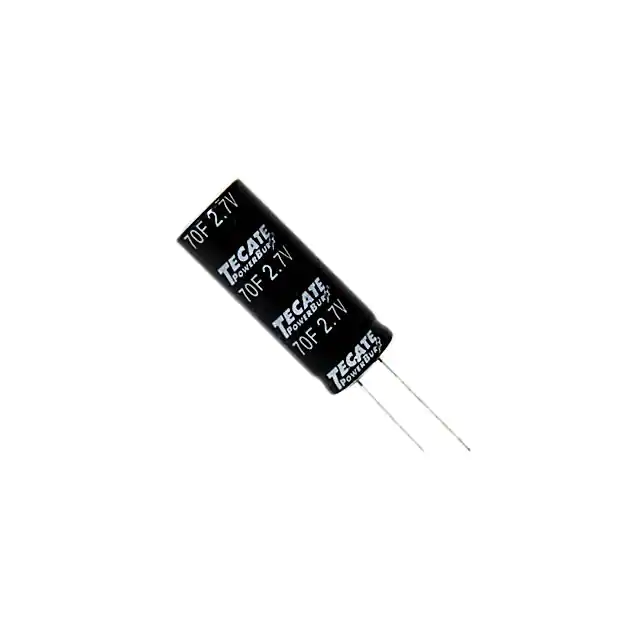

TPL-70/18X45F CAP 70F -10% +20% 2.7V T/H Tecate Group	2,960	-	RFQ	Datasheet	Radial, Can	Bulk	TPL	Last Time Buy	70 F	-10%, +20%	2.7 V	13mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.831 (46.50mm)
FU0H105ZF SUPERCAPACITOR,AUTOMOTIVE GRADE KEMET	2,009	-	RFQ	Datasheet	Through Hole	Bulk	FU0H	Active	1 F	-20%, +80%	5.5 V	10Ohm @ 1kHz	4000 Hrs @ 85°C	PC Pins	Radial, Can	0.300 (7.62mm)	0.846 Dia (21.50mm)
MAL223051009E3 CAP ALUM 60F 3V 2000H Vishay Beyschlag/Draloric/BC Components	3,165	-	RFQ	Datasheet	Radial, Can	Box	ENYCAP™ 230 EDLC-HV	Active	60 F	-20%, +50%	3 V	13mOhm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.673 (42.50mm)

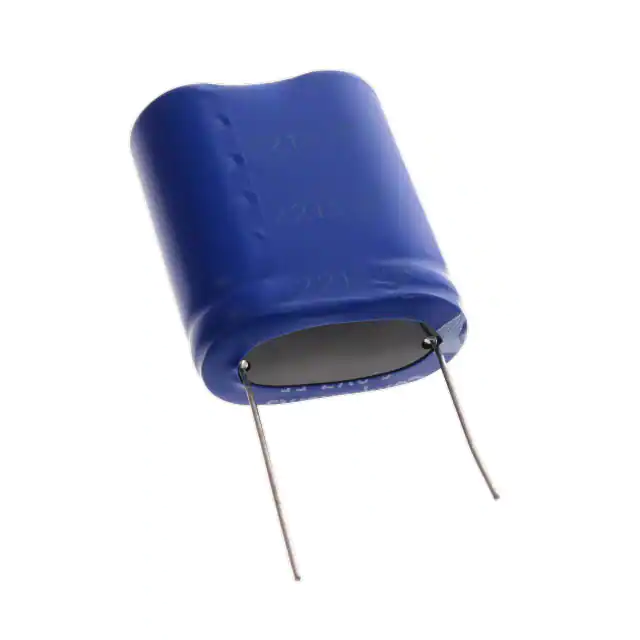

SCMT32H755SRBB0 CAP 7.5F -10% +30% 6V T/H KYOCERA AVX	2,348	-	RFQ	Datasheet	Radial, Can	Bulk	SCM	Active	7.5 F	-10%, +30%	6 V	90mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.709 (18.00mm)	0.984 L x 0.492 W (25.00mm x 12.50mm)	1.319 (33.50mm)
PTV-6R0V305-R CAP 3F -10% +20% 6V T/H Eaton - Electronics Division	3,798	-	RFQ	Datasheet	Radial	Bulk	PTV	Active	3 F	-10%, +20%	6 V	70mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	0.925 (23.50mm)

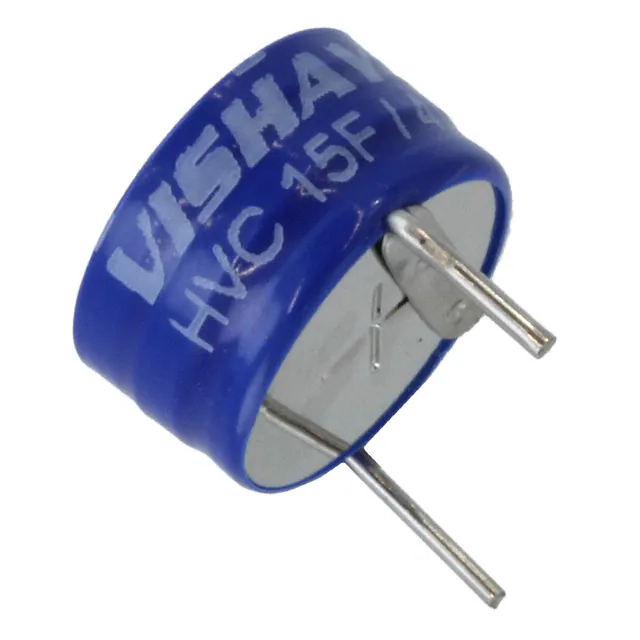

MAL219691203E3 CAP 15F -20% +80% 4.2V T/H Vishay Beyschlag/Draloric/BC Components	3,495	-	RFQ	Datasheet	Coin, Stacked Vertical	Tray	ENYCAP™ 196HVC	Active	15 F	-20%, +80%	4.2 V	1.8Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.492 (12.50mm)	0.472 Dia (12.00mm)	0.295 (7.50mm)
PTV-6R0V505-R CAP 5F -10% +20% 6V T/H Eaton - Electronics Division	2,081	-	RFQ	Datasheet	Radial	Bulk	PTV	Active	5 F	-10%, +20%	6 V	54mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	1.299 (33.00mm)
MAL219622684E3 CAP 680MF -20% +80% 5.5V T/H Vishay Beyschlag/Draloric/BC Components	3,920	-	RFQ	Datasheet	Radial, Can	Bulk	196 DLC	Active	680 mF	-20%, +80%	5.5 V	50Ohm	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.827 Dia (21.00mm)	0.374 (9.50mm)
FA1A104ZF CAP 100MF -20% +80% 11V T/H KEMET	2,982	-	RFQ	Datasheet	Radial, Can	Bulk	FA	Active	100 mF	-20%, +80%	11 V	8Ohm @ 1kHz	-	PC Pins	Through Hole	0.402 (10.20mm)	1.122 Dia (28.50mm)	1.004 (25.50mm)

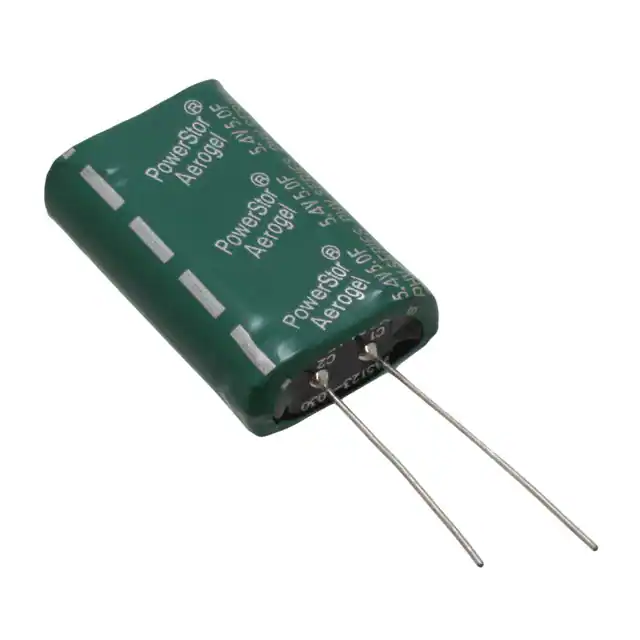

PHV-5R4V505-R CAP 5F -10% +30% 5.4V T/H Eaton - Electronics Division	3,355	-	RFQ	Datasheet	Radial, Can	Bulk	PHV	Active	5 F	-10%, +30%	5.4 V	70mOhm @ 100Hz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	1.280 (32.50mm)
