Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MMK5823J100J01L4BULKCAP FILM 0.082UF 5% 100VDC RAD |
1,899 | - |
RFQ |
Datasheet |
Radial | Box | MMK | Active | 0.082 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - | |
ECW-U2104KC9CAP FILM 0.1UF 10% 250VDC 2420 |
16,388 | - |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.1 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.157 (4.00mm) | Solder Pads | - | General Purpose | - | |
ECQ-E6104KFCAP FILM 0.1UF 10% 630VDC RADIAL |
4,894 | - |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.248 W (18.50mm x 6.30mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - | |
R82EC4100Z370KCAP FILM 1UF 10% 100VDC RADIAL |
1,881 | - |
RFQ |
Datasheet |
Radial | Bulk | R82 | Active | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.236 W (7.20mm x 6.00mm) | 0.437 (11.10mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 | |
LDEIE3100KA5N00CAP FILM 0.1UF 10% 250VDC 2824 |
13,345 | - |
RFQ |
Datasheet |
2824 (7260 Metric) | Tape & Reel (TR),Cut Tape (CT) | LDE | Active | 0.1 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287 L x 0.240 W (7.30mm x 6.10mm) | 0.114 (2.90mm) | Solder Pads | - | Automotive | AEC-Q200 | |
ECW-U1C474JC9CAP FILM 0.47UF 5% 16VDC 2416 |
16,912 | - |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.47 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - | |
SMR5472J50J01L16.5CBULKCAP FILM 4700PF 5% 50VDC RADIAL |
1,809 | - |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 4700 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - | |
R76QD0220SE00JCAP FILM 220PF 5% 1KVDC RADIAL |
12,352 | - |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 220 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394 L x 0.118 W (10.00mm x 3.00mm) | 0.319 (8.10mm) | PC Pins | 0.295 (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | |
R76UI0100SE40JCAP FILM 100PF 5% 2KVDC RADIAL |
5,422 | - |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 100 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 6.366 Ohms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.157 W (18.00mm x 4.00mm) | 0.398 (10.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | |
R463I33305002KCAP FILM 0.33UF 10% 630VDC RAD |
4,845 | - |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.732 (18.60mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 | |
R76QF1100SE00JCAP FILM 1000PF 5% 1KVDC RADIAL |
8,761 | - |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 1000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | - | PC Pins | 0.394 (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | |
B32021A3103M000CAP FILM 10000PF 20% 1.5KVDC RAD |
24,152 | - |
RFQ |
Datasheet |
Radial | Bulk | B3202* - Y2 Standard | Active | 10000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | Y2 | |
R76UI01004040JCAP FILM 100PF 5% 2KVDC RADIAL |
6,857 | - |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 100 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709 L x 0.157 W (18.00mm x 4.00mm) | 0.398 (10.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | |
SMR5102J50J01L16.5CBULKCAP FILM 1000PF 5% 50VDC RADIAL |
3,741 | - |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 1000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - | |
ECW-FD2W105JCAP FILM 1UF 5% 450VDC RADIAL |
139,985 | - |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.307 W (17.50mm x 7.80mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | |

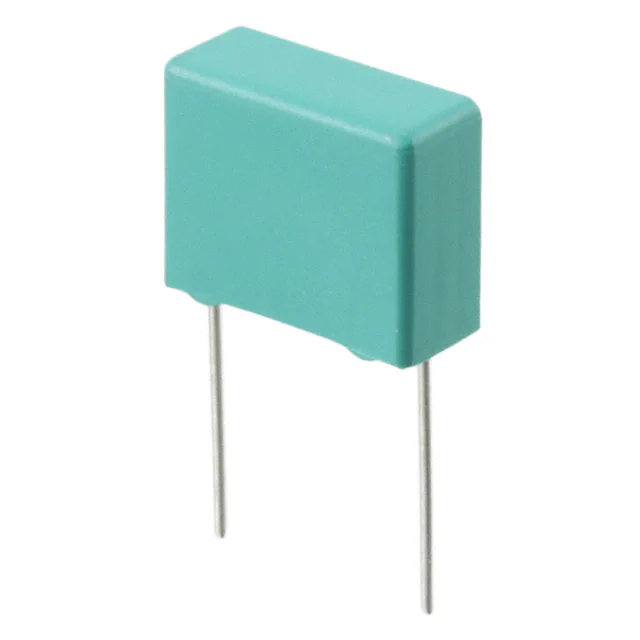

PHE850EB5220MB06R17CAP FILM 0.022UF 1.25KVDC RAD |
9,155 | - |
RFQ |
Datasheet |
Radial | Bulk | PHE850 | Active | 0.022 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | Y2 | |
PHE840MB6100MB05R17CAP FILM 0.1UF 20% 760VDC RADIAL |
29,294 | - |
RFQ |
Datasheet |
Radial | Bulk | PHE840M | Active | 0.1 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.217 W (18.00mm x 5.50mm) | 0.492 (12.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 | |
R46KI347000N0MCAP FILM 0.47UF 20% 560VDC RAD |
13,593 | - |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.394 W (18.00mm x 10.00mm) | 0.634 (16.10mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 | |
B32922C3474K000CAP FILM 0.47UF 10% 630VDC RAD |
40,897 | - |
RFQ |
Datasheet |
Radial | Bulk | B3292*C/D - X2 Standard | Active | 0.47 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.354 W (18.00mm x 9.00mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 | |
SMDTC04100QB00MP00CAP FILM 1UF 20% 63VDC 2220 |
22,536 | - |
RFQ |
Datasheet |
2220 (5750 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Surface Mount | 0.224 L x 0.201 W (5.70mm x 5.10mm) | 0.189 (4.80mm) | Solder Pads | - | General Purpose | - |
