Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

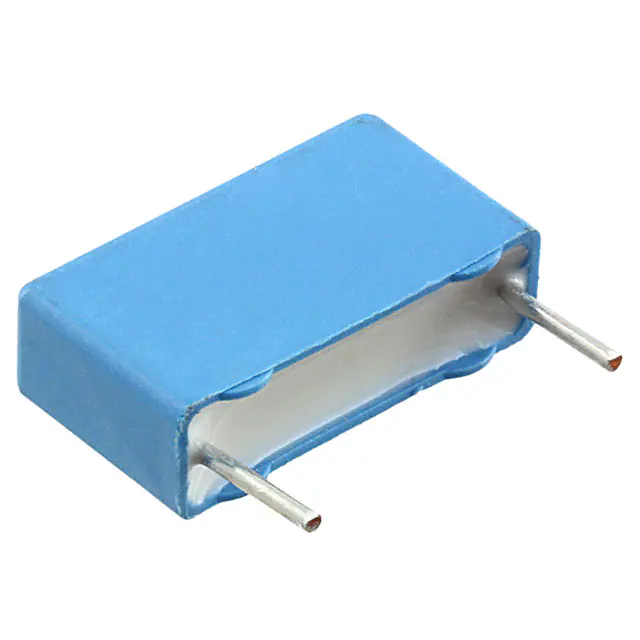

PHE448SB3330JR06CAP FILM 330PF 5% 2KVDC RAD |
1,500 | - |
RFQ |
Datasheet |
Radial | Bulk | PHE448 | Active | 330 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.217 W (18.00mm x 5.50mm) | 0.413 (10.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - | |
BFC233820222CAP FILM 2200PF 20% 630VDC RAD |
21,017 | - |
RFQ |
Datasheet |
Radial | Bulk | MKP338 2 | Active | 2200 pF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression | X2 | |

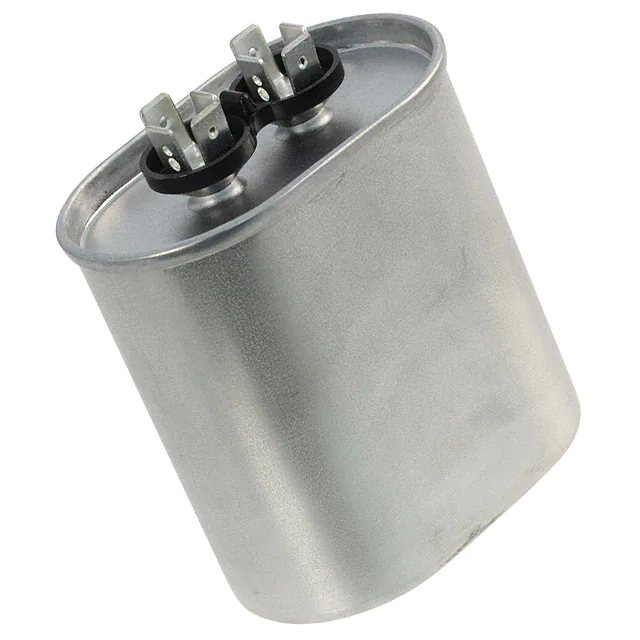

SFC37T30K291B-FCAP FILM 30UF 10% 370VAC RADIAL |
1,305 | - |
RFQ |
Datasheet |
Radial, Can | Bulk | SF | Active | 30 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.910 L x 1.910 W (73.91mm x 48.51mm), Lip | 3.030 (76.96mm) | Quick Connect, Disconnect | 0.810 (20.57mm) | Motor Run | - | |

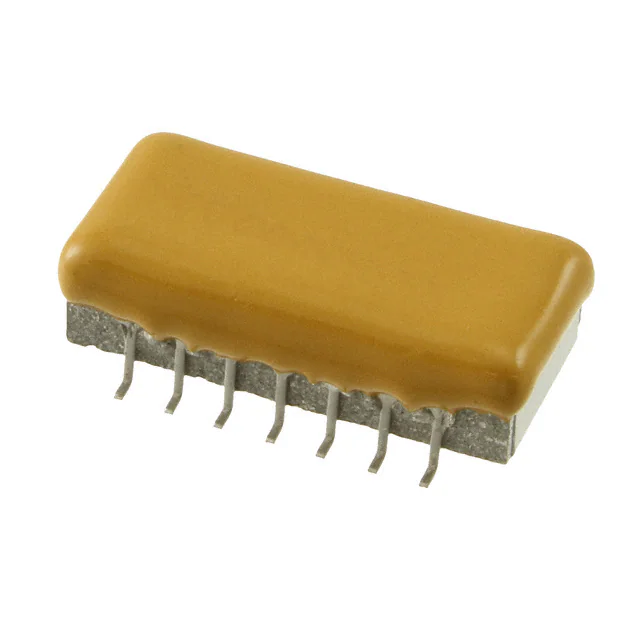

106K100CS4G-FACAP NETWORK 10UF 100V 14SMD |
140 | - |
RFQ |
Datasheet |
14-SMD, Gull Wing | Tube | Capstick® CS | Active | 10 µF | ±10% | - | 100V | Polymer, Metallized | 3 mOhms | -55°C ~ 125°C | Surface Mount | 0.995 L x 0.500 W (25.30mm x 12.70mm) | 0.250 (6.35mm) | Gull Wing | 0.394 (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | |

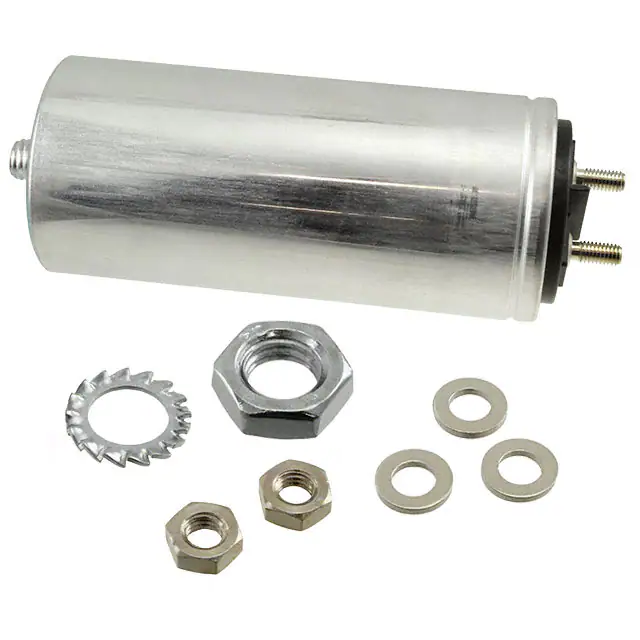

C44AFGP6100ZG0JCAP FILM 100UF 5% 400VDC RADIAL |
119 | - |
RFQ |
Datasheet |
Radial, Can | Bulk | C44A | Active | 100 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.362 Dia (60.00mm) | 5.512 (140.00mm) | Threaded, Male | 0.878 (22.30mm) | General Purpose | - | |
944U660K102AAMCAP FILM 66UF 10% 1KVDC RADIAL |
227 | - |
RFQ |
Datasheet |
Radial, Can | Bulk | 944U | Active | 66 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 0.6 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327 Dia (84.50mm) | 1.614 (41.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - | |

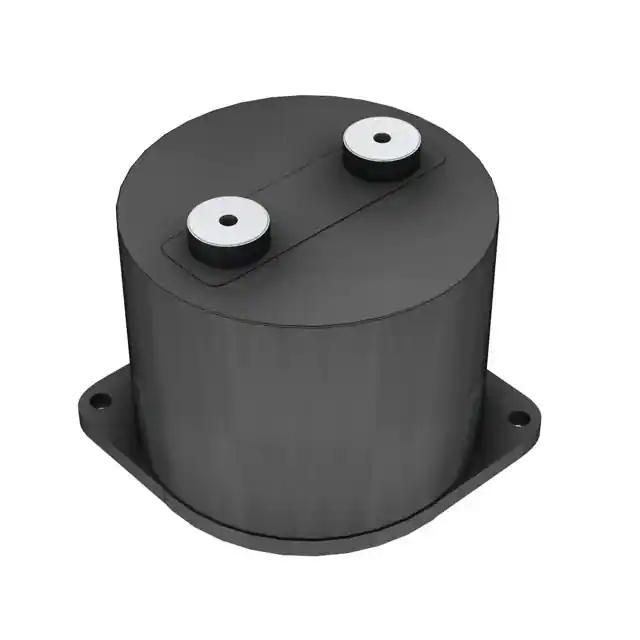

944U101K122ACICAP FILM 100UF 10% 1.2KVDC RAD |
4,620 | - |
RFQ |
Datasheet |
Radial, Can | Bulk | 944U | Active | 100 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327 Dia (84.50mm) | 2.559 (65.00mm) | Threaded, Female | 1.772 (45.00mm) | DC Link, DC Filtering | - | |

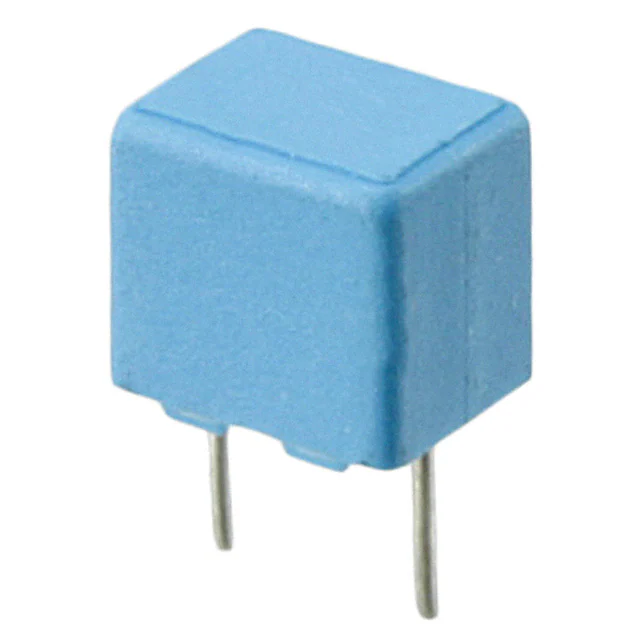

PFR5103J63J12L4BULKCAP FILM 10000PF 5% 63VDC RADIAL |
1,258 | - |
RFQ |
Datasheet |
Radial | Bulk | PFR | Active | 10000 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.217 W (7.20mm x 5.50mm) | 0.276 (7.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | |
R71QR34704010KCAP FILM 0.47UF 10% 1KVDC RADIAL |
1,024 | - |
RFQ |
Datasheet |
Radial | Tray | R71 | Active | 0.47 µF | ±10% | 275V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.354 W (32.00mm x 9.00mm) | 0.673 (17.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | |
ECQ-E2475KFCAP FILM 4.7UF 10% 250VDC RADIAL |
11,877 | - |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 4.7 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.886 (22.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - | |
SMR5104J63J02L16.5CBULKCAP FILM 0.1UF 5% 63VDC RADIAL |
1,071 | - |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 0.1 µF | ±5% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - | |
R76UN2100SE30JCAP FILM 10000PF 5% 2KVDC RADIAL |
2,022 | - |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 10000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 64 mOhms | -55°C ~ 125°C | Through Hole | 1.043 L x 0.236 W (26.50mm x 6.00mm) | 0.594 (15.10mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | |
PFR5561F63J11L4BULKCAP FILM 560PF 1% 63VDC RADIAL |
1,075 | - |
RFQ |
Datasheet |
Radial | Box | PFR | Active | 560 pF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | |
BFC233860223CAP FILM 0.022UF 20% 1KVDC RAD |
27,358 | - |
RFQ |
Datasheet |
Radial | Bulk | MKP338 6 | Active | 0.022 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.276 W (17.50mm x 7.00mm) | 0.532 (13.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | |
BFC233810104CAP FILM 0.1UF 20% 1KVDC RADIAL |
41,862 | - |
RFQ |
Datasheet |
Radial | Bulk | MKP338 1 | Active | 0.1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.394 W (17.50mm x 10.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - | |
PME271Y447MR30CAP FILM 4700PF 20% 1KVDC RADIAL |
21,143 | - |
RFQ |
Datasheet |
Radial | Bulk | PME271Y | Active | 4700 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531 L x 0.201 W (13.50mm x 5.10mm) | 0.413 (10.50mm) | PC Pins | 0.402 (10.20mm) | EMI, RFI Suppression | Y2 | |
BFC233820103CAP FILM 10000PF 20% 630VDC RAD |
18,988 | - |
RFQ |
Datasheet |
Radial | Bulk | MKP338 2 | Active | 10000 pF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression | X2 | |
105MKP275KGCAP FILM 1UF 10% 310VAC RADIAL |
15,436 | - |
RFQ |
Datasheet |
Radial | Bulk | MKP | Active | 1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.354 W (26.00mm x 9.00mm) | 0.681 (17.30mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 | |
R413N310040M1MCAP FILM 0.1UF 20% 1KVDC RADIAL |
2,834 | - |
RFQ |
Datasheet |
Radial | Bulk | R41 | Active | 0.1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | |
PME271Y510MR30CAP FILM 10000PF 20% 1KVDC RAD |
19,324 | - |
RFQ |
Datasheet |
Radial | Bulk | PME271Y | Active | 10000 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728 L x 0.205 W (18.50mm x 5.20mm) | 0.413 (10.50mm) | PC Pins | 0.598 (15.20mm) | EMI, RFI Suppression | Y2 |
