Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B32923H3225MCAP FILM 2.2UF 20% 630VDC RADIAL |
1,040 | - |
RFQ |
Datasheet |
Radial | Bulk | B3292*H/J - X2 High Humidity | Active | 2.2 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.571 W (26.50mm x 14.50mm) | 1.169 (29.70mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | |

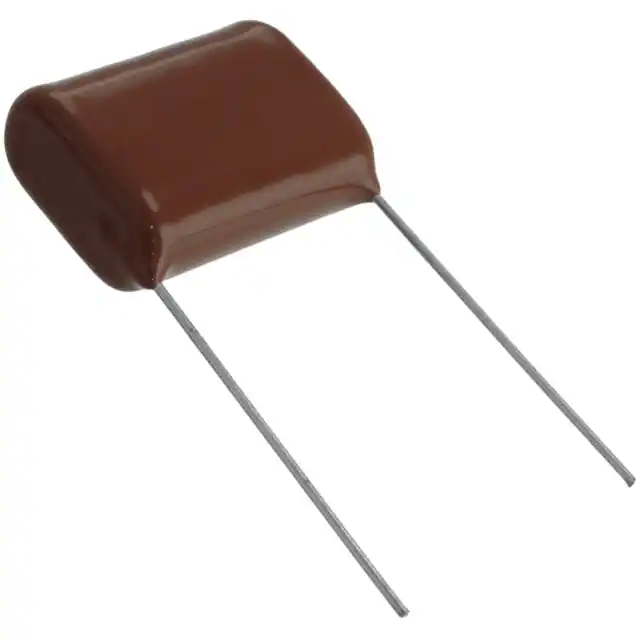

ECQ-E1106KFCAP FILM 10UF 10% 100VDC RADIAL |
13,149 | - |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.453 W (26.00mm x 11.50mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - | |
MKP1848530094K2CAP FILM 3UF 5% 900VDC RADIAL |
4,746 | - |
RFQ |
Datasheet |
Radial | Bulk | MKP1848 DC-Link | Active | 3 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 29.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260 L x 0.591 W (32.00mm x 15.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | |
B32674D4475K000CAP FILM 4.7UF 10% 450VDC RADIAL |
1,599 | - |
RFQ |
Datasheet |
Radial | Bulk | B3267* - MKP DC-Link High Power | Active | 4.7 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.709 W (31.50mm x 18.00mm) | 1.083 (27.50mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering | AEC-Q200 | |
R76TR32204030JCAP FILM 0.22UF 5% 1.6KVDC RAD |
702 | - |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 0.22 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | |
C4GAFUC4220AA0JCAP FILM 2.2UF 5% 400VDC AXIAL |
667 | - |
RFQ |
Datasheet |
Axial | Bulk | C4G | Active | 2.2 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 85°C | Through Hole | 0.689 Dia x 1.299 L (17.50mm x 33.00mm) | - | PC Pins | - | High Frequency, Switching | - | |
BFC233820225CAP FILM 2.2UF 20% 630VDC RADIAL |
5,040 | - |
RFQ |
Datasheet |
Radial | Bulk | MKP338 2 | Active | 2.2 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240 L x 0.591 W (31.50mm x 15.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 | |
715P22356KD3CAP FILM 0.022UF 5% 600VDC RAD |
4,074 | - |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.022 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.480 Dia x 0.902 L (12.20mm x 22.90mm) | 0.772 (19.60mm) | PC Pins | 0.374 (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | |
R76UW3100SE30KCAP FILM 0.1UF 10% 2KVDC RADIAL |
1,035 | - |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 0.1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634 L x 0.512 W (41.50mm x 13.00mm) | 0.945 (24.00mm) | PC Pins | 1.476 (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | |
940C20S47K-FCAP FILM 0.047UF 10% 2KVDC AXIAL |
5,671 | - |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.047 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.591 Dia x 1.339 L (15.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | |
R474R410050A1KCAP FILM 1UF 10% 1KVDC RADIAL |
139 | - |
RFQ |
Datasheet |
Radial | Tray | R47 | Active | 1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 | |
PME271M647KR30CAP FILM 0.47UF 10% 275VAC RAD |
4,156 | - |
RFQ |
Datasheet |
Radial | Bulk | PME271M | Active | 0.47 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201 L x 0.602 W (30.50mm x 15.30mm) | 0.866 (22.00mm) | PC Pins | 1.000 (25.40mm) | EMI, RFI Suppression | X2 | |
B32926C3685M000CAP FILM 6.8UF 20% 630VDC RADIAL |
2,510 | - |
RFQ |
Datasheet |
Radial | Bulk | B3292*C/D - X2 Standard | Active | 6.8 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.555 (39.50mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 | |
PME271YD6100MR30CAP FILM 0.1UF 20% 1KVDC RADIAL |
494 | - |
RFQ |
Datasheet |
Radial | Bulk | PME271Y | Active | 0.1 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 1.063 L x 0.394 W (27.00mm x 10.00mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | Y2 | |
SMR5474J50J04L16.5CBULKCAP FILM 0.47UF 5% 50VDC RADIAL |
982 | - |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 0.47 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.197 W (7.20mm x 5.00mm) | 0.394 (10.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - | |
R413W41004000MCAP FILM 1UF 20% 1KVDC RADIAL |
2,048 | - |
RFQ |
Datasheet |
Radial | Tray | R41 | Active | 1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X1, Y2 | |
940C12P1K-FCAP FILM 0.1UF 10% 1.2KVDC AXIAL |
4,583 | - |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.1 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 105°C | Through Hole | 0.610 Dia x 1.339 L (15.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | |
PME264NE6100MR30CAP FILM 0.1UF 20% 660VAC RADIAL |
1,252 | - |
RFQ |
Datasheet |
Radial | Bulk | PME264 | Active | 0.1 µF | ±20% | 660V | - | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201 L x 0.602 W (30.50mm x 15.30mm) | 0.866 (22.00mm) | PC Pins | 1.000 (25.40mm) | EMI, RFI Suppression | X2 | |
F17725102000CAP FILM 1UF 10% 630VDC RADIAL |
1,973 | - |
RFQ |
Datasheet |
Radial | Bulk | F1772 | Active | 1 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.591 W (31.50mm x 15.00mm) | 0.984 (25.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 | |
16MU106MC44532CAP FILM 10UF 20% 16VDC 1812 |
1,410 | - |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMLCAP®, MU | Active | 10 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177 L x 0.126 W (4.50mm x 3.20mm) | 0.110 (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - |
