Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
224PPB102KCAP FILM 0.22UF 10% 1KVDC RADIAL |
1,840 | - |
RFQ |
Datasheet |
Radial | Bulk | PPB | Active | 0.22 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | |

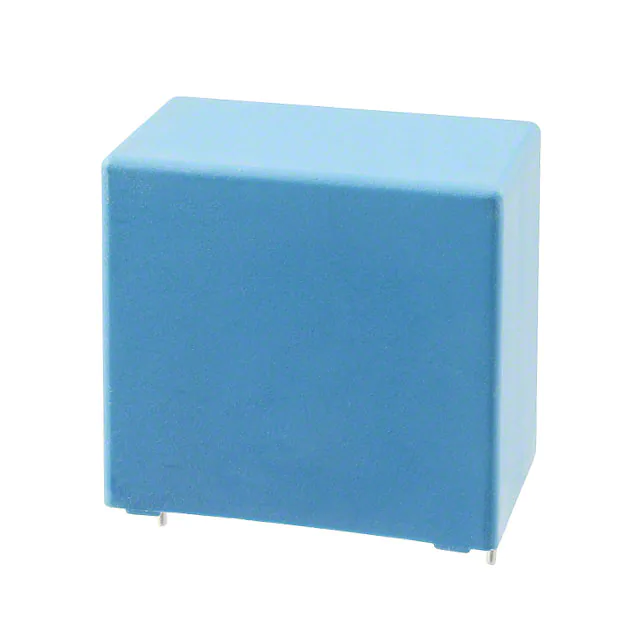

PHE845VF6330MR06L2CAP FILM 0.33UF 20% 1.5KVDC RAD |
1,562 | - |
RFQ |
Datasheet |
Radial | Bulk | PHE845 | Active | 0.33 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.748 W (31.50mm x 19.00mm) | 1.142 (29.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 | |

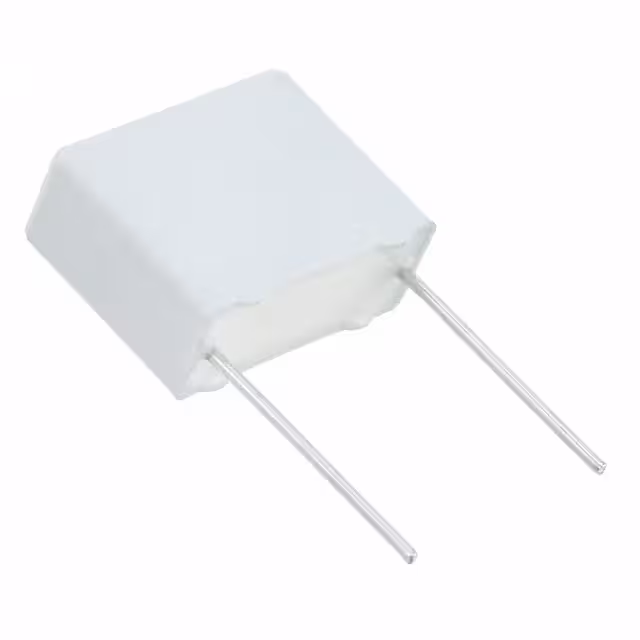

SMR15105J100B06L16.5CBULKCAP FILM 1UF 5% 100VDC RADIAL |
843 | - |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 1 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - | |
R82IC3100DQ60JCAP FILM 0.1UF 5% 250VDC RADIAL |
17,742 | - |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | R82 | Active | 0.1 µF | ±5% | 140V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.378 (9.60mm) | PC Pins | 0.197 (5.00mm) | Automotive | AEC-Q200 | |

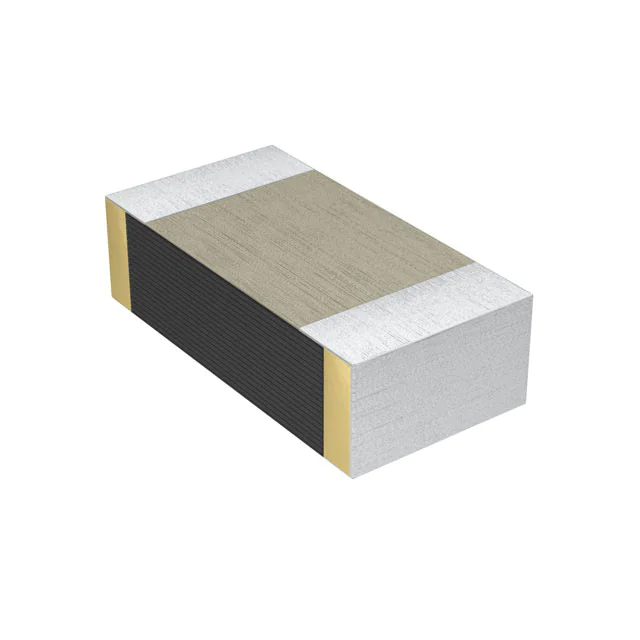

ECH-U1C332JX5CAP FILM 3300PF 5% 16VDC 0805 |
14,453 | - |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 3300 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - | |
B32529C8682K289CAP FILM 6800PF 10% 630VDC RAD |
46,982 | - |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | B3252* - MKT General Purpose | Active | 6800 pF | ±10% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.197 (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | |
B32529C0474K289CAP FILM 0.47UF 10% 63VDC RADIAL |
43,941 | - |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | B3252* - MKT General Purpose | Active | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287 L x 0.138 W (7.30mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.197 (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | |
ECH-U1H332GX5CAP FILM 3300PF 2% 50VDC 1206 |
11,398 | - |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 3300 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - | |
ECH-U1H272GX5CAP FILM 2700PF 2% 50VDC 0805 |
12,000 | - |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 2700 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - | |
BFC237086333CAP FILM 0.033UF 5% 100VDC RAD |
13,441 | - |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | MKT370 | Active | 0.033 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.200 (5.08mm) | Automotive | AEC-Q200 | |
ECH-U1H681JX5CAP FILM 680PF 5% 50VDC 0805 |
22,473 | - |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 680 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - | |
ECH-U1H151GX5CAP FILM 150PF 2% 50VDC 0805 |
5,299 | - |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 150 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - | |
ECH-U1C153JX5CAP FILM 0.015UF 5% 16VDC 1206 |
14,556 | - |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.015 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - | |
ECH-U1H152GX5CAP FILM 1500PF 2% 50VDC 0805 |
30,664 | - |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 1500 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - | |
ECH-U1H681GX5CAP FILM 680PF 2% 50VDC 0805 |
13,884 | - |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 680 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - | |
ECH-U1C392GX5CAP FILM 3900PF 2% 16VDC 0805 |
8,391 | - |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 3900 pF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.10mm) | Solder Pads | - | General Purpose | - | |

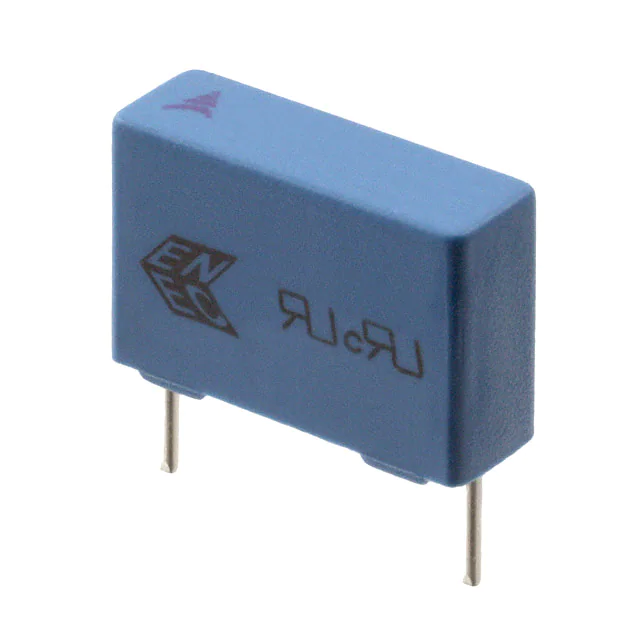

B32922C3154K189CAP FILM 0.15UF 10% 630VDC RAD |
10,614 | - |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3292*C/D - X2 Standard | Active | 0.15 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 | |
R75UR34704040JCAP FILM 0.47UF 5% 2KVDC RADIAL |
335 | - |
RFQ |
Datasheet |
Radial | Tray | R75 | Active | 0.47 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.461 (37.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | |

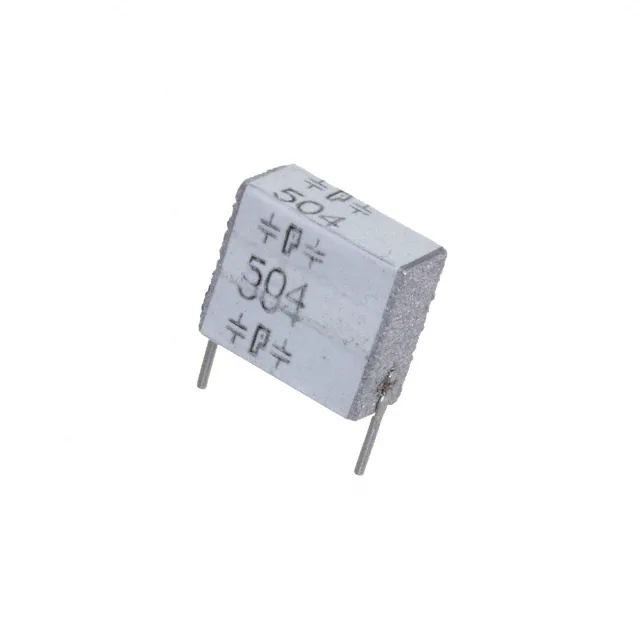

RA6504K500-FACAP FILM 0.5UF 10% 500VDC RADIAL |
6,541 | - |
RFQ |
Datasheet |
Radial | Bulk | Angstor® RA | Active | 0.5 µF | ±10% | 250V | 500V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.449 L x 0.280 W (11.40mm x 7.10mm) | 0.539 (13.70mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | |
C4AQCBW5200A3FJCAP FILM 20UF 5% 650VDC RADIAL |
255 | - |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 20 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.583 (40.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
