Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ECQ-UAAF274KCAP FILM 0.27UF 10% 275VAC RADIA |
1,022 | - |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.27 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.354 W (17.50mm x 9.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 | |
CB052D0105KBCCAP FILM 1UF 10% 63VDC 2824 |
3,869 | - |
RFQ |
Datasheet |
2824 (7260 Metric) | Tape & Reel (TR),Cut Tape (CT) | CB | Active | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.283 L x 0.240 W (7.20mm x 6.10mm) | 0.146 (3.70mm) | Solder Pads | - | General Purpose | - | |
B32621A6222J000CAP FILM 2200PF 5% 630VDC RADIAL |
19,077 | - |
RFQ |
Datasheet |
Radial | Bulk | B3262* - MKP High Pulse (stacked) | Active | 2200 pF | ±5% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.276 (7.00mm) | PC Pins | 0.394 (10.00mm) | High Pulse, DV/DT | - | |
B32620A6222K000CAP FILM 2200PF 10% 630VDC RAD |
6,886 | - |
RFQ |
Datasheet |
Radial | Bulk | B3262* - MKP High Pulse (stacked) | Active | 2200 pF | ±10% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | High Pulse, DV/DT | - | |
R76UI122050H4JCAP FILM 2200PF 5% 2KVDC RADIAL |
4,463 | - |
RFQ |
Datasheet |
Radial | Bulk | R76H | Active | 2200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 289 mOhms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.157 W (18.00mm x 4.00mm) | 0.398 (10.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | |

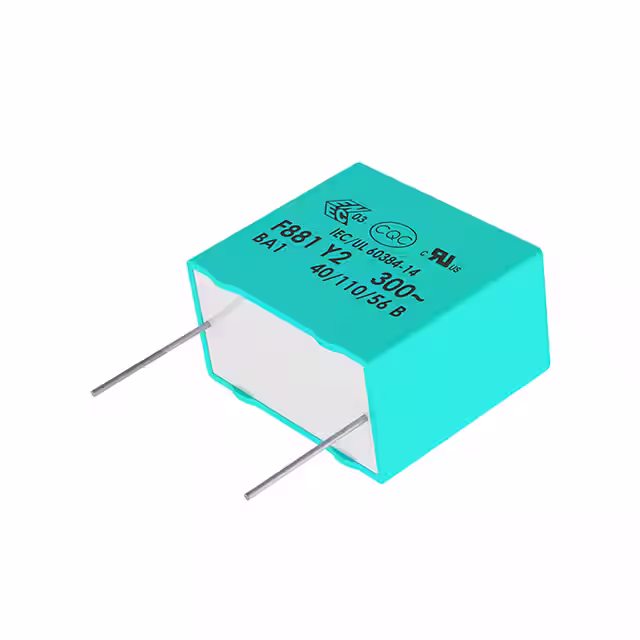

F881BC153M300CCAP FILM 0.015UF 20% 1KVDC RAD |
4,000 | - |
RFQ |
Datasheet |
Radial | Bag | F881 | Active | 0.015 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | - | |
B32521C1474K000CAP FILM 0.47UF 10% 100VDC RAD |
2,919 | - |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.394 (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | |
R76UI156050H4JCAP FILM 5600PF 5% 2KVDC RAD |
2,593 | - |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 5600 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 341 mOhms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.476 (12.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | |

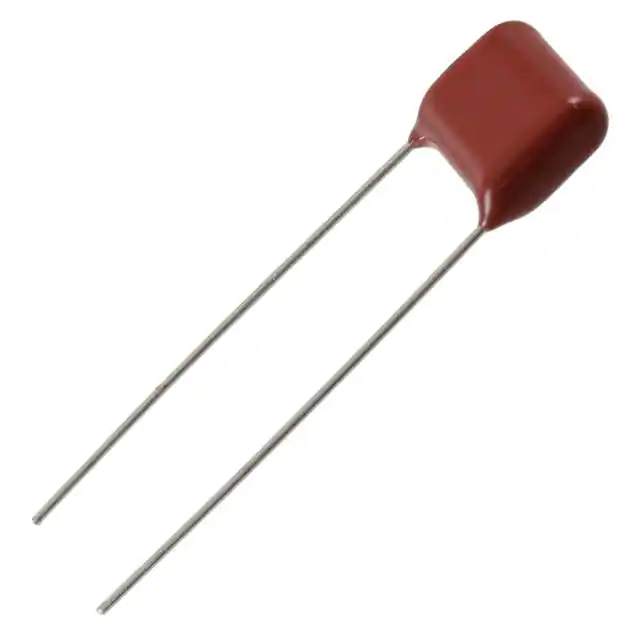

ECQ-E1564KFCAP FILM 0.56UF 10% 100VDC RAD |
1,452 | - |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.56 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.217 W (12.00mm x 5.50mm) | 0.469 (11.90mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - | |
ECW-FE2W334JCAP FILM 0.33UF 5% 450VDC RADIAL |
1,398 | - |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 0.33 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | |
PHE840MA5470MA02R17T0CAP FILM 0.047UF 20% 760VDC RAD |
1,348 | - |
RFQ |
Datasheet |
Radial | Bulk | PHE840M | Active | 0.047 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.177 W (13.00mm x 4.50mm) | 0.413 (10.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 | |
B32520C6473J000CAP FILM 0.047UF 5% 400VDC RAD |
1,156 | - |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.047 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394 L x 0.197 W (10.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.295 (7.50mm) | Automotive; EMI, RFI Suppression | - | |
ECQ-E4154KFCAP FILM 0.15UF 10% 400VDC RAD |
1,018 | - |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.15 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.197 W (18.50mm x 5.00mm) | 0.528 (13.40mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - | |

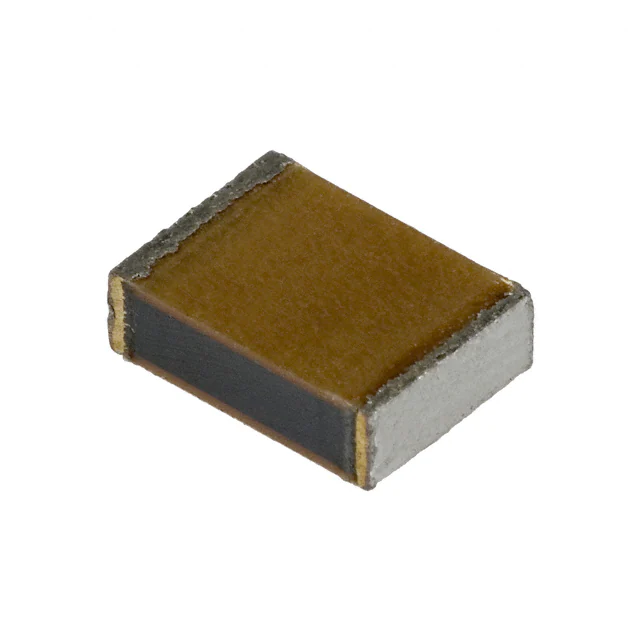

ECH-U1683JC9CAP FILM 0.068UF 5% 100VDC 2416 |
4,616 | - |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.068 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.142 (3.60mm) | Solder Pads | - | General Purpose | - | |
MKP2G016801B00JSSDCAP FILM 6800PF 5% 400VDC RAD |
9,699 | - |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 6800 pF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.118 W (7.20mm x 3.00mm) | 0.295 (7.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 | |
B32620A4223J000CAP FILM 0.022UF 5% 400VDC RAD |
4,435 | - |
RFQ |
Datasheet |
Radial | Bulk | B3262* - MKP High Pulse (stacked) | Active | 0.022 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.197 W (10.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.295 (7.50mm) | High Pulse, DV/DT | - | |
B32520C1334K000CAP FILM 0.33UF 10% 100VDC RAD |
3,369 | - |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | |
B32621A6103K000CAP FILM 10000PF 10% 630VDC RAD |
3,233 | - |
RFQ |
Datasheet |
Radial | Bulk | B3262* - MKP High Pulse (stacked) | Active | 10000 pF | ±10% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.394 (10.00mm) | High Pulse, DV/DT | - | |
B32621A6332J000CAP FILM 3300PF 5% 630VDC RADIAL |
2,798 | - |
RFQ |
Datasheet |
Radial | Bulk | B3262* - MKP High Pulse (stacked) | Active | 3300 pF | ±5% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.394 (10.00mm) | High Pulse, DV/DT | - | |
MKP2G024701K00MSSDCAP FILM 0.047UF 20% 400VDC RAD |
2,019 | - |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 0.047 µF | ±20% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.283 W (7.20mm x 7.20mm) | 0.512 (13.00mm) | PC Pins | 0.197 (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 |
