Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R76TI222050H7JCAP FILM 0.022UF 5% 1.6KVDC RAD |
1,401 | - |
RFQ |
Datasheet |
Radial | Bulk | R76H | Active | 0.022 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 29 mOhms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.512 W (18.00mm x 13.00mm) | 0.476 (12.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | |
B32560J1105J000CAP FILM 1UF 5% 100VDC 2DIP |
1,373 | - |
RFQ |
Datasheet |
2-DIP | Bulk | B3256* - MKT SilverCap™ | Not For New Designs | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.354 L x 0.217 W (9.00mm x 5.50mm) | 0.276 (7.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - | |
B32682A7472K000CAP FILM 4700PF 10% 1.25KVDC RAD |
3,394 | - |
RFQ |
Datasheet |
Radial | Bulk | B3268* - MFP Very High Pulse | Active | 4700 pF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.472 (12.00mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - | |
FKP1G022204D00KSSDCAP FILM 0.022UF 10% 400VDC RAD |
2,264 | - |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 0.022 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.551 (14.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | |
SMDIC03220TB00KQ00CAP FILM 0.22UF 10% 63VDC 2824 |
1,676 | - |
RFQ |
Datasheet |
2824 (7260 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 0.22 µF | ±10% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.283 L x 0.240 W (7.20mm x 6.10mm) | 0.209 (5.30mm) | Solder Pads | - | General Purpose | - | |

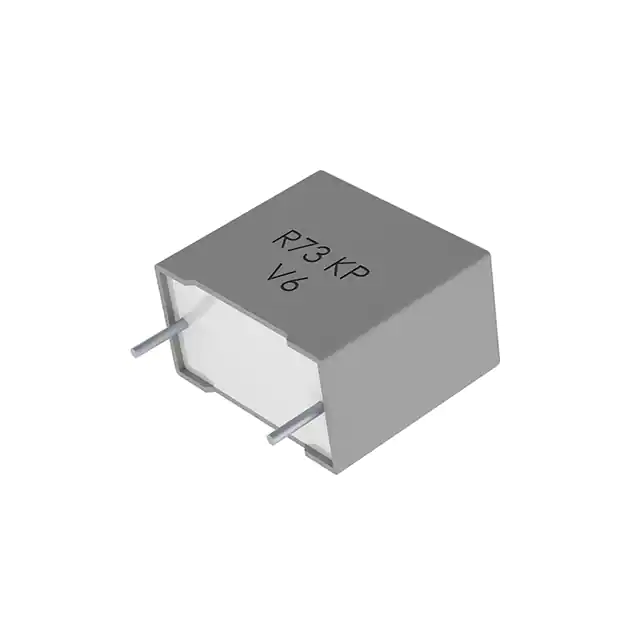

R73UI0680SE03JCAP FILM 680PF 5% 2KVDC RADIAL |
1,968 | - |
RFQ |
Radial | Box | R73 | Active | 680 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | ||
SMR5103K100J01L4BULKCAP FILM 10000PF 10% 100VDC RAD |
1,909 | - |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 10000 pF | ±10% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - | |

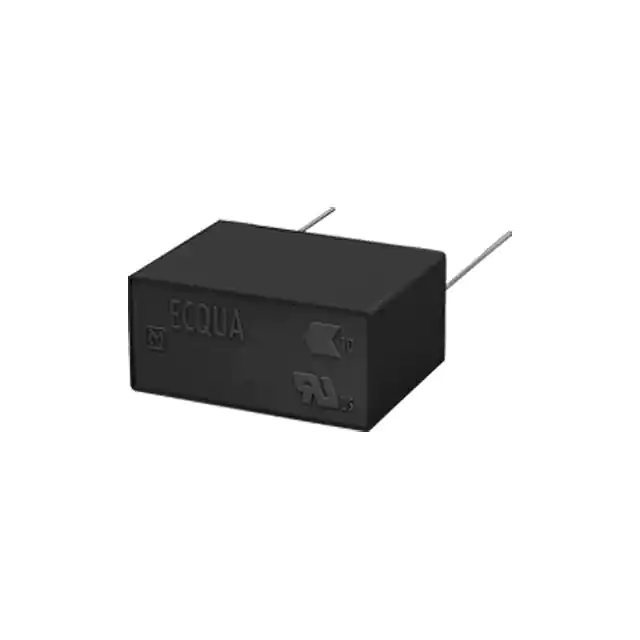

ECQ-UAAF824MCAP FILM 0.82UF 20% 275VAC RADIA |
1,244 | - |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.82 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 | |
ECW-U2104JC9CAP FILM 0.1UF 5% 250VDC 2420 |
3,322 | - |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.1 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.157 (4.00mm) | Solder Pads | - | General Purpose | - | |
BFC237011334CAP FILM 0.33UF 10% 63VDC RADIAL |
9,530 | - |
RFQ |
Datasheet |
Radial | Bulk | MKT370 | Active | 0.33 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.200 (5.08mm) | Automotive | AEC-Q200 | |
QXK2E104KTPCAP FILM 0.1UF 10% 250VDC RADIAL |
5,100 | - |
RFQ |
Datasheet |
Radial | Bulk | QXK | Active | 0.1 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.433 L x 0.205 W (11.00mm x 5.20mm) | 0.409 (10.40mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - | |
MKS4G034704F00KSSDCAP FILM 0.47UF 10% 400VDC RAD |
4,249 | - |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 0.47 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709 L x 0.315 W (18.00mm x 8.00mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - | |
SMR5103J50J01L4BULKCAP FILM 10000PF 5% 50VDC RADIAL |
2,653 | - |
RFQ |
Datasheet |
Radial | Bag | SMR | Active | 10000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - | |
BFC237042333CAP FILM 0.033UF 5% 250VDC RAD |
2,454 | - |
RFQ |
Datasheet |
Radial | Bulk | MKT370 | Active | 0.033 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.138 W (7.20mm x 3.50mm) | 0.315 (8.00mm) | PC Pins | 0.200 (5.08mm) | Automotive | AEC-Q200 | |
MKX2AW33304J00KSSDCAP FILM 0.33UF 10% 630VDC RAD |
2,049 | - |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 0.33 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.354 W (18.00mm x 9.00mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 | |
B32652A3684K000CAP FILM 0.68UF 10% 250VDC RAD |
1,334 | - |
RFQ |
Datasheet |
Radial | Bulk | B3265* - MKP General Purpose | Active | 0.68 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709 L x 0.354 W (18.00mm x 9.00mm) | 0.295 (7.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | |
B32912A3333M000CAP FILM 0.033UF 20% 760VDC RAD |
1,298 | - |
RFQ |
Datasheet |
Radial | Bulk | B3291*A/B3 - X1 Standard | Active | 0.033 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X1 | |
B32522C1105K000CAP FILM 1UF 10% 100VDC RADIAL |
3,750 | - |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | |

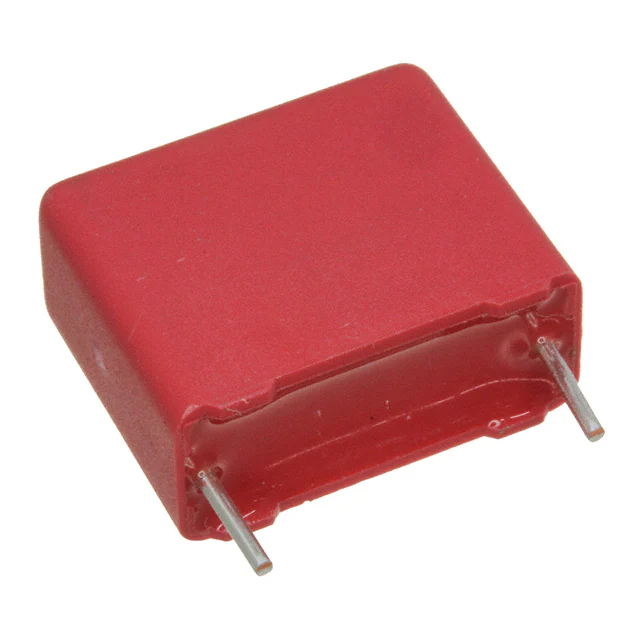

MKP4G033304F00JSSDCAP FILM 0.33UF 5% 400VDC RAD |
3,592 | - |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 0.33 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709 L x 0.315 W (18.00mm x 8.00mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - | |
PHE450SB4560JR06CAP FILM 5600PF 5% 2KVDC RADIAL |
2,000 | - |
RFQ |
Datasheet |
Radial | Bulk | PHE450 | Active | 5600 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.217 W (18.00mm x 5.50mm) | 0.413 (10.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
