Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B32652A7473J000CAP FILM 0.047UF 5% 1.25KV RAD |
4,978 | - |
RFQ |
Datasheet |
Radial | Bulk | B3265* - MKP General Purpose | Active | 0.047 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709 L x 0.433 W (18.00mm x 11.00mm) | 0.728 (18.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | |

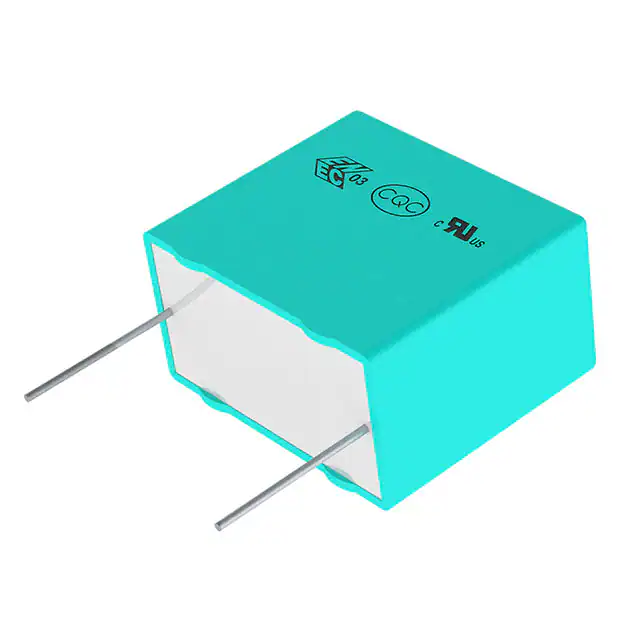

F862BZ564K310ZV054CAP FILM 0.56UF 10% 630VDC RAD |
1,276 | - |
RFQ |
Datasheet |
Radial | Bulk | F862 | Active | 0.56 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.472 W (18.00mm x 12.00mm) | 0.787 (20.00mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | |
ECW-FE2W225KCAP FILM 2.2UF 10% 450VDC RADIAL |
1,140 | - |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 2.2 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.394 W (17.50mm x 10.00mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | |

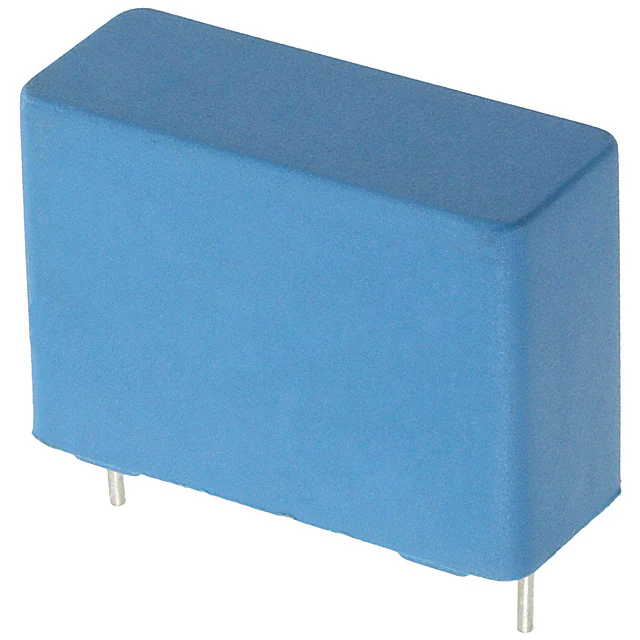

B32023A3154M189CAP FILM 0.15UF 20% 1.5KVDC RAD |
1,502 | - |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | B3202* - Y2 Standard | Active | 0.15 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.413 W (26.50mm x 10.50mm) | 0.728 (18.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | Y2 | |
25MU104KZ22012CAP FILM 0.1UF 10% 25VDC 0805 |
11,746 | - |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMLCAP®, MU | Active | 0.1 µF | ±10% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.047 (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - | |
25MU154KZ22012CAP FILM 0.15UF 10% 25VDC 0805 |
3,259 | - |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMLCAP®, MU | Active | 0.15 µF | ±10% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.047 (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - | |
DME10S1K-FCAP FILM 10000PF 10% 1KVDC RAD |
21,506 | - |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 10000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.610 L x 0.236 W (15.50mm x 6.00mm) | 0.492 (12.50mm) | PC Pins | 0.492 (12.50mm) | General Purpose | - | |
168103K100A-FCAP FILM 10000PF 10% 100VDC RAD |
7,062 | - |
RFQ |
Datasheet |
Radial | Bulk | 168 | Active | 10000 pF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - | |

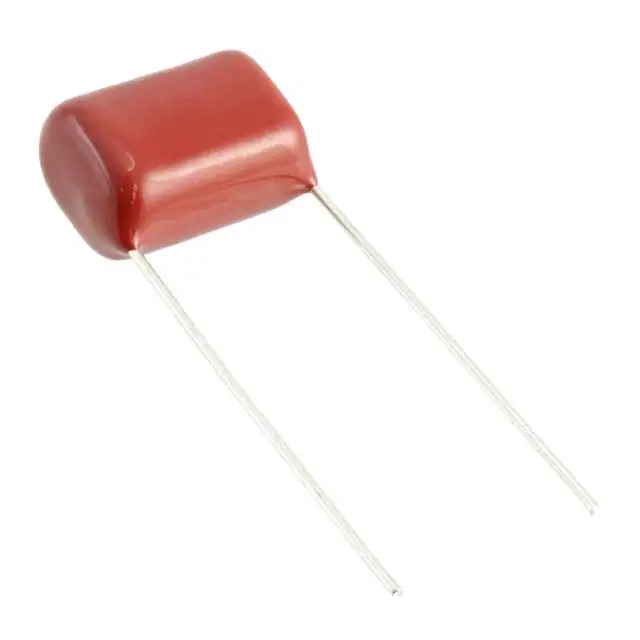

ECW-FD2W225JCAP FILM 2.2UF 5% 450VDC RADIAL |
4,180 | - |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 2.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.437 W (17.50mm x 11.10mm) | 0.563 (14.30mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | |
160104K250D-FCAP FILM 0.1UF 10% 250VDC RADIAL |
1,897 | - |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - | |
168104K63A-FCAP FILM 0.1UF 10% 63VDC RADIAL |
2,129 | - |
RFQ |
Datasheet |
Radial | Bulk | 168 | Active | 0.1 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - | |
QXP2G223KRPTCAP FILM 0.022UF 10% 400VDC RAD |
1,120 | - |
RFQ |
Datasheet |
Radial | Bulk | QXP | Active | 0.022 µF | ±10% | 160V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.630 L x 0.228 W (16.00mm x 5.80mm) | 0.429 (10.90mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - | |
PHE840MD6220MD13R06L2CAP FILM 0.22UF 20% 760VDC RAD |
5,798 | - |
RFQ |
Datasheet |
Radial | Bulk | PHE840M | Active | 0.22 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.256 W (26.00mm x 6.50mm) | 0.571 (14.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 | |

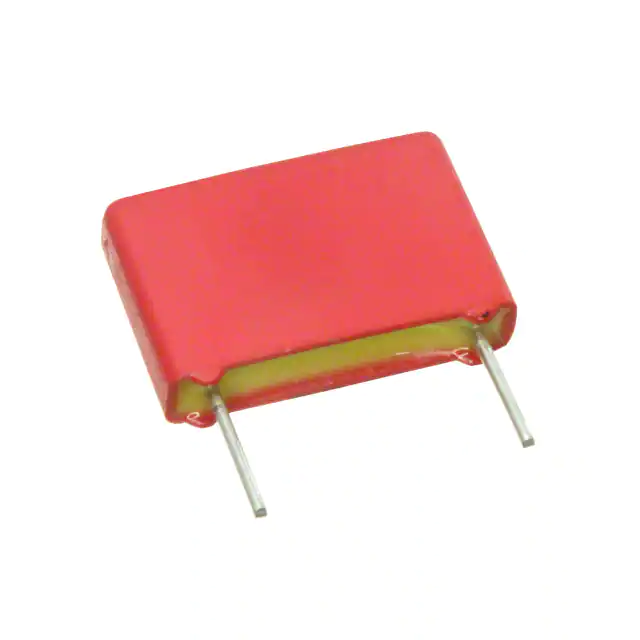

FKP4O122204F00JSSDCAP FILM 0.022UF 5% 1KVDC RAD |
1,772 | - |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 0.022 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.709 L x 0.315 W (18.00mm x 8.00mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | |
SMDID03470TB00MQ00CAP FILM 0.47UF 20% 100VDC 2824 |
3,138 | - |
RFQ |
Datasheet |
2824 (7260 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 0.47 µF | ±20% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.283 L x 0.240 W (7.20mm x 6.10mm) | 0.209 (5.30mm) | Solder Pads | - | General Purpose | - | |
QXK2G104KTPTZHCAP FILM 0.1UF 10% 400VDC RADIAL |
4,392 | - |
RFQ |
Datasheet |
Radial | Bulk | QXK-ZH | Active | 0.1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.287 W (15.50mm x 7.30mm) | 0.508 (12.90mm) | PC Pins | 0.492 (12.50mm) | General Purpose | - | |

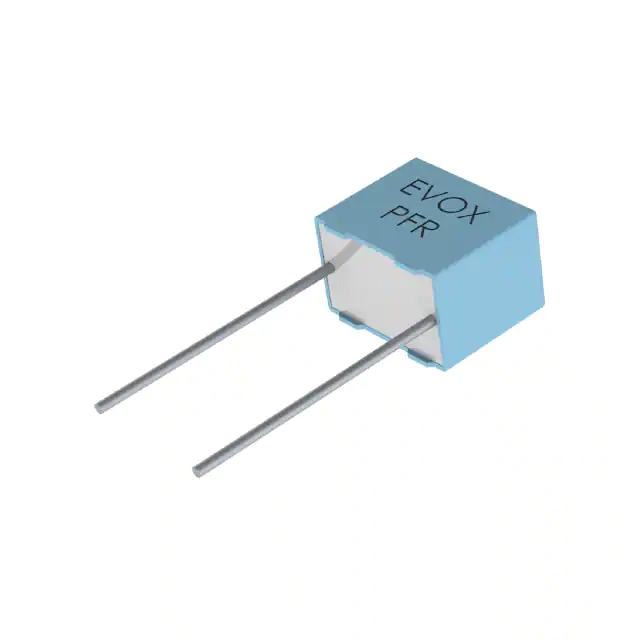

PFR5221J1000J11L4BULKCAP FILM 220PF 5% 1KVDC RADIAL |
3,006 | - |
RFQ |
Datasheet |
Radial | Box | PFR | Active | 220 pF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | |
FKP1U013305D00KSSDCAP FILM 3300PF 10% 2KVDC RAD |
1,180 | - |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 3300 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043 L x 0.276 W (26.50mm x 7.00mm) | 0.650 (16.50mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | |
MMK5394M50J01L4BULKCAP FILM 0.39UF 20% 50VDC RADIAL |
1,998 | - |
RFQ |
Datasheet |
Radial | Box | MMK | Active | 0.39 µF | ±20% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - | |

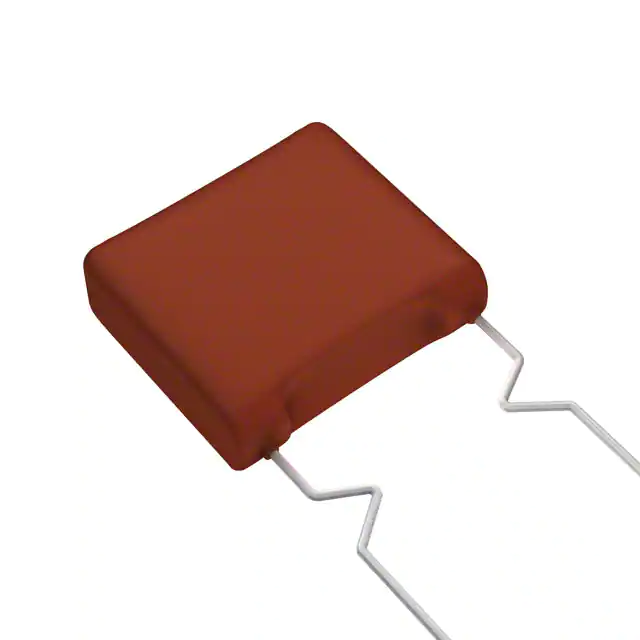

ECW-F2564JAQCAP FILM 0.56UF 5% 250VDC RADIAL |
1,005 | - |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.56 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713 L x 0.272 W (18.10mm x 6.90mm) | 0.783 (19.90mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
