Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RXEF040PTC RESET FUSE 72V 400MA RADIAL |
43,866 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 400 mA | 800 mA | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.299 Dia x 0.118 T (7.60mm x 3.00mm) | 0.532 (13.50mm) | - | |
RUEF110PTC RESET FUSE 30V 1.1A RADIAL |
32,717 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 1.1 A | 2.2 A | 6.6 s | 70 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.559 (14.20mm) | - | |
B59606A0110A062PTC RESET FUSE 30V 90MA 1210 |
22,169 | - |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q200 | Active | Ceramic | 30V | 500 mA | 90 mA | 180 mA | - | - | - | 27 Ohms | -20°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | - | 0.071 (1.80mm) | |
0ZRE0016FF1CPTC RESET FUSE 240V 160MA RADIAL |
94,739 | - |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRE | Active | Polymeric | 240V | 2 A | 160 mA | 370 mA | 15 s | 2.5 Ohms | 7.8 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.390 L x 0.150 W (9.90mm x 3.80mm) | 0.492 (12.50mm) | - | |
RUEF135PTC RESET FUSE 30V 1.35A RADIAL |
23,114 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 1.35 A | 2.7 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.532 (13.50mm) | - | |
MF-R250PTC RESET FUSE 30V 2.5A RADIAL |
8,788 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R | Active | Polymeric | 30V | 40 A | 2.5 A | 5 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.472 L x 0.118 W (12.00mm x 3.00mm) | 0.720 (18.30mm) | - | |
RXEF075PTC RESET FUSE 72V 750MA RADIAL |
73,253 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.118 T (10.20mm x 3.00mm) | 0.598 (15.20mm) | - | |
NANOSMDCH030F/24-02PTC RESET FUSE 24V 300MA 1206 |
48,173 | - |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, nanoSMD | Active | Polymeric | 24V | 10 A | 300 mA | 820 mA | 100 ms | 500 mOhms | 1.95 Ohms | - | -40°C ~ 125°C | - | Surface Mount | 0.134 L x 0.071 W (3.40mm x 1.80mm) | - | 0.049 (1.25mm) | |
MF-RX185/72-0PTC RESET FUSE 72V 1.85A RADIAL |
57,443 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-RX/72 | Active | Polymeric | 72V | 40 A | 1.85 A | 3.7 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.701 L x 0.122 W (17.80mm x 3.10mm) | 0.902 (22.90mm) | - | |
RUEF185PTC RESET FUSE 30V 1.85A RADIAL |
11,263 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 1.85 A | 3.7 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.118 T (10.20mm x 3.00mm) | 0.618 (15.70mm) | - | |

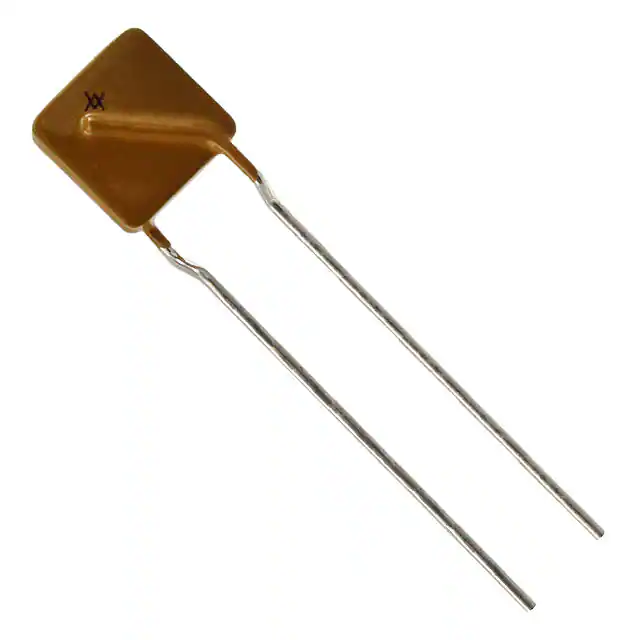

TRF600-150-2PTC RESET FUSE 250V 150MA RADIAL |
10,698 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 3 A | 150 mA | 300 mA | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.354 L x 0.181 W (9.00mm x 4.60mm) | 0.492 (12.50mm) | - | |
RUEF250PTC RESET FUSE 30V 2.5A RADIAL |
19,865 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 2.5 A | 5 A | 10.3 s | 20 mOhms | 70 mOhms | - | - | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.720 (18.30mm) | - | |
MF-R400PTC RESET FUSE 30V 4A RADIAL |
19,554 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R | Active | Polymeric | 30V | 40 A | 4 A | 8 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.567 L x 0.118 W (14.40mm x 3.00mm) | 0.976 (24.80mm) | - | |
MF-FSML050/8-2PTC RESET FUSE 8V 500MA 0603 |
27,283 | - |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-FSML | Active | Polymeric | 8V | 50 A | 500 mA | 1 A | 60 ms | 60 mOhms | 500 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.065 L x 0.033 W (1.65mm x 0.85mm) | - | 0.028 (0.70mm) | |
MF-ASML010/6-2PTC RESET FUSE 6V 100MA 0402 |
56,624 | - |
RFQ |
Datasheet |
0402 (1005 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-ASML/X | Active | Polymeric | 6V | 50 A | 100 mA | 300 mA | 1 s | 150 mOhms | 3 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.039 L x 0.020 W (1.00mm x 0.50mm) | - | 0.024 (0.60mm) | |
MF-ASML050/6-2PTC RESET FUSE 6V 500MA 0402 |
26,307 | - |
RFQ |
Datasheet |
0402 (1005 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-ASML/X | Active | Polymeric | 6V | 50 A | 500 mA | 1 A | 100 ms | 500 mOhms | 500 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.039 L x 0.020 W (1.00mm x 0.50mm) | - | 0.024 (0.60mm) | |
RUEF300PTC RESET FUSE 30V 3A RADIAL |
16,415 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.650 (16.50mm) | - | |
B59890C0120A051PTC RESET FUSE 265V 30MA RADIAL |
14,588 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | - | Active | Ceramic | 265V | 200 mA | 30 mA | 60 mA | - | - | - | 150 Ohms | 0°C ~ 60°C | - | Through Hole | 0.157 Dia x 0.197 T (4.00mm x 5.00mm) | 0.295 (7.50mm) | - | |
0603L050YRPTC RESET FUSE 6V 500MA 0603 |
51,831 | - |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 0603L | Active | Polymeric | 6V | 40 A | 500 mA | 1 A | 100 ms | 100 mOhms | 680 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.061 (1.55mm) | |
RKEF110PTC RESET FUSE 60V 1.1A RADIAL |
77,244 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 1.1 A | 2.2 A | 3 s | 170 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.299 L x 0.161 W (7.60mm x 4.10mm) | 0.591 (15.00mm) | - |
